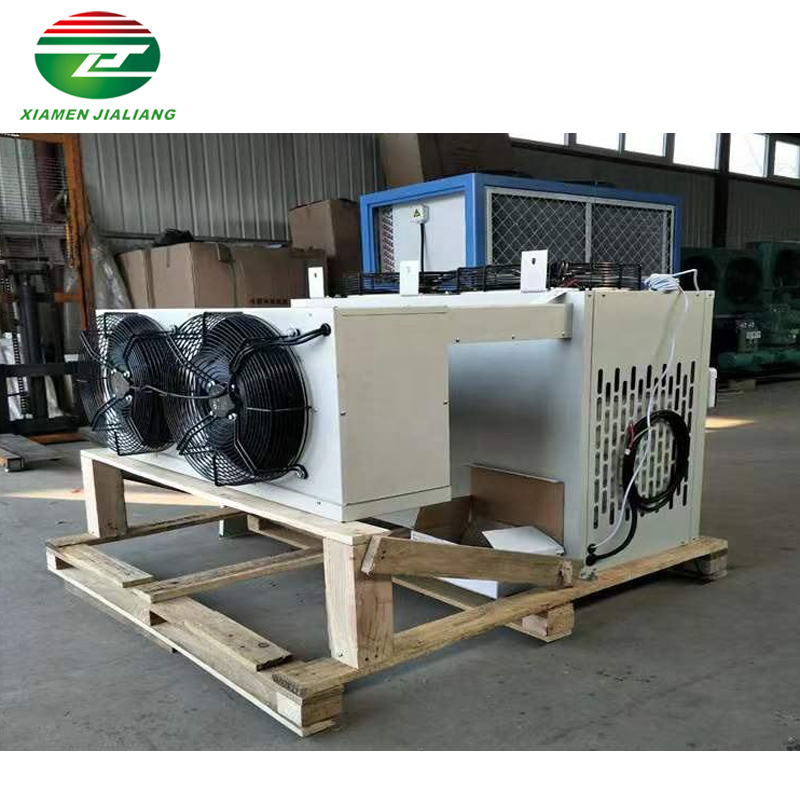

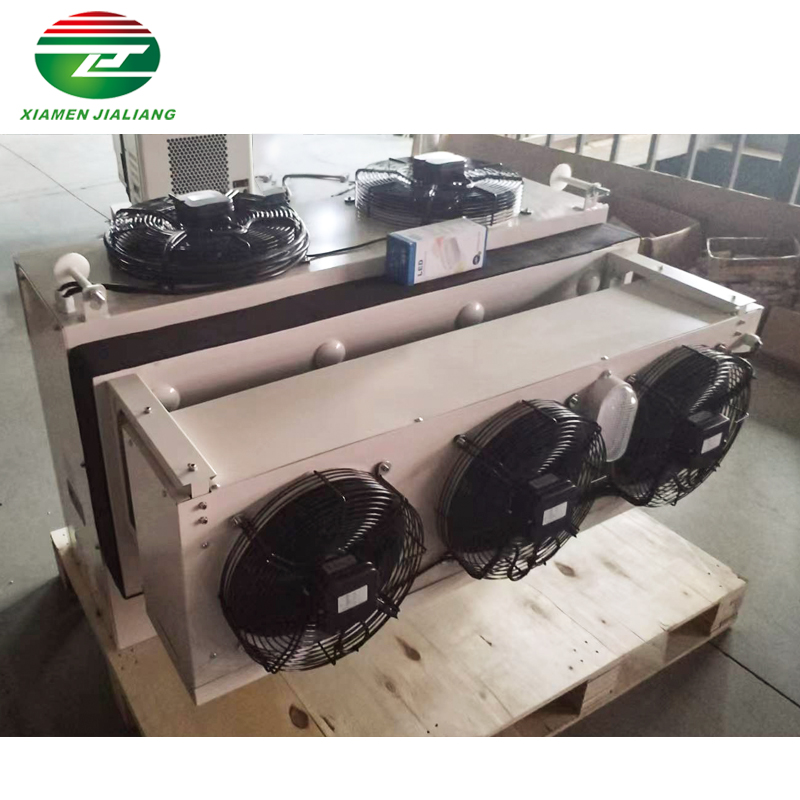

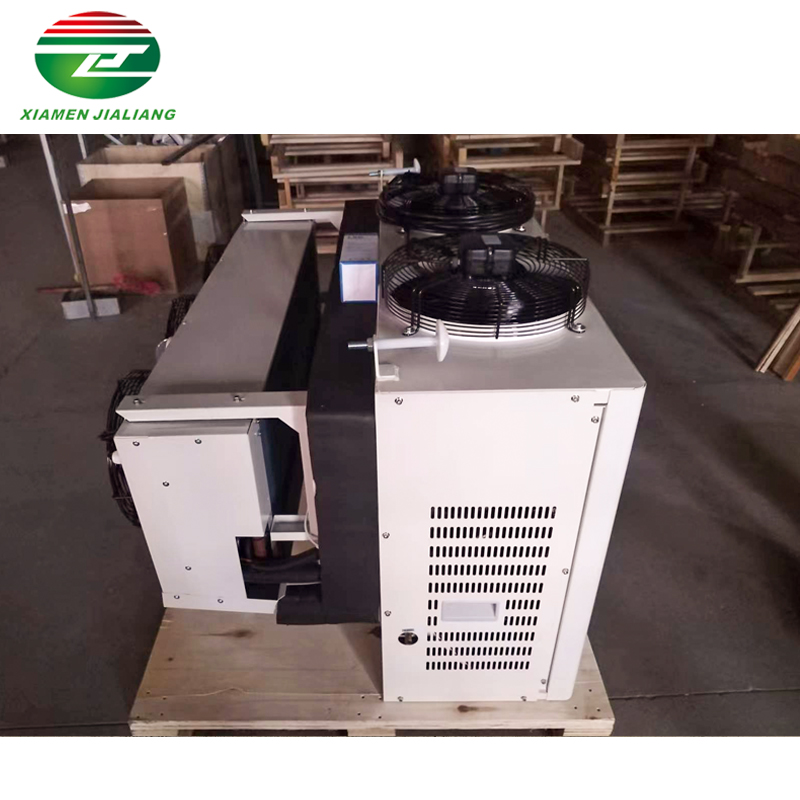

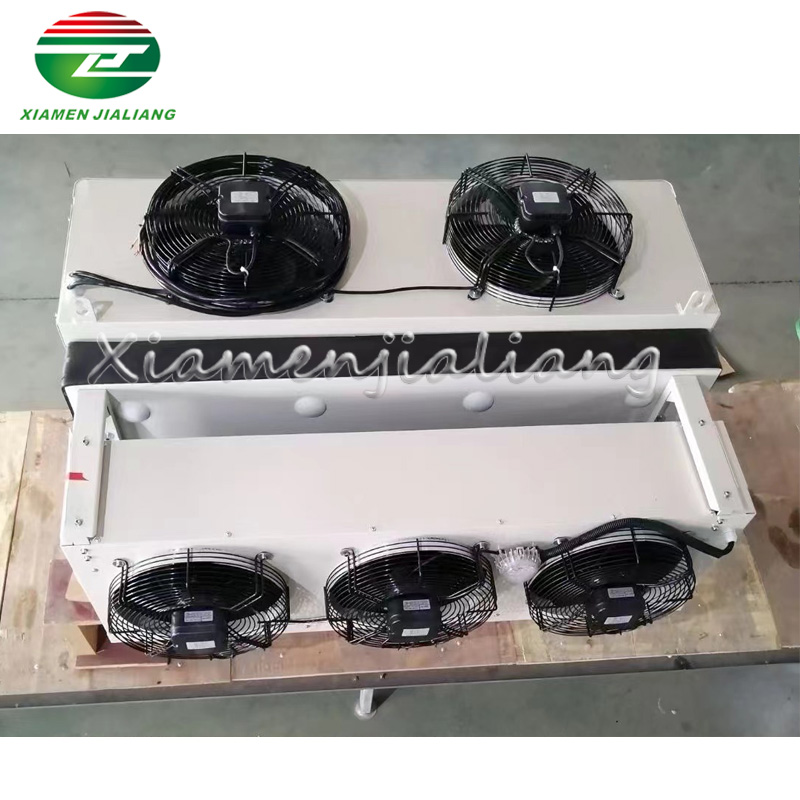

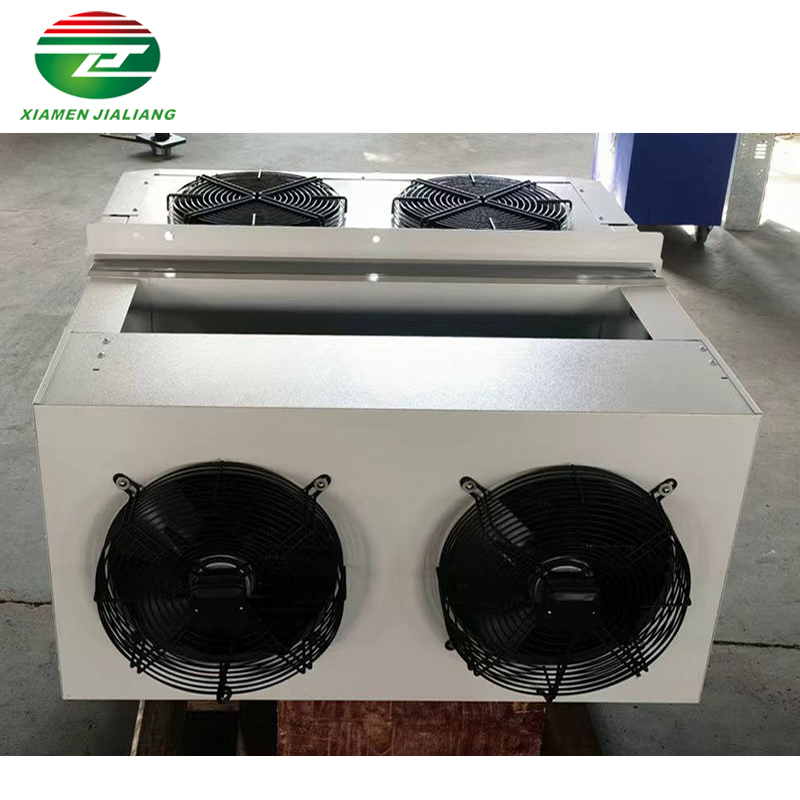

XMJL 4HP Commercial Portable Monoblock Condensing Unit
  • XMJL 4HP Commercial Portable Monoblock Condensing UnitXMJL 4HP Commercial Portable Monoblock Condensing UnitXMJL 4HP Commercial Portable Monoblock Condensing UnitXMJL 4HP Commercial Portable Monoblock Condensing UnitXMJL 4HP Commercial Portable Monoblock Condensing UnitXMJL 4HP Commercial Portable Monoblock Condensing Unit
    • XMJL 4HP Commercial Portable Monoblock Condensing Unit
    • Get A Quote
    • Description
    • Features

    Product Description

    XMJL 4HP Commercial Portable Monoblock Condensing Unit

    You need to provide the following information, and Xiamen Jialiang will recommend a suitable plan for you:

    1. Cold storage area and volume

    2. Use the venue (indoor or outdoor)

    3. Storage product type

    4. Storage temperature requirements for stored products

    5. Product temperature before storage

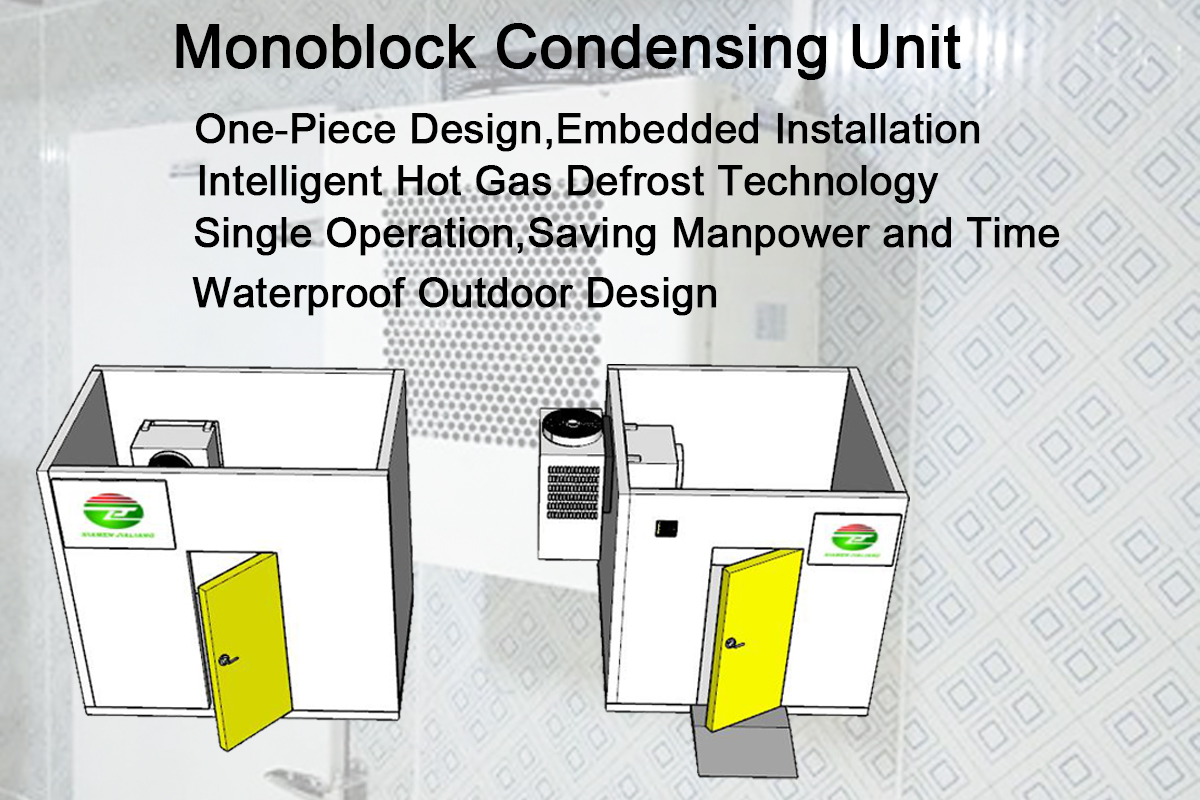

    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³
    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³

    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz


    Horse Power4HP
    Refrigeration Capacity8340 W
    Storage Capacity (0 ℃)75 m³
    Power3.15 KW
    Voltage220/380 V
    External Size (L*W*H(mm))888*1120*855
    Hole Size (L*W*H(mm))1090*490


    Evaporation Fan Parameters
    Motor Power150 W
    Blade Diameter300 mm
    Number of Fans2
    Air Volume4200 CMH

    Condensing Fan Parameters
    Motor Power195 W
    Blade Diameter350 mm
    Number of Fans2
    Air Volume6400 CMH




    Customized Services

    Product Details.

    All of our products can accept customization, accessories are CE certified and our products in the course of processing and are subject to stringent quality inspection before delivery, if there is a need, we photographed in the process every step of the process can be sent to customers.





    FAQ

    Q1: How does the XMJL monoblock condensing unit maintain a stable temperature?

    A1: The XMJL monoblock condensing unit maintains a stable temperature through an intelligent control system and efficient refrigeration technology.

    Q2: Does the XMJL monoblock condensing unit have remote monitoring capability?

    A2: Yes, many XMJL monoblock condensing units are equipped with remote monitoring systems, allowing users to monitor the operation status in real-time.

    Q3: How is the maintenance of the XMJL monoblock condensing unit performed?

    A3: The maintenance of the XMJL monoblock condensing unit includes regular cleaning, refrigerant inspection, and equipment servicing.

    Q4: Does the XMJL monoblock condensing unit have energy-saving features?

    A4: Yes, the XMJL monoblock condensing unit utilizes efficient energy-saving technologies to reduce energy consumption.
