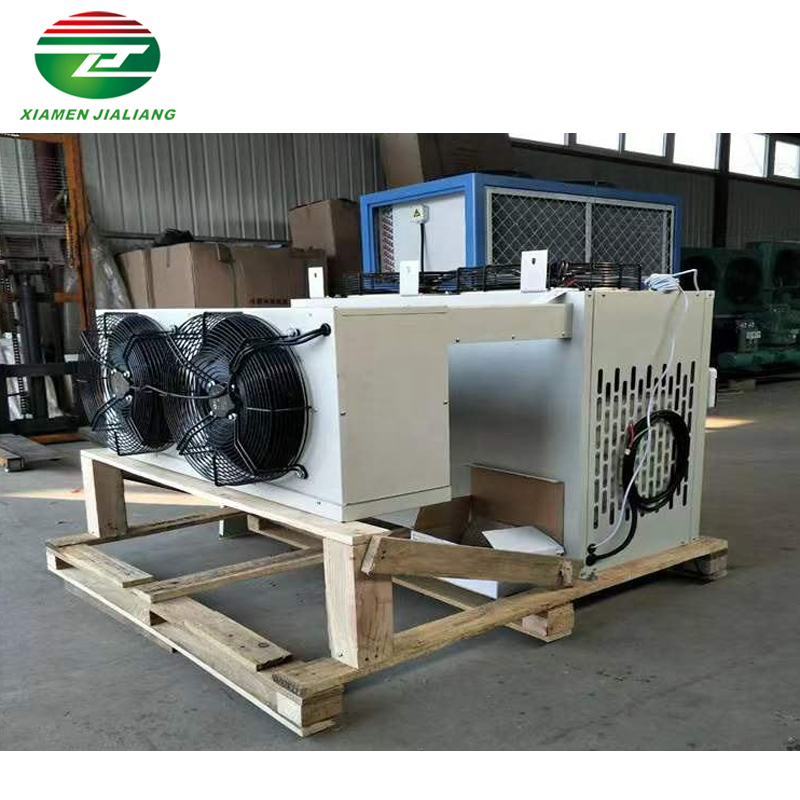

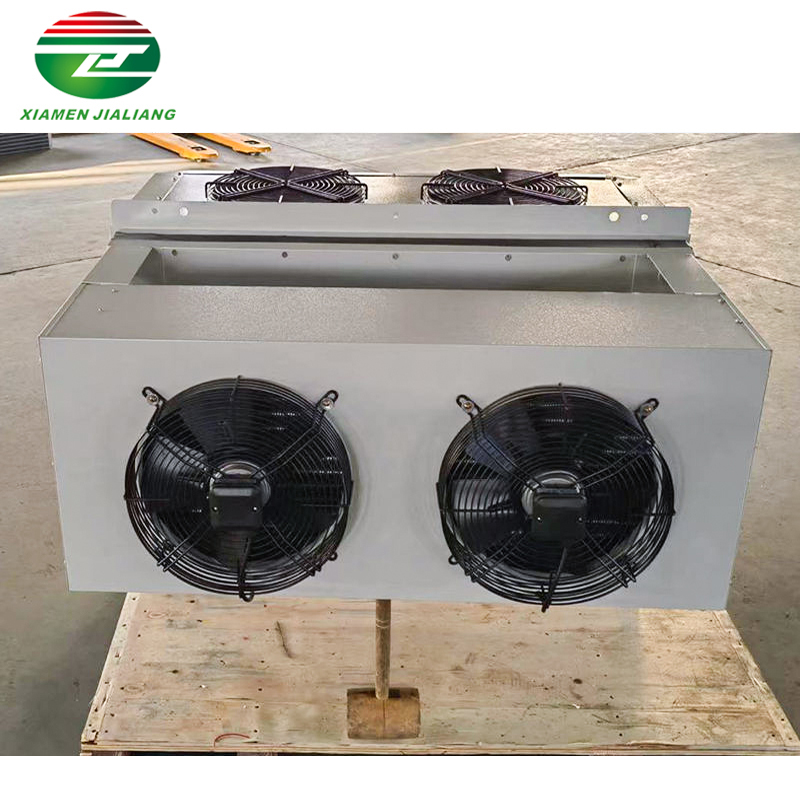

XMJL 3HP China Monoblock Condensing Unit For Cold Room Supplier
  • XMJL 3HP China Monoblock Condensing Unit For Cold Room SupplierXMJL 3HP China Monoblock Condensing Unit For Cold Room SupplierXMJL 3HP China Monoblock Condensing Unit For Cold Room SupplierXMJL 3HP China Monoblock Condensing Unit For Cold Room SupplierXMJL 3HP China Monoblock Condensing Unit For Cold Room SupplierXMJL 3HP China Monoblock Condensing Unit For Cold Room Supplier
    • XMJL 3HP China Monoblock Condensing Unit For Cold Room Supplier
    • Get A Quote
    • Description
    • Features

    Product Description

    XMJL 3HP China Monoblock Condensing Unit For Cold Room Supplier

    You need to provide the following information, and Xiamen Jialiang will recommend a suitable plan for you:

    1. Cold storage area and volume

    2. Use the venue (indoor or outdoor)

    3. Storage product type

    4. Storage temperature requirements for stored products

    5. Product temperature before storage



    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³

    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³

    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz


    Horse Power3HP
    Refrigeration Capacity2723 W
    Storage Capacity (-18 ℃)35 m³
    Power2.3 KW
    Voltage220/380 V
    External Size (L*W*H(mm))888*920*855
    Hole Size (L*W*H(mm))890*490

    Evaporation Fan Parameters
    Motor Power85 W
    Blade Diameter300 mm
    Number of Fans2
    Air Volume3200 CMH

    Condensing Fan Parameters
    Motor Power85 W
    Blade Diameter300 mm
    Number of Fans2
    Air Volume3600 CMH

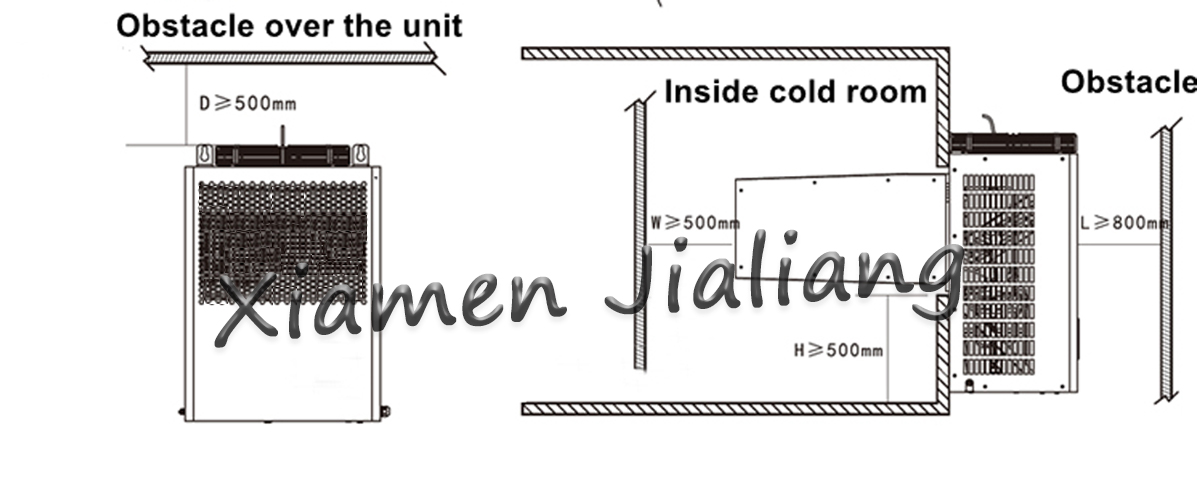

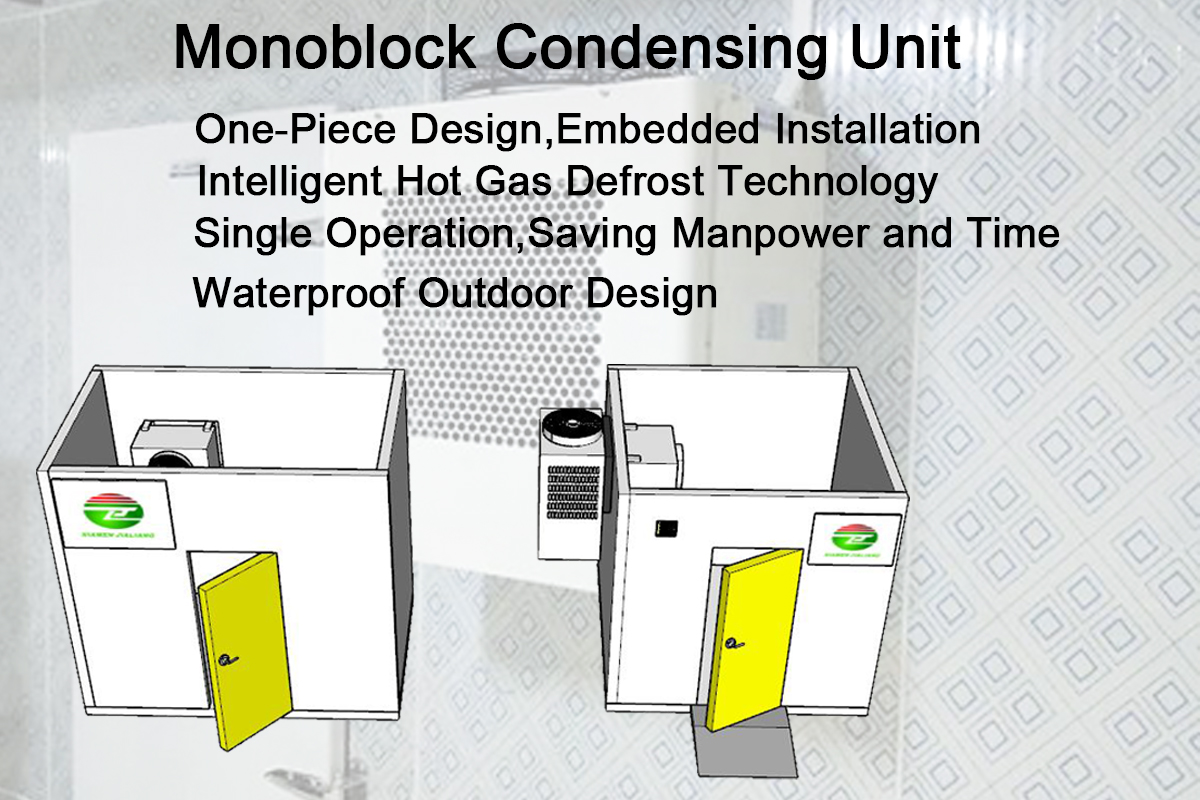

    Installation method: When installing, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, which greatly reduces the installation time and labor cost.




    Customized Services

    Product Details.

    All of our products can accept customization, accessories are CE certified and our products in the course of processing and are subject to stringent quality inspection before delivery, if there is a need, we photographed in the process every step of the process can be sent to customers.





    FAQ

    Q1: How does the XMJL monoblock condensing unit ensure a stable temperature?

    A1: The XMJL monoblock condensing unit achieves a stable temperature through an intelligent control system and highly efficient refrigeration technology.

    Q2: Is remote monitoring capability available for the XMJL monoblock condensing unit?

    A2: Certainly, a large number of XMJL monoblock condensing units come equipped with remote monitoring systems, enabling users to monitor the unit's operation status in real-time.

    Q3: Is the XMJL monoblock condensing unit compliant with environmental requirements?

    A3: Yes, modern monoblock condensing units generally use environmentally friendly refrigerants and energy-saving technologies, complying with environmental requirements.

    Q4: Does the XMJL monoblock condensing unit have an emergency shutdown function?

    A4: Yes, the XMJL monoblock condensing unit is typically equipped with an emergency shutdown function to deal with unforeseen situations.
