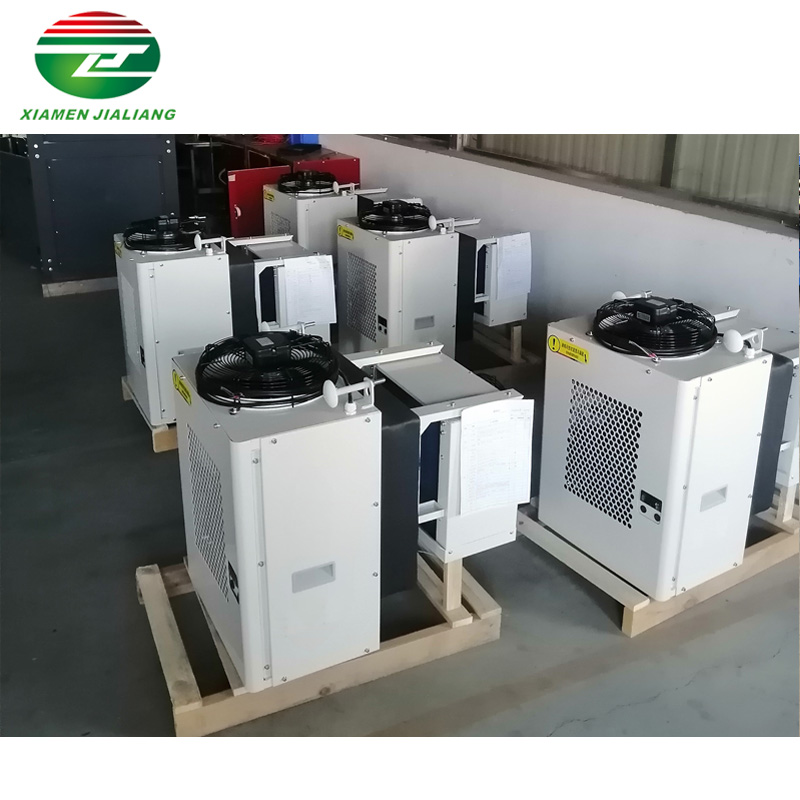

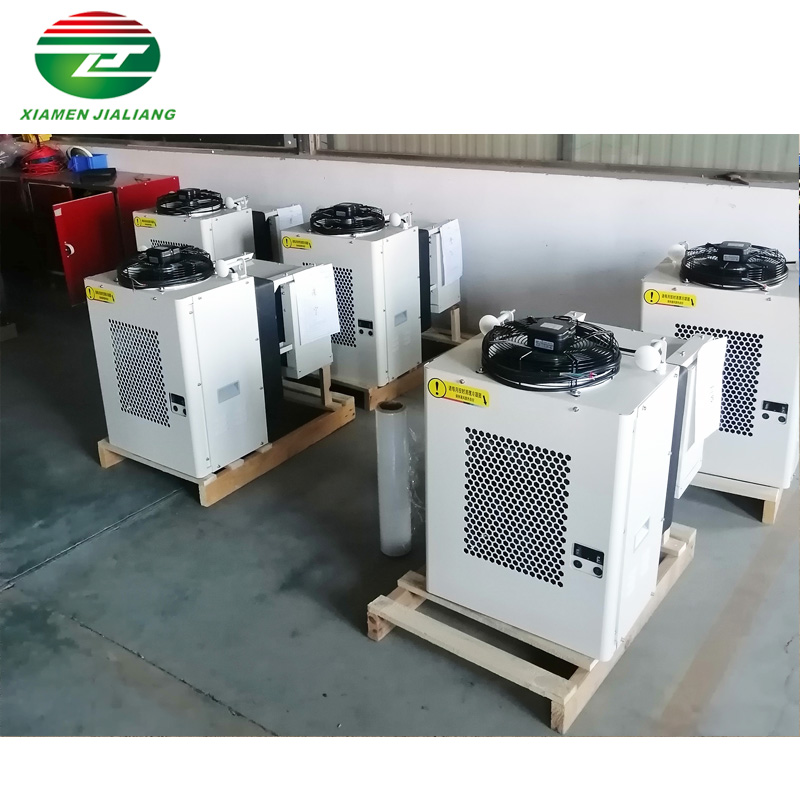

2 HP Wall Mounted Monoblock Condensing Unit
  • 2 HP Wall Mounted Monoblock Condensing Unit 2 HP Wall Mounted Monoblock Condensing Unit 2 HP Wall Mounted Monoblock Condensing Unit 2 HP Wall Mounted Monoblock Condensing Unit 2 HP Wall Mounted Monoblock Condensing Unit 2 HP Wall Mounted Monoblock Condensing Unit
    • 2 HP Wall Mounted Monoblock Condensing Unit

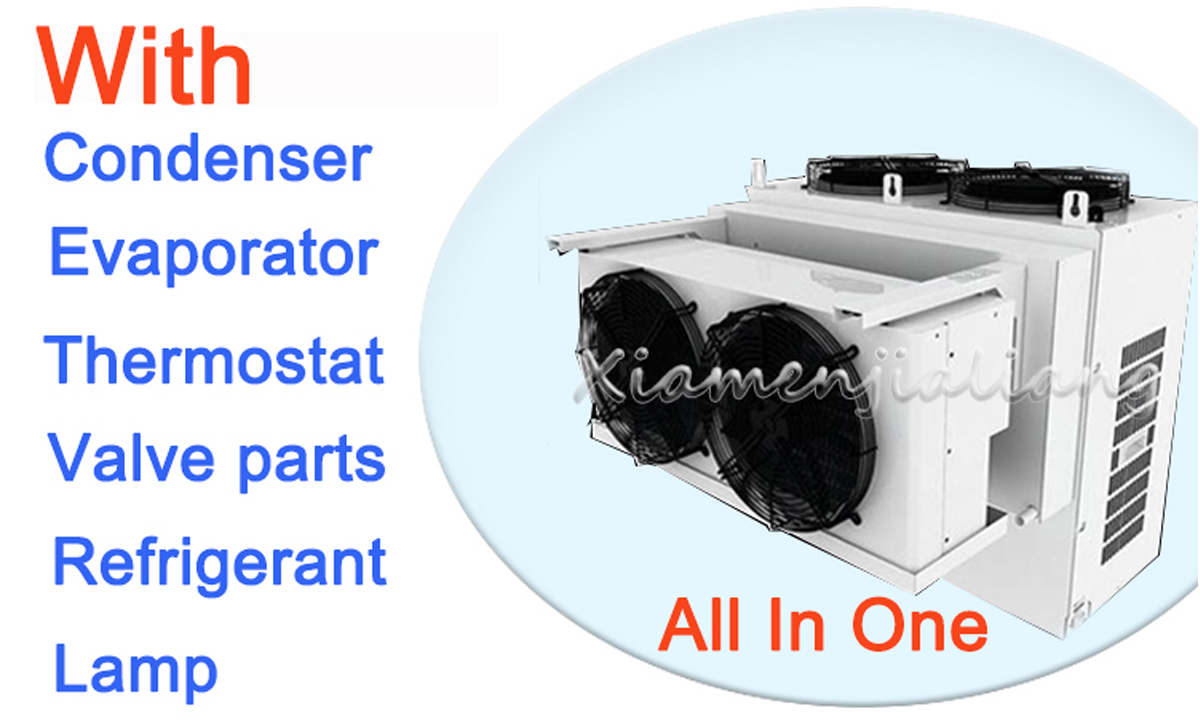

      • Cold room monoblock refrigeration unit is divided into :Wall-mounted monoblock and Ceiling-mounted monoblock

    • Get A Quote
    • Description
    • Features

    Product Description

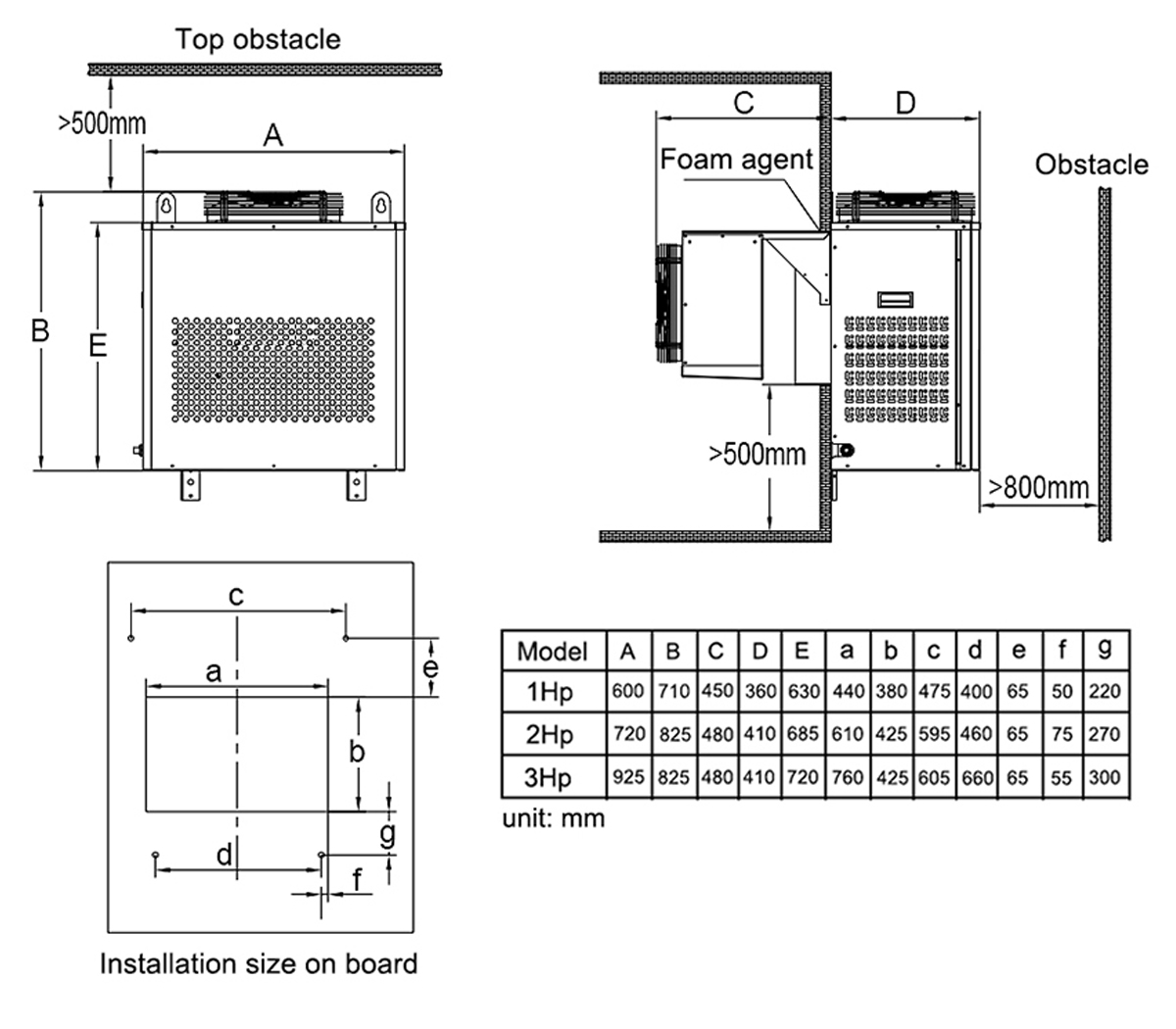

    1. The product structure adopts wall hanging type, and the unit is installed on the side panel of the storehouse body.


    2. There are two types of units, medium temperature and low temperature. Medium temperatureunit mainly meets the use of cold room at 0-10"C, such as fresh storage. The low temperature unit mainly meets the use of cold storage at - 15 ~- 20"C, such as frozen storage.


    3.With hot gas bypass defrosting, the defrosting effect is good.


    4.Fully automatic intelligent control, with warehouse temperaturesetting and control, defrost setting and control, system operation protection functions.

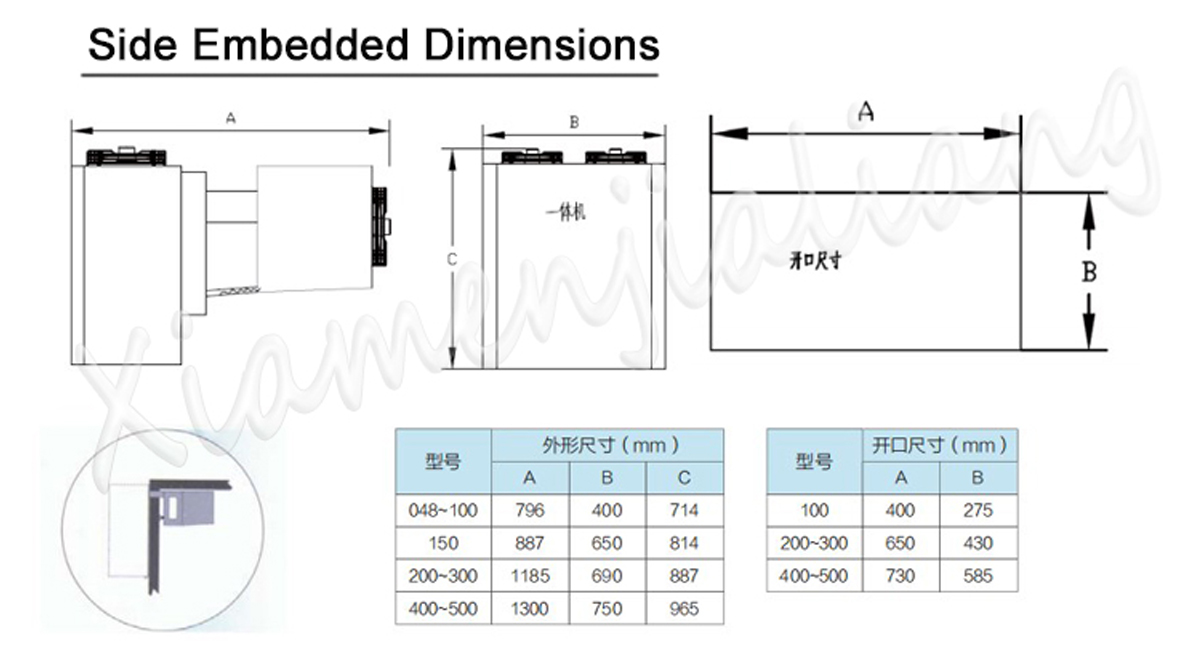

    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³
    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³

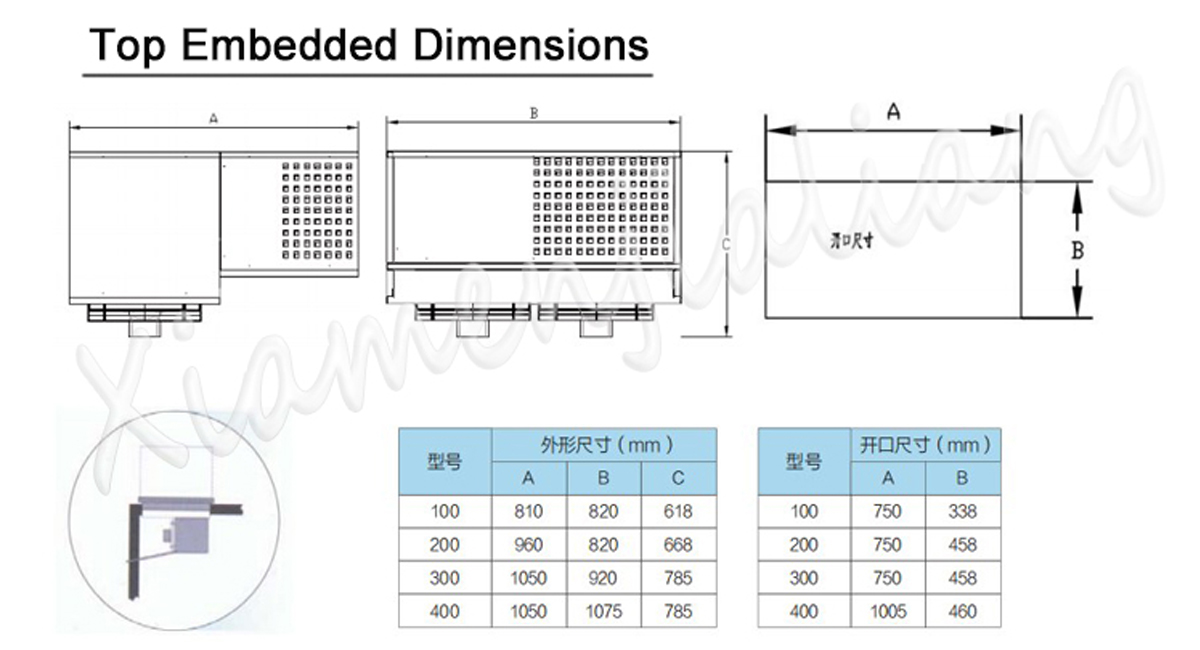

    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

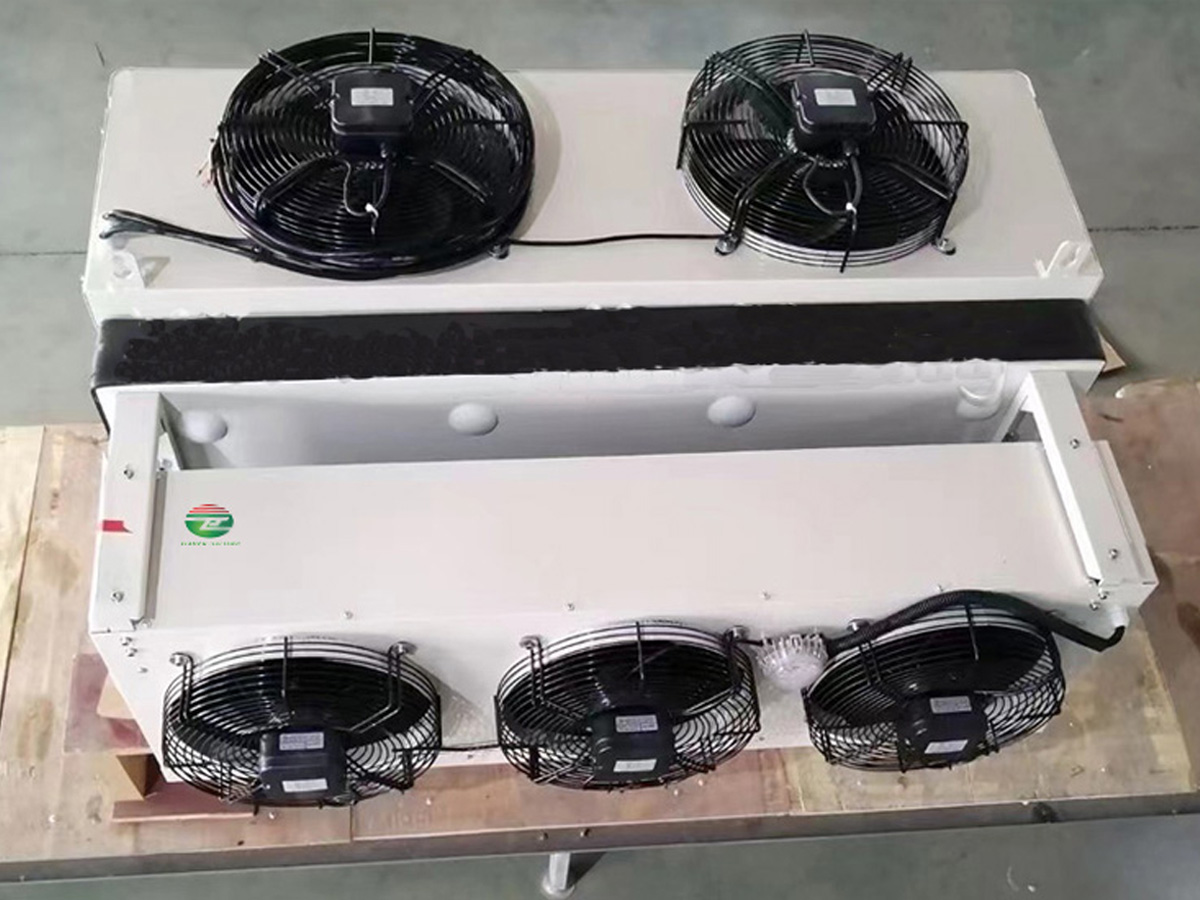

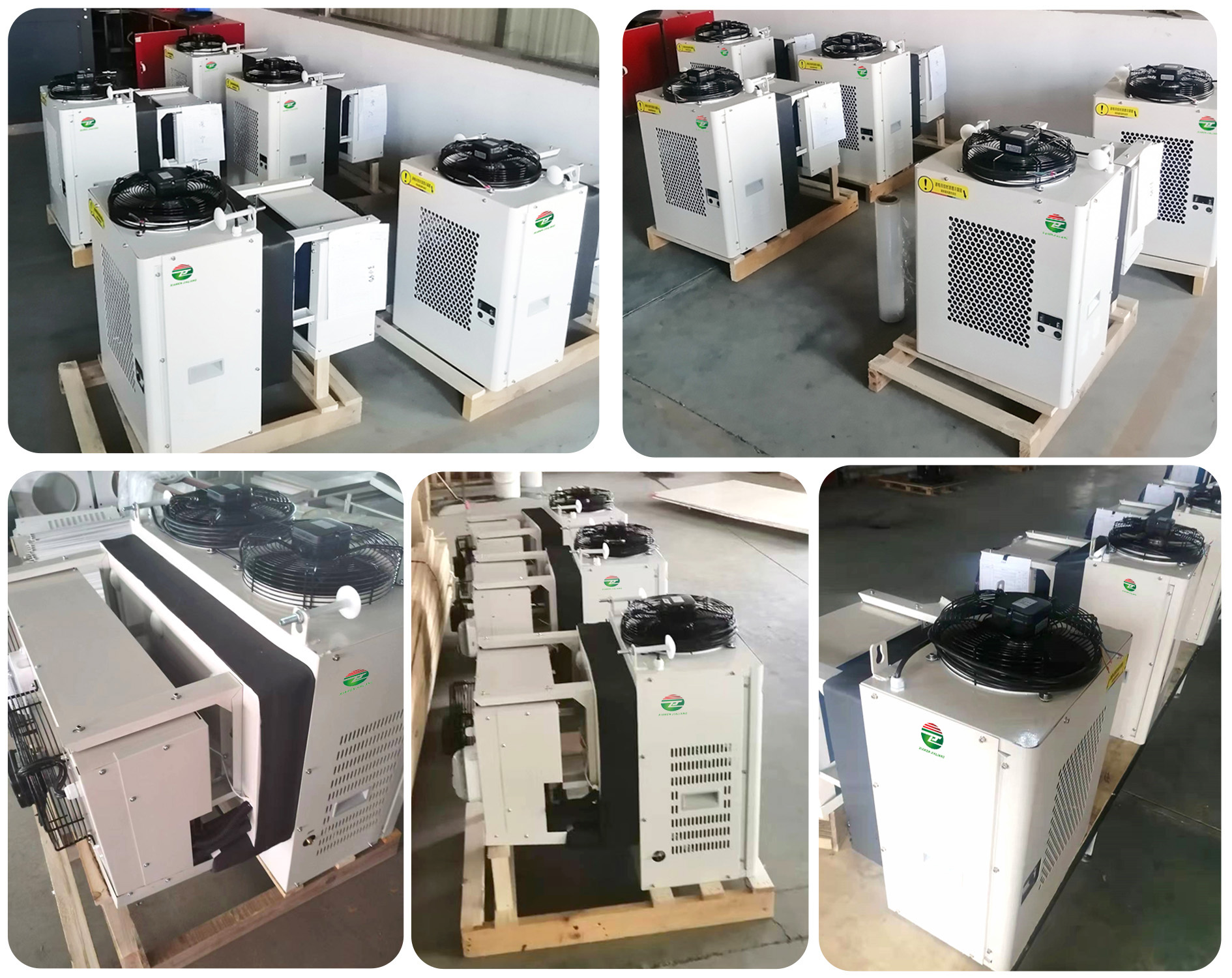

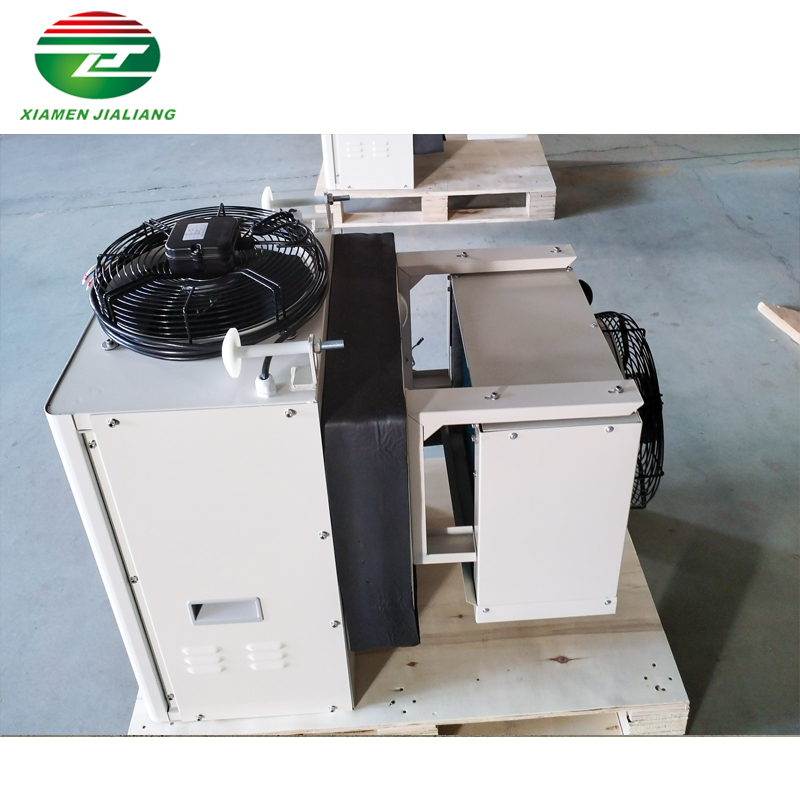

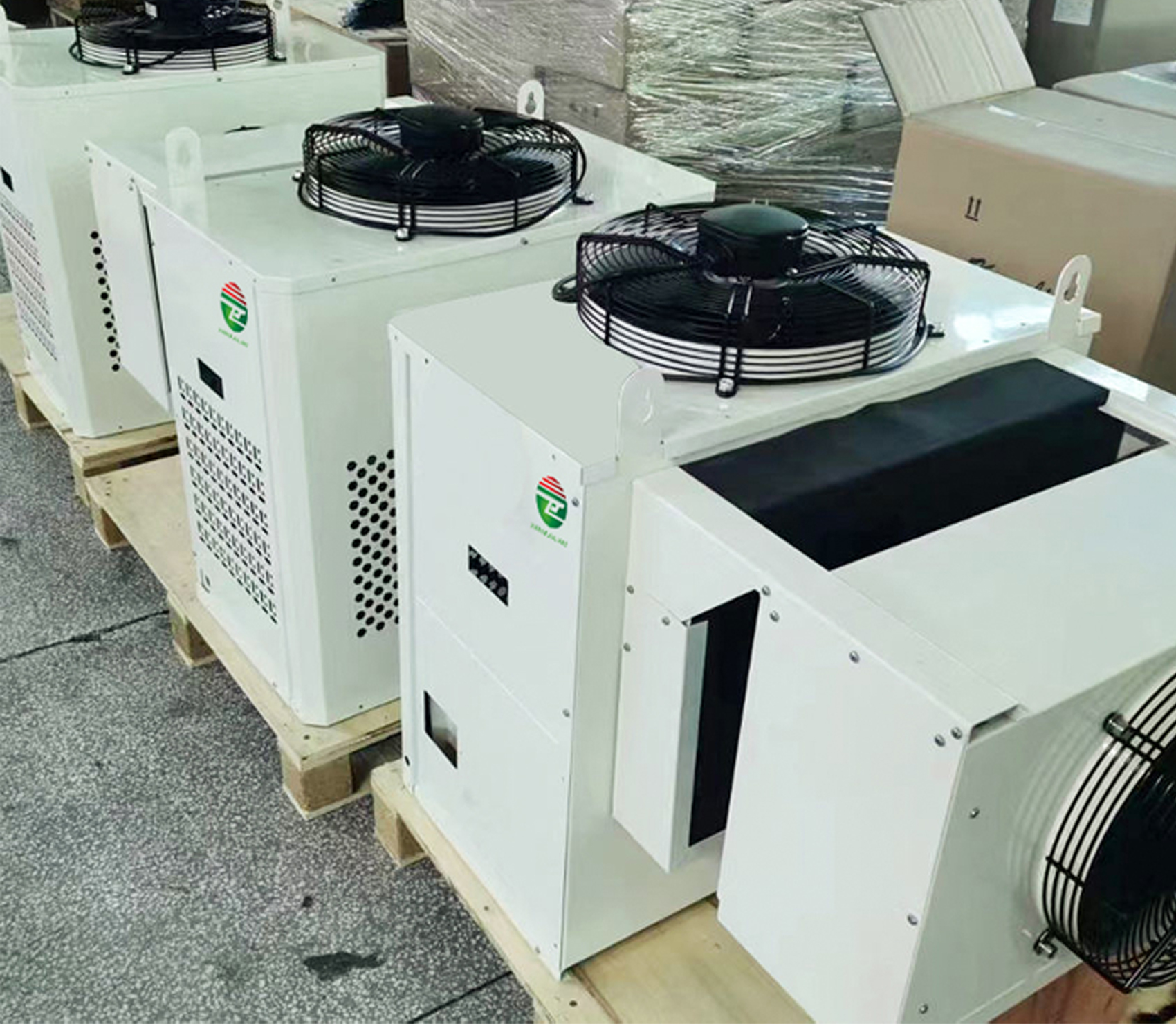

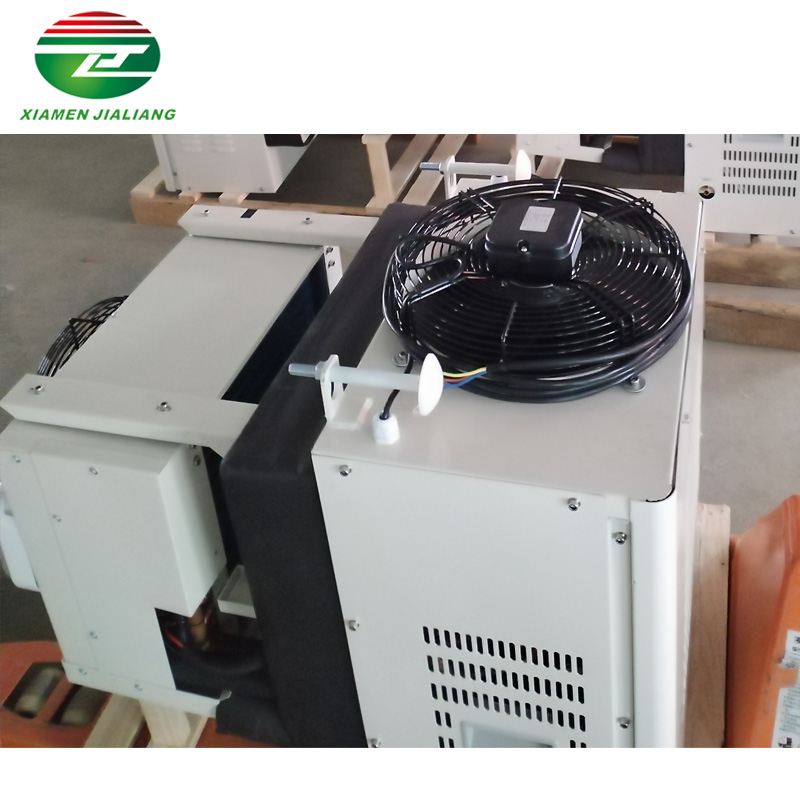

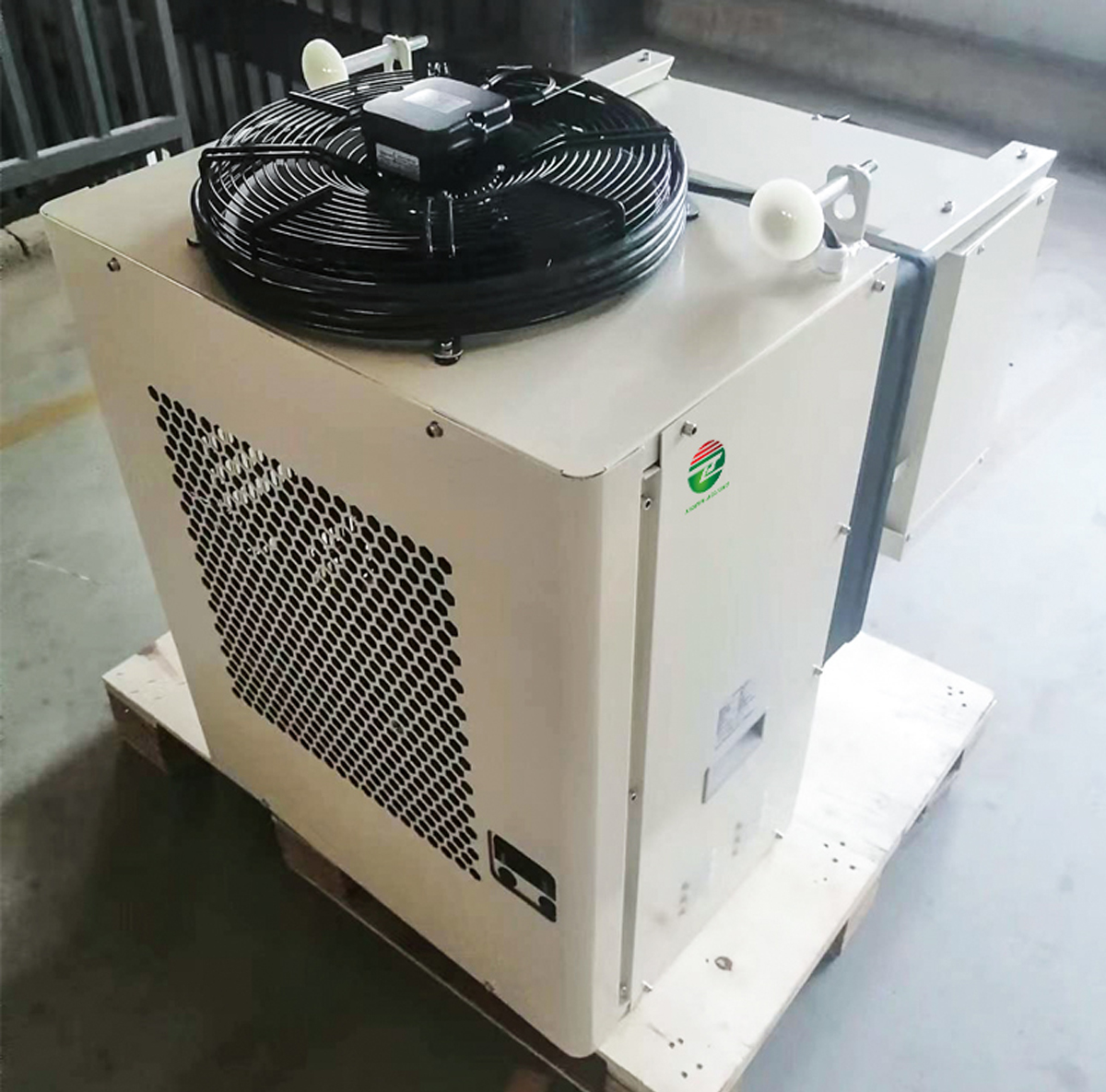

    Product View

    Features:

    ★ Temperature range: ambient temperature:-15℃～+48℃, room temperature: -18℃~+10℃

    ★ Application: widely used for medical, catering, cold chain, food, dairy and other small cold rooms

    ★ Compact structure, easy to install, only need toreserve corresponding size on the side panel of cold room

    ★ Automatic evaporation system of defrost water helps reduce condensation temperature and improve refrigeration efficiency

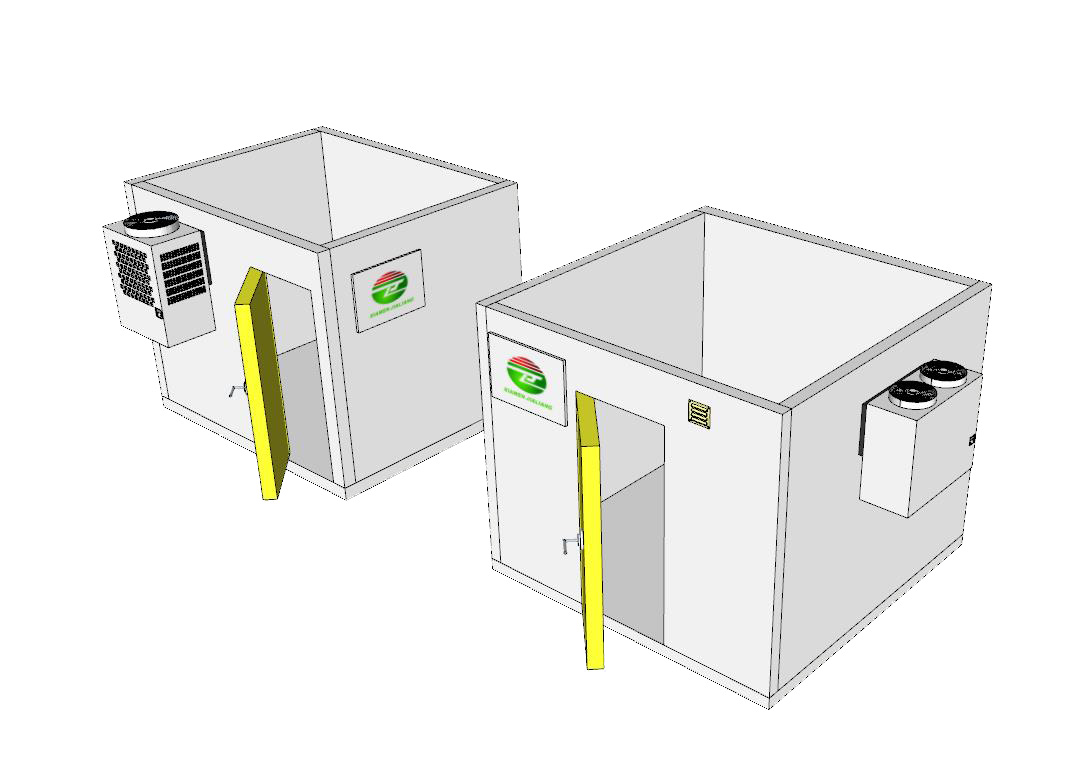

    Product Type

    Cold room monoblock refrigeration unit is divided into :Wall-mounted monoblock and Ceiling-mounted monoblock



    Our Service

    Installation method: When installing, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, which greatly reduces the installation time and labor cost.

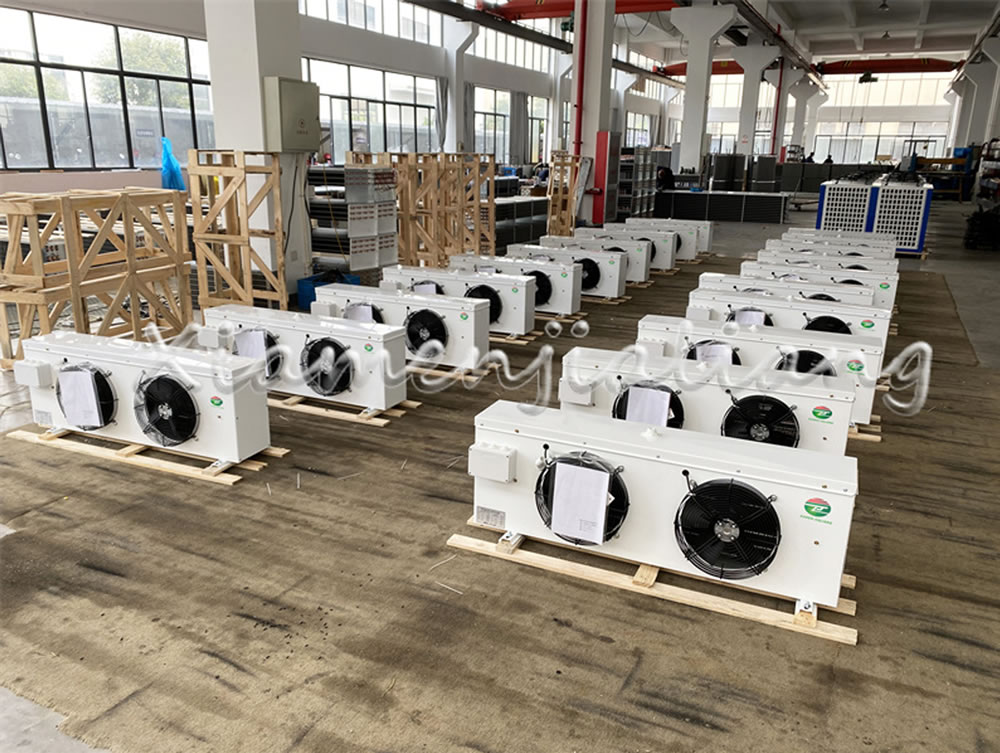

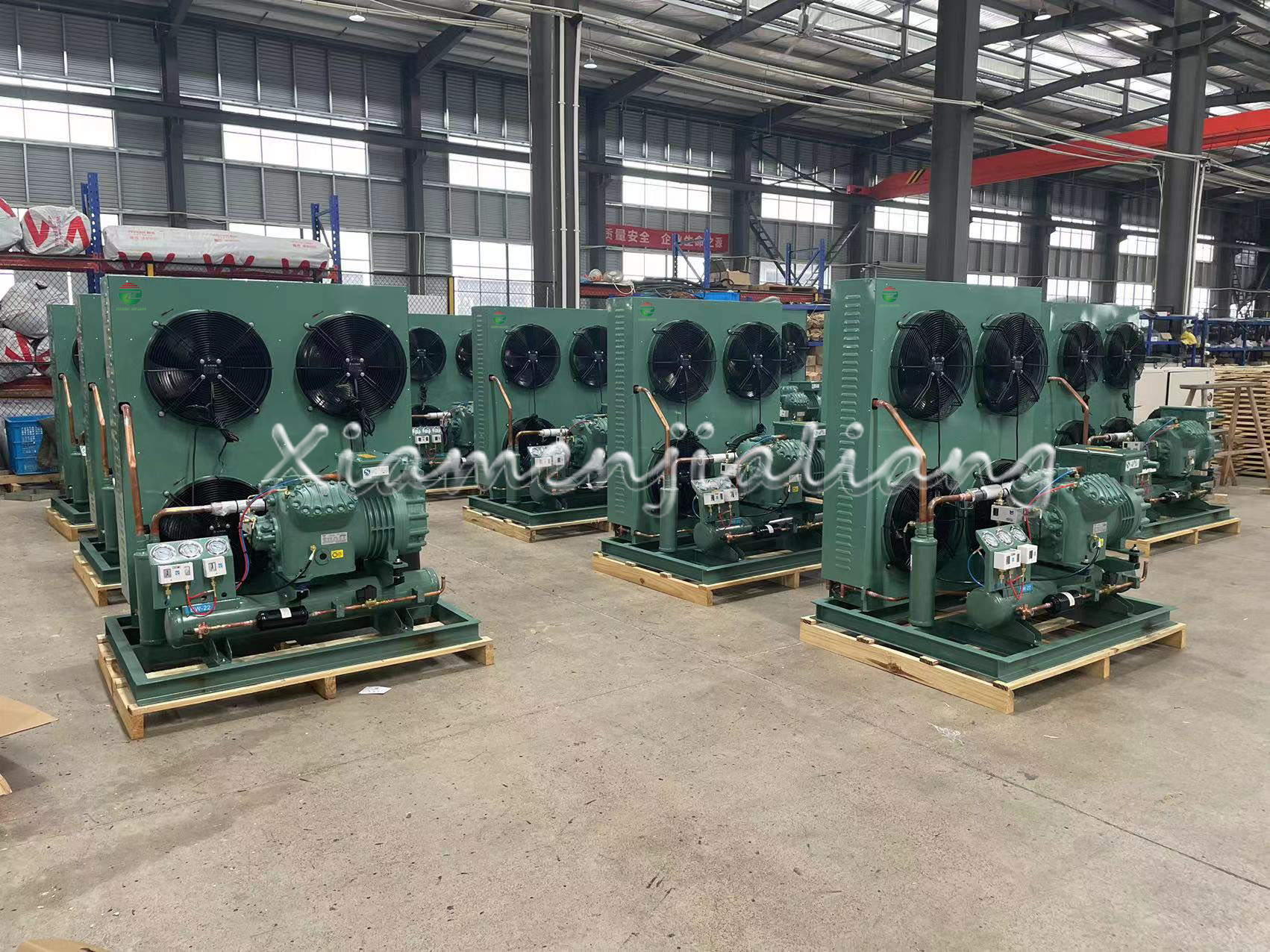

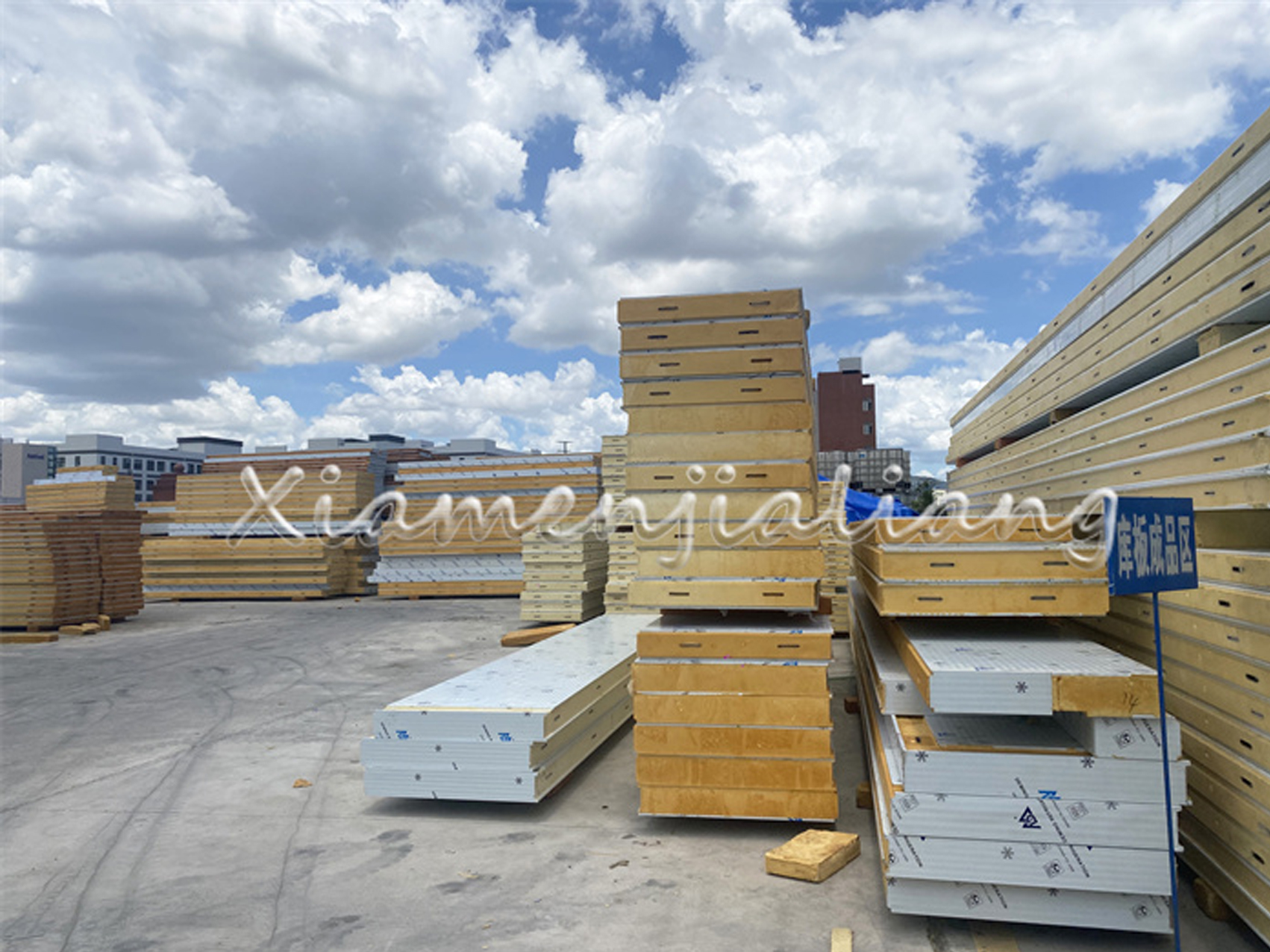

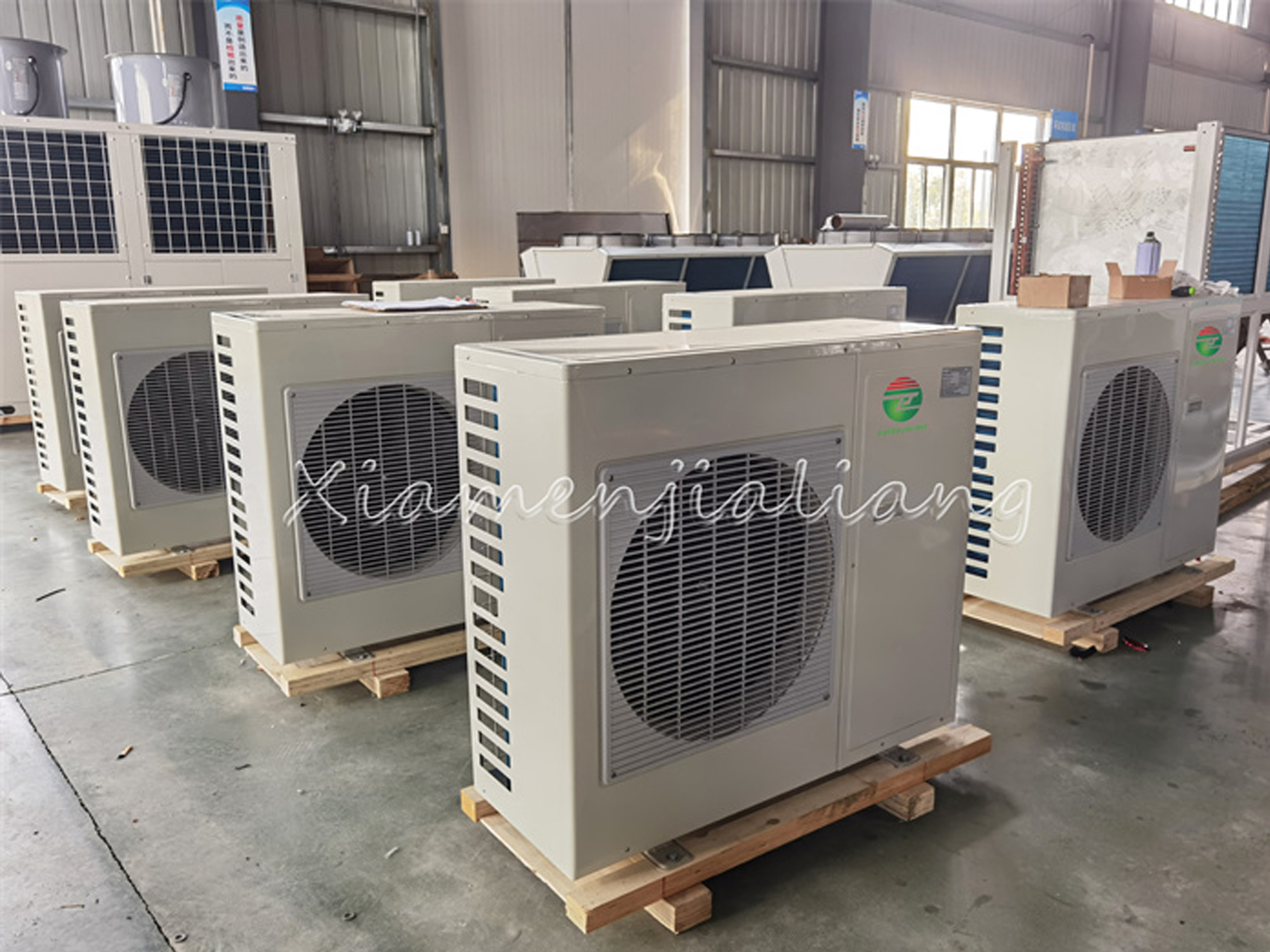

    Our Factory
