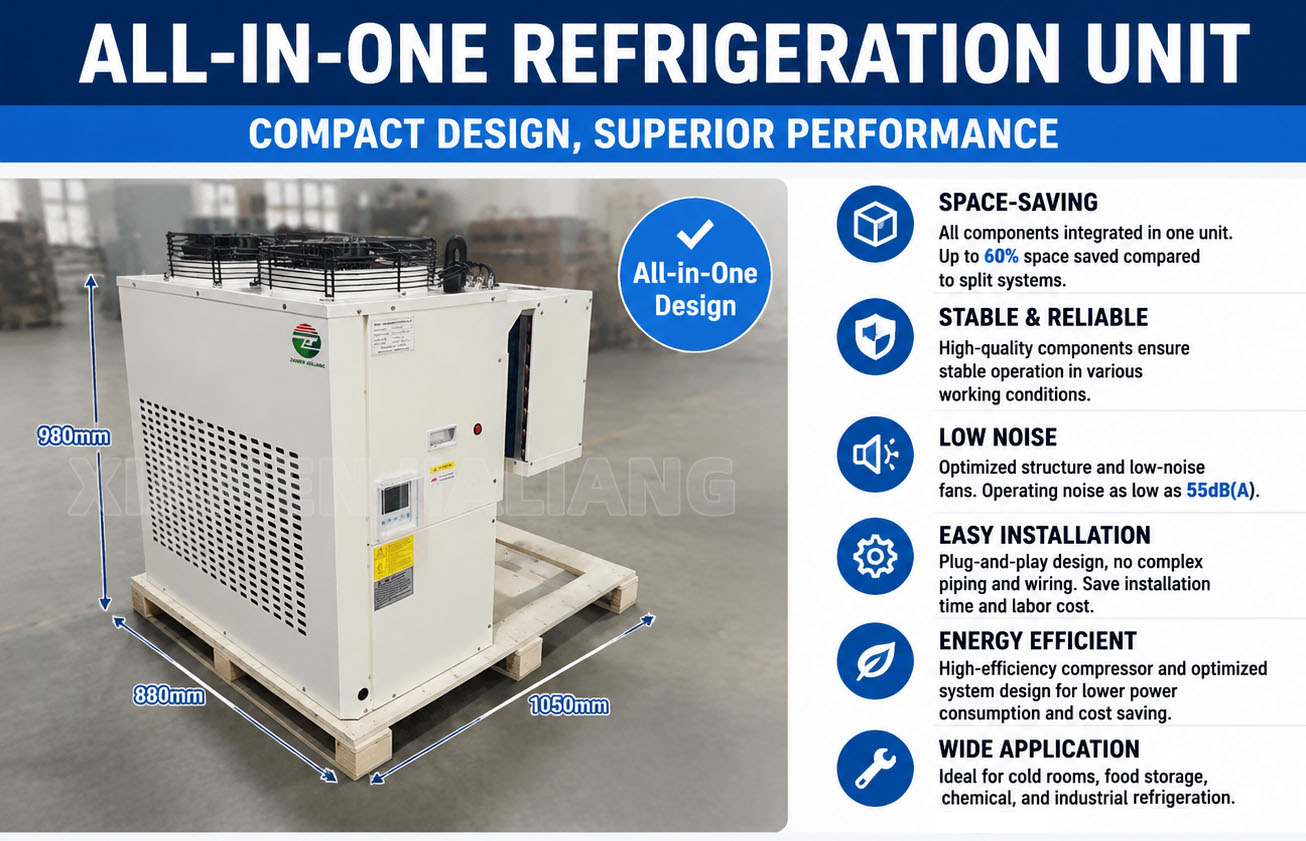

    • All-in-one Cooling Monoblock

      • 1HP Monoblock Freezer Unit2HP Monoblock Freezer Unit3HP Monoblock Freezer Unit
    • Get A Quote
    • Description
    • Features


    Wall Mounted Monoblock Condensing Compressor Unit



    INSTALLATION MADE SIMPLE - ONLY 2 PEOPLE NEEDED!

    1. PLUG-AND-PLAY DESIGN

    All components integrated in one


    2. SIMPLE & FAST INSTALLATION

    Two people can complete the installationquickly and easily.


    3. SAVE TIME & LABOR COST

    Greatly reduce installation timeand labor cost.

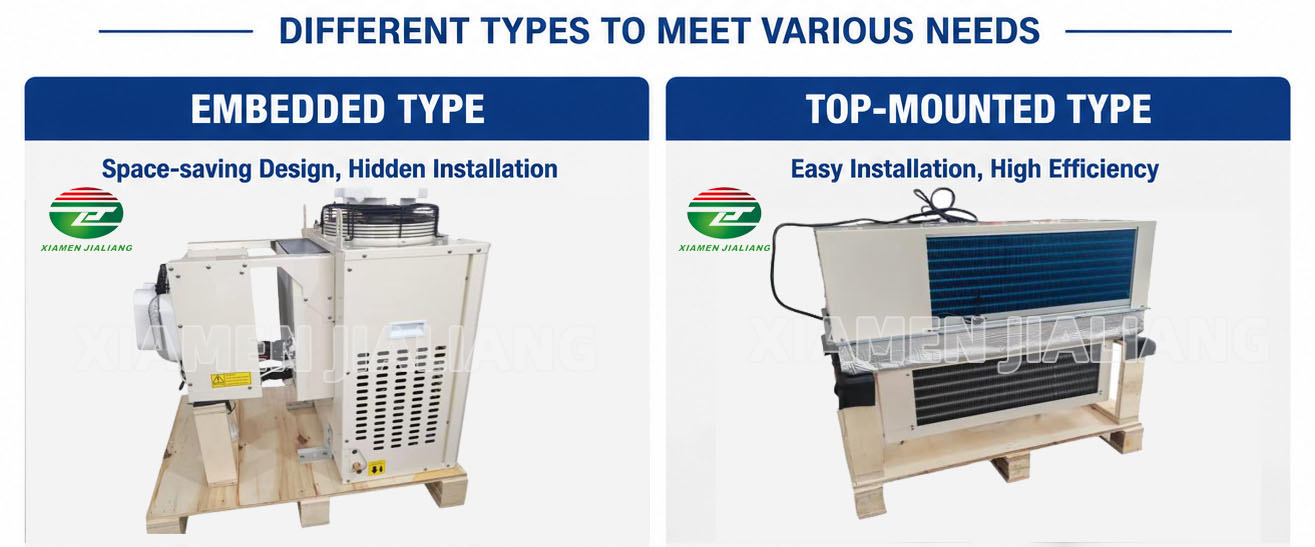

    EMBEDDED TYPE

    Space-saving Design, Hidden Installation

    1. Embedded design, saves installation space

    2. Beautiful appearance, hidden installation

    3. Low noise operation

    4. Easy to clean and maintain

    5. Ideal for limited space applications


    TOP-MOUNTED TYPE

    Easy Installation, High Efficiency

    1. Top-mounted installation, easy to access

    2. High-efficiency cooling, fast heat dissipation

    3. Strong air circulation, stable performance

    4. Easy to install and maintain

    5. Suitable for various environments



    Wall Type Inverter Frequency Monoblock Unit
    Horsepower1HP2HP
    Voltage220V/60HZ/1PHASE
    Evaporation temperature range-40~-5°C
    Maxi mumoperating current (A)59
    Voltage control typeDiaphragm pressure control
    Product Size(mm)600*710*710730*890*825
    Packing Size670*880*880820*1000*1000



    Roof Type Inverter Frequency Monoblock Unit
    Horsepower1HP2HP2HP
    Voltage220V/60HZ/1PHASE
    Evaporation temperature range-35~-5 °C

    Maxi mumoperating current (A)5913
    Voltage control typeDiaphragm pressure control
    Product Size(mm)937*522*5901187*577*5901347*607*590
    Packing Size1000*570*8101240*635*8101410*670*865
