- High Efficiency Monoblock Condensing Unit For Hotel
- Get A Quote
Monoblock condensing unit connecting tube adopt bell like mouth, more convenient for connecting, can save 50% of installation time, as easy as install air conditioner
- Description
- Features

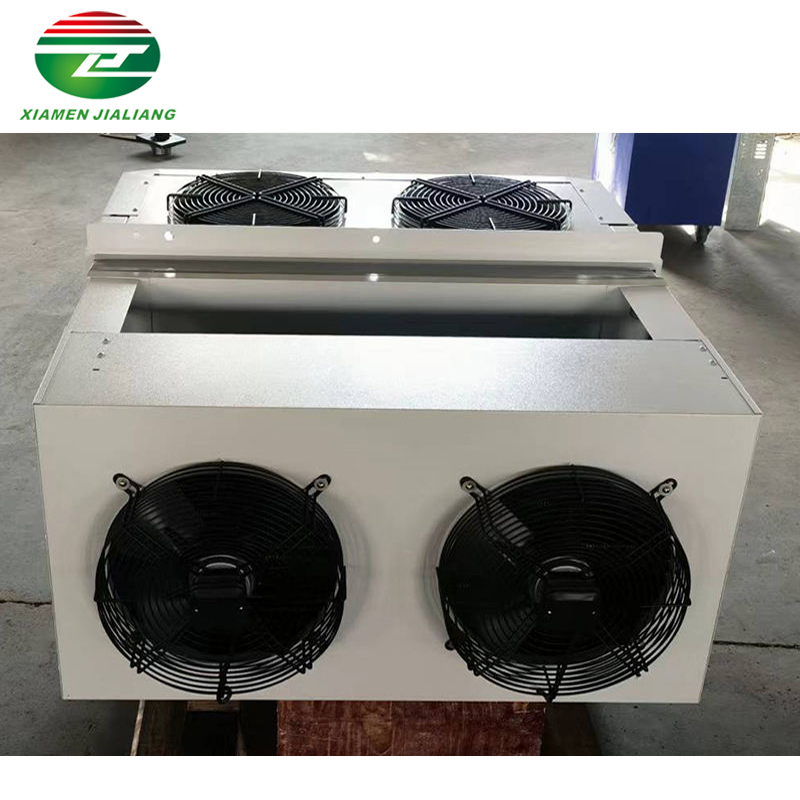

High Efficiency Monoblock Condensing Unit For Hotel
| Side Embedded Fixed Frequency Monoblock Unit | ||||||
| Model | Voltage | Power | Packaging Size (mm) | Product Weight(kg) | Freezer Room Volume | Cold Room Volume |
| XMJL-YTCN10 | 220V | 220V/50Hz | 670*880*800 | 113 | ≤7m³ | ≤12m³ |
| 220V/60Hz | ||||||
| XMJL-YTCN20 | 220V | 220V/50Hz | 820*1000*1000 | 130 | ≤15m³ | ≤25m³ |
| 220V/60Hz | ||||||
| 380V | 380/50Hz | |||||
| XMJL-YTCN30 | 220V | 220V/50Hz | 1050*1000*1000 | 165 | ≤25m³ | ≤40m³ |
| 220V/60Hz | ||||||
| 380V | 380/50Hz | |||||
| XMJL-YTCN40 | 380V | 380/50Hz | 1120*1070*1060 | 190 | ≤35m³ | ≤55m³ |
| Side Embedded Frequency Conversion Monoblock Unit | |||||
| Model | Supply Voltage | Packaging Size (mm) | Product Weight(kg) | Freezer Room Volume | Cold Room Volume |
| XMJL-BYTCN10 | 220V/50HZ/60Hz | 670*880*800 | 113 | ≤7m³ | ≤12m³ |
| XMJL-BYTCN20 | 220V/50HZ/60Hz | 820*1000*1000 | 130 | ≤15m³ | ≤25m³ |
| XMJL-BYTCN30 | 220V/50HZ/60Hz | 1050*1000*1000 | 165 | ≤25m³ | ≤40m³ |
| XMJL-BYTCN40 | 220V/50HZ/60Hz | 1120*1070*1060 | 185 | ≤35m³ | ≤55m³ |
| Top Mounted Fixed Frequency Monoblock Unit | |||||
| Model | Supply Voltage | Packaging Size (mm) | Product Weight(kg) | Freezer Room Volume | Cold Room Volume |
| XMJL--YTDN10 | 220V/50Hz | 1000*570*810 | 95 | ≤7m³ | ≤12m³ |
| 220V/60Hz | |||||
| XMJL--YTDN20 | 220V/50Hz | 1240*635*810 | 125 | ≤15m³ | ≤25m³ |
| 220V/60Hz | |||||
| 380/50Hz | |||||
| XMJL--YTDN30 | 220V/50Hz | 1410*670*865 | 150 | ≤25m³ | ≤40m³ |
| 220V/60Hz | |||||
| 380V/50Hz | |||||
| Model | XMJL1 | XMJL2 | XMZ3 | XMZ4 |
| Horse Power | 1HP | 2HP | 3HP | 4HP |
| Refrigeration Capacity (W) | 952 | 2176 | 2723 | 3892 |
| Storage Capacity (-18 ℃) | 8m³ | 16m³ | 35m³ | 47m³ |
| Power (KW) | 0.82 | 1.5 | 2.3 | 3 |
| Voltage (V) | 220 | 220 | 220/380 | 220/380 |
| External Size (L*W*H(mm)) | 828*570*750 | 888*680*855 | 888*920*855 | 888*1120*855 |
| Hole Size (L*W*H(mm)) | 540*490 | 650*490 | 890*490 | 888*1320*855 |
| Evaporation Fan Parameters | ||||
| Motor Power(W) | 85 | 150 | 85 | 150 |
| Blade Diameter(mm) | 300 | 300 | 300 | 300 |
| Number of Fans | 1 | 1 | 2 | 2 |
| Air Volume | 1600 | 2100 | 3200 | 4200 |
| Condensing Fan Parameters | ||||
| Motor Power(W) | 85 | 195 | 85 | 195 |
| Blade Diameter | 300 | 350 | 300 | 350 |
| Number of Fans | 1 | 1 | 2 | 2 |
| Air Volume | 1800 | 3200 | 3600 | 6400 |
Customized Services
FAQ
Q1: Does the monoblock condensing unit require additional building structure support? |
A1: Generally, the monoblock condensing unit does not require additional building support, as it can operate independently. |
Q2: Does the monoblock condensing unit have an automatic defrosting function? |
A2: Yes, many monoblock condensing units are equipped with automatic defrosting function to maintain refrigeration efficiency. |
Q3: Does the monoblock condensing unit require frequent refrigerant replenishment? |
A3: In general, the refrigerant in the monoblock condensing unit does not require frequent replenishment, but regular checks are necessary. |
Q4: Is the monoblock condensing unit compliant with environmental requirements? |
A4: Yes, modern monoblock condensing units generally use environmentally friendly refrigerants and energy-saving technologies, complying with environmental requirements. |
