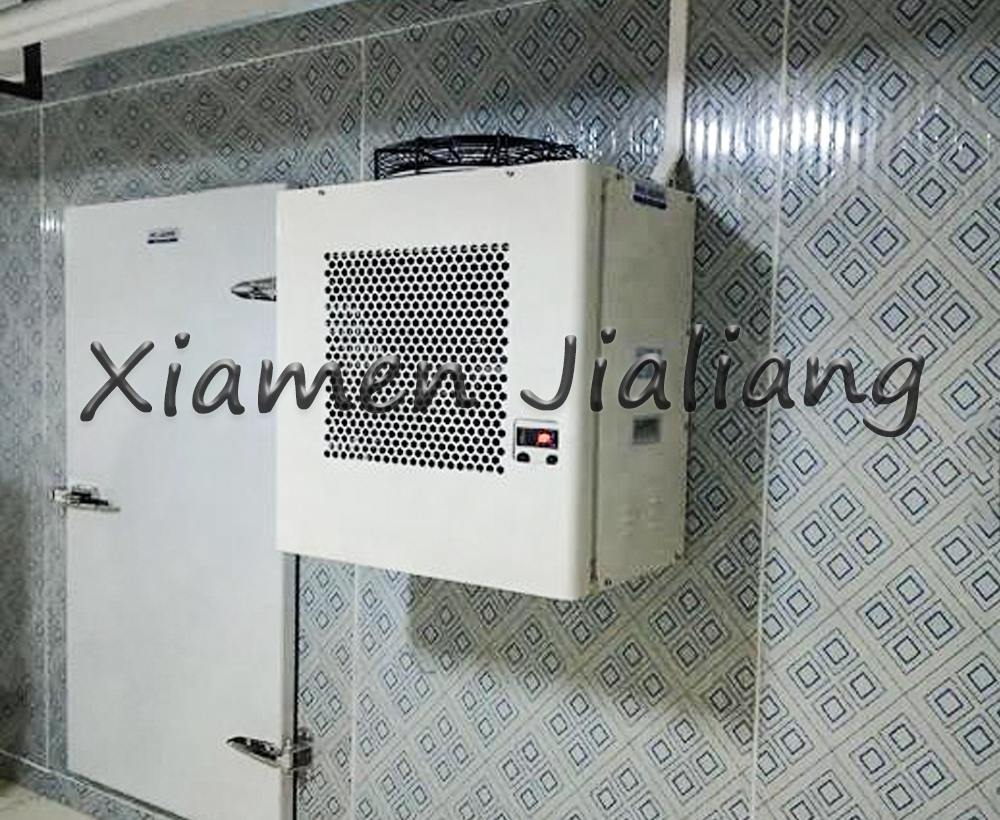

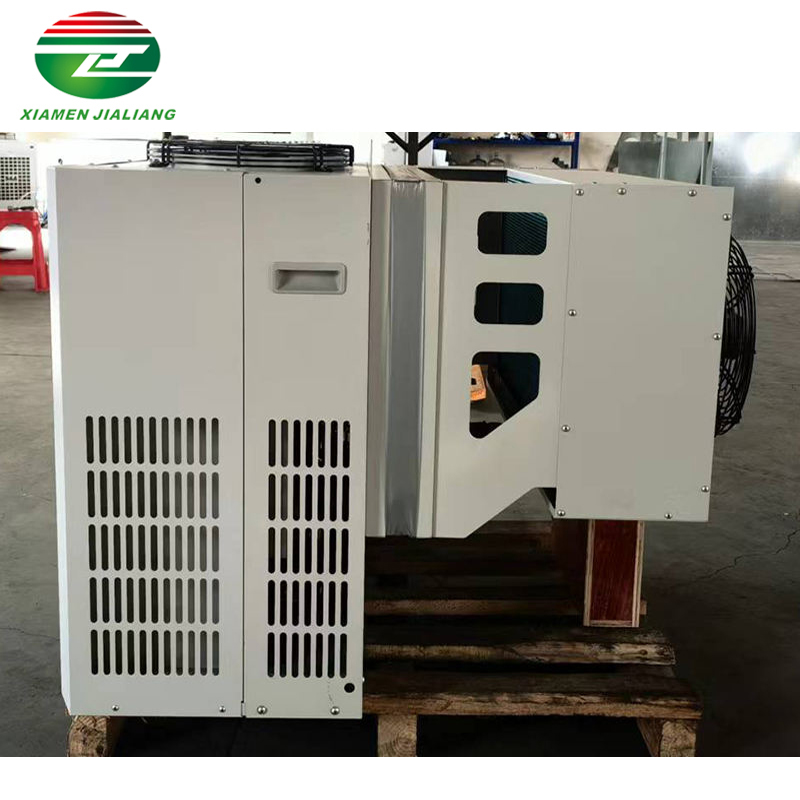

XMJL 2HP Small Cold Room Monoblock Condensing Unit
  • XMJL 2HP Small Cold Room Monoblock Condensing UnitXMJL 2HP Small Cold Room Monoblock Condensing UnitXMJL 2HP Small Cold Room Monoblock Condensing UnitXMJL 2HP Small Cold Room Monoblock Condensing UnitXMJL 2HP Small Cold Room Monoblock Condensing UnitXMJL 2HP Small Cold Room Monoblock Condensing Unit
    • XMJL 2HP Small Cold Room Monoblock Condensing Unit

      • Monoblock condensing unit has exquisite craftsmanship, is completely compact, easy to install, and fast. At the same time, the operation is safe and reliable.

    • Get A Quote
    • Description
    • Features

    Product Description

    XMJL 2HP Small Cold Room Monoblock Condensing Unit

    Features:

    1.  Application: widely used for medical, catering, cold chain, food, dairy and other small cold rooms

    2.  Compact structure, easy to install, only need toreserve corresponding size on the side panel of cold room. The installation could be done within 20 minutes

    3.  Intelligent control system, start up to running, no need totest. It has It has many protective functions, such as overheating,overload, lack of phase. High and low voltage and so on

    4. The units takes integrated lighting design, which is more convenient to install and use



    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³
    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz


    Horse Power2HP
    Refrigeration Capacity4313 W
    Storage Capacity (0 ℃)30m³
    Power1.6 KW
    Voltage220 V
    External Size (L*W*H(mm))828*570*750
    Hole Size (L*W*H(mm))650*490

    Evaporation Fan Parameters
    Motor Power150 W
    Blade Diameter300 mm
    Number of Fans1
    Air Volume2100 CMH

    Condensing Fan Parameters
    Motor Power195 W
    Blade Diameter350 mm
    Number of Fans1
    Air Volume3200 CMH


    Customized Services



    Installation is convenient and fast, with only a hole in the library body, embedded in the unit, and connected to the power supply. There is no need for debugging, greatly reducing installation time and labor costs.



    FAQ

    Q1: How long is the installation period of the XMJL monoblock condensing unit?

    A1: The installation period of the XMJL monoblock condensing unit is usually relatively short, ranging from a few days to several weeks depending on the size and requirements.

    Q2: Does the XMJL monoblock condensing unit support customized sizes?

    A2: Yes, the XMJL monoblock condensing unit can be customized to different sizes and configurations according to customer requirements.

    Q3: Is the control system of the XMJL monoblock condensing unit easy to operate?

    A3: Yes, the control system of the XMJL monoblock condensing unit is usually designed to be simple and user-friendly.

    Q4: Does the XMJL monoblock condensing unit require additional building structure support?

    A4: Generally, the XMJL monoblock condensing unit does not require additional building support, as it can operate independently.
