Product Description

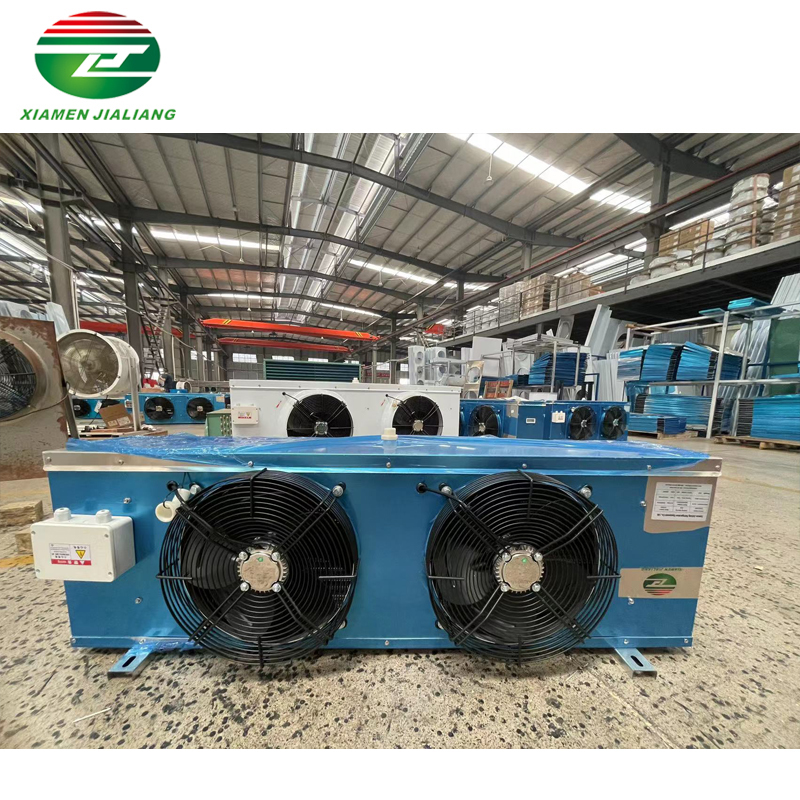

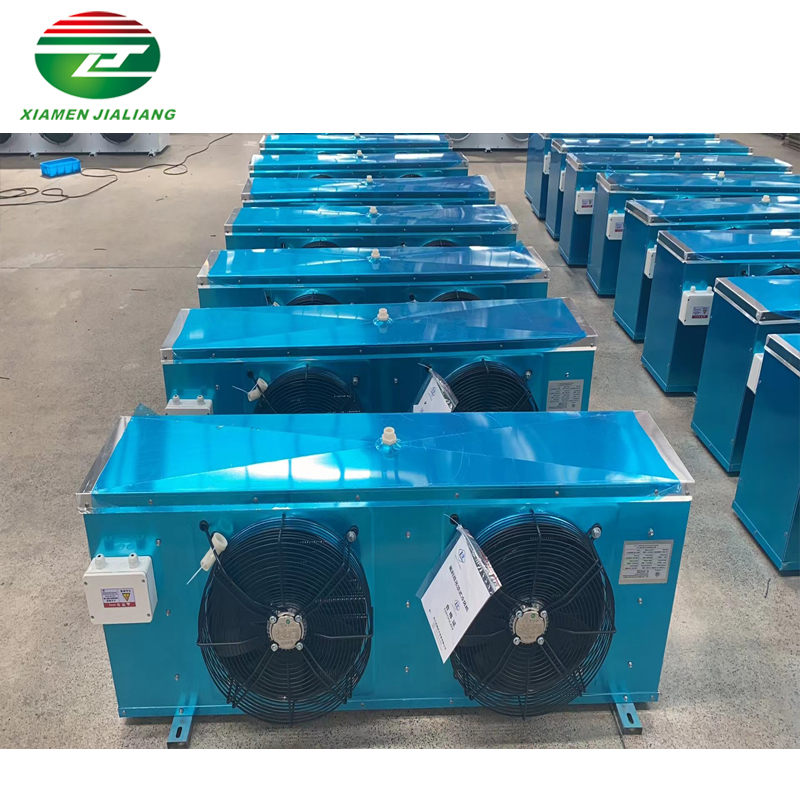

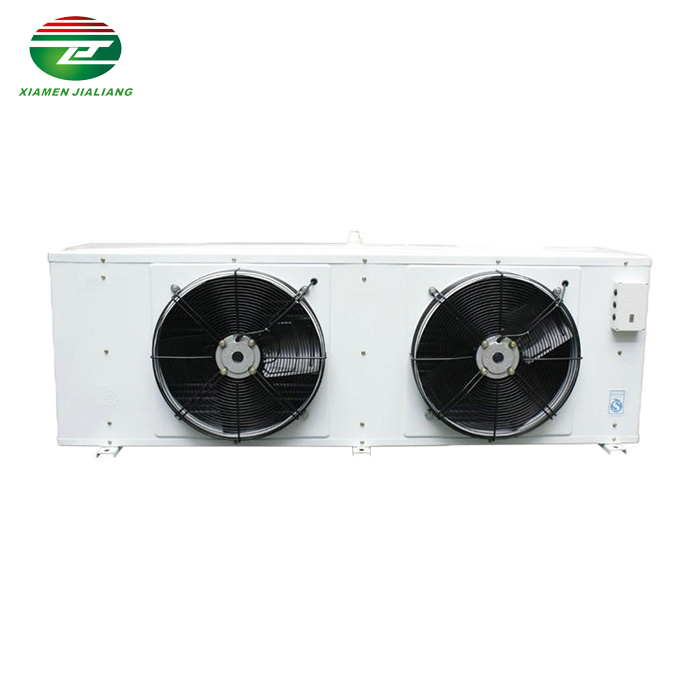

DL Type Energy Saving High Quality Cold Room Evaporator
| Model | DL20 | DL25 | DL40 | DL55 | DL80 | DL105 |
| Refrige-Rating Capacity | 4.3KW | 5.3KW | 8.4KW | 11.6KW | 16.8KW | 23.2KW |
| Cooling Area | 22㎡ | 25㎡ | 40㎡ | 55㎡ | 80㎡ | 105㎡ |
| Diameter of Feed Inlet | 12mm | 12mm | 16mm | 16mm | 19mm | 19mm |
| Diameter of Tail Pipe | 16mm | 16mm | 25mm | 25mm | 32mm | 32mm |
| Wind Rate | 2450*2m³/h | 2450*2m³/h | 3950*2m³/h | 3950*2m³/h | 5400*2m³/h | 5400*2m³/h |
| Quantity | 2N | 2N | 2N | 2N | 2N | 2N |
| Fan Blade | 350mm | 350mm | 400mm | 400mm | 450mm | 450mm |
| Voltage | 380v | 380v | 380v | 380v | 380v | 380v |
| Power | 2*150W | 2*150W | 2*180W | 2*180W | 2*180W | 2*180W |
| Air Throw | 8m | 8m | 10m | 10m | 15m | 15m |
| Coil Unit | 0.9KW | 1.2KW | 1.3KW | 1.5KW | 2.4KW | 3.6KW |
| Drain Pan | 0.9KW | 1.2KW | 1.3KW | 1.5KW | 1.2KW | 1.2KW |

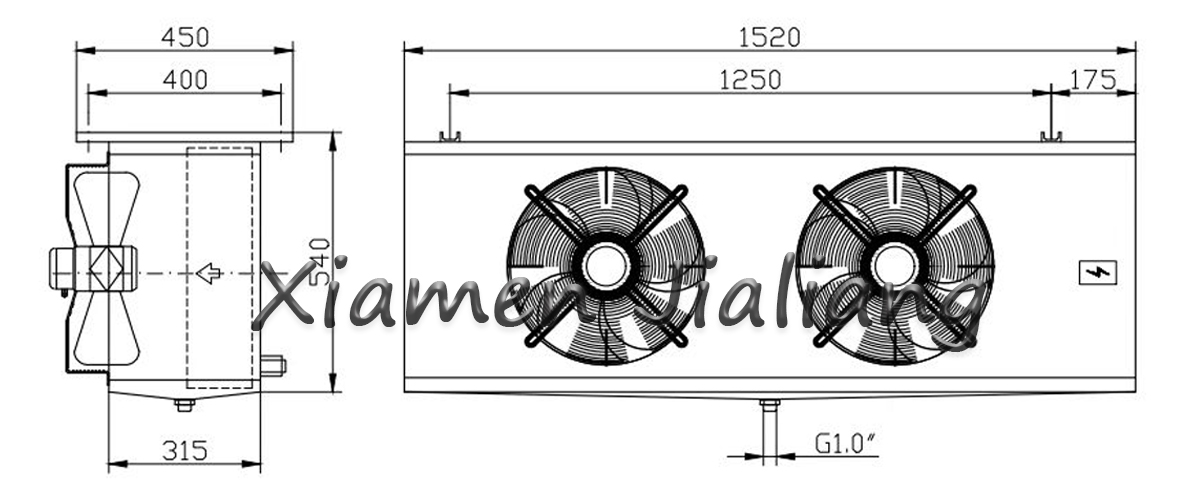

Fin pitch: 6.0mm
Fan equipped with external rotor: 2X4D400
Air volume: 2X 3950 cubic meters/hour
Electric heating tube power: 3X1.2KW
Inlet pipe: Φ 16,
Return steam pipe: Φ 25;
The shell is made of aluminum plate
Right inlet
Customized Services

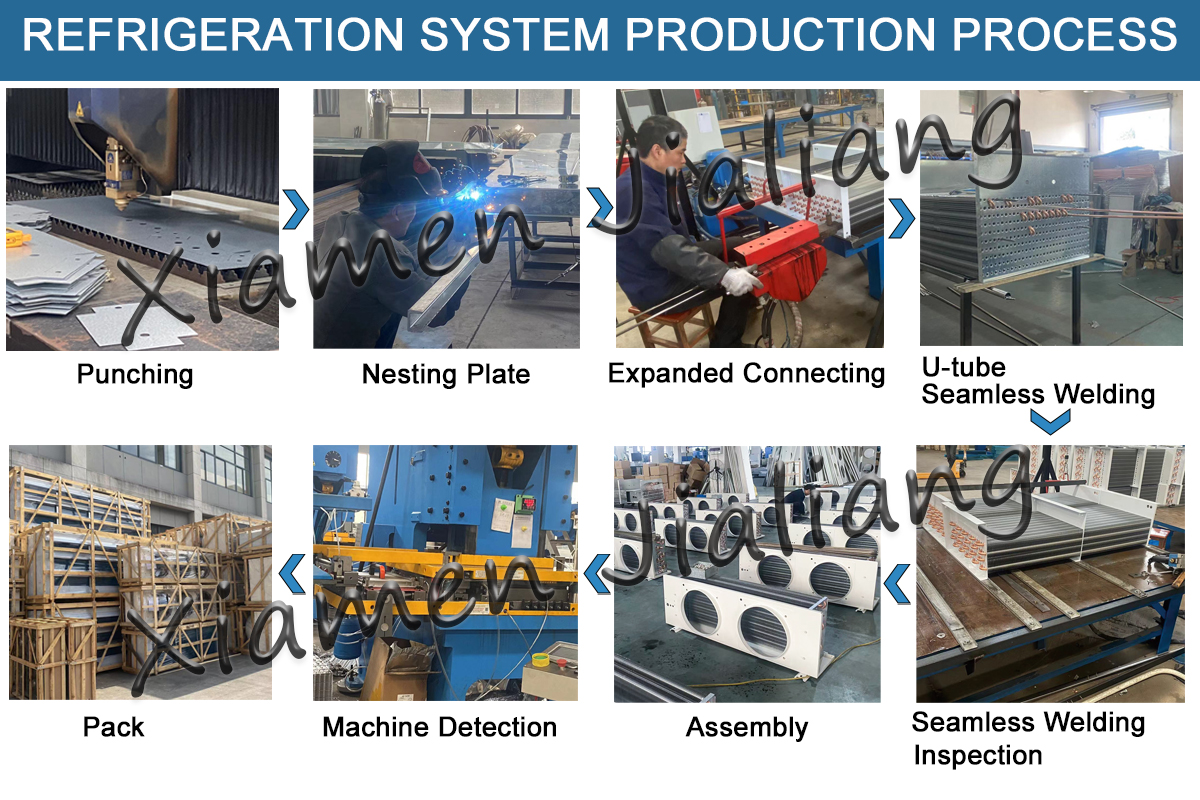

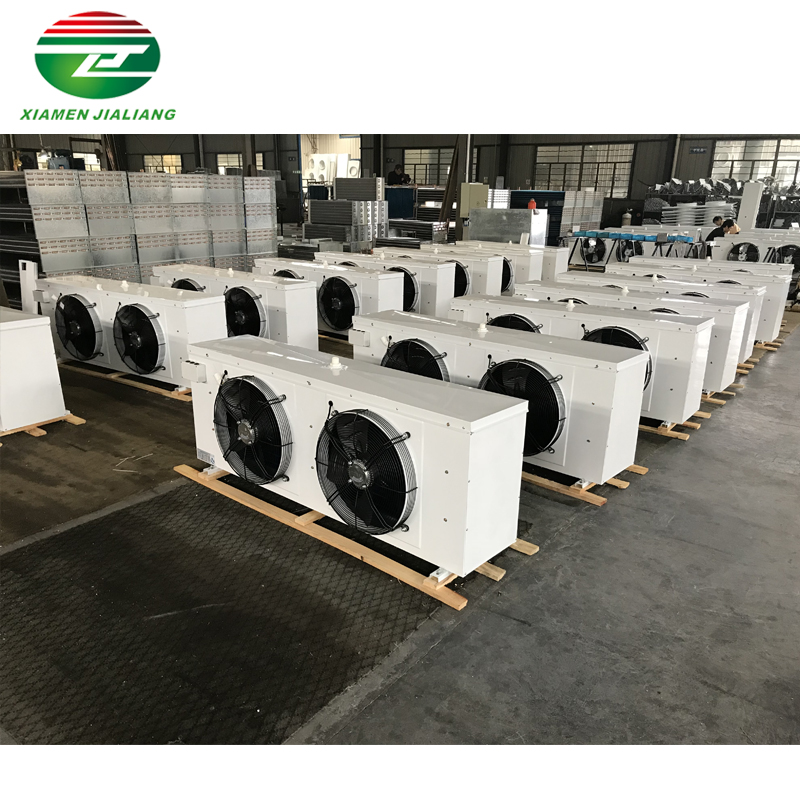

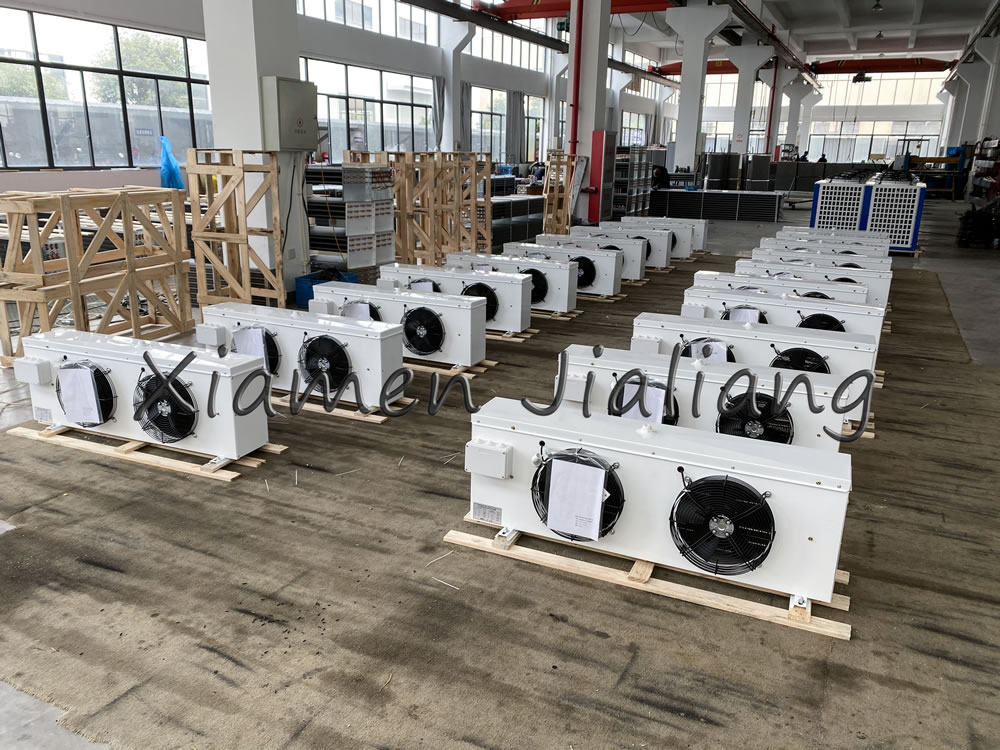

On site factory
Feature:
1. The shell is made of special galvanized steel, which has high strength, corrosion resistance, shock resistance and gloss. It can also be made of aluminum, stainless steel and other materials according to customer needs.
2. The drain pan is designed so that the sewage faces the drain, which effectively reduces the accumulation of water in the pan.
3. The use of high-quality copper tubes and special aluminum fins.,which increases the surface area and heat transfer efficiency.
4. The pipeline design adopts a direct return oil counterflow heat exchanger to avoid accumulation of refrigerated oil, make full use of the heat transfer area, improve heat exchange efficiency, and ensure overheating.
FAQ
| Q1: Can we do our OEM logo DL Evaporator? |
| A1: Yes, accept customization |
| Q2:DL Evaporator Shall we pay Extral cost for OEM service? |
| A2: The OEM service are totally free of charge. |
| Q3: Can you do our country plug DL Evaporator? |
| A3: Yes,we can do the plug according to your request |
| Q4: Could your factory accept customized DL Evaporator? |
| A4: We can do customized dimension according to customers'requirements. We have access to all the leading Cold Room refrigerators brands and can offer independent advice, and recommend right equipment to meet your business requirements. |
| Q5: How long delivery time DL Evaporator? |
| A5: Customized products, generally 30 working days, the specific situation is confirmed according to the product demand |
