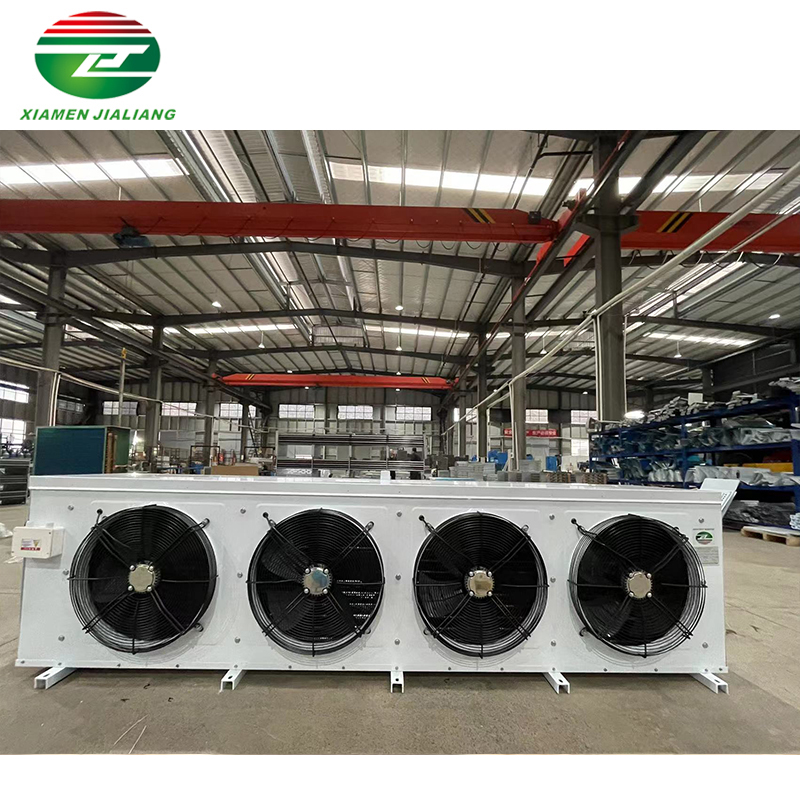

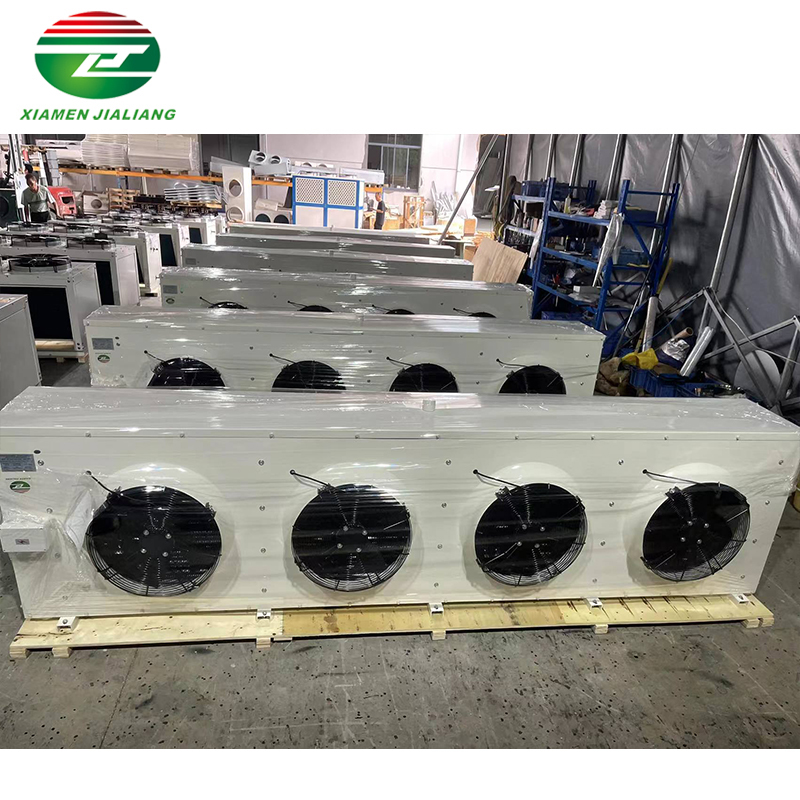

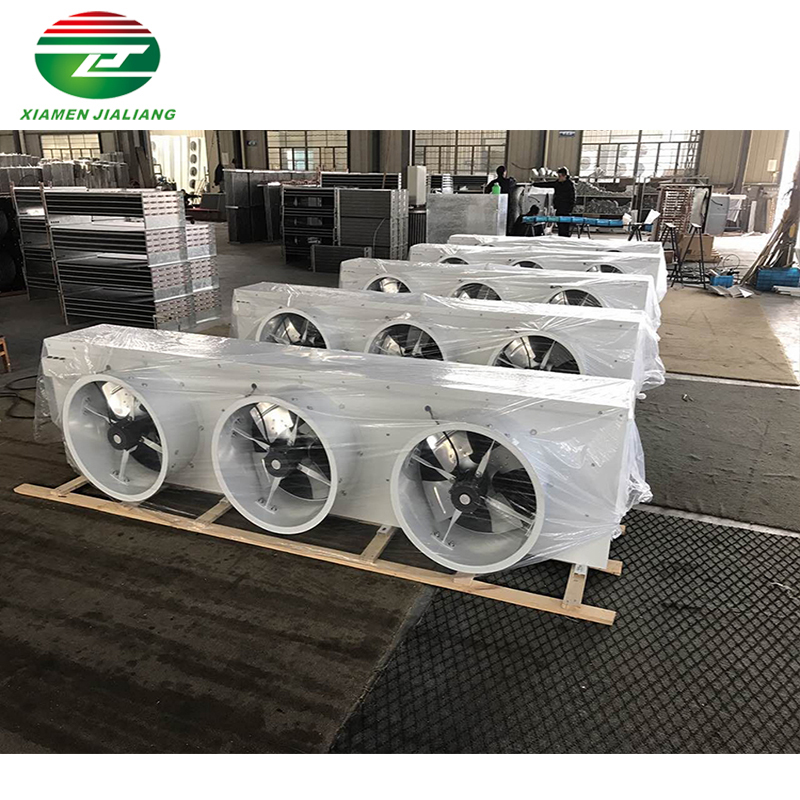

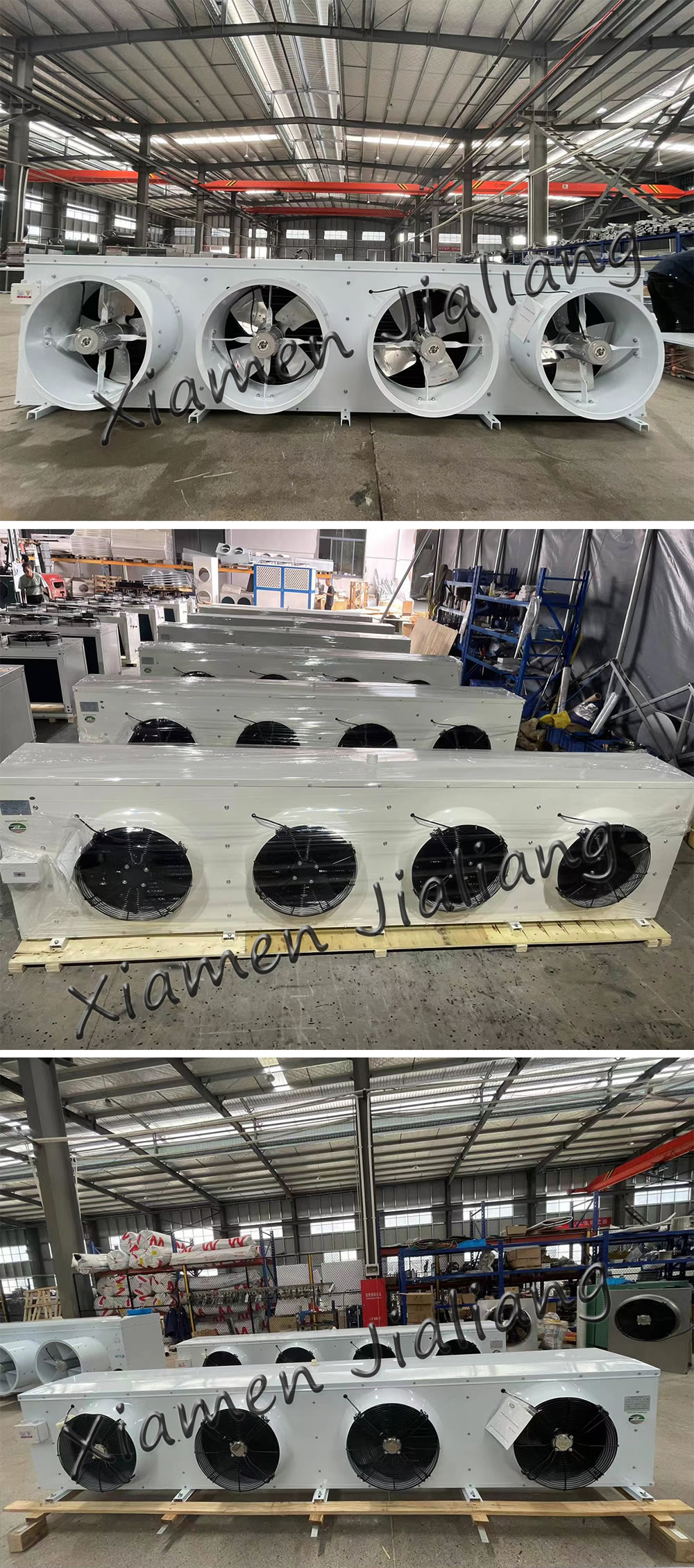

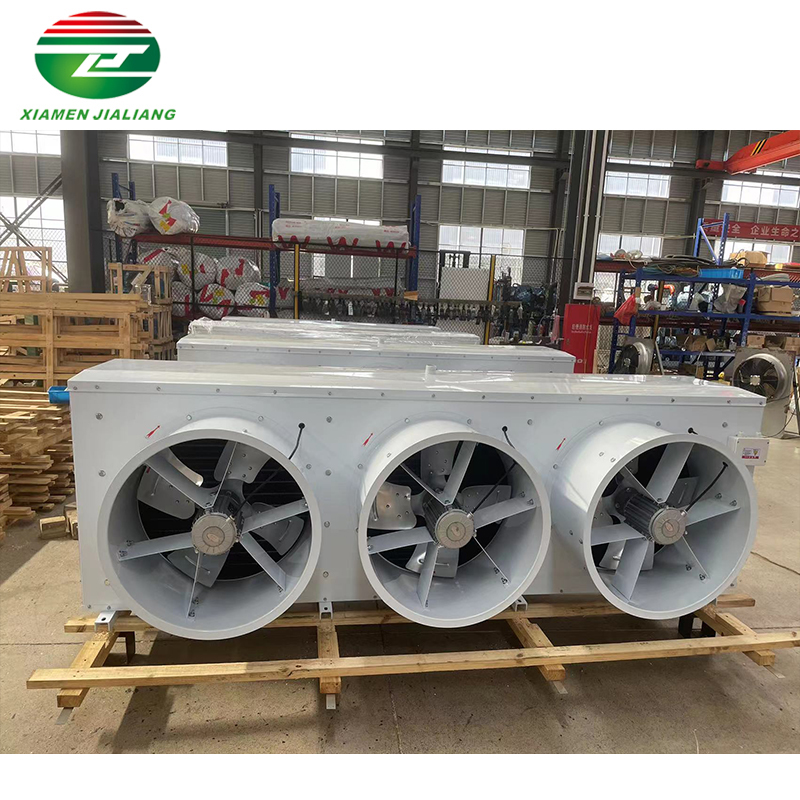

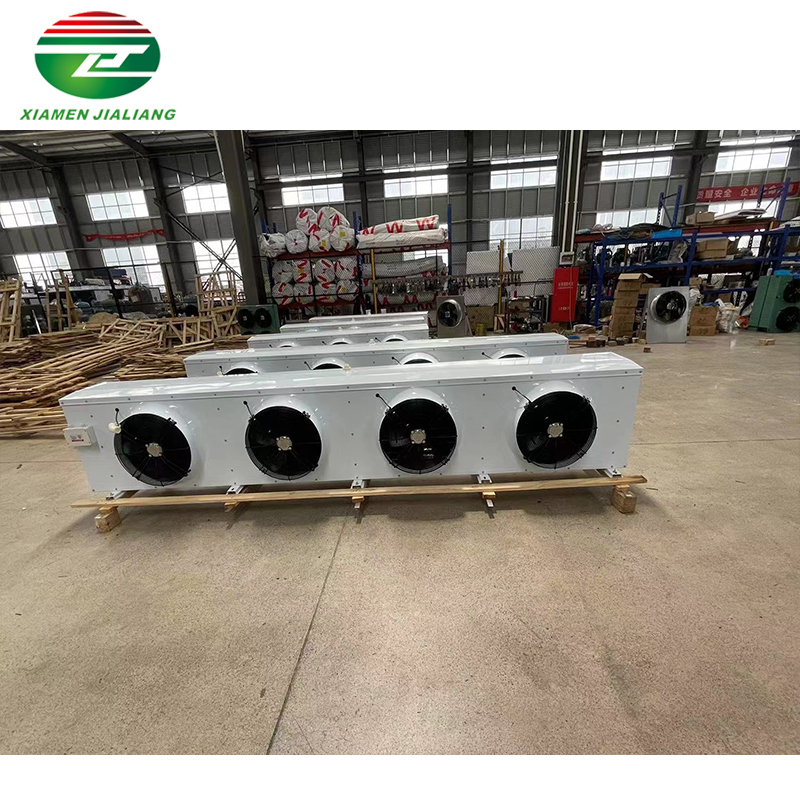

Large Air Volume Electrochemical Frost Cold Room Evaporation
  • Large Air Volume Electrochemical Frost Cold Room EvaporationLarge Air Volume Electrochemical Frost Cold Room EvaporationLarge Air Volume Electrochemical Frost Cold Room EvaporationLarge Air Volume Electrochemical Frost Cold Room EvaporationLarge Air Volume Electrochemical Frost Cold Room EvaporationLarge Air Volume Electrochemical Frost Cold Room Evaporation
    • Large Air Volume Electrochemical Frost Cold Room Evaporation

      • Cold room evaporator is a wall mounted evaporator, which is easy to install, saves space, and installation costs

    • Get A Quote
    • Description
    • Features

    Product Description

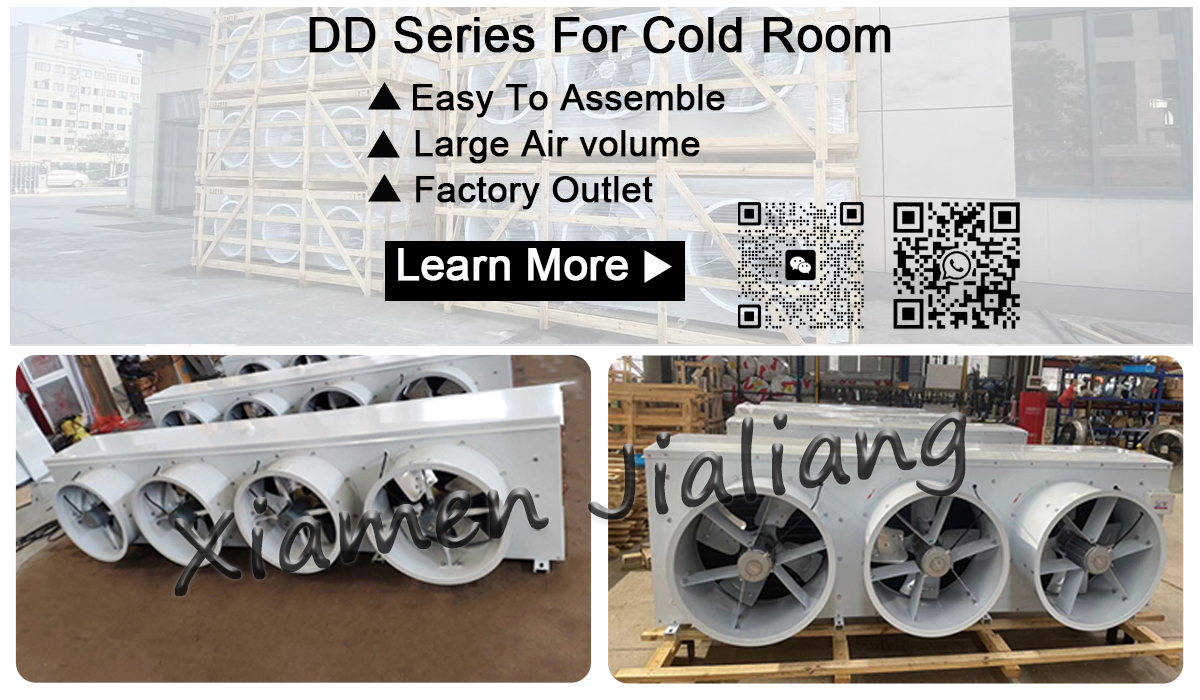

    Large Air Volume Electrochemical Frost Cold Room Evaporation

    ModelDD200DD250DD310DD360DD440
    Refrige-Rating Capacity35.0KW43.8KW54.3KW63.0KW
    		77.0KW
    Cooling Area200㎡250㎡310㎡360㎡440㎡
    Diameter of Feed Inlet25mm25mm25mm25mm
    		28mm
    Diameter of Tail Pipe50mm50mm50mm50mm50mm
    Wind Rate12000*2m³/h12000*3m³/h12000*3m³/h12000*3m³/h12000*4m³/h
    Quantity2N3N3N3N4N
    Fan Blade600mm600mm600mm600mm600mm
    Voltage380v380v380v380v380v
    Power2*1500W3*1500W3*1500W3*1500W4*1500W
    Air Throw20m20m20m20m20m
    Coil Unit11.0KW17.6KW17.6KW20.0KW22.0KW
    Drain Pan2.2KW2.2KW2.2KW2.0KW2.2KW


    Fin pitch: 9.0mm

    Fan equipped with external rotor: 4X4D500

    Air volume: 4X6700m ³/ H

    Electric heating tube power: 8X2.6KW

    Inlet pipe: φ25

    Return steam pipe: φ50

    The outer frame is made of galvanized sheet and sprayed with plastic: right liquid inlet.



    Customized Services

    On site factory

    We are a factory for refrigeration equipment. All of our products can accept customization and OEM, and the accessories of our products are qualified and certified. Our products undergo strict quality inspection during the processing process and before delivery. If necessary, we can send every step of the shooting process to the customer.



    FAQ

    Q1: How about quality control in your factory DD evaporator?
    A1: We strictly operate Full QC process during production ,and each machine will be tasted before delivery.
    Q2: What are the payment term DD evaporator?
    A2: PaymentTerm:50%T/Tinadvance,Thebalanceofpaymentneedtobesettledbeforedelivery.
    Q3: What is leading time  DD evaporator?
    A3: 30 working days.
    Q4: How to buy it ? What about the delivery DD evaporator?
    A4: please contact me by email or online,our team will give you professional solution.we have professional shipping agent in the cheapest and fastest delivery.
    Q5: Can the product be customized according to specifications DD evaporator?
    A5: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
