- DD Series High Stretched Low Noise Cold Room Evaporator
- Get A Quote
DD series medium and low temperature type cold room evaporator, suitable for cold rooms between 0~-18 ℃
- Description
- Features
Product Description

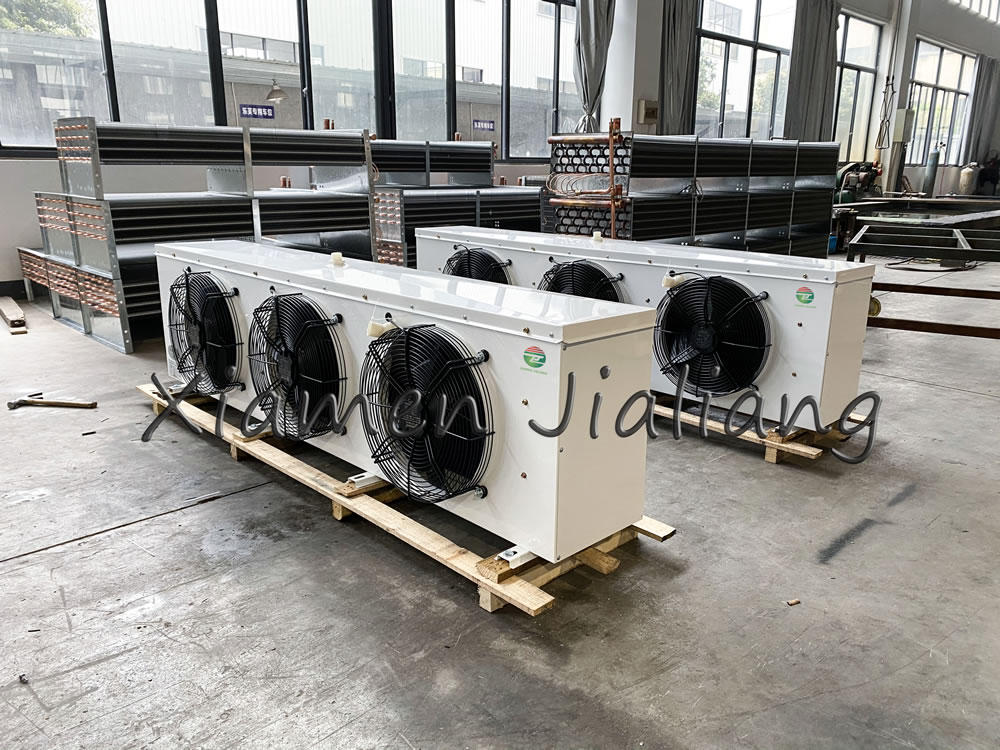

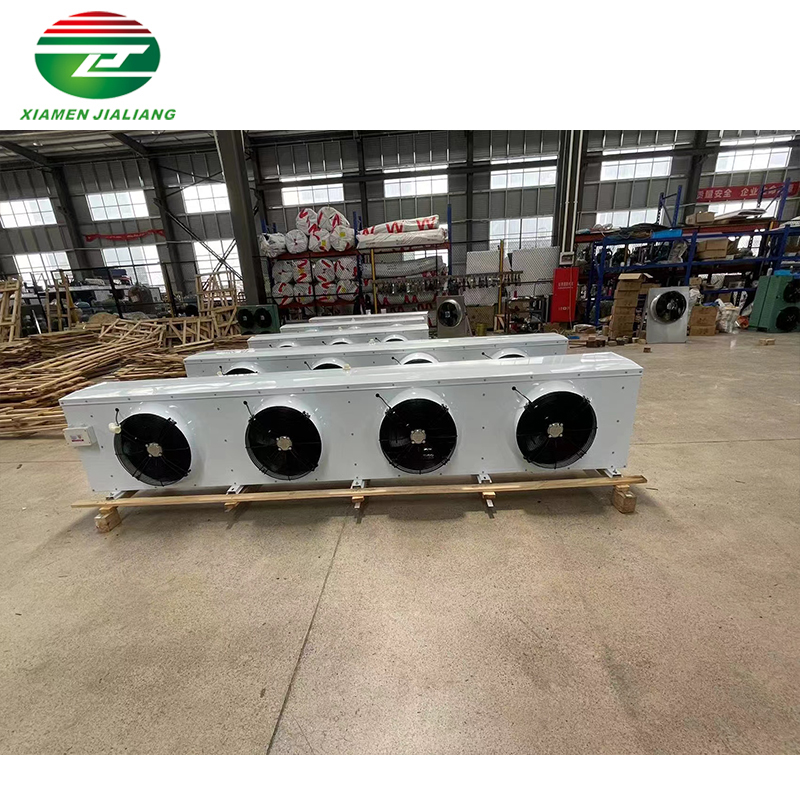

DD Series High Stretched Low Noise Cold Room Evaporator
| Model | DD100 | DD120 | DD140 | DD160 |
| Refrige-Rating Capacity | 17.5KW | 21KW | 24.5KW | 28.0KW |
| Cooling Area | 100㎡ | 120㎡ | 140㎡ | 160㎡ |
| Diameter of Feed Inlet | 19mm | 19mm | 25mm | 25mm |
| Diameter of Tail Pipe | 38mm | 38mm | 42mm | 42mm |
| Wind Rate | 5400*3m³/h | 5400*3m³/h | 5400*4m³/h | 5400*4m³/h |
| Quantity | 3N | 3N | 4N | 4N |
| Fan Blade | 450mm | 450mm | 450mm | 450mm |
| Voltage | 380v | 380v | 380v | 380v |
| Power | 3*280W | 3*280W | 4*280W | 4*280W |
| Air Throw | 15m | 15m | 15m | 15m |
| Coil Unit | 8.0KW | 8.5KW | 10.0KW | 11.0KW |
| Drain Pan | 1.6KW | 1.7KW | 2.0KW | 2.2KW |
Fin pitch: 6.0mm;
Fan equipped with external rotor: 3X4D500:
Air volume: 3X 7300 cubic meters/hour
Electric heating tube power: 5X1.6KW
Inlet pipe: Φ 19. Return steam pipe: Φ 38
The shell is made of galvanized sheet and sprayed with plastic: liquid inlet on the right side.

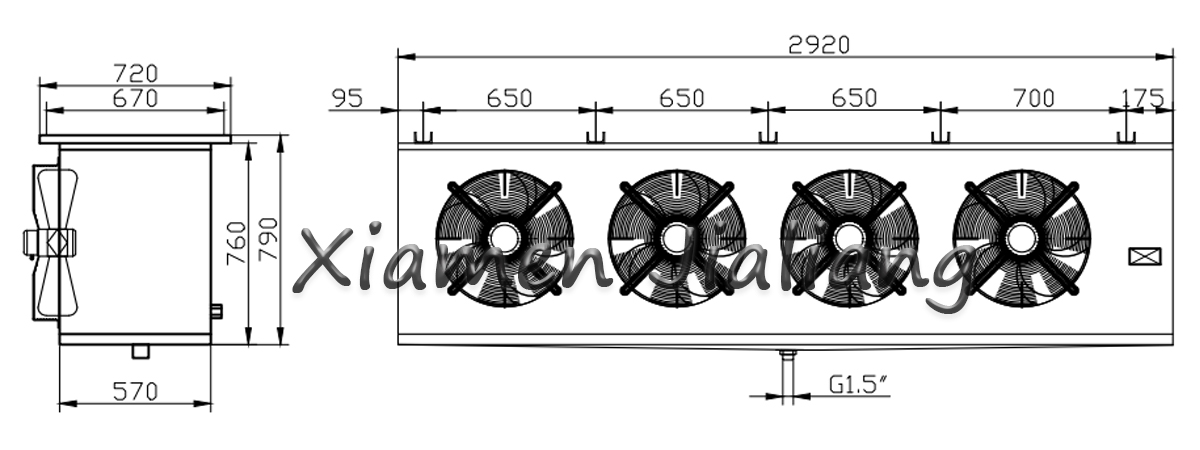

Fin pitch: 9.0mm
Fan equipped with external rotor: 4X4D500
Air volume: 4X6700 cubic meters/hour
Electric heating tube power: 8X2.6KW
Inlet pipe: Φ 25
Return steam pipe: Φ 50
The outer frame is made of galvanized sheet and sprayed with plastic; liquid inlet on the right side.
Customized Services

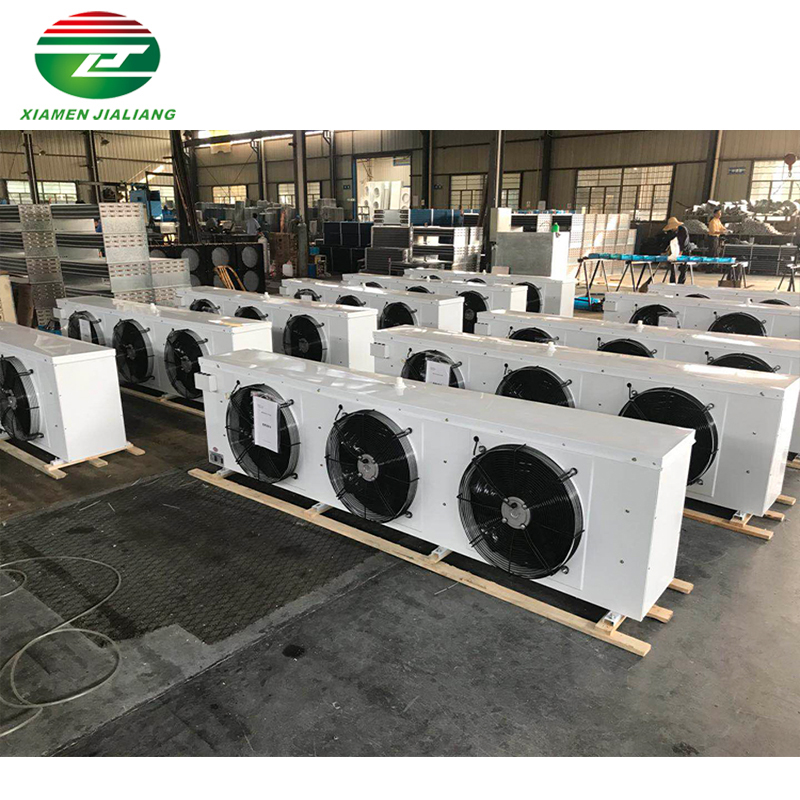

On site factory
A. Individuation & Customization
Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
XiamenJialiang provides up to one year warranty period. If there is any product quality problems, we provide excellent service to solve your worries.
FAQ
| Q1: How can I get one evaporate DD Evaporator? |
| A1: Since the express fee varies a lot, please send us inquiry and we will check the freight and inventory immediately, so that you can get the product quickly. |
| Q2: What is the warranty of cold room evaporator DD Evaporator? |
| A2: One year warranty: non-human damage |
| Q3: What is the package of Evaporator DD Evaporator? |
| A3: Plywood case. |
| Q4: How can we guarantee quality DD Evaporator? |
| A4: Always a pre-production sample before mass production, Always final lnspection before shipment; |
| Q5: Can I get an OEM order DD Evaporator? |
| A5: Usually by sea, if only samples are needed, air freight or courier is available, but the cost incurred should be borne by the customer. |
