    Evaporation inverter integrated unit


    Product Description

    The use of inverter monoblock unit combined together with refrigeration systems is nowadays subject of several studies conducted both from research institutes and refrigeration systems manufacturers worldwide leader in this field. When inverter monoblock unit starts,the compressor is running at high frequency and cooling quickly;when room temperature reachs the setting temperature,the compressor runs at low frequency low speed and low energy,only needed power to maintain the setting temperature,low temperature fluctuation to avoid compressor frequently start to effect compressor life.

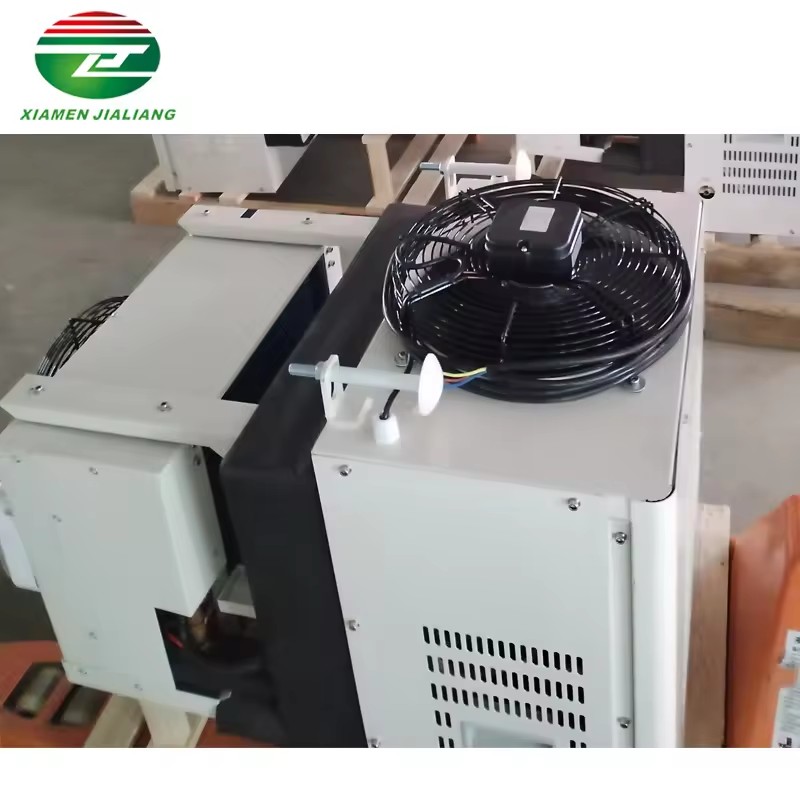

    Side Embedded Inverter Monoblock Unit
    ModelXMJL-BYTCN30
    Voltage220V/50HZ/60Hz
    Packaging Size (mm)1050*1000*1000
    Product Weight(kg)165
    Freezer Room Volume

    ≤25m

    Cold Room Volume≤40m³




    Product Display

    Inverter Monoblock Unit Main Feature Reduce cooling speed faster,small temperature fluctuation range; Efficient energy saving, reduce the system energy; Increase in compressors reliability thanks to the significant decrease of compressors startups; Low noise thanks to the extremely high system flexibility; Extremely low vibration phenomena.

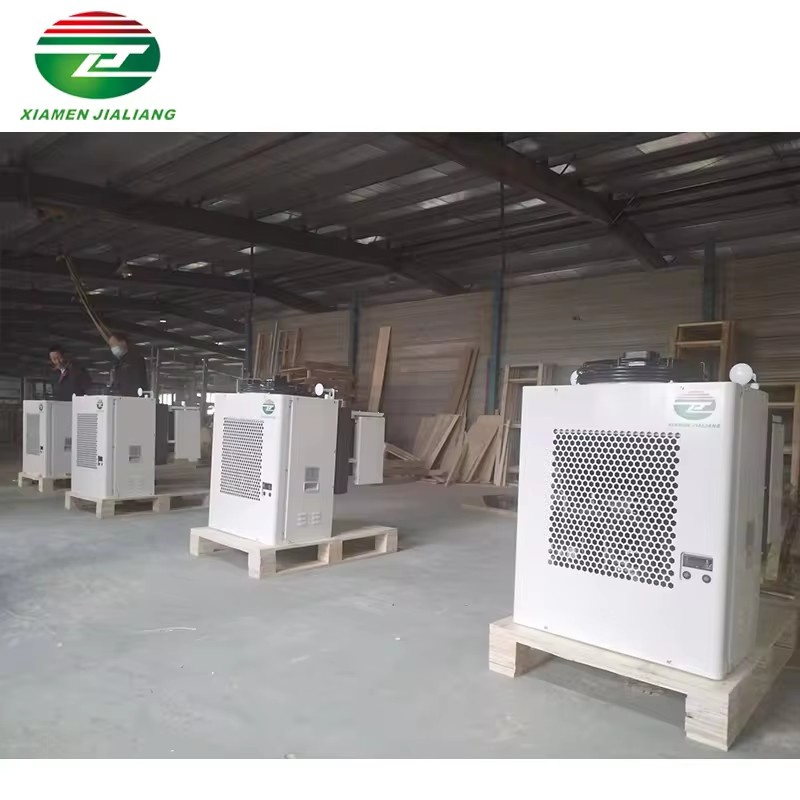

    Our Factory

    According to the needs of market development, our company has inverter monoblock unit, which changes the traditional form of monoblock unit and can meet the needs of - 5 ℃ - 10 ℃, - 10 ℃ - 18 ℃ respectively. It can be widely used in hotels, restaurants, food, health, agriculture, chemical industry and other industries. The products of totally enclosed inverter monoblock unit have the following characteristics: 1. Inverter monoblock unit has a variety of protections such as phase sequence, phase loss,over current, frequent compressor startup, discharge temperature, system high and low pressure and so on. 2. It has the function of unit operation fault alarm and query. When the unit fails, the alarm sound will be sent out through the buzzer to remind the user in time. 3.The operation panel for supporting the warehouse temperature control board has the functions of temperature display, setting, defrosting





    FAQ


    Q1: Is the inverter monoblock unit with overload, overheating, undervoltage/overvoltage, high and low voltage protection devices?
    A1: Overheating, overload, high and low voltage protection devices are available.
    Q2: What is the lowest temperature that the inverter monoblock unit can reach?
    A2: -20 degrees Celsius
