Accurate 3hp Wall Mounted Monoblock Condensing Unit
  • Accurate 3hp Wall Mounted Monoblock Condensing Unit Accurate 3hp Wall Mounted Monoblock Condensing Unit Accurate 3hp Wall Mounted Monoblock Condensing Unit Accurate 3hp Wall Mounted Monoblock Condensing Unit Accurate 3hp Wall Mounted Monoblock Condensing Unit Accurate 3hp Wall Mounted Monoblock Condensing Unit
    • Accurate 3hp Wall Mounted Monoblock Condensing Unit

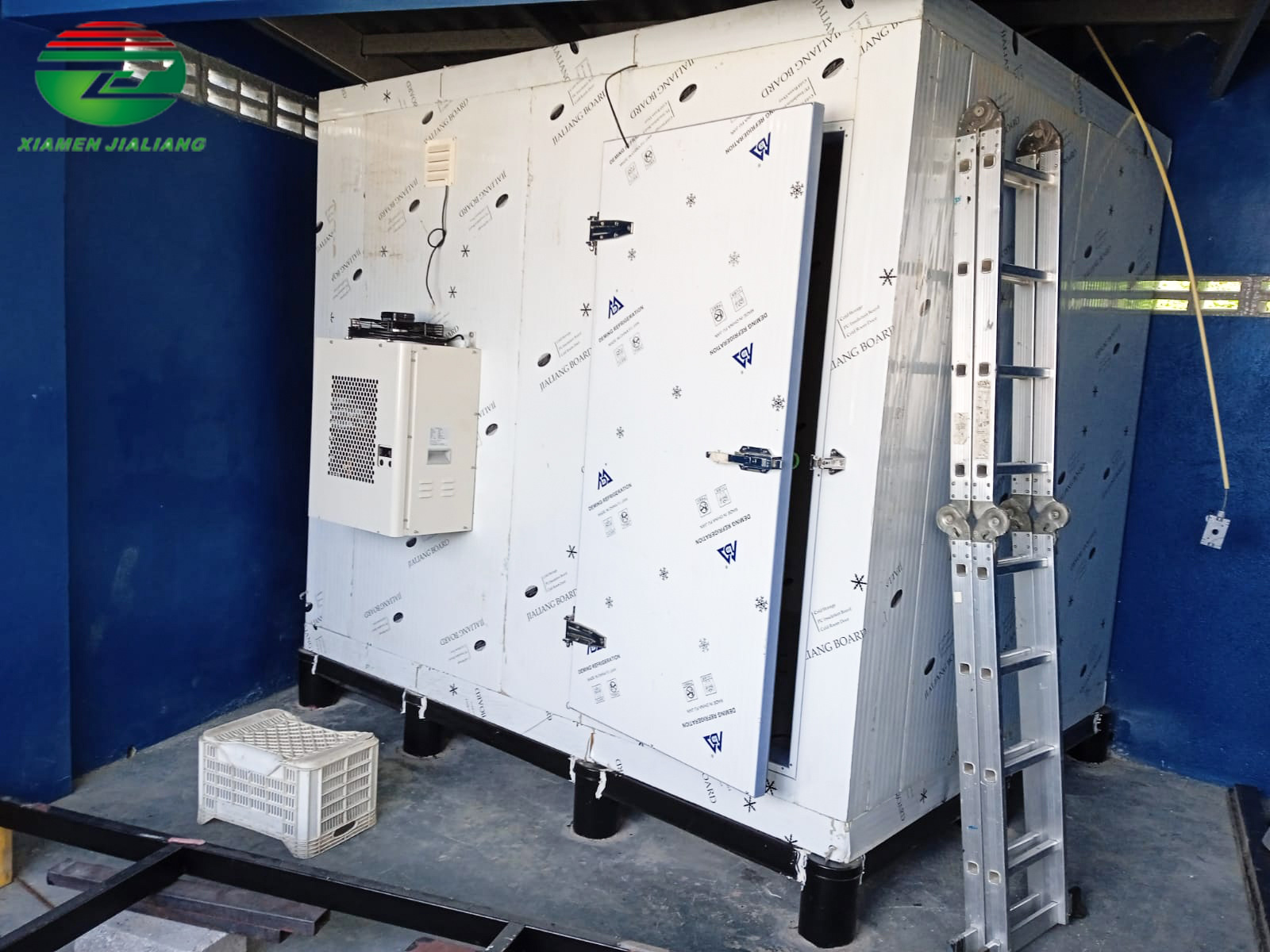

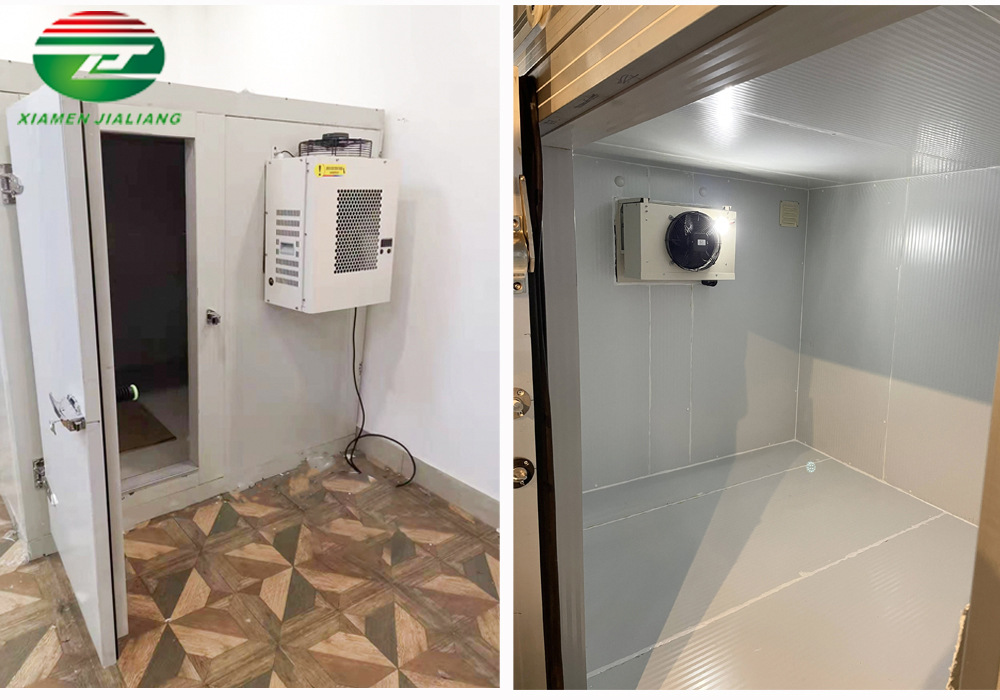

      • Monoblock design, side in embedded installation. Compact structure, easy to install, just embedded in the corresponding size of reserved window on the side panel of the cold room, 20 minutes may finish the installation.

    • Get A Quote
    • Description
    • Features

    Product Description

    Product Description


    According to the needs of market development, our company has launched a monoblock condensing unit, which changes the traditional form of fully enclosed condensing unit and can meet the needs of - 5 ℃ - 10 ℃, - 10 ℃ - 18 ℃ respectively. It can be widely used in hotels, restaurants, food, health, medicine, agriculture, chemical industry and other industries. The products of monoblock condensing unit have the following characteristics:

    1.  The company's monoblock condensing unit has a variety of protections such as phase sequence, phase loss,

       over current, frequent compressor startup, discharge temperature, system high and low pressure and so on.

    2.  It has the function of unit operation fault alarm and query. When the unit fails, the alarm sound will be sent out through

       the buzzer to remind the user in time.

    3.  The operation panel for supporting the warehouse temperature control board has the functions of temperature display, setting, defrosting



    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³
    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

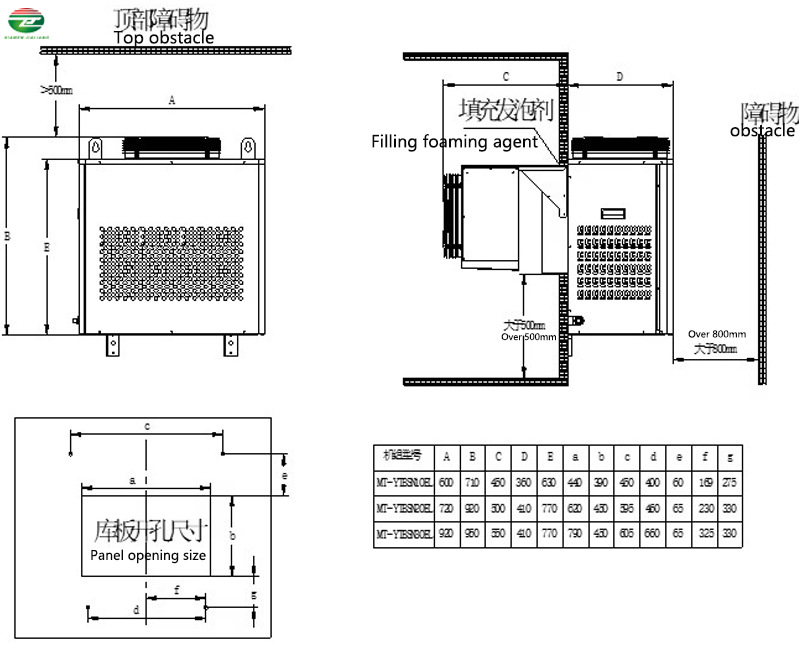

    Installation Method

    When installing, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, which greatly reduces the installation time and labor cost.

    1HP Opening size: Width * Height 450*400mm

    2HP Opening size: Width * Height 630*460mm

    3HP Opening size: Width * Height 800*460mm

    4HP Opening size: Width * Height 900*480mm
