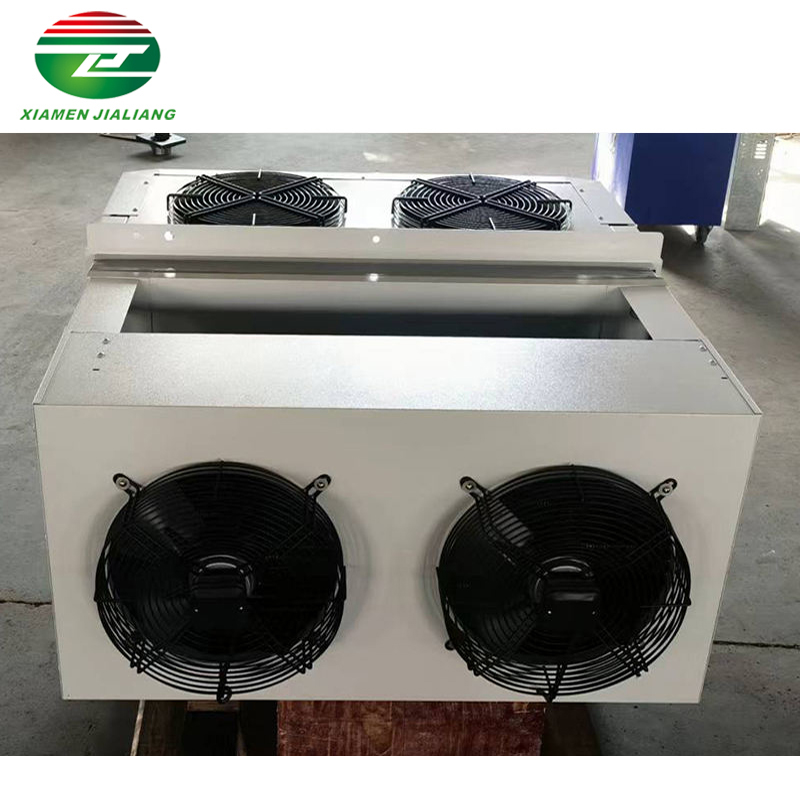

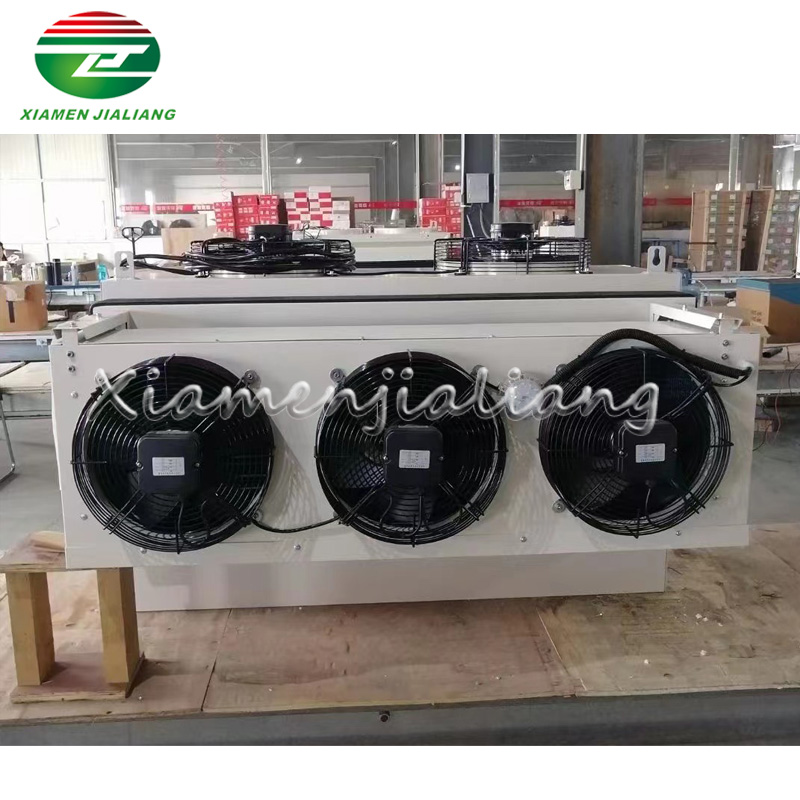

XMJL 5HP Monoblock Condensing Unit Manufacture
  • XMJL 5HP Monoblock Condensing Unit ManufactureXMJL 5HP Monoblock Condensing Unit ManufactureXMJL 5HP Monoblock Condensing Unit ManufactureXMJL 5HP Monoblock Condensing Unit ManufactureXMJL 5HP Monoblock Condensing Unit ManufactureXMJL 5HP Monoblock Condensing Unit Manufacture
    • XMJL 5HP Monoblock Condensing Unit Manufacture

      • Fully automatic intelligent control, with warehouse temperature setting and control, defrosting setting and control, and system operation protection functions.

    • Get A Quote
    • Description
    • Features

    Product Description

    XMJL 5HP Monoblock Condensing Unit Manufacture

    You need to provide the following information, and Xiamen Jialiang will recommend a suitable plan for you:

    1. Cold storage area and volume

    2. Use the venue (indoor or outdoor)

    3. Storage product type

    4. Storage temperature requirements for stored products

    5. Product temperature before storage



    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³


    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

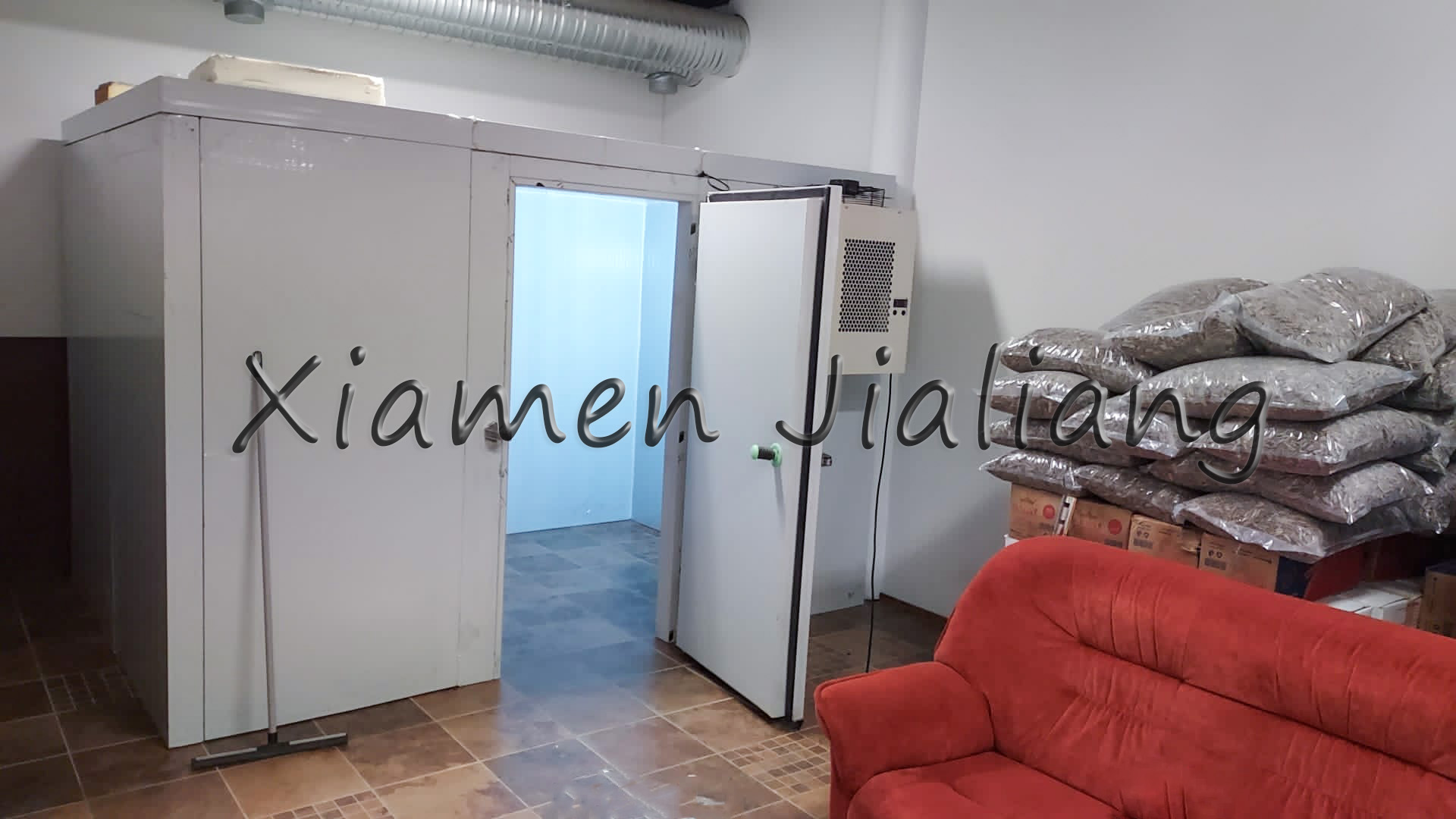

    1. The product structure adopts wall hanging type, and the unit is installed on the side panel of the storehouse body.

    2. There are two types of units, medium temperature and low temperature. Medium temperatureunit mainly meets the use of cold room at 0-10"C, such as fresh storage. The low temperature unit mainly meets the use of cold storage at - 15 ~- 20"C, such as frozen storage.

    3.With hot gas bypass defrosting, the defrosting effect is good.

    4.Fully automatic intelligent control, with warehouse temperaturesetting and control, defrost setting and control, system operation protection functions.




    Customized Services

    Product Details.

    All of our products can accept customization, accessories are CE certified and our products in the course of processing and are subject to stringent quality inspection before delivery, if there is a need, we photographed in the process every step of the process can be sent to customers.




    FAQ

    Q1: What ensures the XMJL monoblock condensing unit maintains a stable temperature?

    A1: The XMJL monoblock condensing unit achieves temperature stability through its intelligent control system and highly efficient refrigeration technology.

    Q2: Can the XMJL monoblock condensing unit be remotely monitored?

    A2: Yes, the XMJL monoblock condensing units are often equipped with remote monitoring capabilities, allowing users to monitor its operation status in real-time.

    Q3: How is the maintenance of the XMJL monoblock condensing unit performed?

    A3: The maintenance of the XMJL monoblock condensing unit includes regular cleaning, refrigerant inspection, and equipment servicing.

    Q4: What is the temperature range of the XMJL monoblock condensing unit?

    A4: The temperature range of the XMJL monoblock condensing unit can typically be adjusted between -18 degrees Celsius to 10 degrees Celsius.
