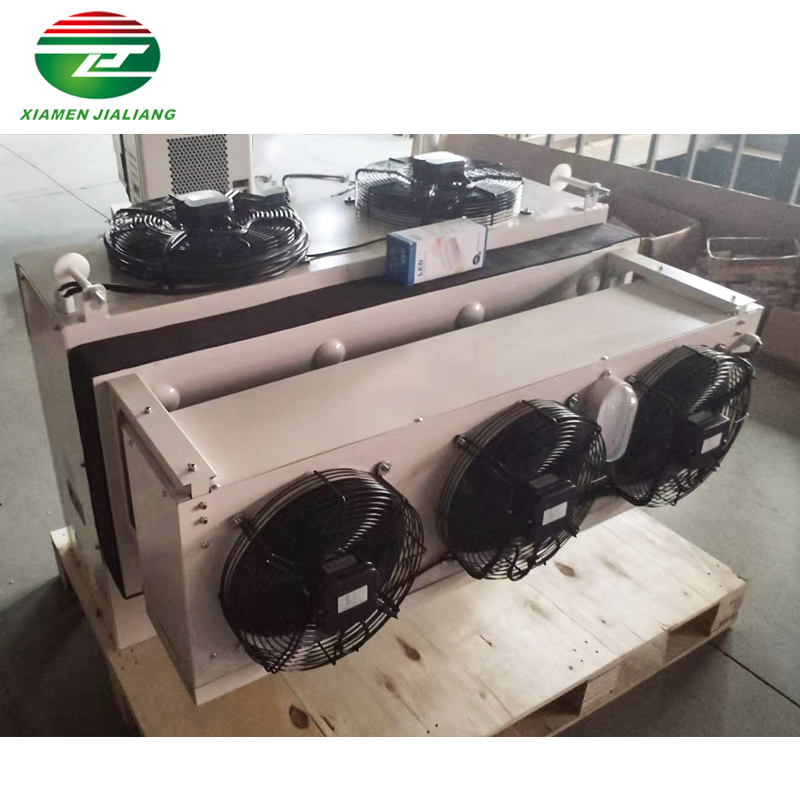

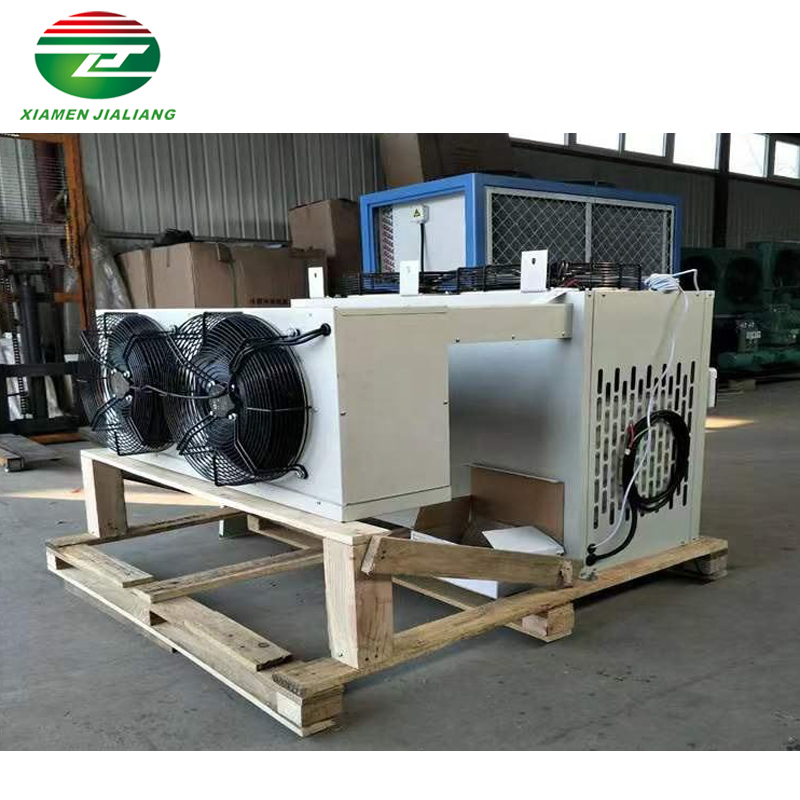

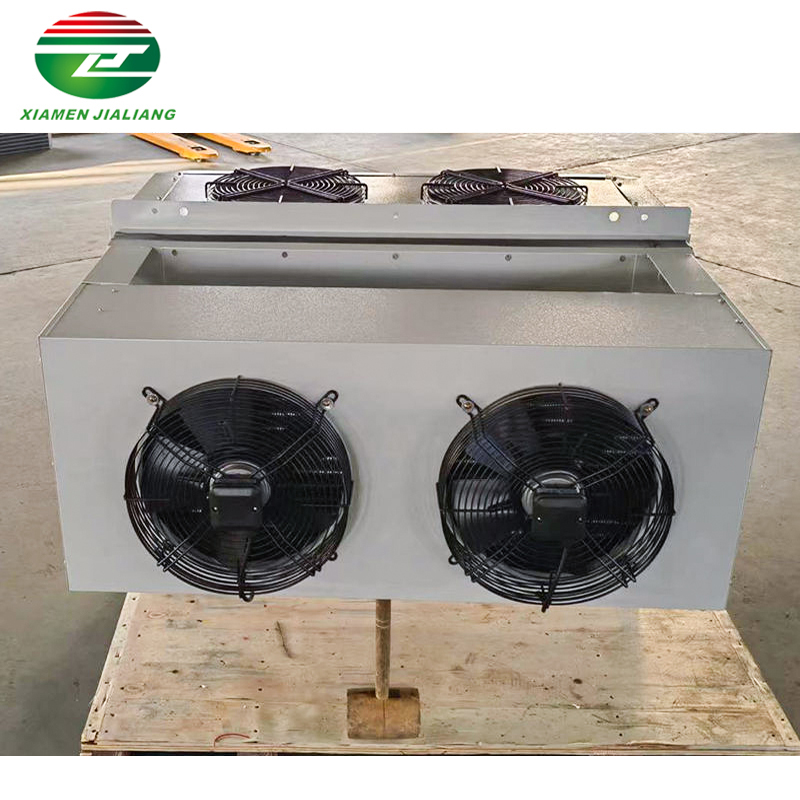

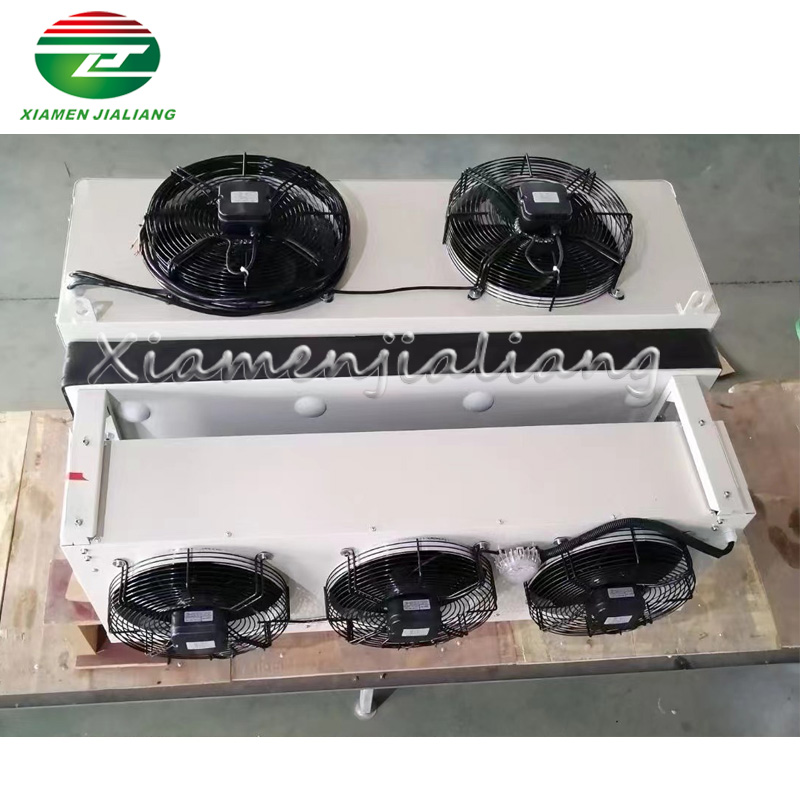

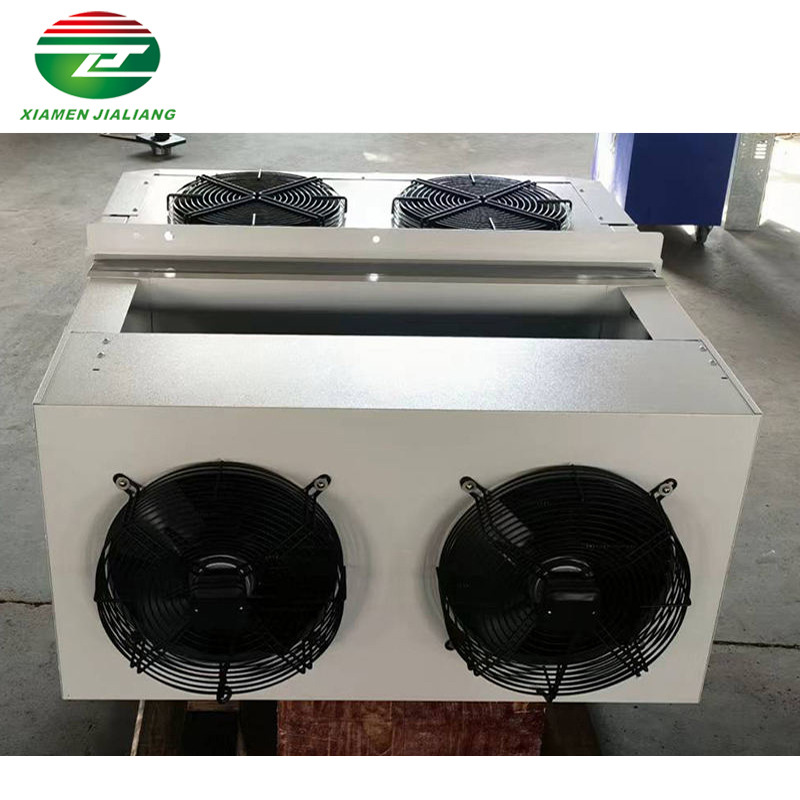

XMJL 4HP Energy Saving Monoblock Condensing Unit
  • XMJL 4HP Energy Saving Monoblock Condensing Unit XMJL 4HP Energy Saving Monoblock Condensing Unit XMJL 4HP Energy Saving Monoblock Condensing Unit XMJL 4HP Energy Saving Monoblock Condensing Unit XMJL 4HP Energy Saving Monoblock Condensing Unit XMJL 4HP Energy Saving Monoblock Condensing Unit
    • XMJL 4HP Energy Saving Monoblock Condensing Unit

      • Installation is convenient and fast, with only a hole in the library body, embedded in the unit, and connected to the power supply. There is no need for debugging, greatly reducing installation time and labor costs.

    • Get A Quote
    • Description
    • Features

    Product Description

    XMJL 4HP Energy Saving Monoblock Condensing Unit

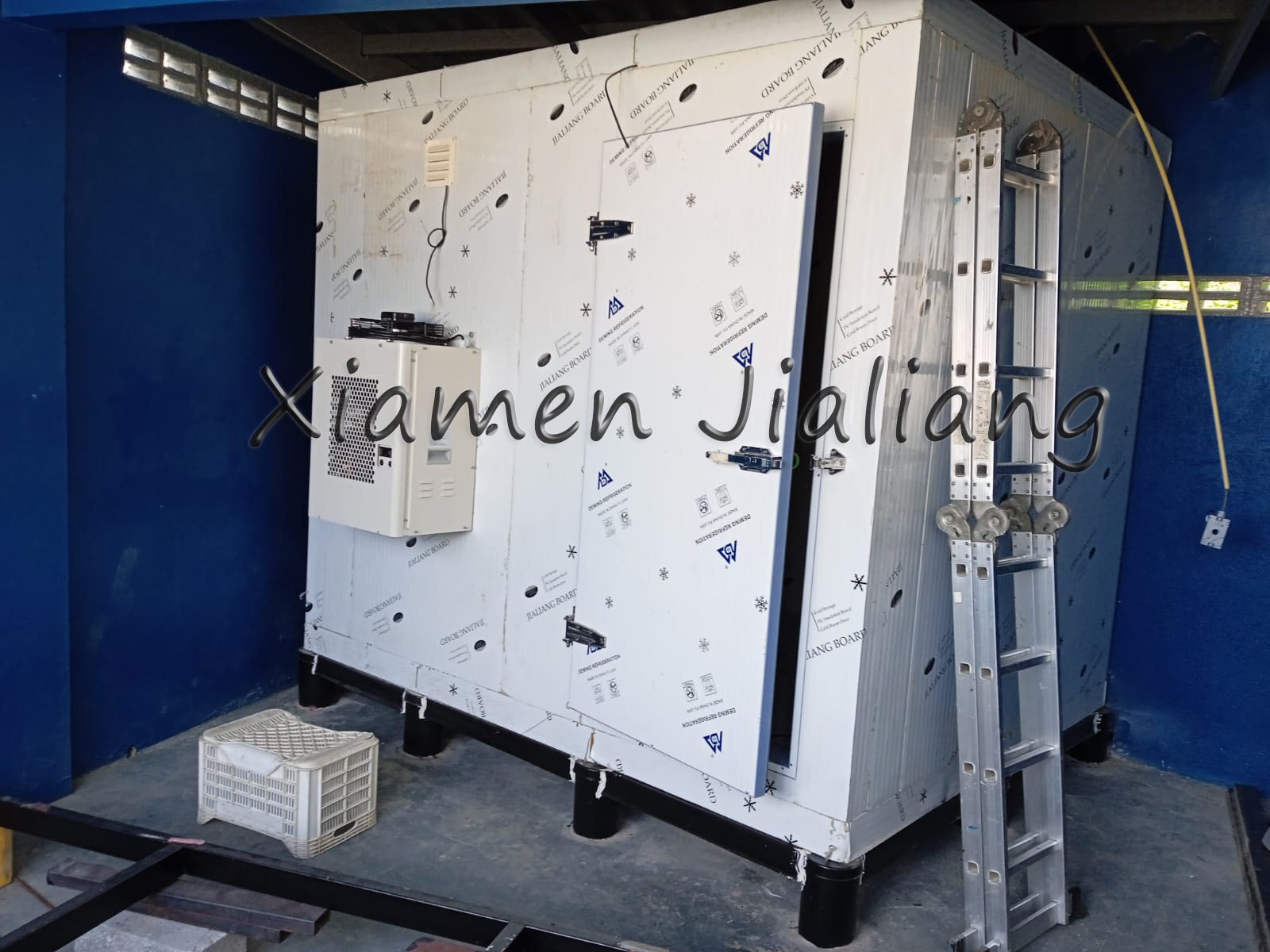

    1. The product structure adopts wall hanging type, and the unit is installed on the side panel of the storehouse body. 2. There are two types of units, medium temperature and low temperature. Medium temperatureunit mainly meets the use of cold room at 0-10"C, such as fresh storage. The low temperature unit mainly meets the use of cold storage at - 15 ~- 20"C, such as frozen storage.

    3.With hot gas bypass defrosting, the defrosting effect is good.

    4.Fully automatic intelligent control, with warehouse temperaturesetting and control, defrost setting and control, system operation protection functions.


    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³


    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³


    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

    Horse Power4HP
    Refrigeration Capacity3892 W
    Storage Capacity (-18 ℃)47m³
    Power3 KW
    Voltage220/380 V

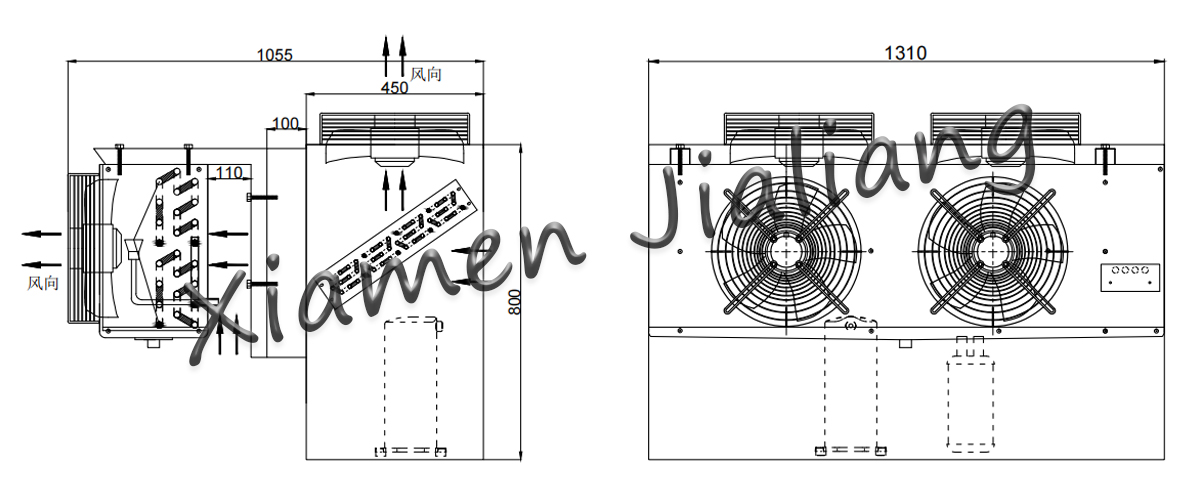

    External Size (L*W*H(mm))888*1120*855
    Hole Size (L*W*H(mm))1090*490

    Evaporation Fan Parameters
    Motor Power150 W
    Blade Diameter300 mm
    Number of Fans2
    Air Volume4200 CMH

    Condensing Fan Parameters
    Motor Power195 W
    Blade Diameter350 mm
    Number of Fans2
    Air Volume6400 CMH

    Technical parameters:

    Condenser: 3x8 ring, string length 1100mm, sheet spacing 2mm. Heat exchange area 30 ㎡

    Equipped with x2 ∅ 350 external rotor motors, with a power of 150w per motor and an air volume of 2350m ³/ only

    Cold air fan: 3x8 holes, string length 1050mm, sheet spacing 6mm. Heat exchange area 22m

    Equipped with x2 ∅ 350 external rotor motors, with a power of 150w per motor and an air volume of 2350m ³/ only



    Customized Services


    FAQ

    Q1: What are the features of the XMJL monoblock condensing unit (also known as a one-piece unit)?

    A1: The XMJL monoblock condensing unit is an integrated refrigeration system that combines both cold storage and refrigeration functions into a single, compact unit.

    Q2: What advantages does the XMJL monoblock condensing unit provide?

    A2: The XMJL monoblock condensing unit offers easy installation, a small footprint, and dependable, consistent performance as its main benefits.

    Q3: Is the control system of the XMJL monoblock condensing unit easy to operate?

    A3: Yes, the control system of the XMJL monoblock condensing unit is usually designed to be simple and user-friendly.

    Q4: Does the XMJL monoblock condensing unit require frequent refrigerant replenishment?

    A4: In general, the refrigerant inthe XMJL monoblock condensing unit does not require frequent replenishment, but regular checks are necessary.
