XMJL 2HP China Monoblock Condensing Unit Supplier
  • XMJL 2HP China Monoblock Condensing Unit SupplierXMJL 2HP China Monoblock Condensing Unit SupplierXMJL 2HP China Monoblock Condensing Unit SupplierXMJL 2HP China Monoblock Condensing Unit SupplierXMJL 2HP China Monoblock Condensing Unit SupplierXMJL 2HP China Monoblock Condensing Unit Supplier
    • XMJL 2HP China Monoblock Condensing Unit Supplier

      • Monoblock condensing unit adopts an integrated lighting design, which is more convenient to install and use. Simply provide the corresponding size on the side panel of the refrigeration room

    • Get A Quote
    • Description
    • Features

    Product Description

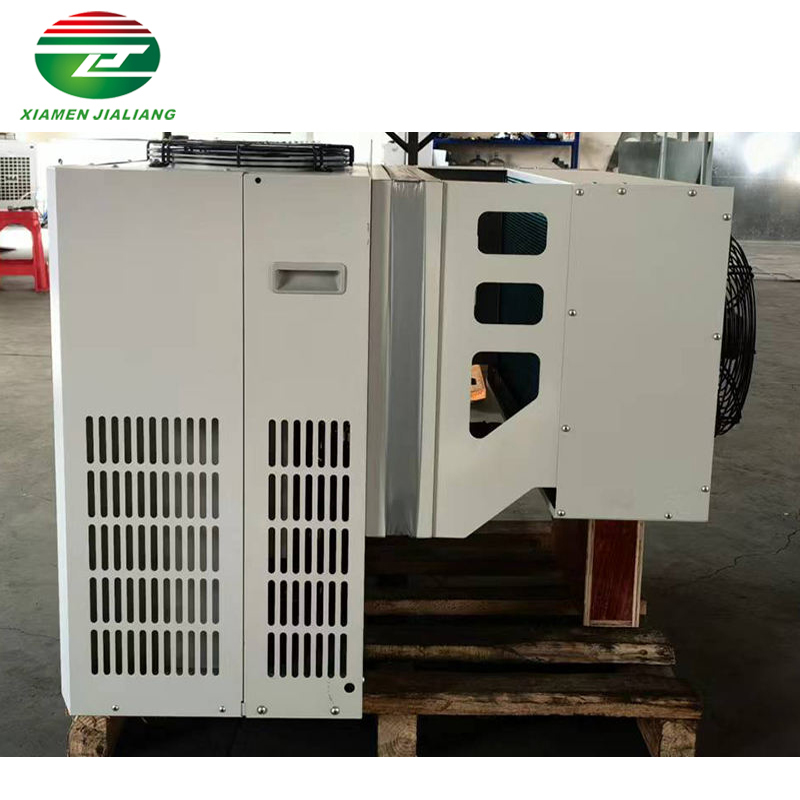

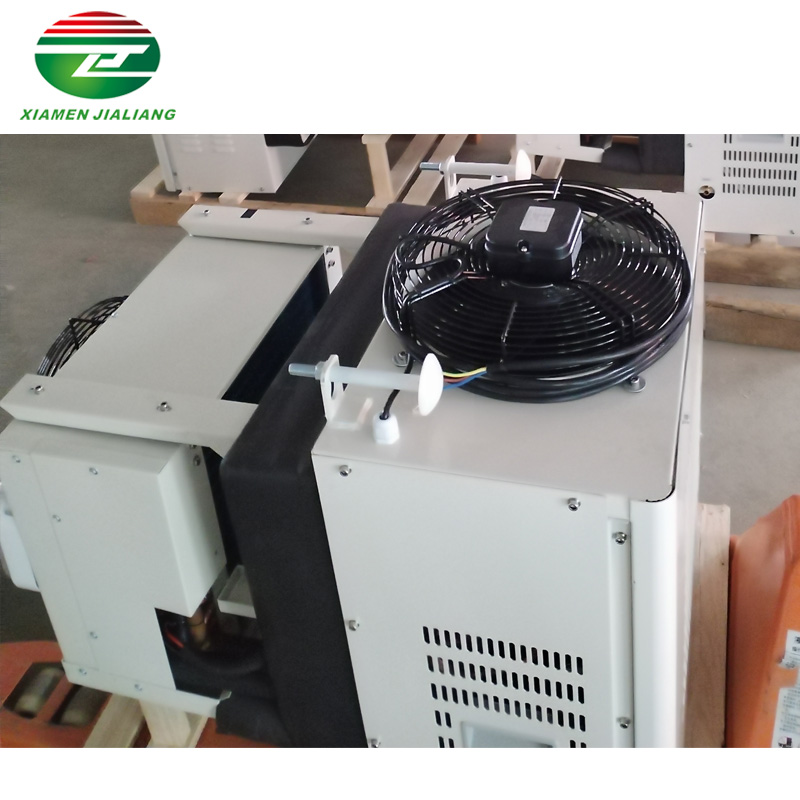

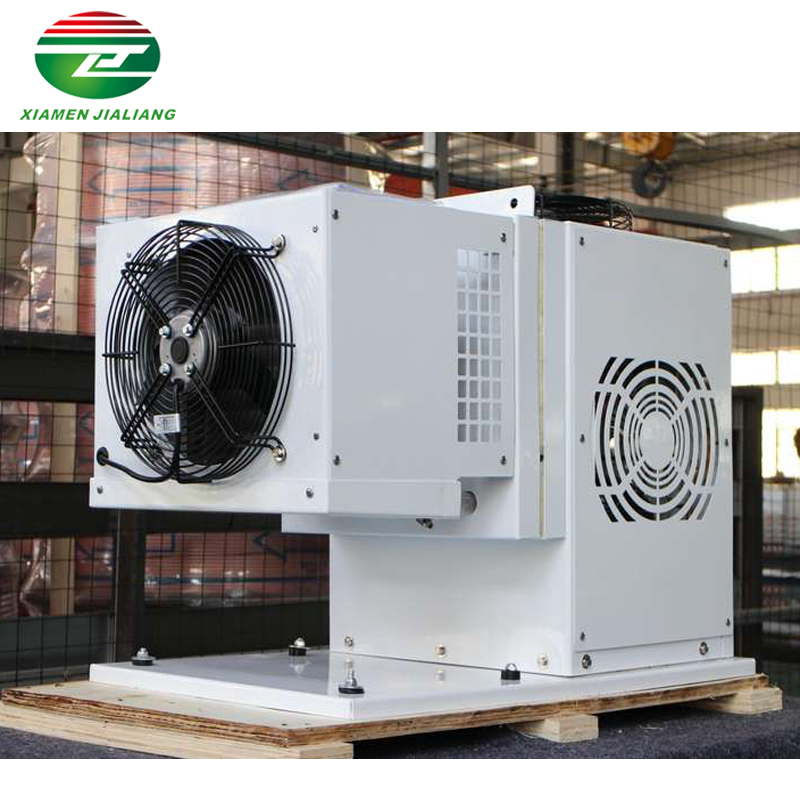

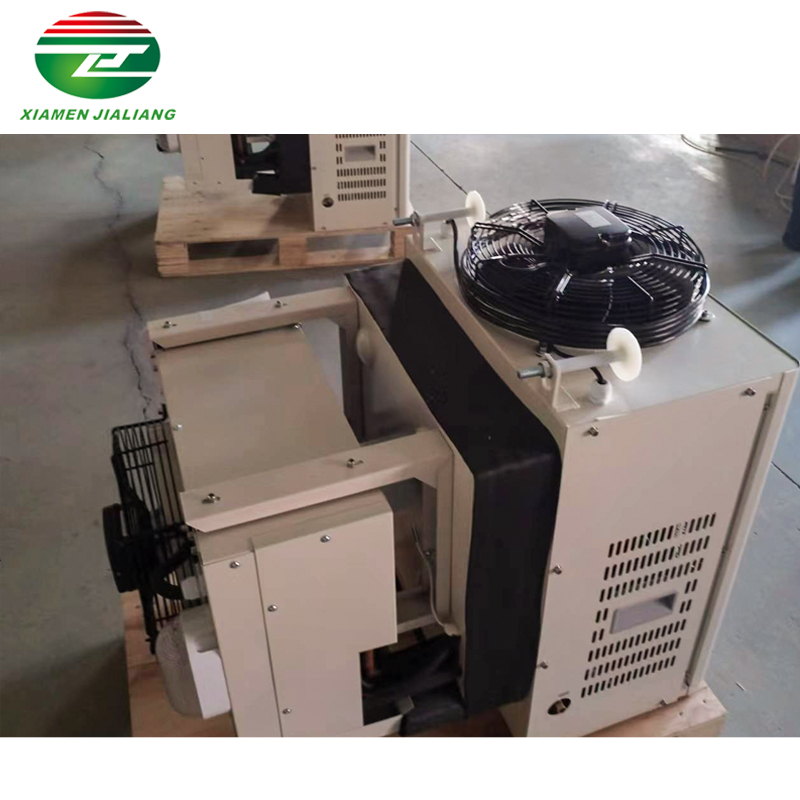

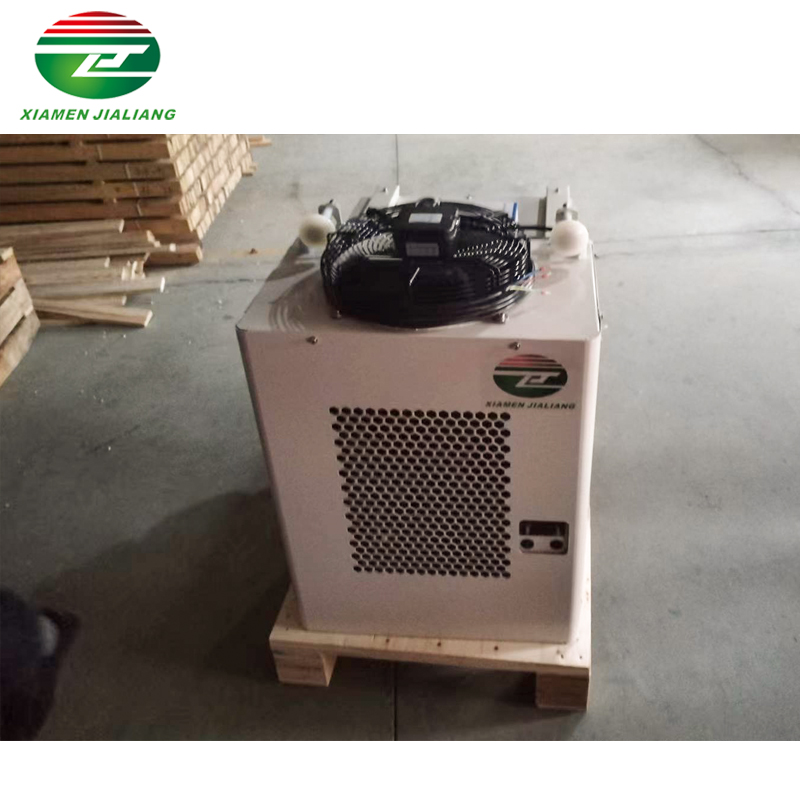

    XMJL 2HP China Monoblock Condensing Unit Supplier

    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³
    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³
    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz


    Horse Power2HP
    Refrigeration Capacity2176W
    Storage Capacity (-18 ℃)16m³
    Power1.5 KW
    Voltage220 V
    External Size (L*W*H(mm))888*680*855
    Hole Size (L*W*H(mm))650*490

    Evaporation Fan Parameters
    Motor Power150 W
    Blade Diameter300 mm
    Number of Fans1
    Air Volume2100 CMH

    Condensing Fan Parameters
    Motor Power195 W
    Blade Diameter350 mm
    Number of Fans1
    Air Volume3200 CMH

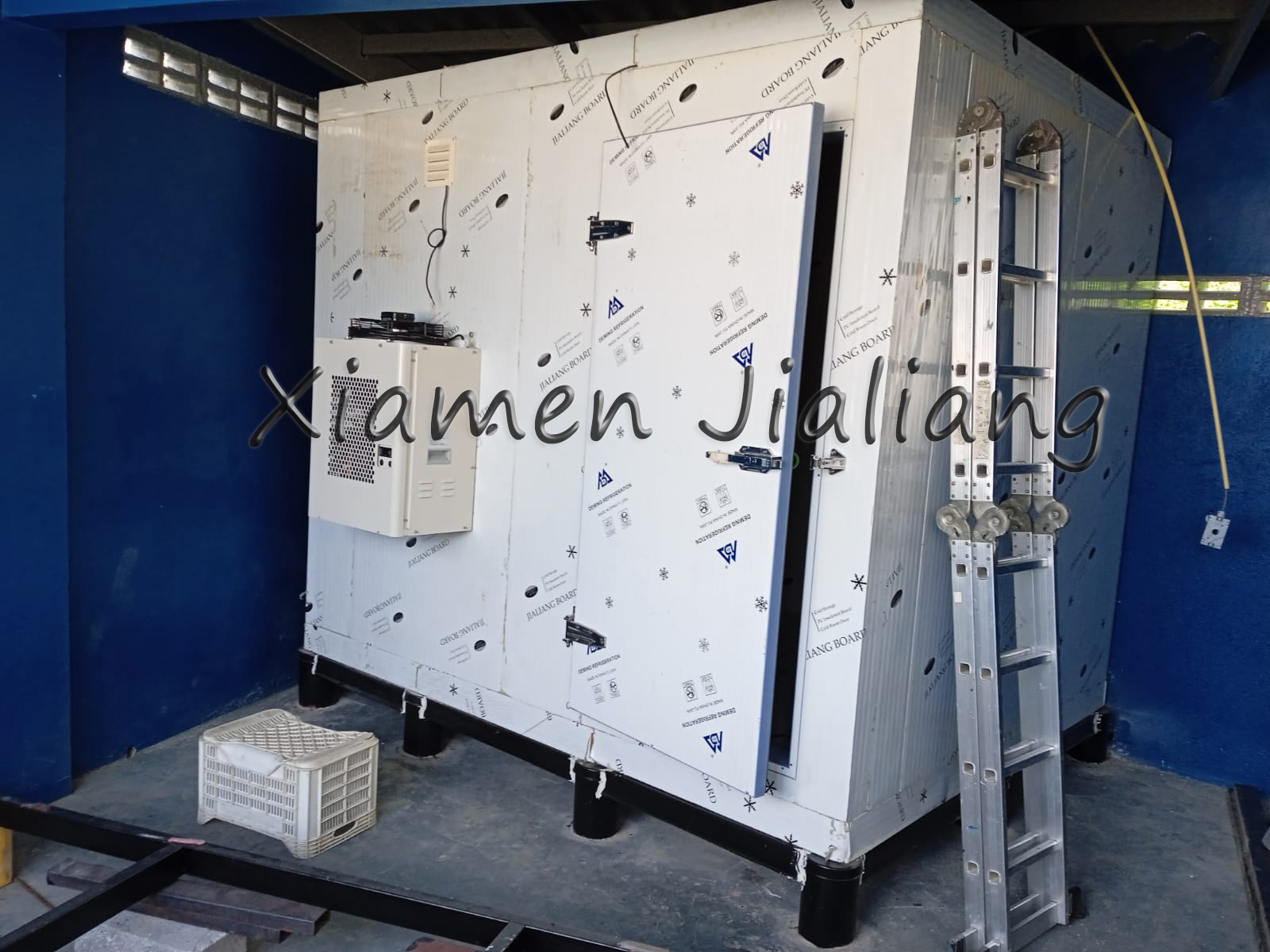

    Installation method: When installing, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, which greatly reduces the installation time and labor cost.

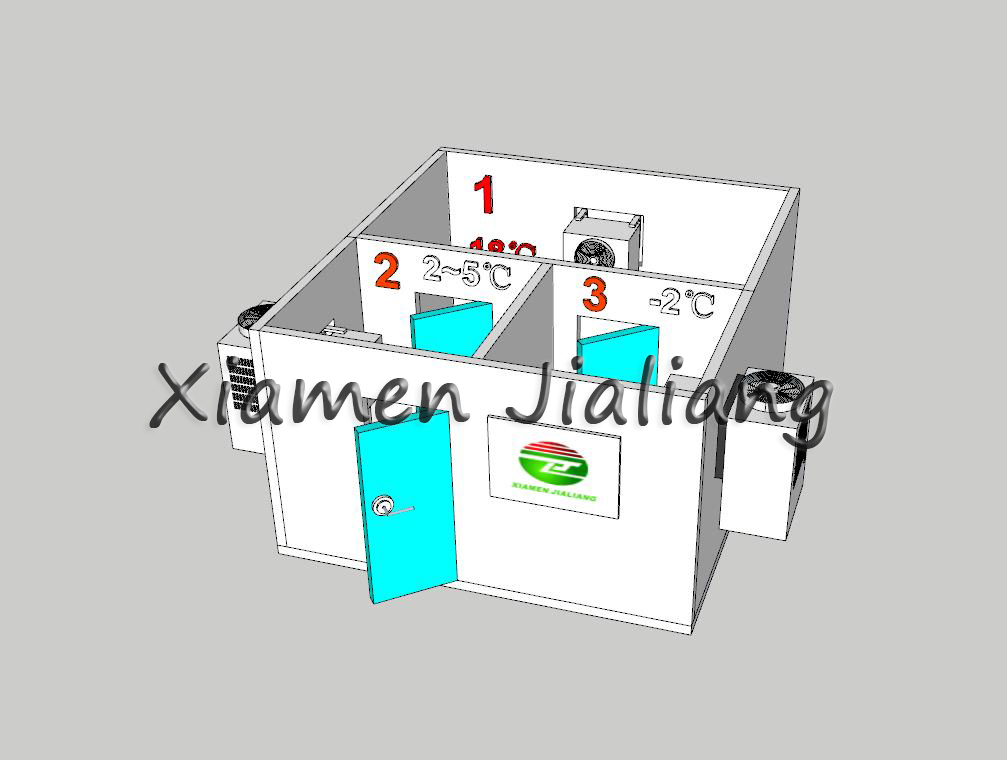

    Customized Services

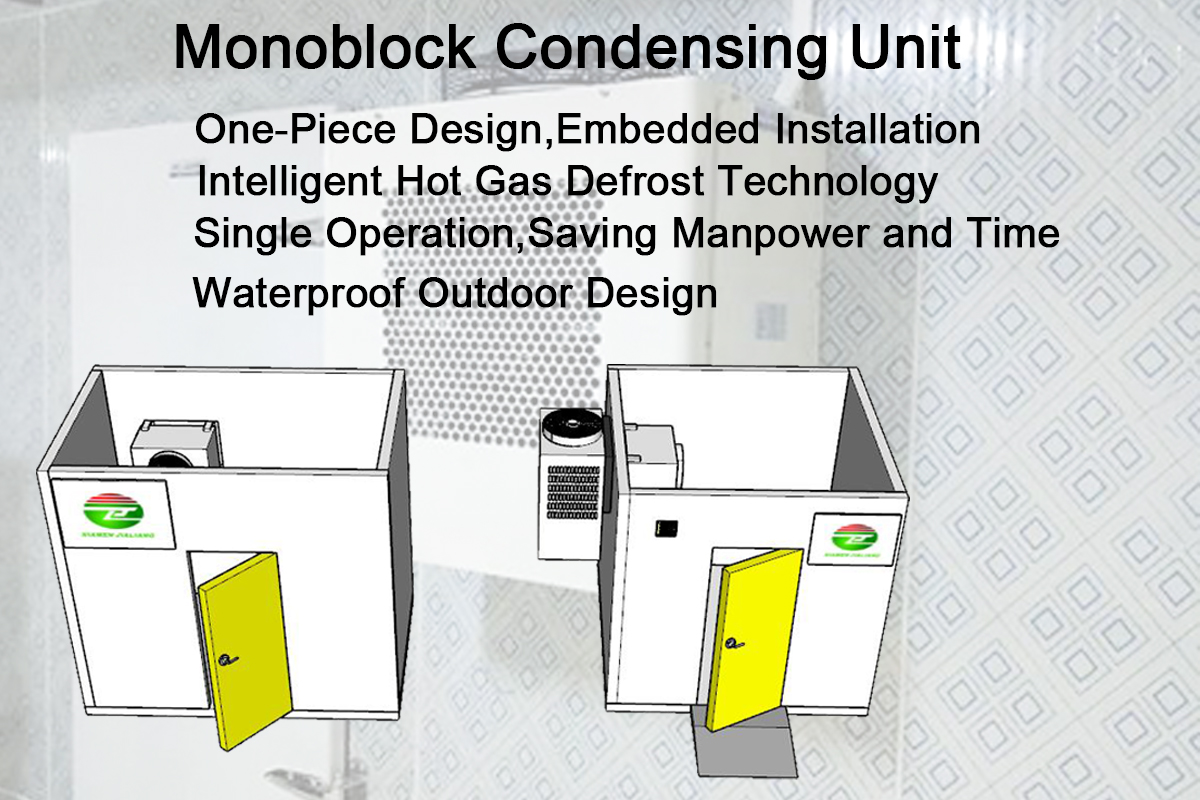

    Monoblock refrigeration unit is divided into :Wall-mounted monoblock and Ceiling-mounted monoblock


    FAQ

    Q1: Is it necessary to provide additional structural support for the XMJL monoblock condensing unit, or can it operate independently?

    A1: The XMJL monoblock condensing unit is designed to operate independently, typically without the need for additional structural support.

    Q2: How frequently does theXMJL monoblock condensing unit require refrigerant replenishment?

    A2: The XMJL monoblock condensing unit doesn't require frequent refrigerant replenishment, but regular inspections are important to ensure its optimal performance.

    Q3: Where is the XMJL monoblock condensing unit suitable for use?

    A3: the XMJL monoblock condensing unit is suitable for various applications, such as food processing, supermarkets, pharmaceuticals, and more.

    Q4: What are the advantages of the XMJL monoblock condensing unit?

    A4: The advantages of the XMJL monoblock condensing unit include easy installation, small footprint, and stable operation.
