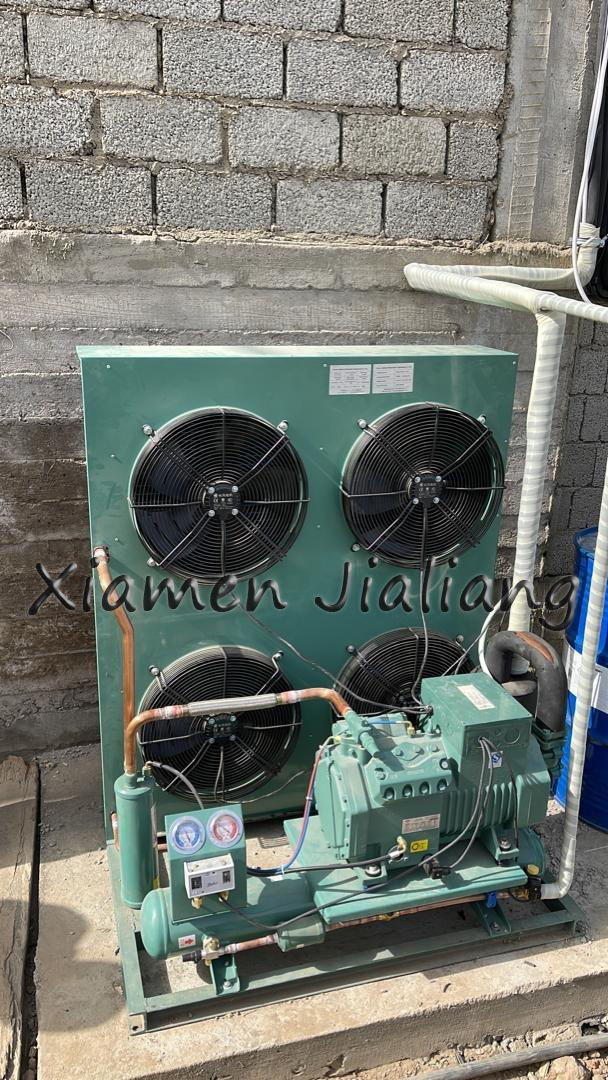

Factory Price Semi Hermetic Condensing Unit for Cold Room
  • Factory Price Semi Hermetic Condensing Unit for Cold RoomFactory Price Semi Hermetic Condensing Unit for Cold RoomFactory Price Semi Hermetic Condensing Unit for Cold RoomFactory Price Semi Hermetic Condensing Unit for Cold RoomFactory Price Semi Hermetic Condensing Unit for Cold RoomFactory Price Semi Hermetic Condensing Unit for Cold Room
    • Factory Price Semi Hermetic Condensing Unit for Cold Room

      • The condensing unit has a compact structure, light weight, saves floor space, and is efficient and energy-saving

    • Get A Quote
    • Description
    • Features

    Product Description

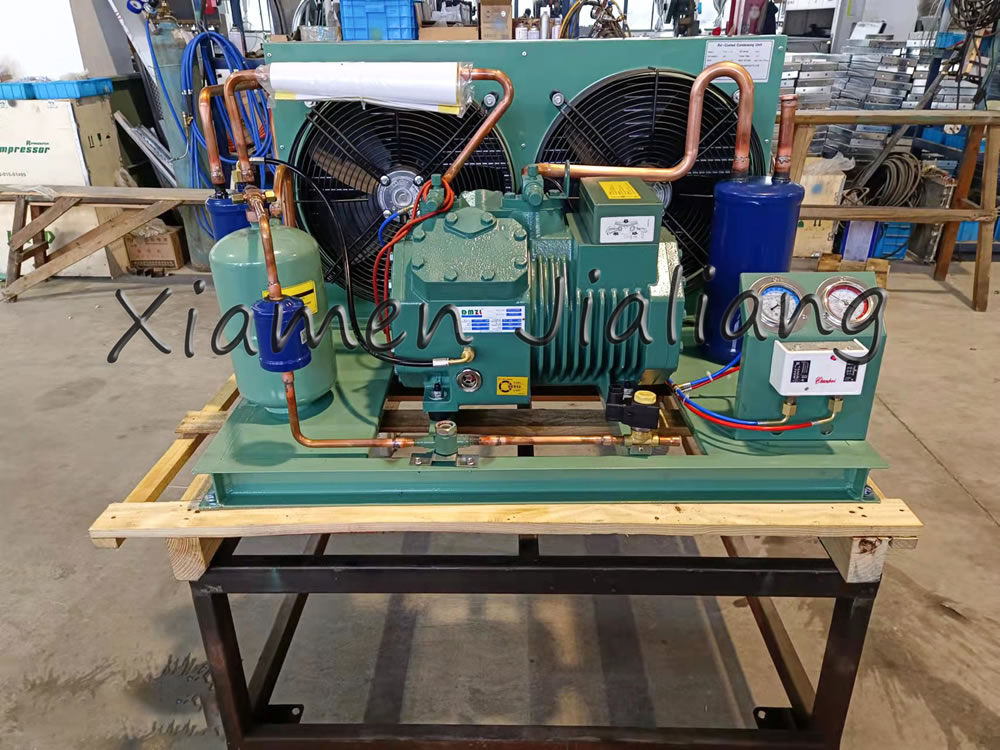

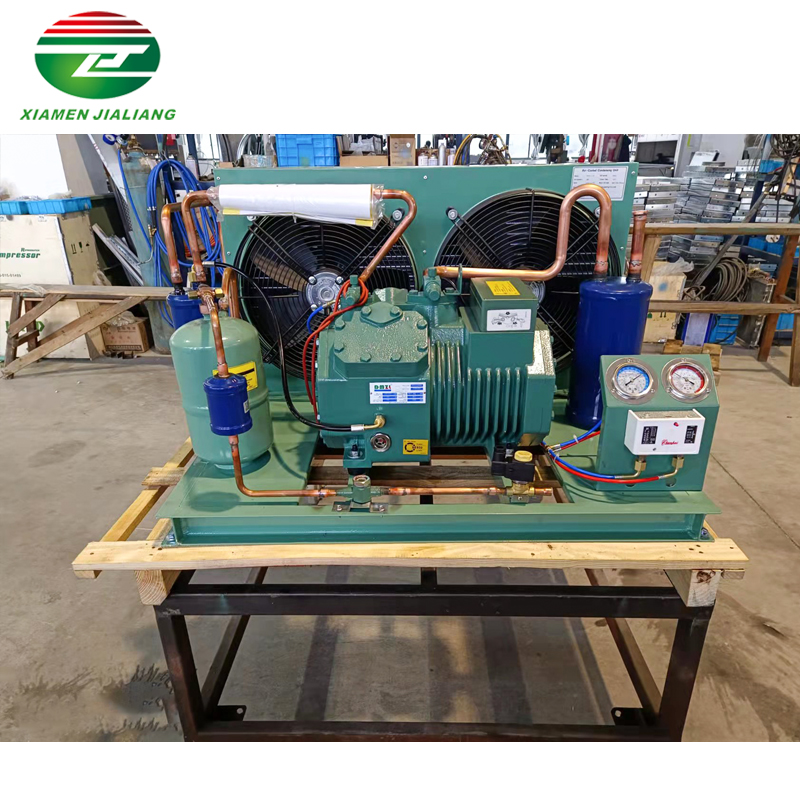

    Factory Price Semi Hermetic Condensing Unit for Cold Room

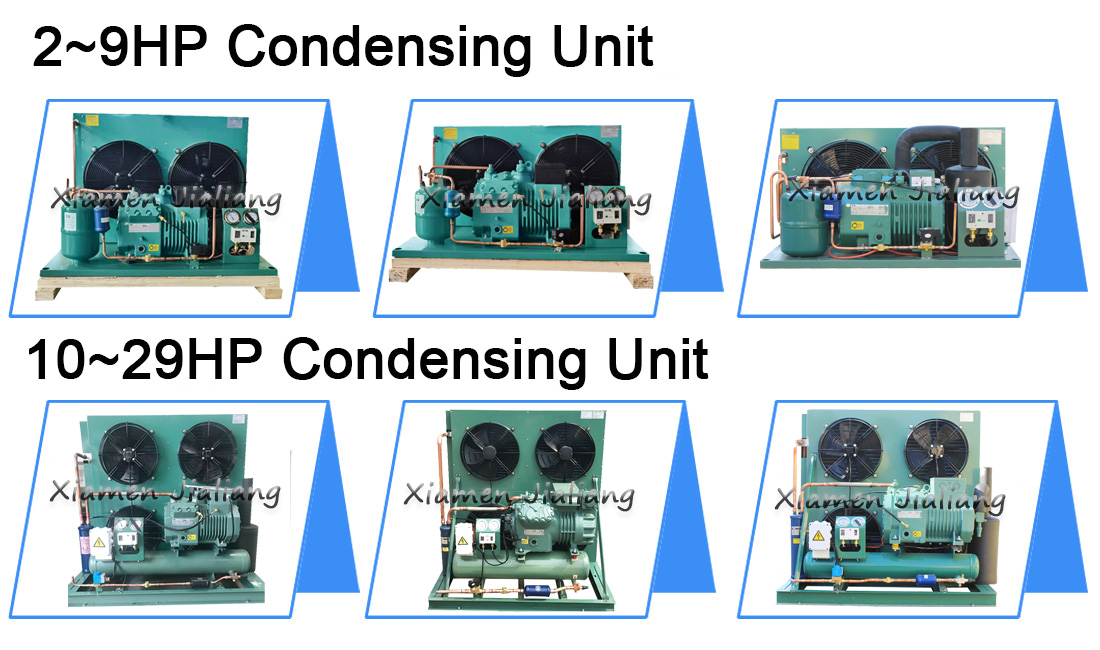

    Equipped with Compressor4FC-3.24EC-4.24DC-5.24CC-6.24VCS-6.24TCS-8.2
    Condensing Temperature40℃
    Temperature Range-11℃~-28℃
    Refrigeration Capacity (-5 ℃)11.5KW14.4KW17.6KW21.1KW22.7KW27.7KW
    Evaporator Capacity11.5KW14.4KW17.6KW21.1KW22.7KW27.7KW
    Engine Displacement (50Hz) m/h18.0522.7226.8432.4834.7341.33
    Current 400V9.2A10.7A13.5A15.9A14A17A
    Voltage Range

    380~420YY/3/50

    440~480YY/3/60

    HP3HP4HP5HP6HP6HP4HP

    Equipped with Compressor4PCS-10.24NCS-12.24H-15.24G-20.26H-25.2
    Condensing Temperature40℃
    Temperature Range-11℃~-28℃
    Refrigeration Capacity (-5 ℃)32.2KW37.3KW50.8KW58.3KW74.7KW
    Evaporator Capacity32.2KW37.3KW50.8KW58.3KW74.7KW
    Engine Displacement (50Hz) m/h48.556.2573.684.5110.5
    Current 400V21A24A31A37A45A
    Voltage Range

    380~420YY/3/50

    440~480YY/3/60

    HP10HP12HP15HP20HP25HP



    Customized Services


    Q1: Does Xiamen Jialiang condensing unit need regular dust removal?

    A1: Yes, condensing units require regular dust removal to ensure the ventilation system remains unobstructed and maintain cooling efficiency.

    Q2: What are the types of refrigerants used in Xiamen Jialiang condensing unit?

    A2: Common types of refrigerants used in condensing units include ammonia, fluorocarbons, propane, etc. Different models of units may use different types of refrigerants.

    Q3: Can Xiamen Jialiang condensing unit be customized to specific needs?

    A3: Indeed, condensing units commonly offer customization options. This enables tailoring the unit's size, setup, and features to match the precise requirements of individual customers.

    Q4: What is the maintenance cost of condensing unit?

    A4: The maintenance cost of condensing unit varies depending on the type, specifications, and maintenance frequency of the unit. Regular maintenance and timely replacement of components can reduce long-term maintenance expenses.
