- CSH8593-140Y 140HP Low Noise Water Chiller Unit
- Get A Quote
Chiller unit is a type of water cooling equipment that can provide constant temperature, constant flow, and constant pressure cooling water.
- Description
- Features
Product Description

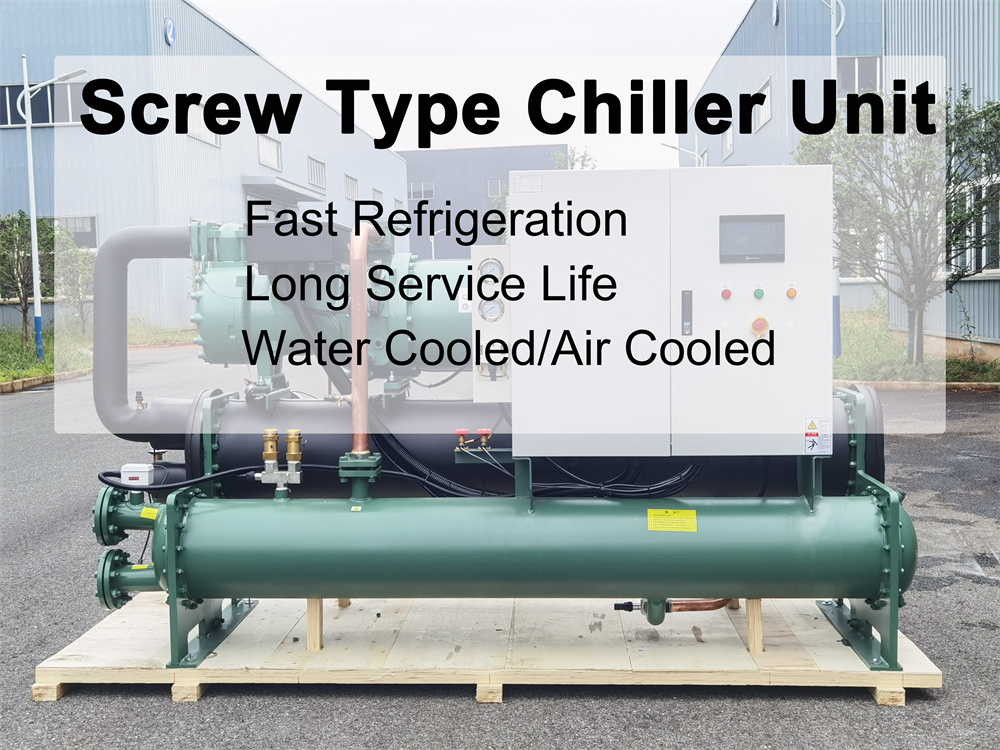

CSH8593-140Y 140HP Low Noise Water Chiller Unit
Product Description
Chiller unit are divided into two types in the industry: air-cooled chillers and water-cooled chillers. Chillers unit are divided into low-temperature chillers and normal-temperature chillers in terms of temperature control. The normal temperature is generally controlled within the range of 0℃~35℃. The temperature control of the cryogenic machine is generally in the range of 0℃~-45℃.
Model | CSH8593-140Y | |||
Horse Power | 140HP | |||
Power(kW) | 440V/3P/60Hz | |||
Refrigerant | R134a | |||
Cooling Method | Water-Cooling | |||
Outlet/Return Water Temperature | 7/12℃ | |||
Evaporating Temperature | 2℃ | |||
Condensing Temperature | 40℃ | |||
Refrigeration Capacity | 369kW | |||
317.3(103kcal/hr) | ||||
Overall Size | 3400*1300*1740mm | |||
Noise Value | 73dB(A) | |||
Overall Weight | 2900kg | |||
Operating Weight | 3250kg | |||
| Compressor | ||||
Input Power | 87kW | |||
Operating Current | 127.5A | |||
Capacity Control | 25%-50%-75%-100% | |||
| Condenser | ||||
Water Pipe Connection | DN125mm | |||
Water Flow | 78m³/h | |||
Water Pressure Drop | 44kPa | |||
| Evaporator | ||||
Water Pipe Connection | DN125mm | |||
Water Flow | 42m³/h | |||
Water Pressure Drop | 39kPa | |||

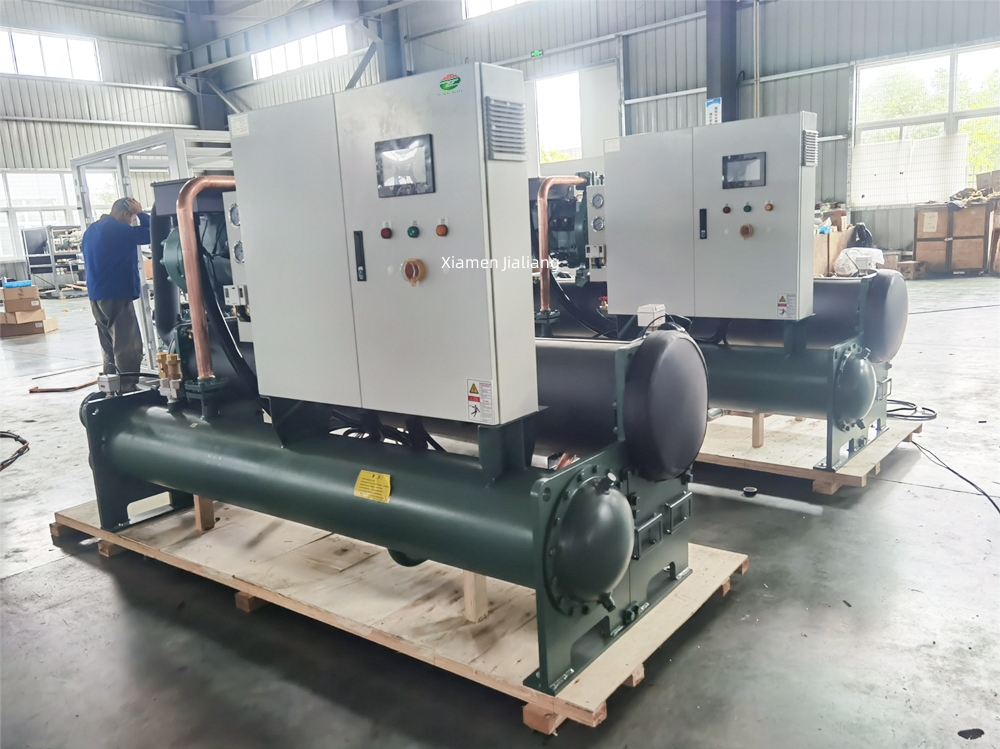

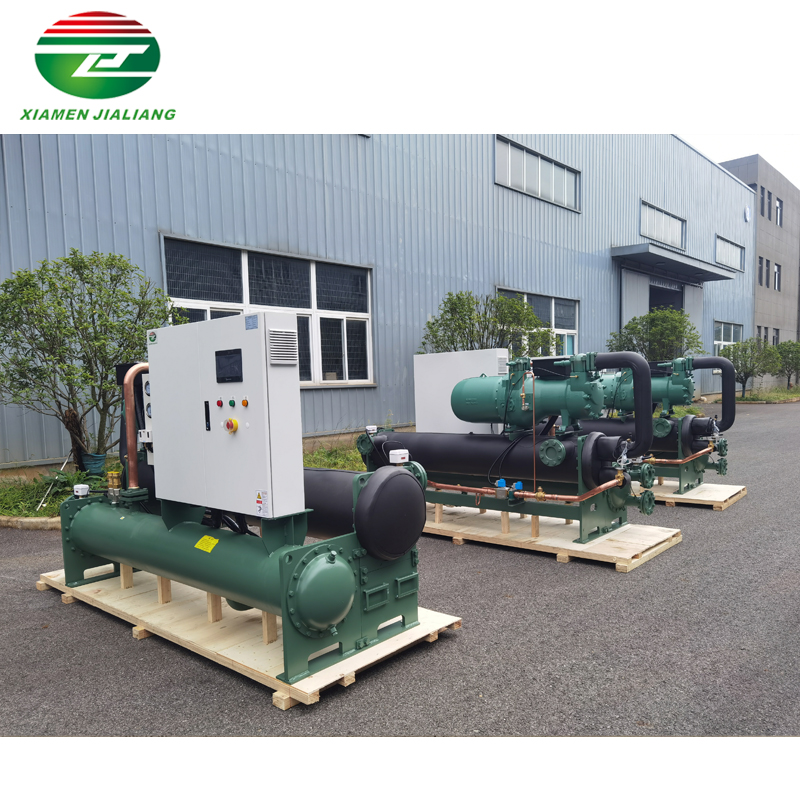

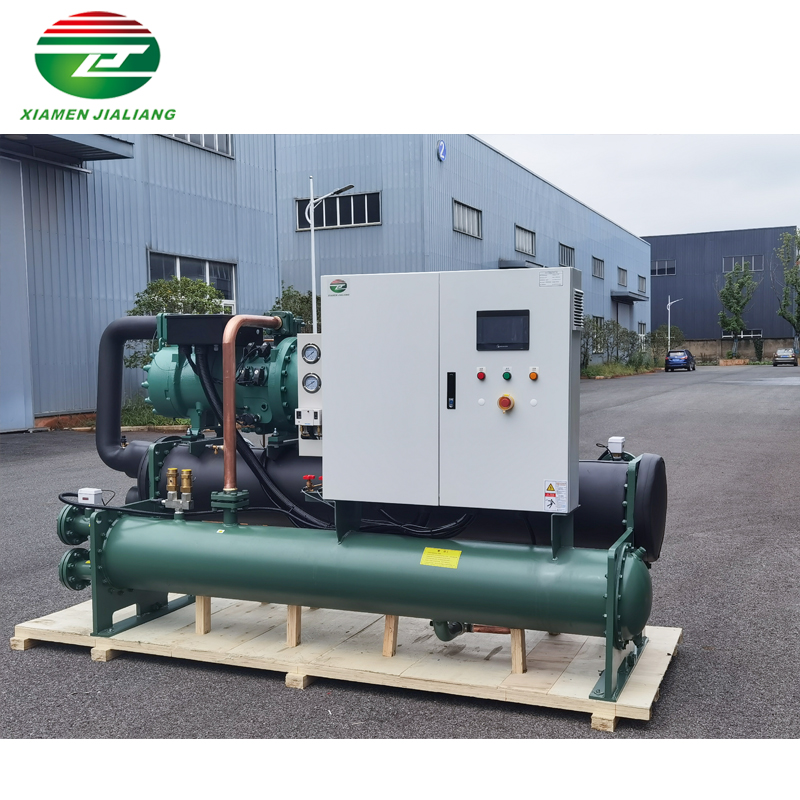

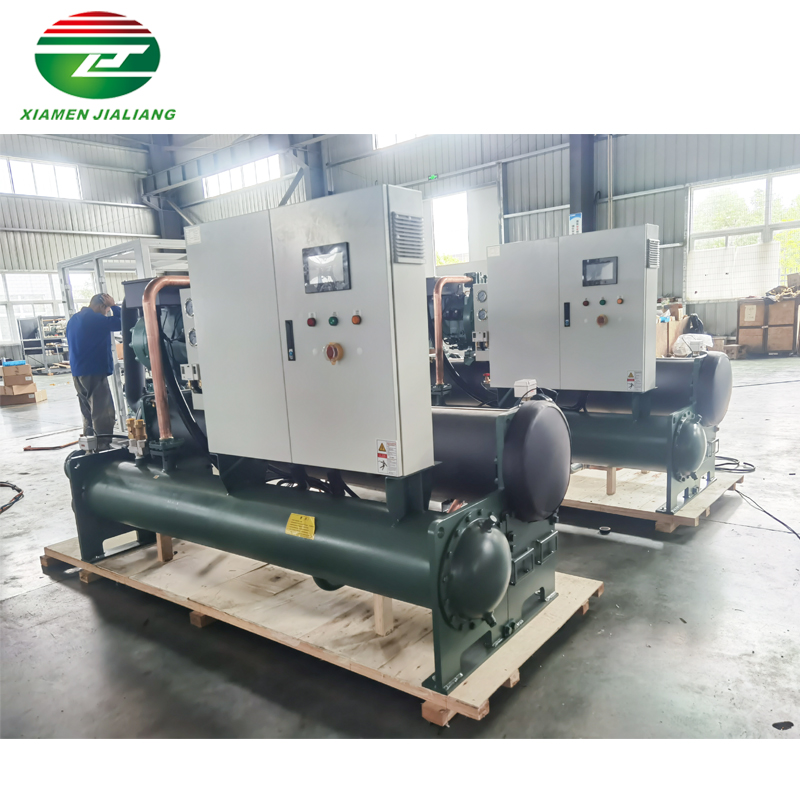

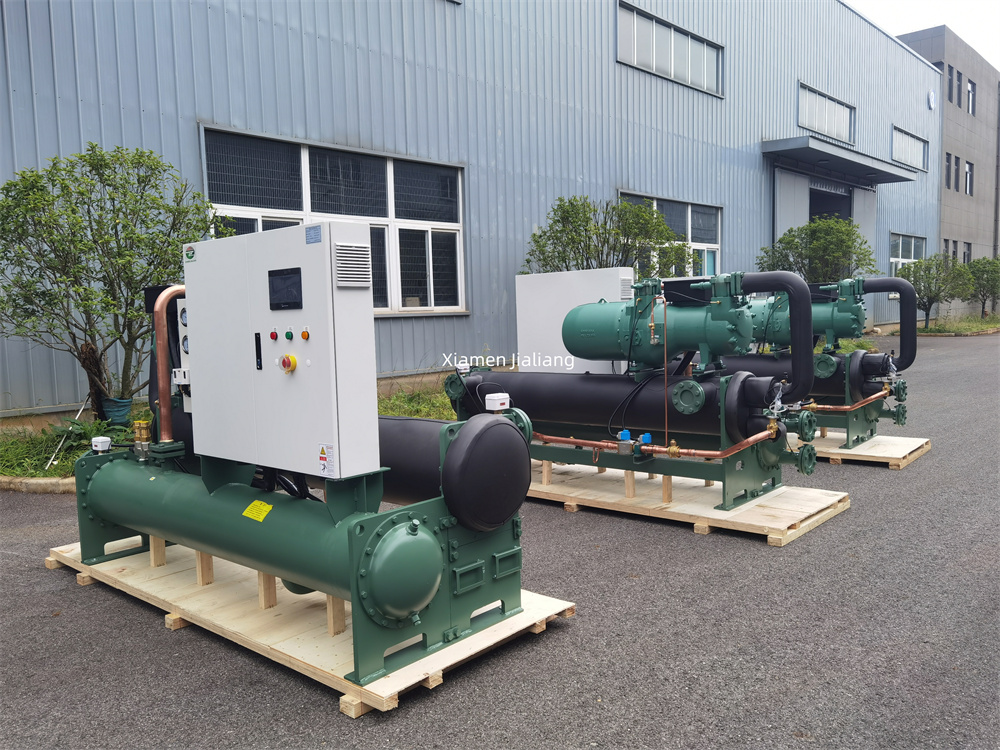

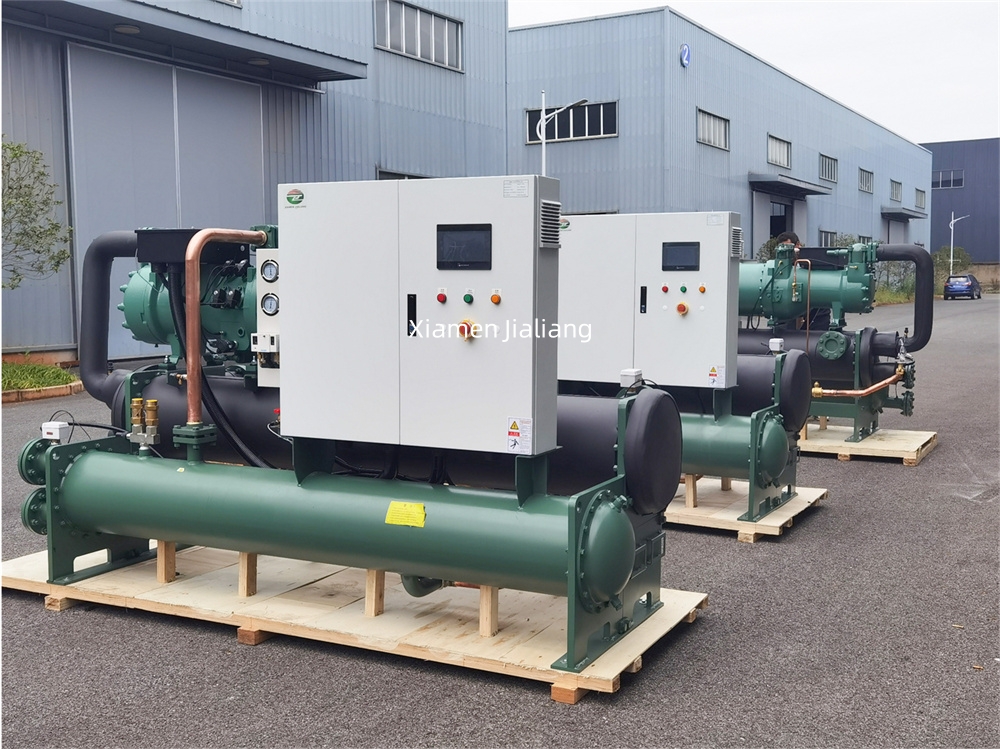

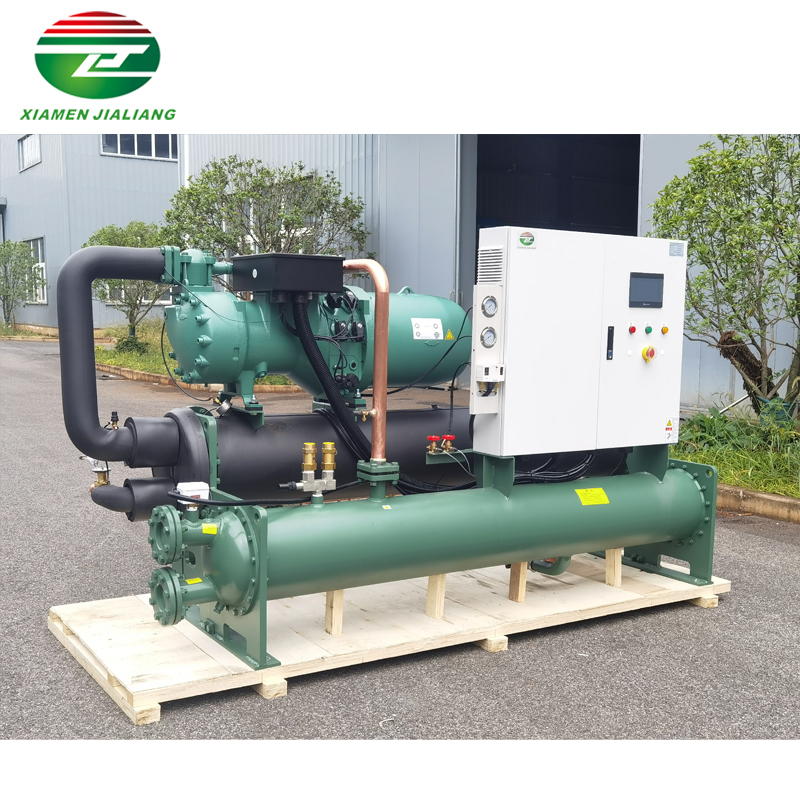

Product Display

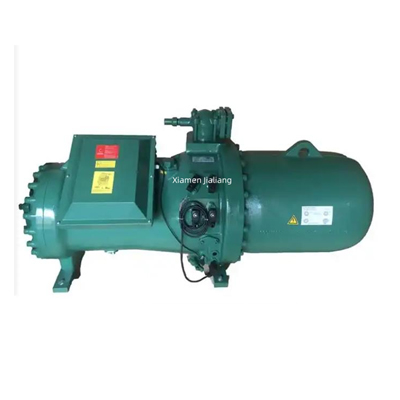

Semi-hermetic Compressors
Adopted world famous branded semi-hermetic compressors for long term reliable and efficient running; Compressor runs with no stage limits to realize stageless continuous adjustment of cooling capacity in between 25%-100% power loaded and maintaining stable outputs

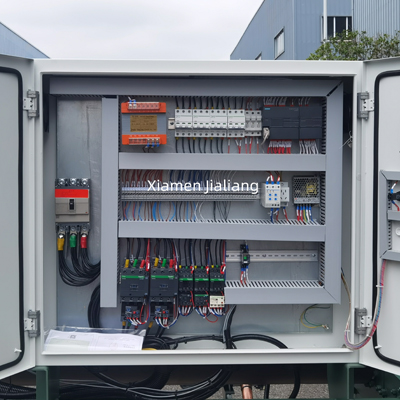

Automation Control System
The automation control adopts the HMI+PLC+molded case circuit breaker+AC contactor method, which can be carried out according to the needs of users.

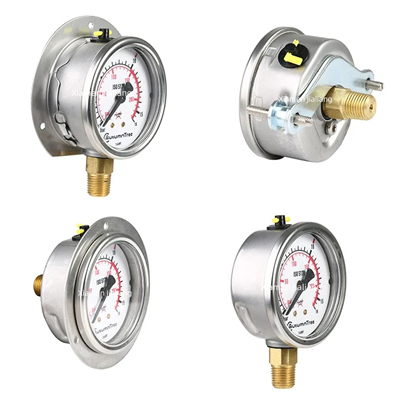

Pressure Gage
The pressure gauge uses the elastic deformation of sensitive components (Bourdon tube, bellows, bellows) inside the gauge, and then the pressure deformation is transmitted to the pointer by the conversion mechanism of the movement inside the gauge, causing the pointer to rotate to display pressure.

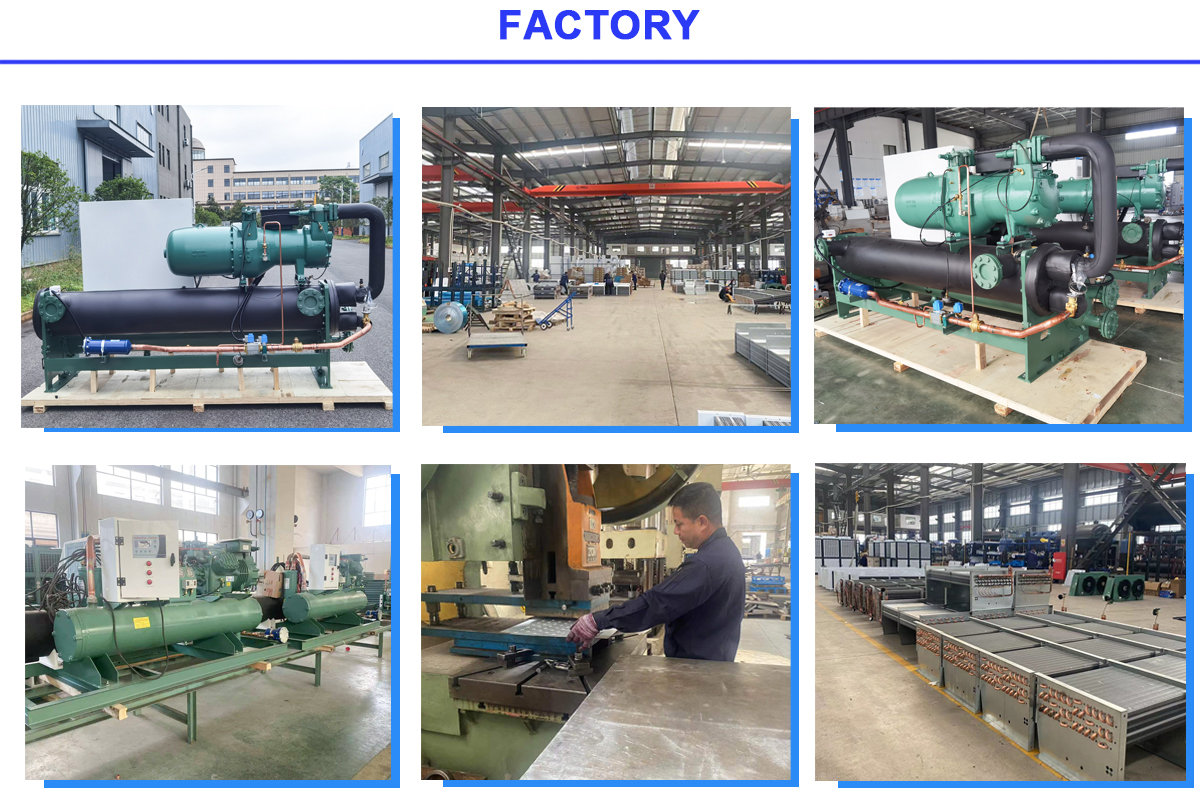

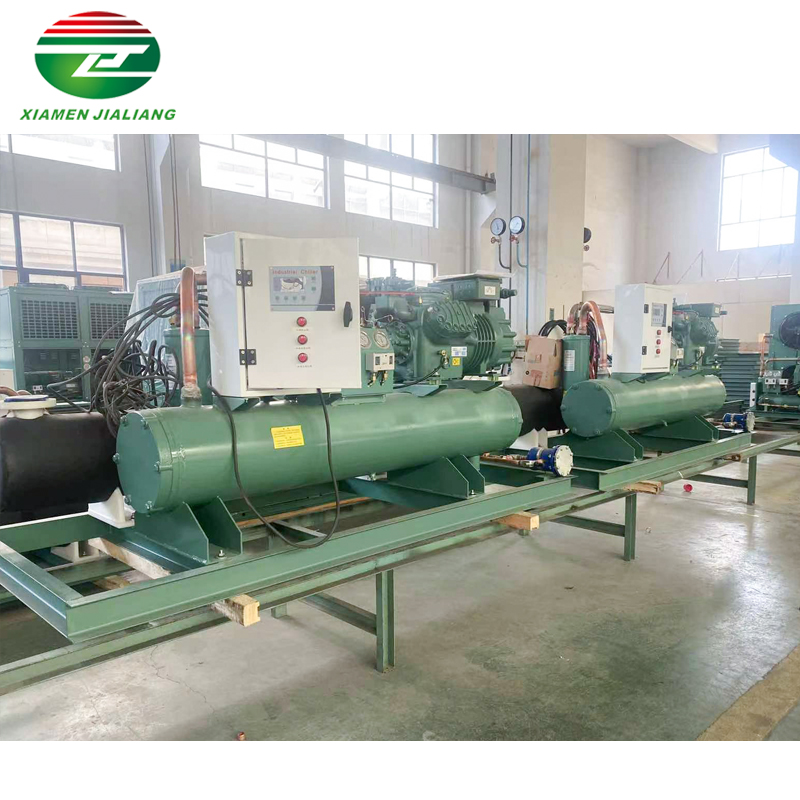

Our Factory
1.Xiamen Jialiang series screw compressor racks are assembled with original semi-hermetic screw compressors;
2.Specially used for low temperature application and big capacity demand;
3.With development of refrigeration market, huge capacity cold rooms are required, screw compressor rack is perfectly applicable for it;
4.The racks are with protect function of overheat, overload, exhaust temperature , low oil level, oil flow;
5.Famous band screw compressor rack for refrigeration system is the most popular equipment, which is welcome by many customers.
FAQ
| A1: Can I customize the chiller unit? |
| Q2: Yes. You can choose output, material, accessories brand, etc. |
| A2: Cooling water flow requirements and recommended inlet temperature for each chiller? |
| Q2: The outlet temperature is 7℃ and the inlet temperature is 12℃. |
