Different models of cold room evaporators can be selected based on the volume of the cold room, the demand for cooling capacity, and the different items to be stored.
- Description
- Features
Product Description

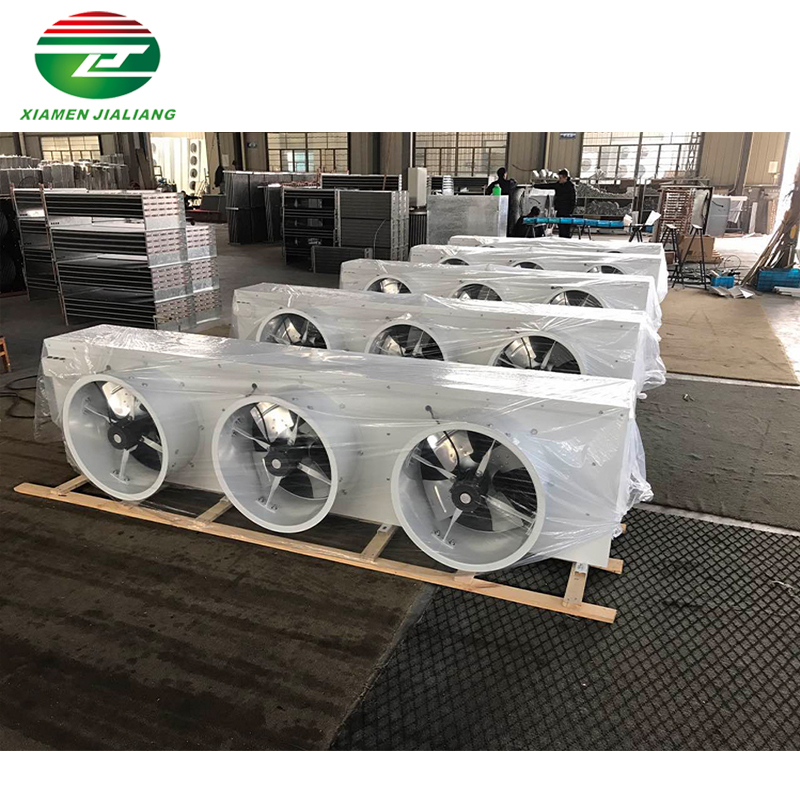

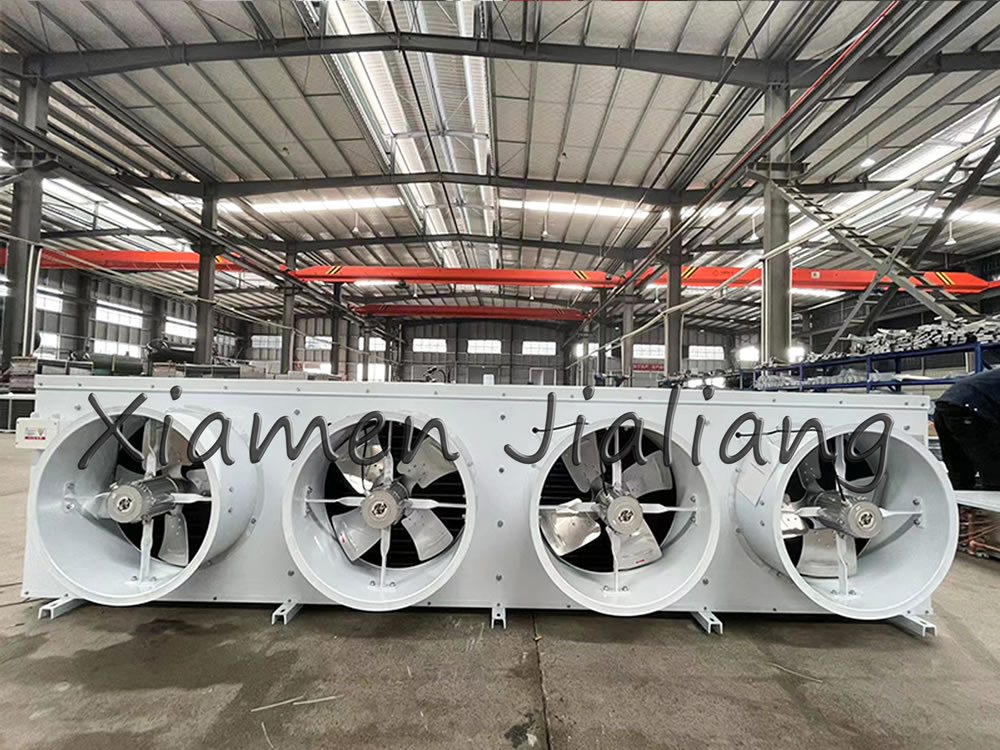

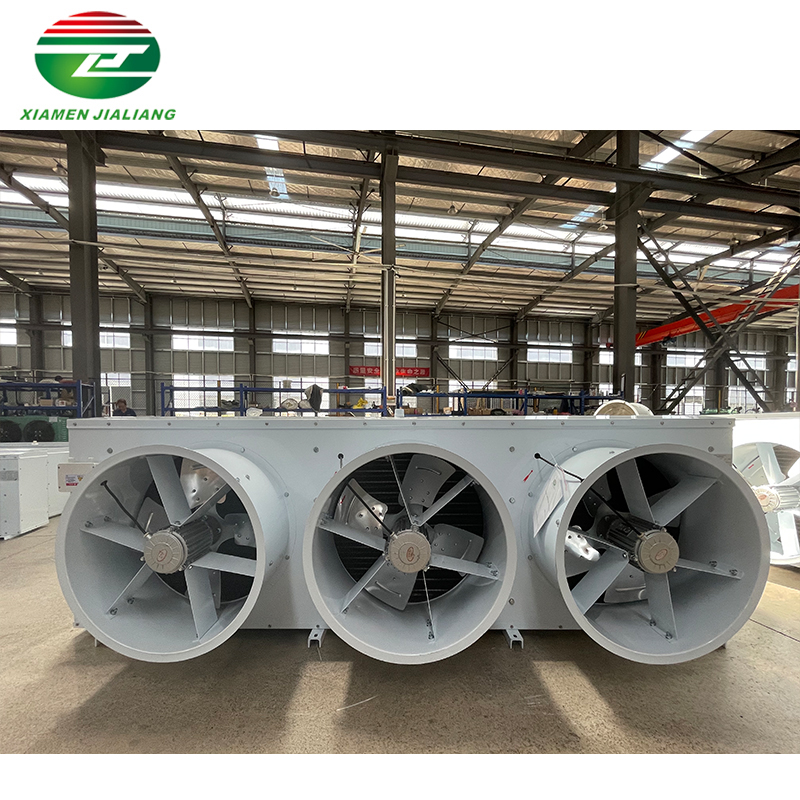

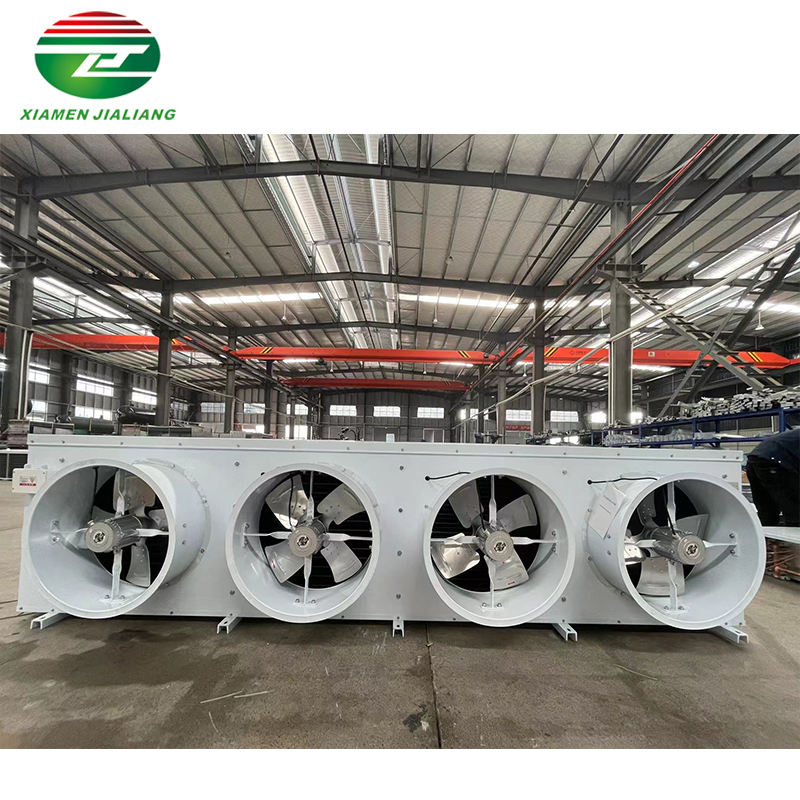

High Energy Efficiency Fast Refrigeration Cold Room Evaporator

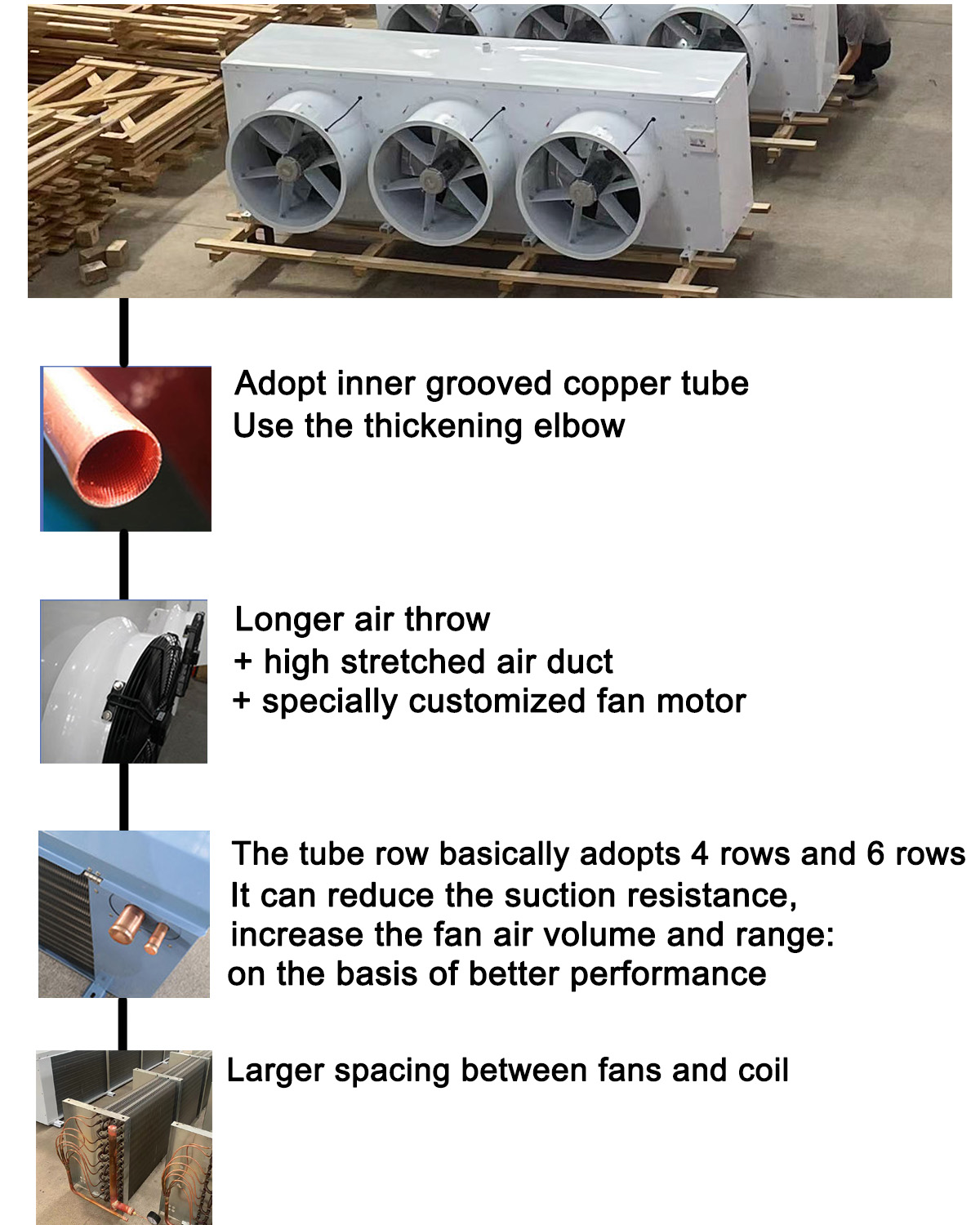

1. Adopting the most famous brand axial flow fan, high efficiency, low noise, suitable for different temperature and different voltage requirements, reasonable matching of blade and air ring gap, hyperbolic air duct design, to achieve the best effect.
2. Product quality control runs through the whole process. Before leaving the factory after 24 hours sealing test, all products accept custom.
| Model | DL260 | DL330 | DL410 | DL470 | DL580 |
| Refrige-Rating Capacity | 52.0KW | 66.0KW | 82.0KW | 94.0KW | 116.0KW |
| Cooling Area | 260㎡ | 330㎡ | 410㎡ | 470㎡ | 580㎡ |
| Diameter of Feed Inlet | 25mm | 25mm | 25mm | 25mm | 28mm |
| Diameter of Tail Pipe | 50mm | 50mm | 50mm | 50mm | 50mm |
| Wind Rate | 12000*2m³/h | 12000*3m³/h | 12000*3m³/h | 12000*3m³/h | 12000*4m³/h |
| Quantity | 2N | 3N | 3N | 3N | 4N |
| Fan Blade | 600mm | 600mm | 600mm | 600mm | 600mm |
| Voltage | 380v | 380v | 380v | 380v | 380v |
| Power | 2*1500W | 3*1500W | 3*1500W | 3*1500W | 4*1500W |
| Air Throw | 20m | 20m | 20m | 20m | 20m |
| Coil Unit | 6.6KW | 11.0KW | 11.0KW | 16.0KW | 17.6KW |
| Drain Pan | 2.2KW | 2.2KW | 2.2KW | 2.0KW | 2.0KW |

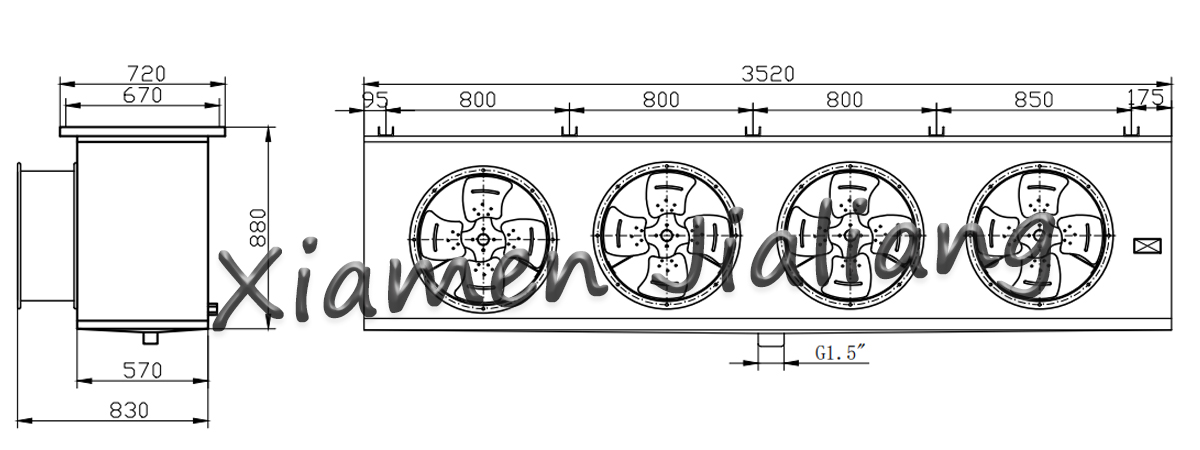

Fin pitch: 6mm;
Fan with air duct motor: 4X 750W550 blades
Air volume: 4X8000m ³/ h
Electric heating tube power: 9X2.8KW
Inlet pipe: φ 25,
Return steam pipe: φ 50;
The shell is made of galvanized sheet and sprayed with plastic
Right inlet
Customized Services
On site factory

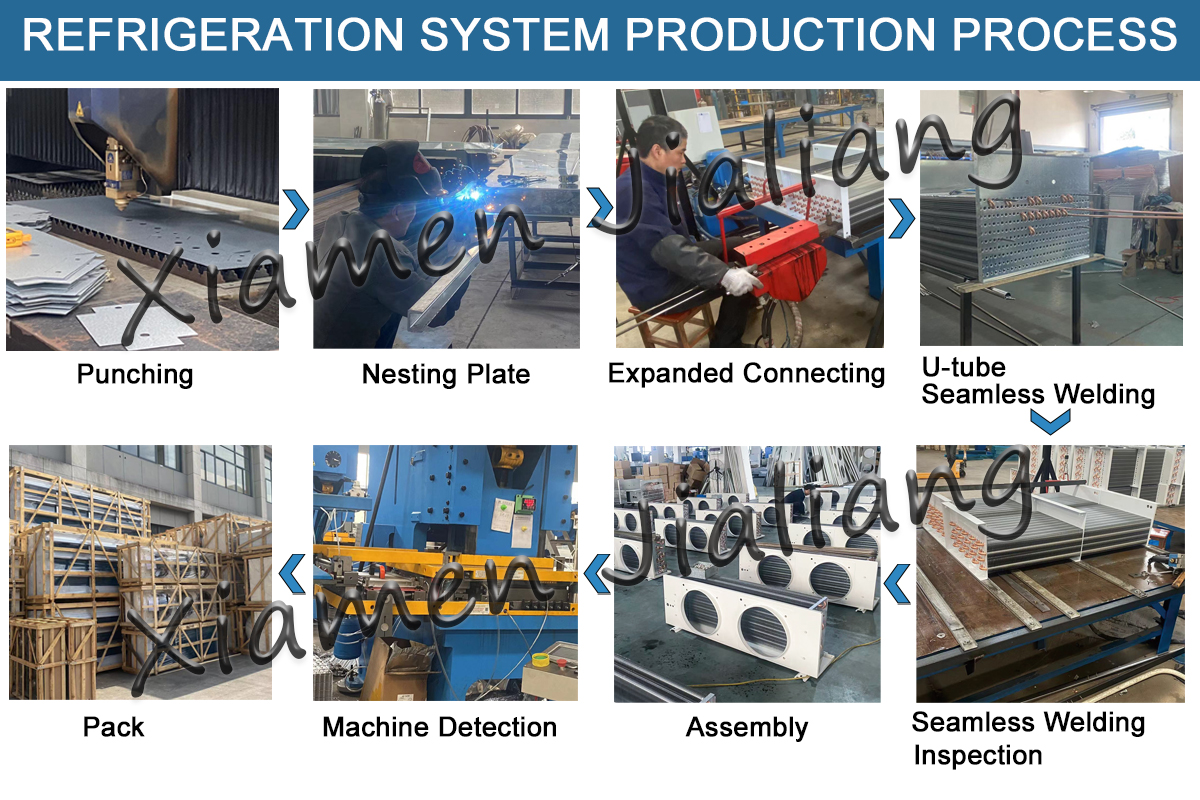

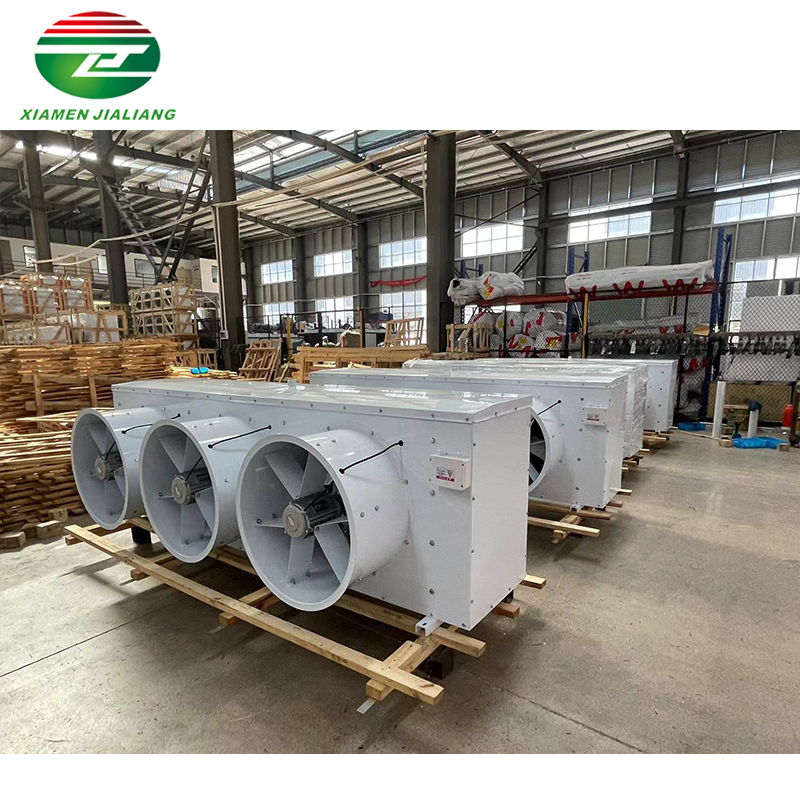

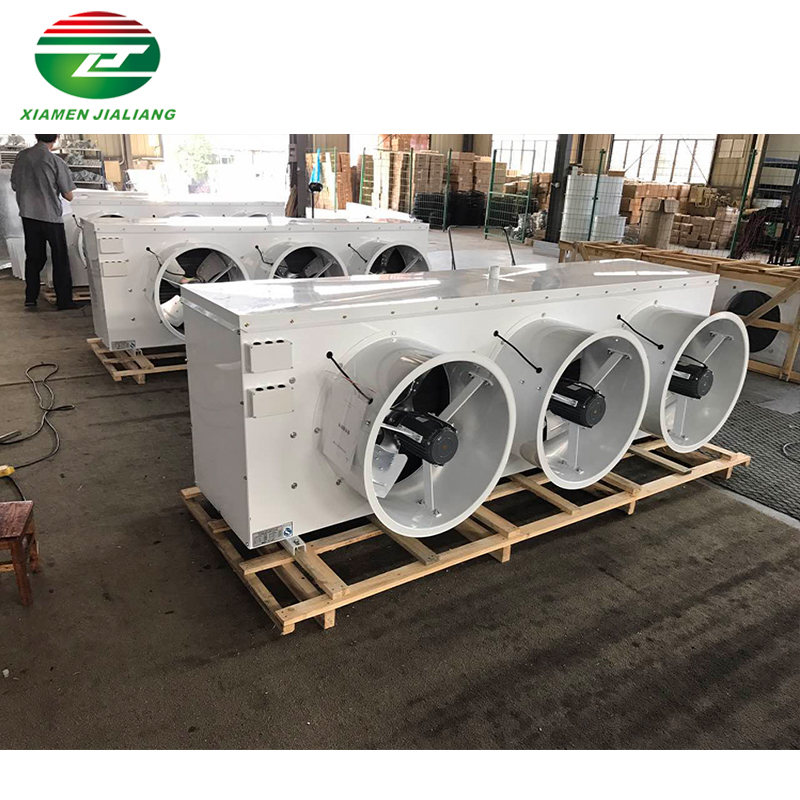

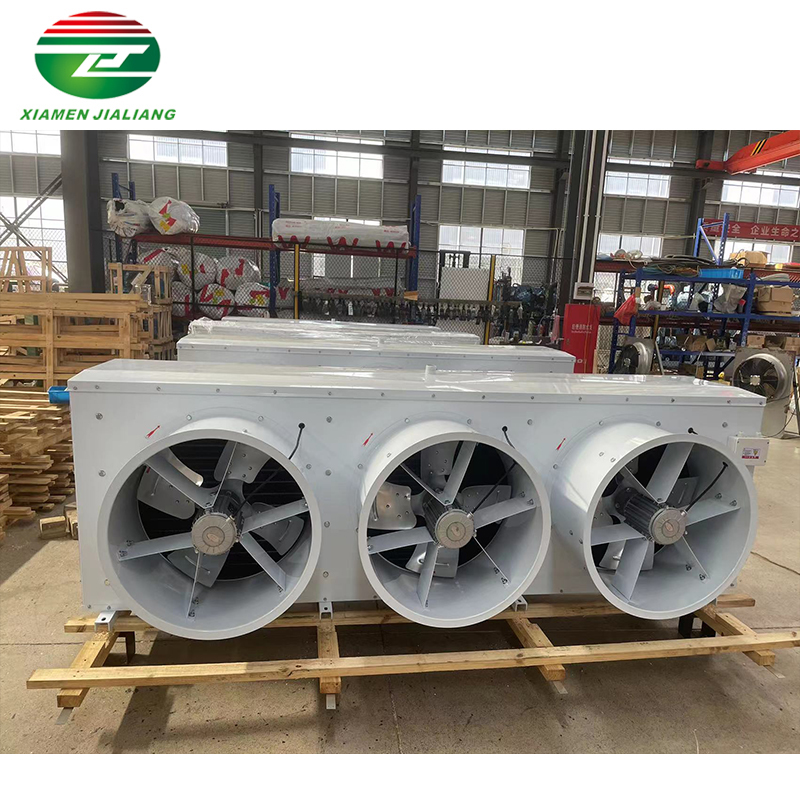

Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xiamen Jialiang
FAQ
| Q1: Are you a manufacturer or a trading company DL evaporator? |
| A1: We are a company integrating industry and trade. |
| Q2: Where is your DL evaporator factory located? |
| A2: Our factory is located in Xiamen, Fujian |
| Q3: Is a sample available DL evaporator? |
| A3: Samples are available that require the sample fee |
| Q4: What is the main market for your DL evaporator products? |
| A4: Our main market is in Middle East, South America, Europe and USA. |
| Q5: What is your DL evaporator warranty? |
| A5: Warranty of 1 year |
