- High Performance DJ Series Cold Room Evaporator
- Get A Quote
Different models of cold room evaporators can be selected based on the volume of the cold room, the demand for cooling capacity, and the different items to be stored.
- Description
- Features
Product Description

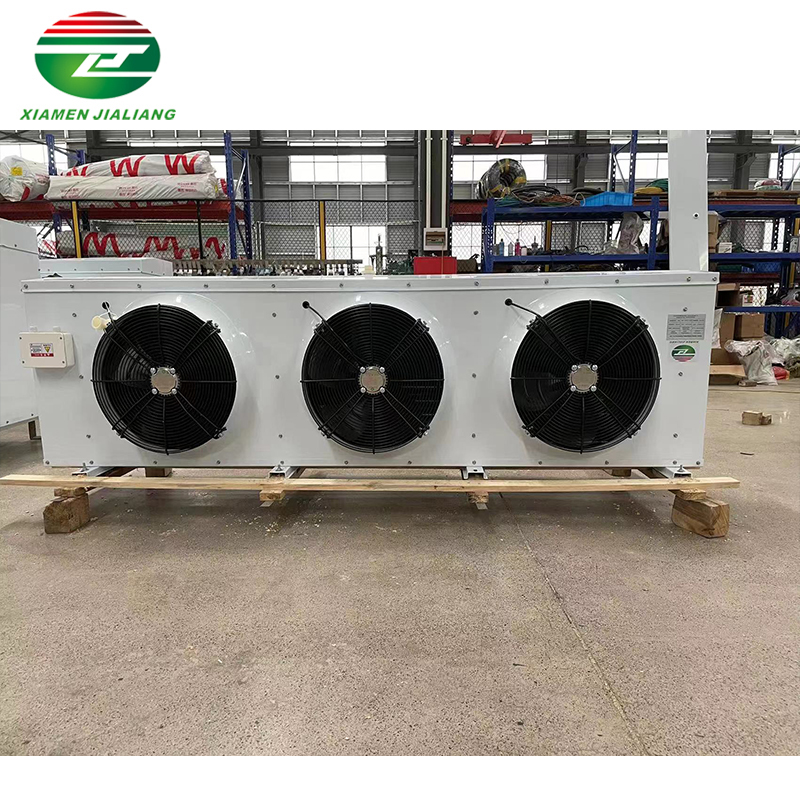

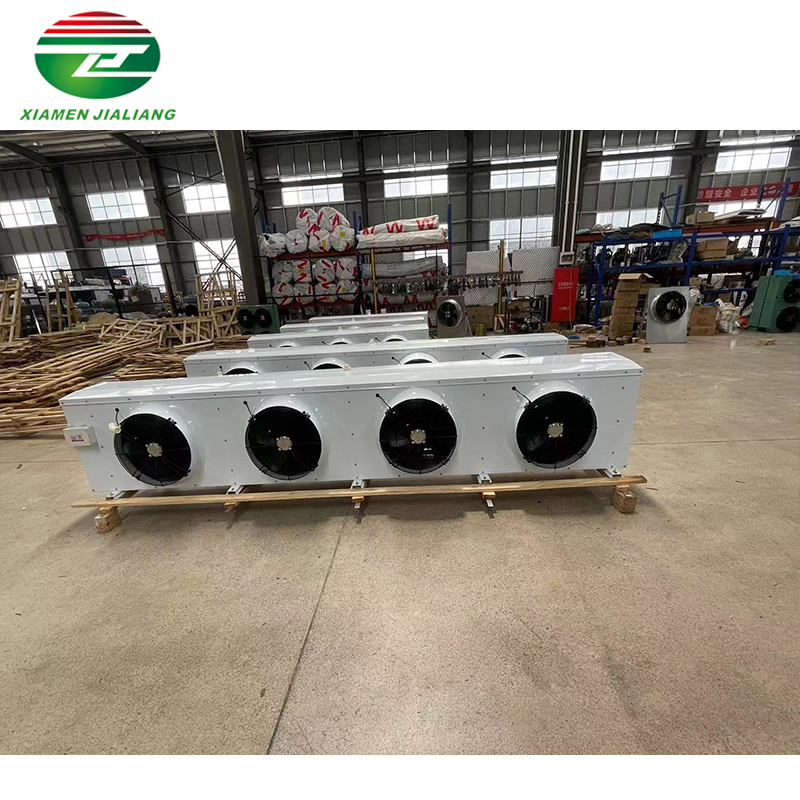

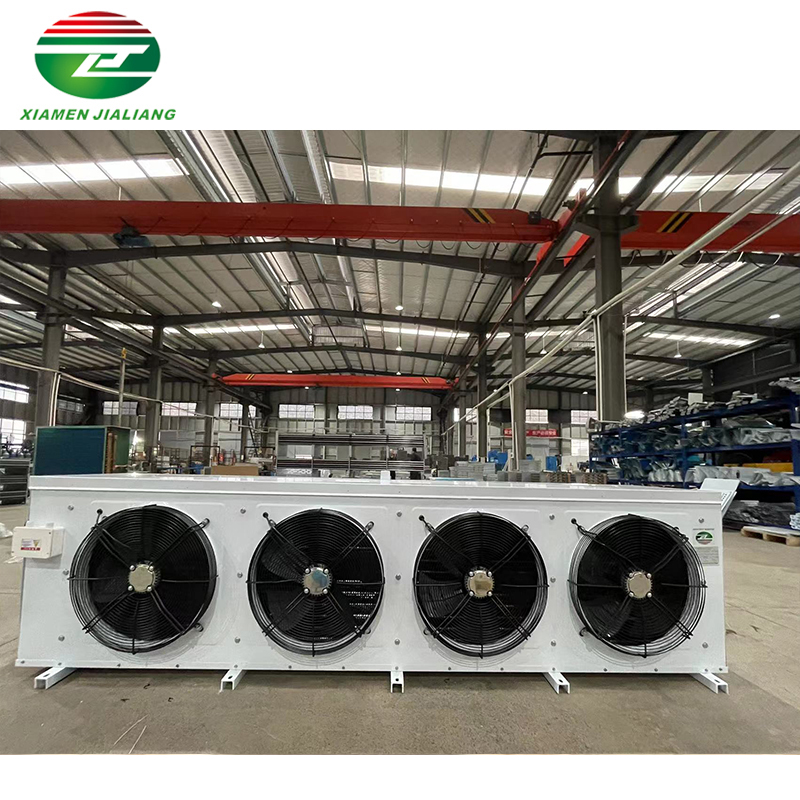

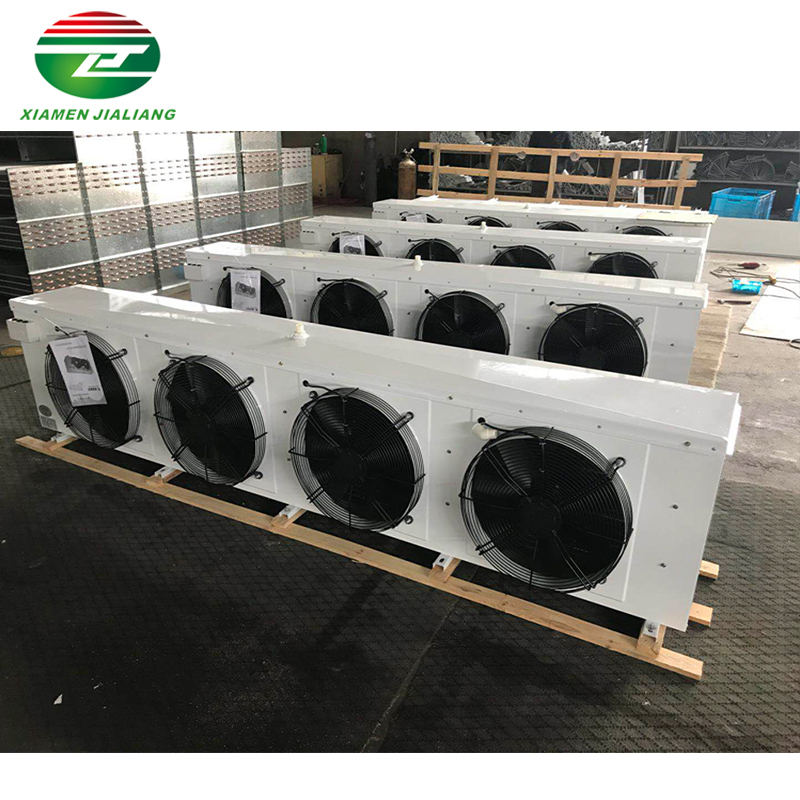

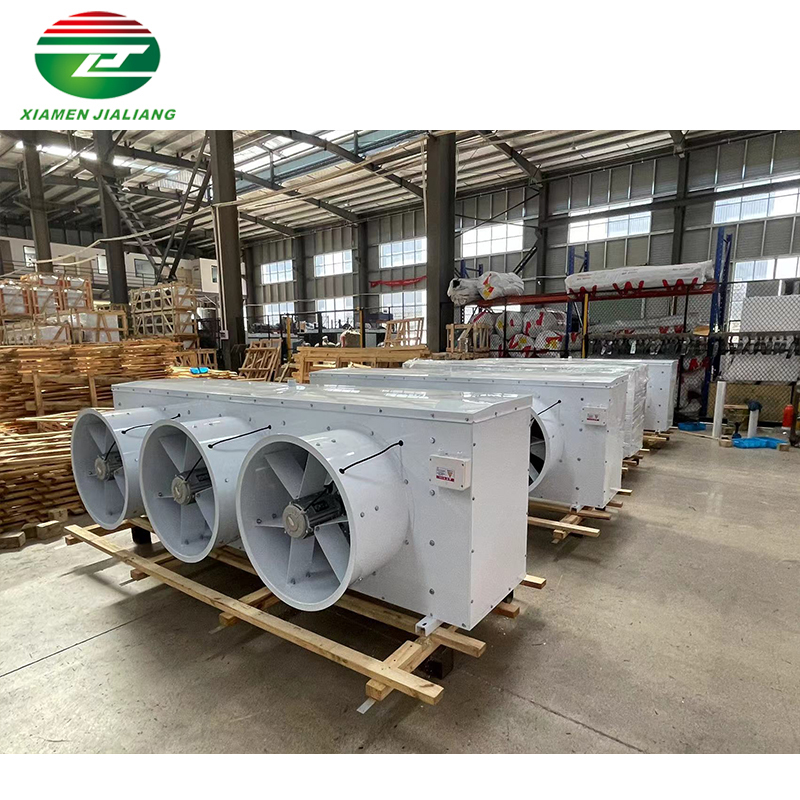

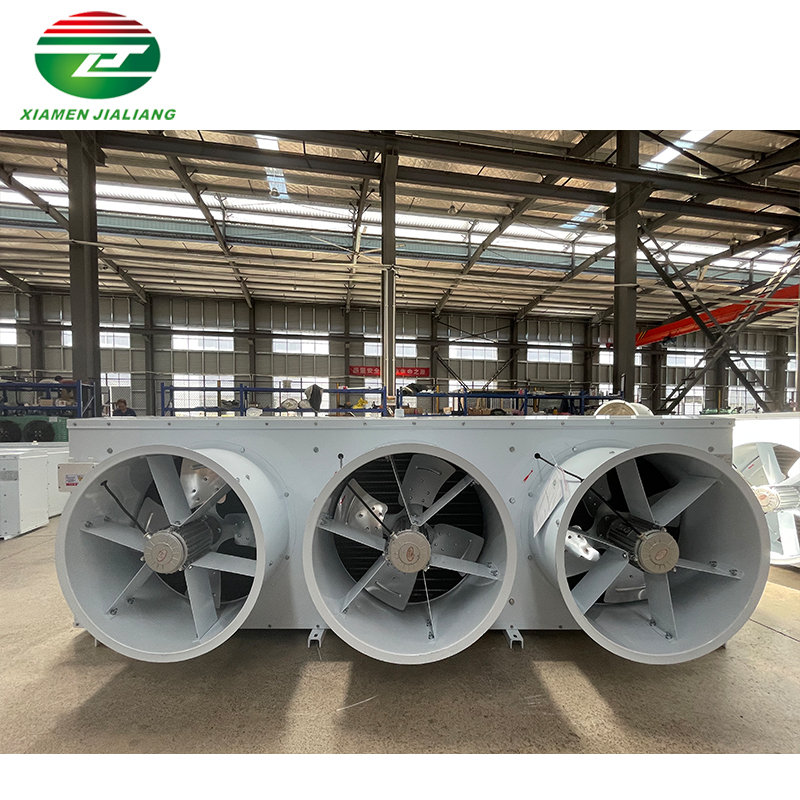

High Performance DJ Series Cold Room Evaporator

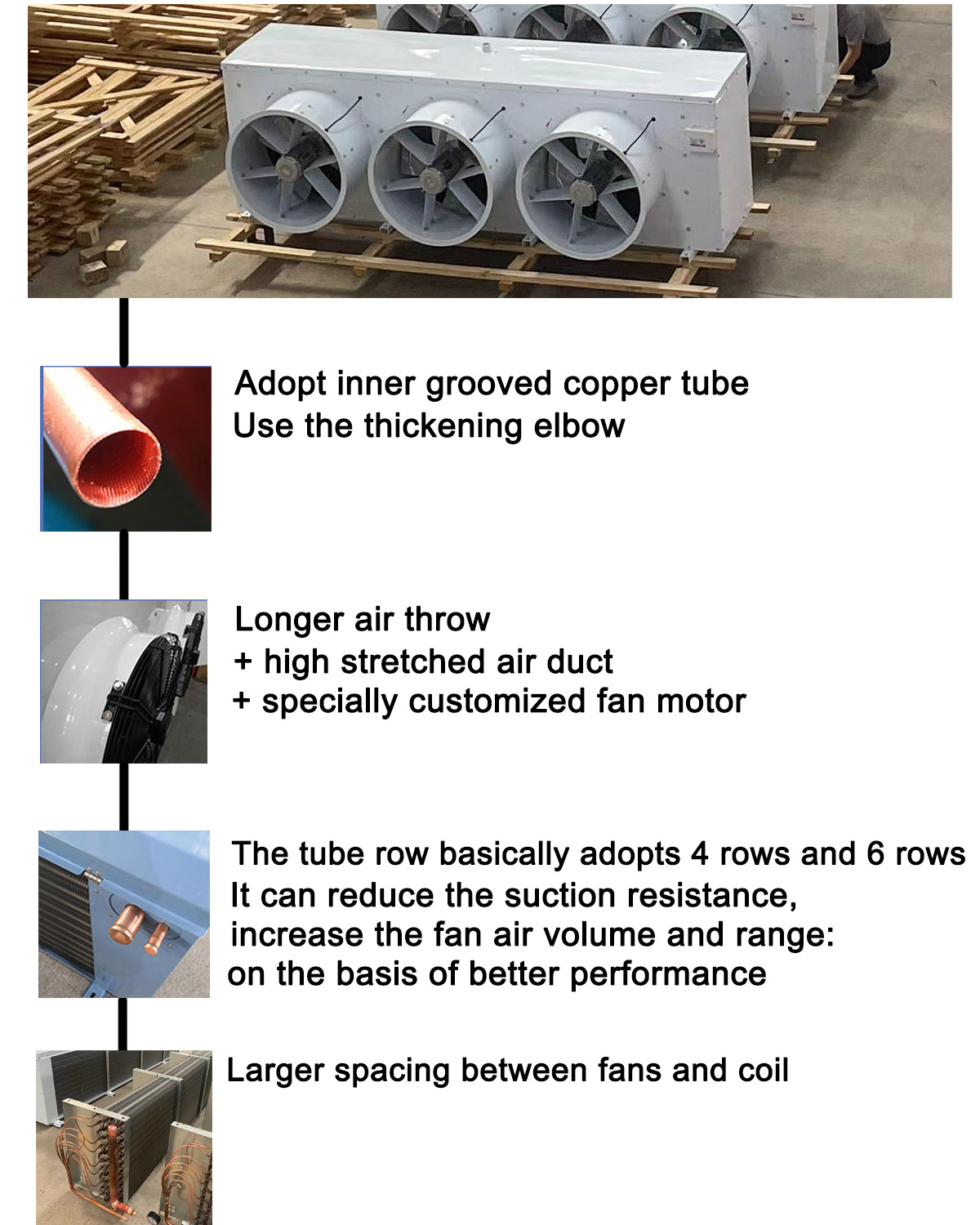

1. Adopting the most famous brand axial flow fan, high efficiency, low noise, suitable for different temperature and different voltage requirements, reasonable matching of blade and air ring gap, hyperbolic air duct design, to achieve the best effect.
2. Product quality control runs through the whole process. Before leaving the factory after 24 hours sealing test, all products accept custom.
| Model | DJ140 | DJ170 | DJ210 | DJ250 | DJ300 |
| Refrige-Rating Capacity | 21.7KW | 26.4KW | 32.6KW | 38.8KW | 46.5KW |
| Cooling Area | 140㎡ | 170㎡ | 210㎡ | 250㎡ | 300㎡ |
| Diameter of Feed Inlet | 25mm | 25mm | 25mm | 25mm | 28mm |
| Diameter of Tail Pipe | 50mm | 50mm | 50mm | 50mm | 50mm |
| Wind Rate | 12000*2m³/h | 12000*3m³/h | 12000*3m³/h | 12000*3m³/h | 12000*4m³/h |
| Quantity | 2N | 3N | 3N | 3N | 4N |
| Fan Blade | 600mm | 600mm | 600mm | 600mm | 600mm |
| Voltage | 380v | 380v | 380v | 380v | 380v |
| Power | 2*1500W | 3*1500W | 3*1500W | 3*1500W | 4*1500W |
| Air Throw | 20m | 20m | 20m | 20m | 20m |
| Coil Unit | 11.0KW | 17.6KW | 17.6KW | 20.0KW | 22.0KW |
| Drain Pan | 2.2KW | 2.2KW | 2.2KW | 2.0KW | 2.2KW |

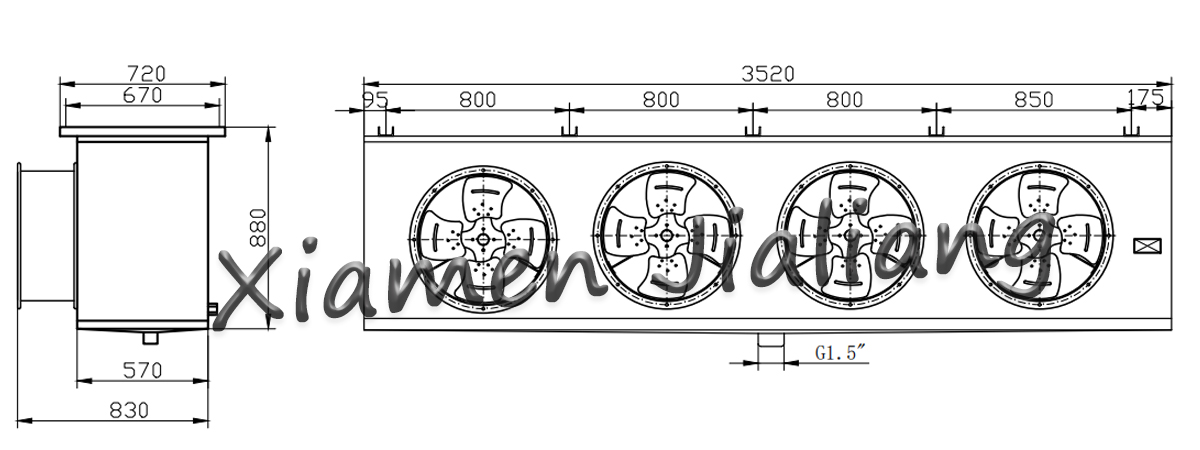

Fin pitch: 6mm;
Fan with air duct motor: 4X 750W550 blades
Air volume: 4X8000m ³/ h
Electric heating tube power: 9X2.8KW
Inlet pipe: φ 25,
Return steam pipe: φ 50;
The shell is made of galvanized sheet and sprayed with plastic
Right inlet
Customized Services

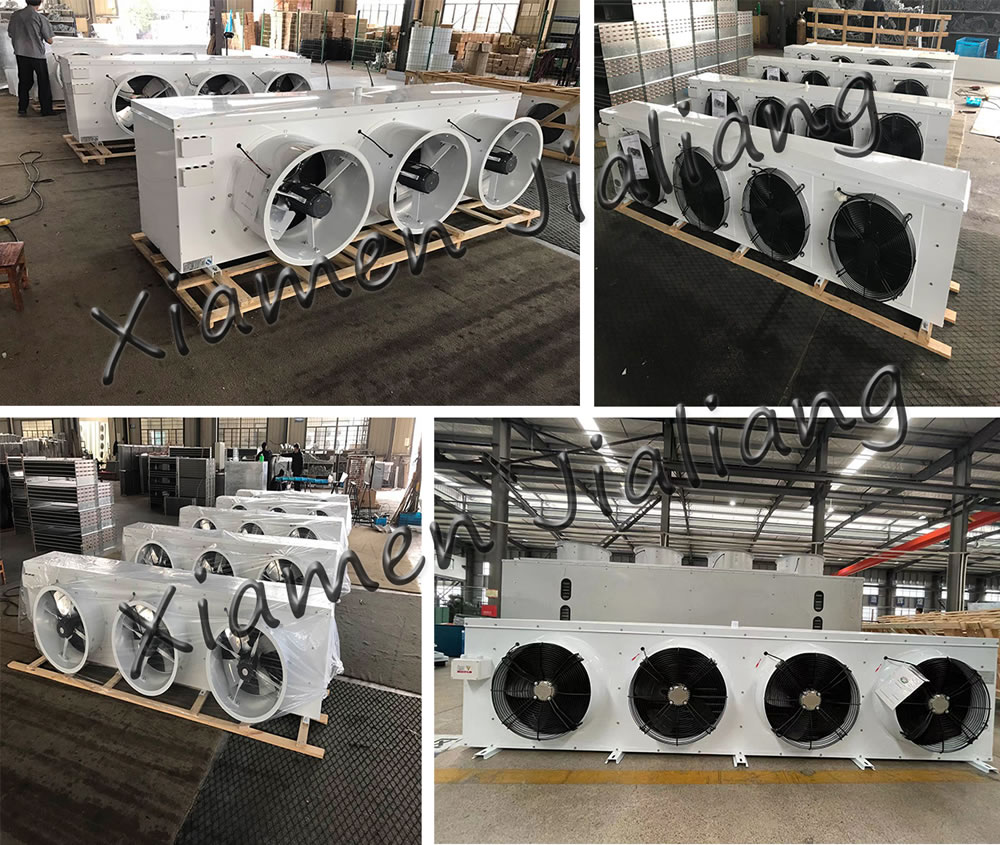

On site factory

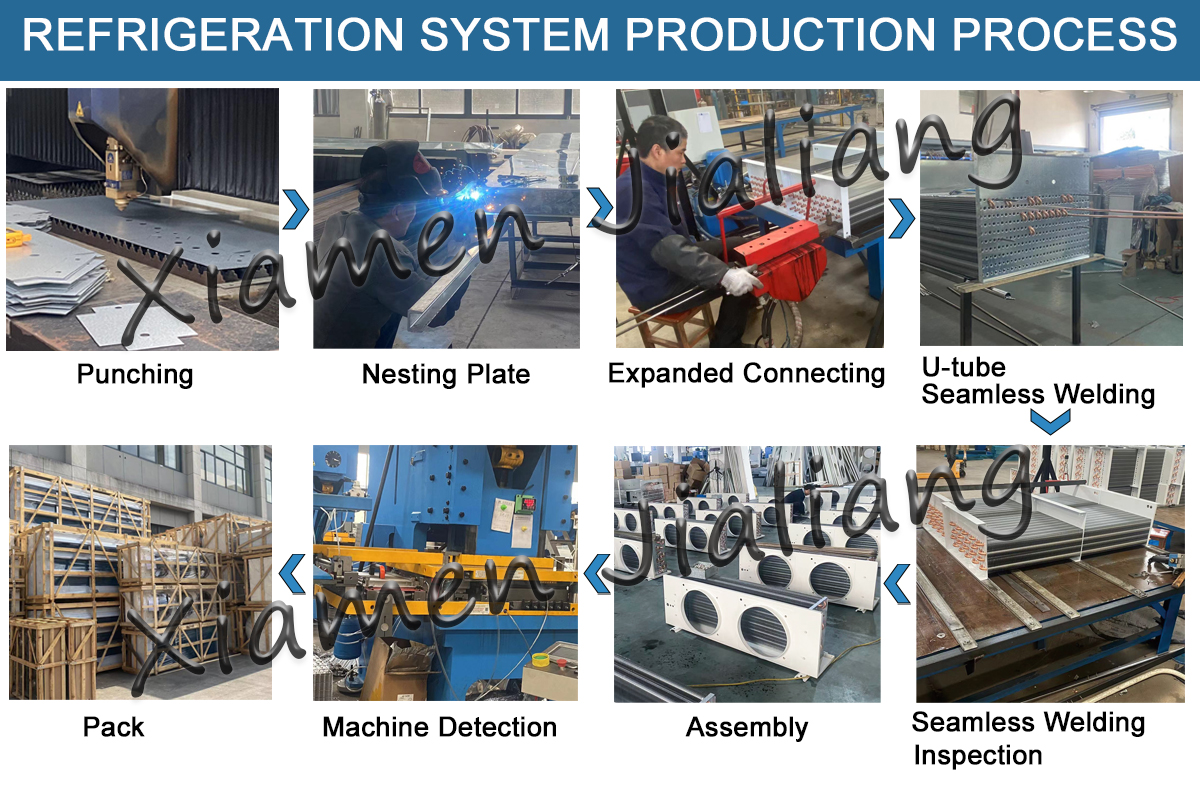

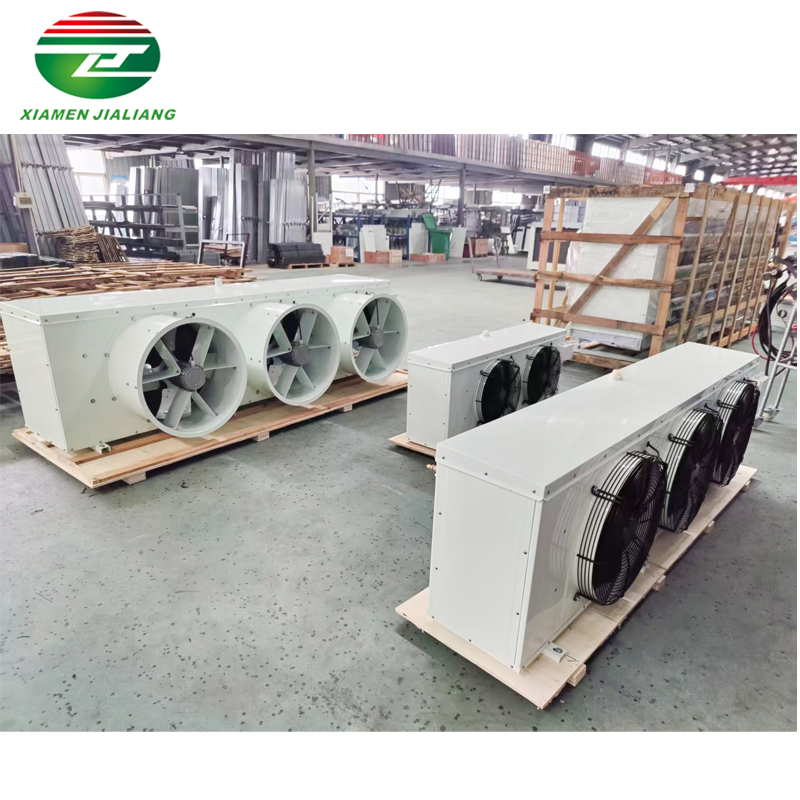

Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xiamen Jialiang
FAQ
| Q1:I want to buy DJ evaporator I want to know are you a manufacturer or a trading company? |
| A1: We have our own factory and are a company integrating industry and trade. |
| Q2: I want to know where is your DJ evaporator factory located? |
| A2: Factory built in Xiamen, Fujian |
| Q3: I want to buy DJ evaporator do you have samples? |
| A3: Of course we can provide samples, but we need sample fee |
| Q4: I'm a bit curious where is the main market for DJ evaporator products? |
| A4: Our products are distributed in more than one hundred countries all over the world, and the main markets are the Middle East, South America, Europe and the United States. |
| Q5: I want to know what is the warranty period of the DJ evaporator I bought? |
| A5: Warranty of 1 year DL260 evaporator |
