    Professional Custom Cold Roon



    Cold storage is a facility used for low-temperature storage of goods, applied in multiple industries. It maintains a low-temperature environment through artificial refrigeration, consisting of insulation structure, refrigeration system, control system, temperature monitoring system, and auxiliary facilities. The refrigeration system includes a compressor, condenser, expansion valve, evaporator, etc. The control system automatically adjusts the refrigeration equipment, and the temperature monitoring system monitors the temperature inside the warehouse in real time. Different cold storage facilities set different temperature ranges based on the characteristics of the stored items.






    What are cold storage rooms like?


    Our walk-in cold storage rooms are customized based on the specific needs and requirements of each business, making each one unique. In general, cold storage rooms provide large, temperature-controlled storage spaces to ensure that your stored products do not spoil. Upon entering the cold storage room, you can see all the inventory and easily locate desired items stored on convenient
    shelves. Additionally, our industrial cold storage rooms can also utilize durable and energy-efficient LED lighting systems to provide ample illumination for the room and shelves, ensuring that your inventory is easily visible and accessible.


    To provide further convenience and security, we can also install various protective systems like alarms and emergency release mechanisms to ensure the safety of your goods and personnel. Lastly, if you have specific requirements, we can offer additional options and features for the cold storage room according to your specifications. Simply contact us, and we will design the perfect cold storage room solution tailored to your needs.



    Thickness of panels: 75mm 5℃ to 15℃; 100mm -15℃ to 5℃; 120mm -20℃ to -15℃; 150mm -30℃ to -20℃; 200mm lower than -30℃
    Panel Length: Customized longest: 11.8m (according to container dimension)
    Panel Width: 960mm standard Customization Available

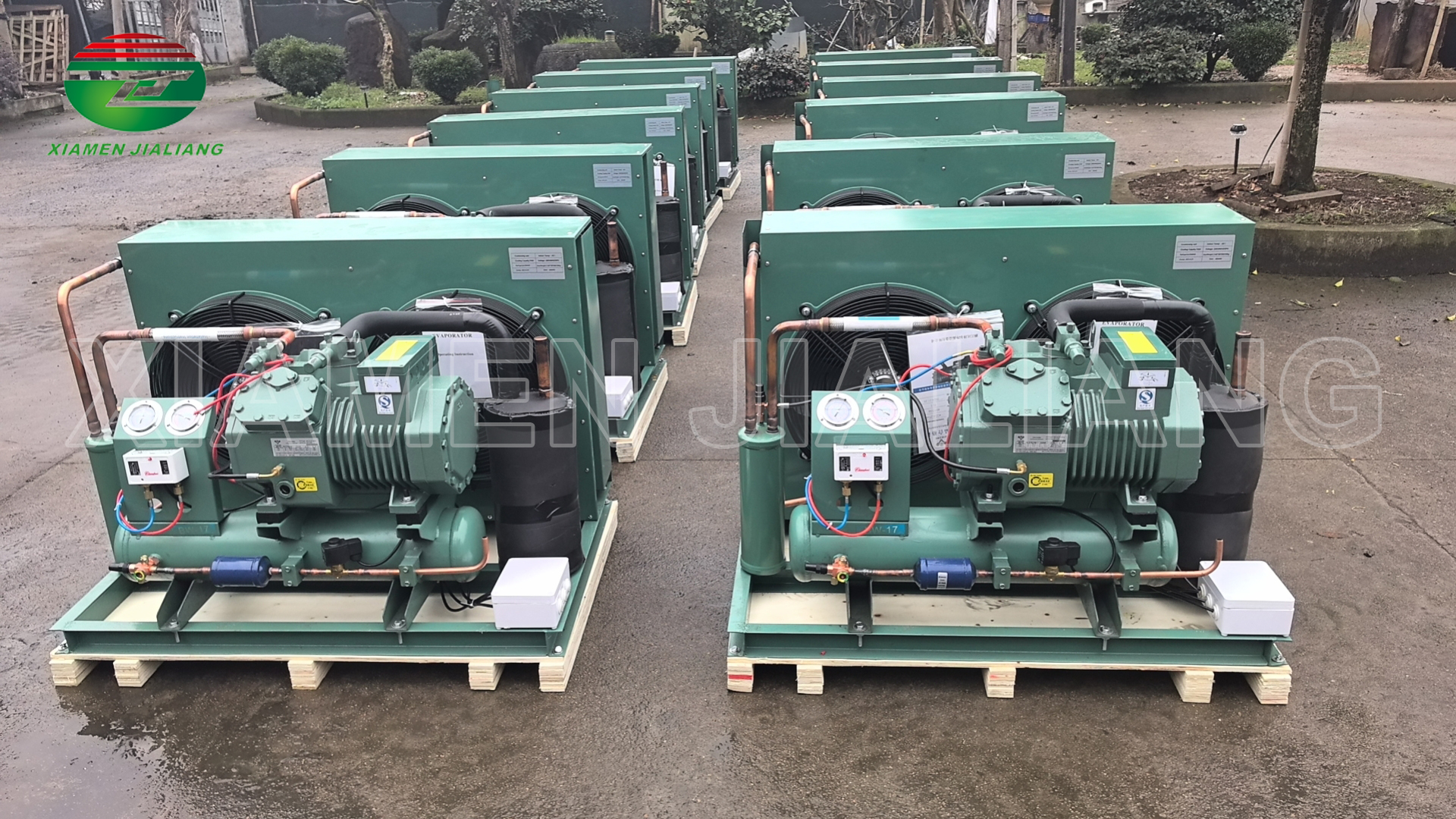

    Compressor Optional: Original Bitzer Brand
    Voltage: 220V/1PH/50HZ or 60HZ 380V/3Ph/50HZ or 60HZ 220V/3PH/60HZ
    Refrigerant: R22/R404a/R448a/R507a
    Capacity: Singe compressor 2HP-50HP



    Shell: Steel with spraying,Aluminum,SS304

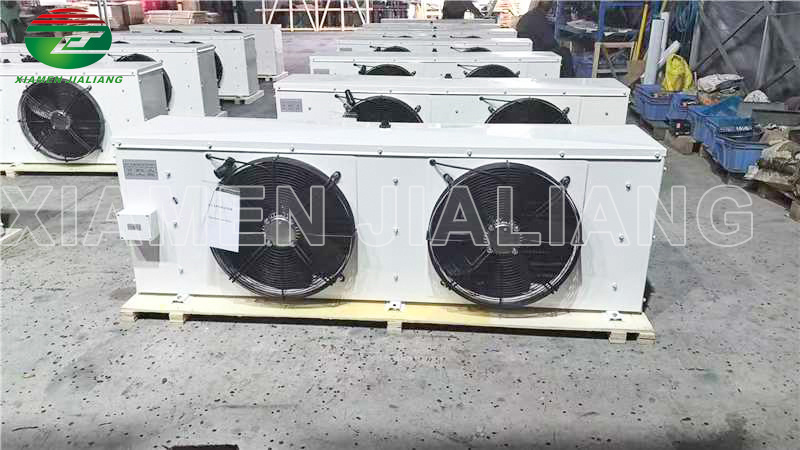

    Temperature: DL -5~5C(fin space 4.5mm); DD -15~-20C(fin space 6.0mm); DJ -25C(fin space 9.0mm)
    Defrosting: Hot Gas,Electric Heater
    Capacity: DL 2.2-122KW; DD1.4-88KW; DJ:1.7-58KW



    Q1: Can you customize cold room size?
    A1: Sure, our products are all customized and can be designed according to your needs
    Q2: How much electricity does a cold storage consume per day?
    A2: Depending on the size of the room and the corresponding machines, the typical power consumption is the number of machines per hour.
