High Productivity 200 Ton Cold Room Design
Cold storage is a core facility in the field of cold chain logistics and low-temperature warehousing, mainly used to store various items that require strict temperature control in low-temperature environments.
Common types include cold storage (usually with temperatures ranging from 0 ℃ to 10 ℃) and freezer (with temperatures mostly below -18 ℃, and some special cold storage can even be as low as -60 ℃ or lower).
Cold storage features
1. Cold storage maintains a low-temperature environment through a refrigeration system, accurately controlling temperature and humidity.
2. Adopt efficient insulation materials and sealing technology to reduce the loss of cooling capacity.
3. Professionalized internal layout, equipped with various shelves and loading and unloading facilities, optimizing space and logistics.
4. Equipped with an automated control system to achieve temperature monitoring and energy-saving operation.
5. Special design based on the characteristics of stored items to ensure quality.
6. Adopt energy-saving and environmental protection technologies to reduce energy consumption and environmental impact.

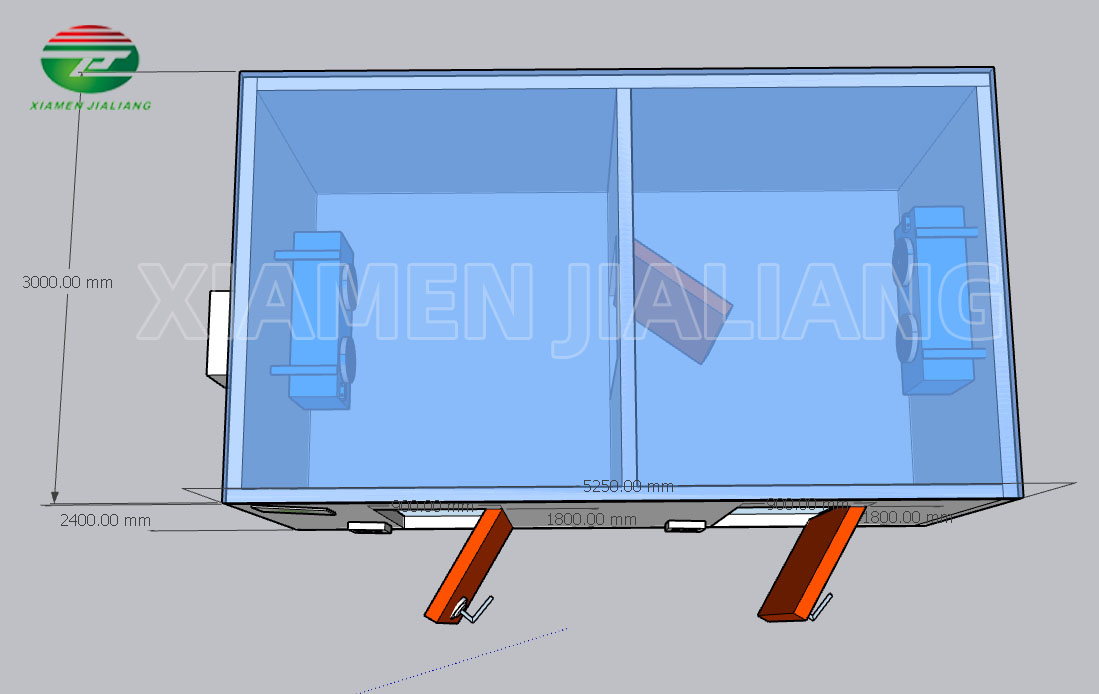

| Cold Room Size | 5.25(L)*3(W)*2.40(H) m |
| PU Panel | 100MM |
| Aluminum flower panel | 1.22x2.44mm |
| Cold Room Door | 900*1800mm |
| Condensing Unit | ZB15-KQE 2HP ZB21-KQE 3HP |
| Evaporator | DD22 DD30 |
| Shelf Size | 550x550x2000m 900x550x2000m 1025x550x2000m 1150x550x2000m |

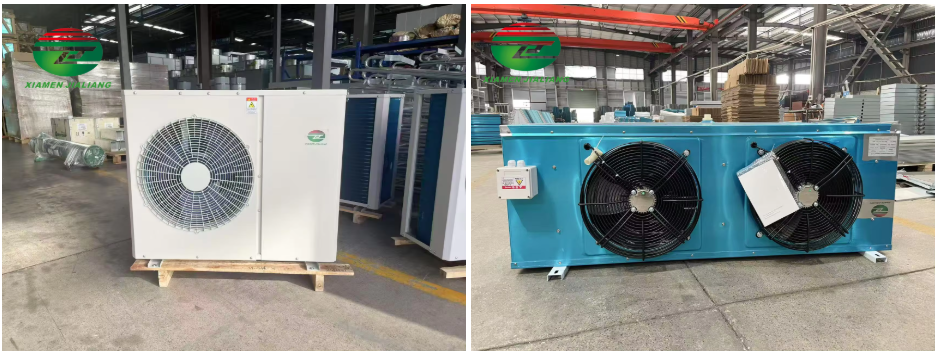

Condensing Unit
Model: ZB15-KQE ZB21-KQE
Horsepower: 2HP 3HP
Compressor Brand: Copeland
Voltage: 220V/50HZ/1PH
Evaporator
Model: DD22 DD30
Horsepower: 2HP 3HP
Refrigerant: R404a
Voltage: 220V/50HZ/1PH

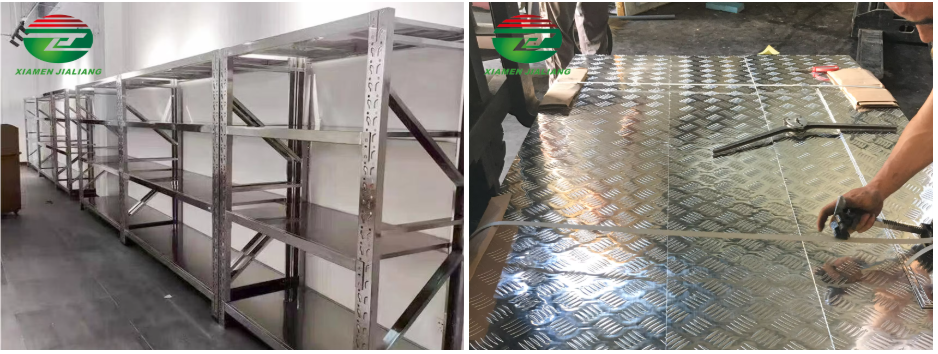

Stainless Steel Shelf
Size: 550x550x2000m
900x550x2000m
1025x550x2000m
1150x550x2000m
1500x550x1200m
Aluminum Flower Panel
Size: 1.22x2.44mm
Thickness: 1.5mm
Feature: Flat Tile
Xiamen Jialiang is the leading cold room and refrigeration unit designer, manufacturer and exporter, which dedicated in supplying finest quality Cold Room, Evaporator, Condensing Unit, Door and PU Panel, etc. Product innovation and customer satisfaction are our long term commitment to all our partners.
FAQ
| Q1: How much electricity does a cold storage consume per day? |
| A1: Depending on the size of the room and the corresponding machines, the typical power consumption is the number of machines per hour. |
| Q2: How do you guarantee quality? |
| A2: Our products if do a good job of daily maintenance and dust removal. Regular maintenance, correct operation will not have any problems The shelf life of our products is one year (in the case of not being considered damaged) |
| Q3: What is the width of your Panel? |
| A3: The regular width of our Panel is 960 millimeter. |
