    Positive or Negative Temperature Cold Rooms

    Positive or Negative Temperature Cold Rooms

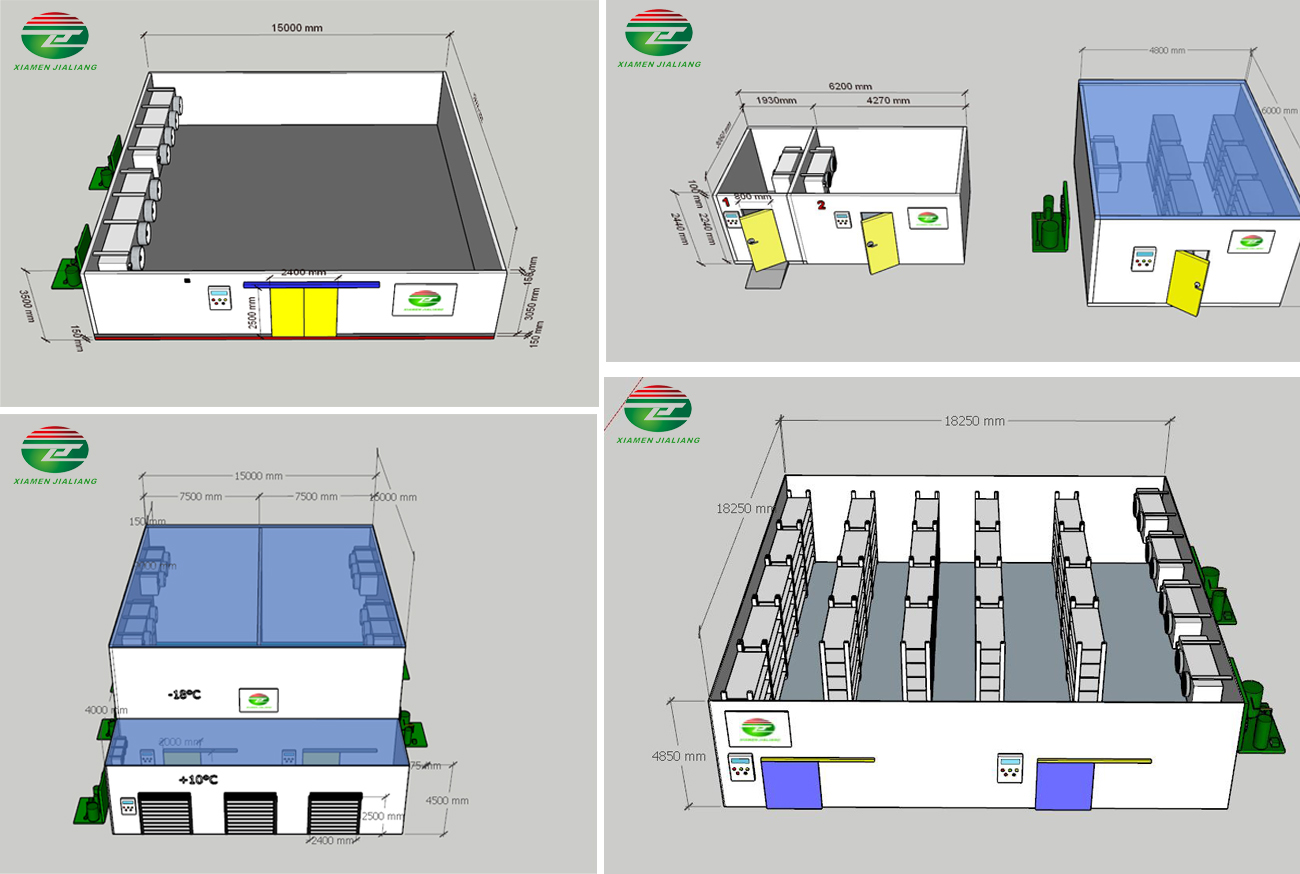

    Introduction of cold store:
    Cold room is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an
    environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good
    air tightness and heat insulation effect.
    According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and
    the thickness of the material according to the requirements of panel products.
    Cold store features:
    1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
    2.Size: Customization.
    3. Function: preservation, freezing, quick freezing.
    4. Good performance, low noise and high reliability.

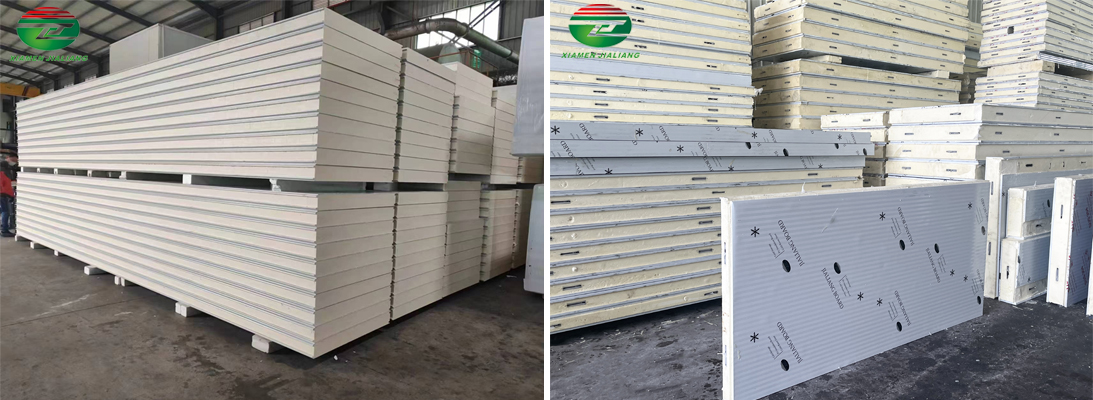

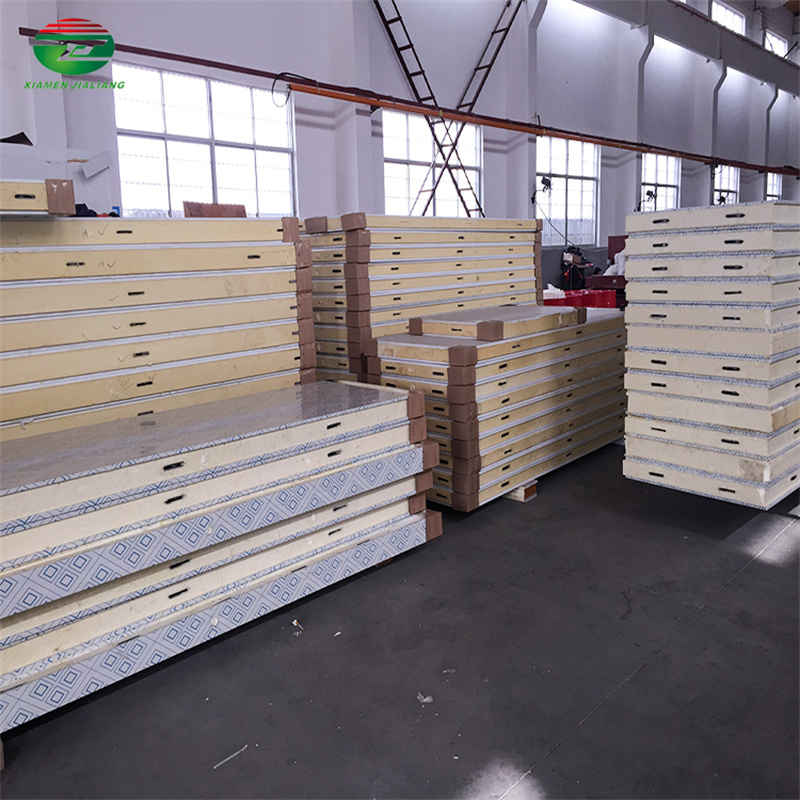

    Thickness of panels75mm 5℃ to 15℃
    100mm -15℃ to 5℃
    120mm -20℃ to -15℃
    150mm -30℃ to -20℃
    200mm lower than -30℃
    Panel LengthCustomized longest: 11.8m (according to container dimension)
    Panel Width960mm standard

    Customization Available

    Density≥ 42kg/m³

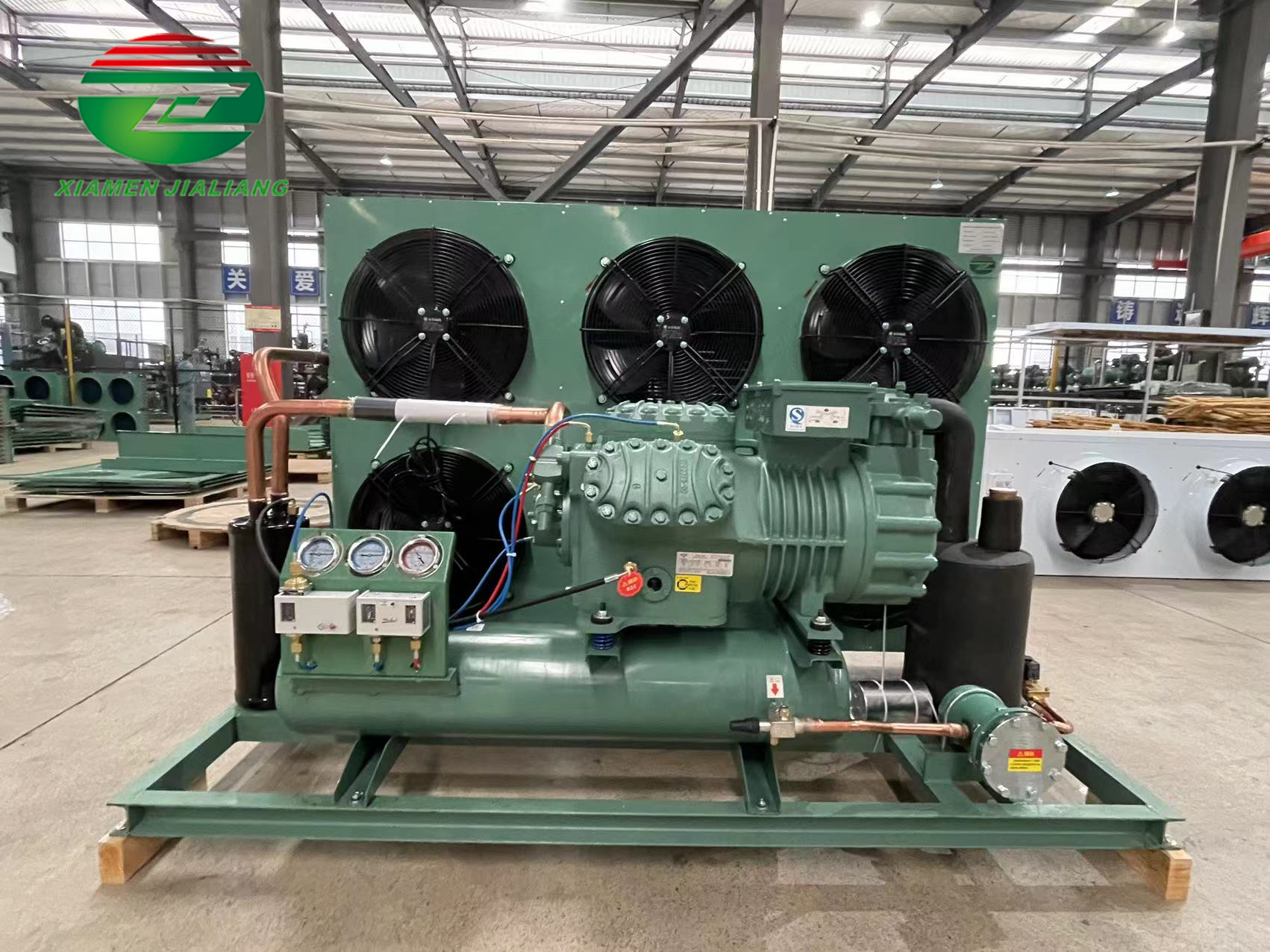

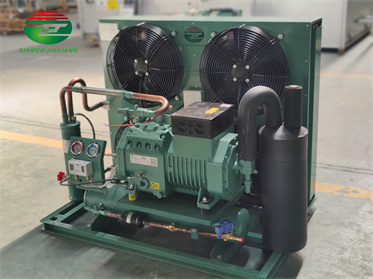

    Semi-hermetic Condensing Unit
    •Compressor Optional:
    Semi-hermetic
    •Condenser:Air cooled or Water
    cooled(for higher ambient temperature)
    •Frame:can be stell shell with spray painting or open type on stell frame
    •Refrigerant:R22/R404a/R410a
    •Capacity:Singe compressor 2HP-50HP



    ModelTemperatureApplication
    DL-5~+15°CFruit,vegetable,flower
    DD-18~-10°CFrozen meat, fish, seafood.
    DJ-25~-20°CIce cream


    Different types of cold storage can be classified according to the required temperature range:

    1. Low temperature cold storage: used to store items at extremely low temperatures, such as ice cream, frozen food, etc.

    2. Medium temperature cold storage: used for storing items that require relatively low but not extreme temperatures, such as vegetables, fruits, meat, etc.

    3. High temperature cold storage: used to store items that require a high but not overheated temperature, such as flowers, medicines, etc.

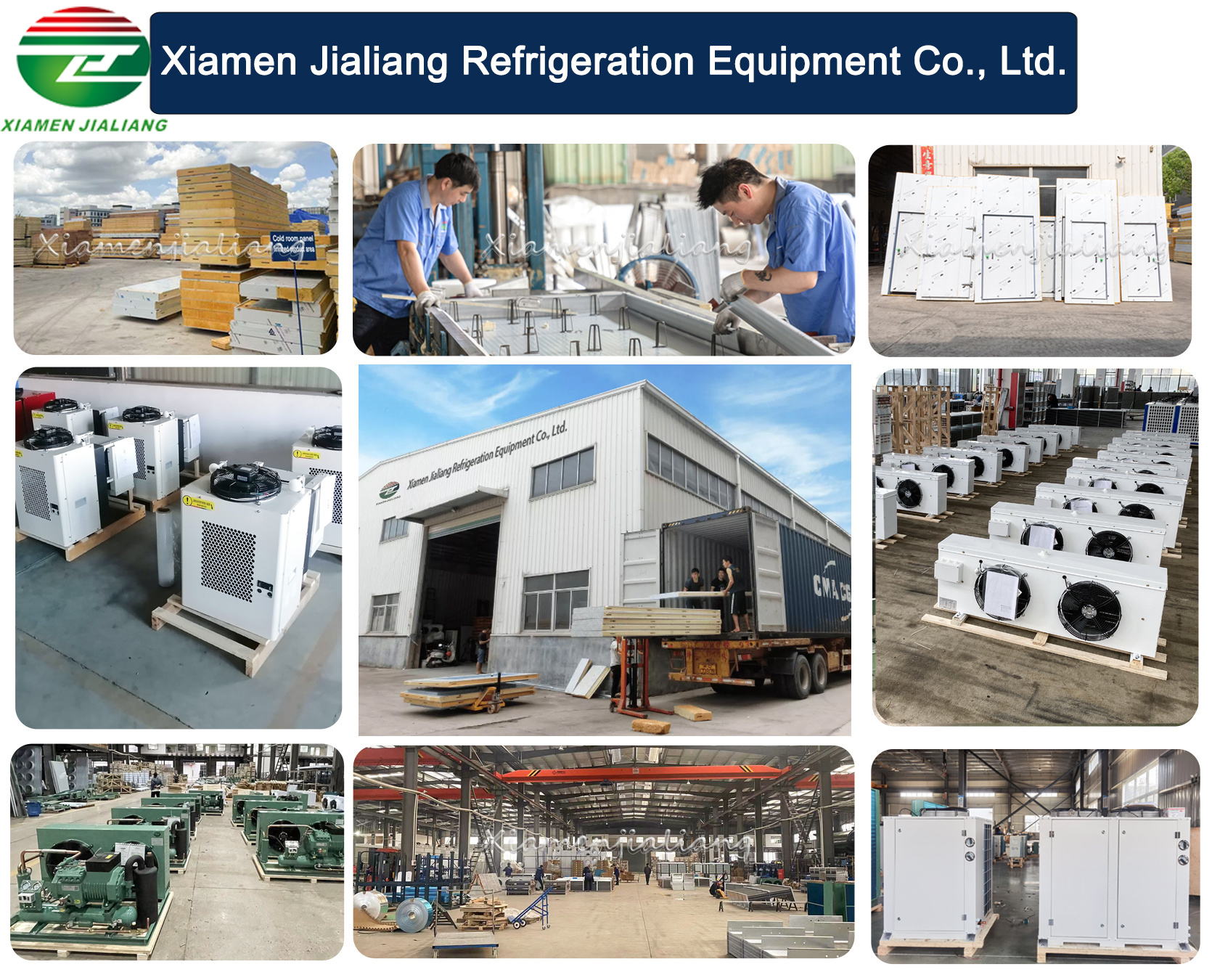

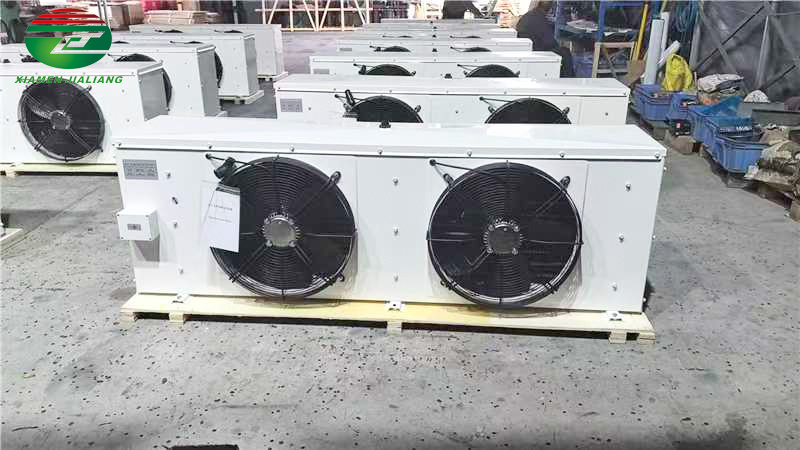

    We have our own production factory, which mainly produces products related to refrigeration equipment, such as cold room, cold room panels, condensing units, evaporators, etc

    We are a factory with mature technology and supply capabilities, able to continuously provide you with the highest quality service!



    Q1: How much electricity does a cold storage consume per day?
    A1:Depending on the size of the room and the corresponding machines, the typical power consumption is the number of machines per hour.
    Q2: Is it possible to achieve both refrigeration and freezing effects?
    A2: Yes, the temperature can be adjusted. However, there is a large gap between the two temperatures, so they cannot be stored at the same time and can only be stored in batches.
