- High Density PU Cam lock Panel
PU insulated panel cold rooms require comprehensive consideration of factors
- Get A Quote
- Description
- Features

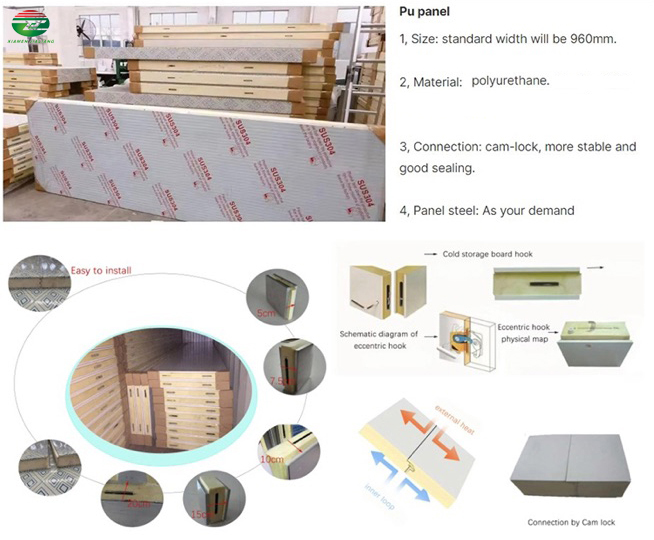

High Density PU Cam lock Panel
Feature:
The polyurethane cold room panel uses lightweight polyurethane as the inner material of the cold room panel. The advantage of polyurethane is that its insulation performance is very good. The outer part of the polyurethane cold room panel is made of colored steel plates and stainless steel plate components. The advantage of this is to prevent the cold room panel from spreading temperature due to the large temperature difference between inside and outside, thereby making the cold room more energy-efficient and improving the work efficiency of the cold room. The cold room panel has the characteristics of corrosion resistance, aging resistance, flame retardancy, strong pressure resistance, beautiful appearance, convenient operation, long service life, sanitation, etc
| Density (Kg/m3) | 38-45 |
| Bending Strength (Mpa) | >0.25 |
| Compressive Strength (Mpa) | >0.2 |
| Thermal Conductivity(W/n℃) | <0.022 |
| Water absorption (KG/m3) | <0.30 |
| Self-extinguish time (S) | <7S |
| Dimension | Length(m)*Width(m)*Height(m) |
| Panel | New material polyurethane insulation panel,40~45kg/m3 |
| Width of Panel | 960mm, ect. (customized) |
| Height of Panel | 1 to 12m |
| Panel thickness | 50mm,75mm,100mm, 120mm,150mm,200mm |
| Color steel thickness | 0.326/0.376/0.426/0.476/0.5mm |
| Type of door | Sliding door,swing door,double door |
| Temp. of room | -60℃~+20℃ optional |
| Company Certifications | ISO 9001: 2000 SGS SASO CE |
| Business Type | Manufacturer |
Customized Services
| Panel thickness | Suitable temperature for cold room | Stroge Product |
| 50mm | 5℃~15℃ | Fruit,Vegetable,Flower |
| 100mm | -15℃~5℃ | Tea,Cheese,French fries |
| 120mm | -15℃~-20℃ | Meat,Seafood |
| 150mm | -20℃~-30℃ | Ice cream,Shrimp |
| 200mm | below -30℃ | Frozen food,Tuna |
FAQ
Q1: What is the fire rating of your panels? |
A1: We are B2 fire protection class |
Q2: Is it possible to suggest suitable panel specifications? |
A2: No problem, please provide the size and temperature of the cold room, our engineer will design it for you |
Q3: How well do cold room panels insulate? |
| A3: The cold room panels have high thermal insulation performance, which can effectively isolate indoor and outdoor temperatures and reduce energy consumption. |
