- Four piece brand compressor condensing unit
Condensing units are practical and widely used
- Get A Quote
- Description
- Features

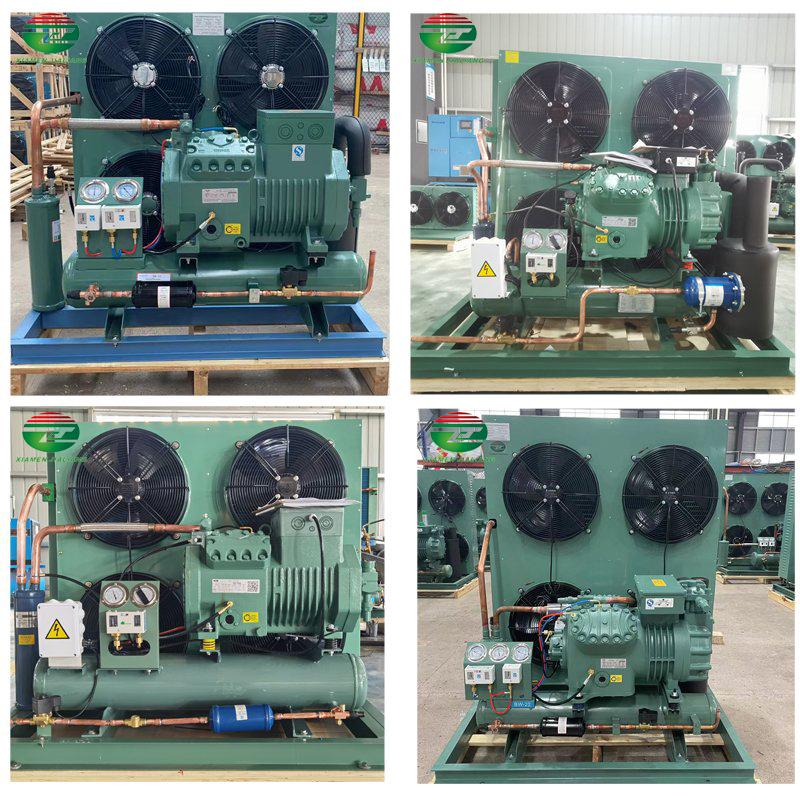

Four piece brand compressor condensing unit
| Equipped with Compressor | 2HES-2Y | 2GES-2Y | 2FES-3Y | 2EES-3Y | 2DES-3Y | 2CES-4Y | 4FES-5Y | 4EES-6Y | 4DES-7Y | 4CES-9Y |
| Compressor | Bitzer | |||||||||
| Temperature | -10~15℃ | |||||||||
| Capacity Level | 100% | |||||||||
| Refrigeration Capacity (0 ℃) | 3.49 KW | 4.01 KW | 4.93 KW | 6.41 KW | 7.45 KW | 9.50 KW | 10.27 KW | 12.89 KW | 15.14 KW | 18.91 KW |
| Evaporator Capacity | 3.49 KW | 4.01 KW | 4.93 KW | 6.41 KW | 7.45 KW | 9.50 KW | 10.27 KW | 12.89 KW | 15.14 KW | 18.91 KW |
| Input Power | 1.6KW | 1.89KW | 2.32KW | 2.66KW | 3.11KW | 3.95KW | 4.27KW | 5.39KW | 6.25KW | 7.89KW |
| Current 400V | 3.34A | 3.66A | 4.36A | 5.27A | 5.86A | 7.10A | 7.89A | 9.45A | 11.17A | 13.50A |
| Voltage Range | 380-420V | |||||||||
| HP | 2HP | 3HP | 3HP | 3HP | 3HP | 4HP | 5HP | 6HP | 7HP | 9HP |
| Equipped with Compressor | 4VES-10Y | 4TES-12Y | 4PES-15Y | 4NES-20Y | 4HE-25Y |
| Temperature | -10~15℃ | ||||
| Capacity Level | 100% | ||||
| Refrigeration Capacity (0 ℃) | 19.61KW | 23.8 KW | 27.0KW | 32.5KW | 43.0KW |
| Evaporator Capacity | 19.61KW | 23.8 KW | 27.0KW | 32.5KW | 43.0KW |
| Input Power | 7.74KW | 9.53 KW | 10.78KW | 12.89KW | 17.04KW |
| Current 400V | 13.92A | 16.55A | 19.41A | 22.5A | 29.9 A |
| Voltage Range | 380-420V | ||||
| HP | 10HP | 12HP | 15HP | 20HP | 25HP |
Customized Services
1.We provide “onestop service”from design,production, sales,installation,to after-sales services.
2.We focuses on quality andservice.We not only providehigh quality products butalso service with professionand passion
3.We has an excellent after-salesservice team to ensure that thefirst time to solve customerafter-sales problems
4.We have experienced projectsaround the world,and ourteams provide reliablesolution services to meetcustomer needs
Q1: How efficient is the refrigeration of a Bitzer condensing unit? |
A1: The refrigeration efficiency of a Bitzer condensing unit depends on its refrigeration system design and energy efficiency rating. High-quality units generally have higher refrigeration efficiency, achieving the same cooling effect with less energy consumption. |
Q2: What is the energy consumption of a Bitzer condensing unit? |
A2: The energy consumption of a Bitzer condensing unit depends on its refrigeration system design, operating time, and load, among other factors. High-quality units generally have lower energy consumption, resulting in reduced operating costs. |
Q3: Does a Bitzer condensing unit support customized design? |
| A3: Yes, Bitzer condensing units typically support customized design, allowing for tailoring the size, configuration, and functions of the unit to meet specific customer requirements. |
