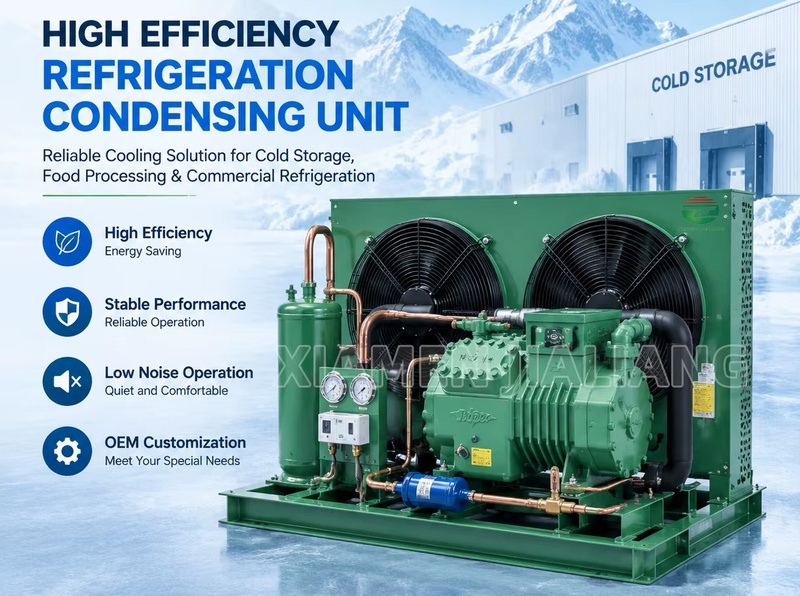

Air Cooled Condensing Unit for Refrigeration Systems
What Is a Refrigeration Condensing Unit?
A refrigeration condensing unit is one of the most important components in a cold storage refrigeration system. Its main function is to remove heat from the refrigerant and complete the refrigeration cycle to maintain a stable low-temperature environment.

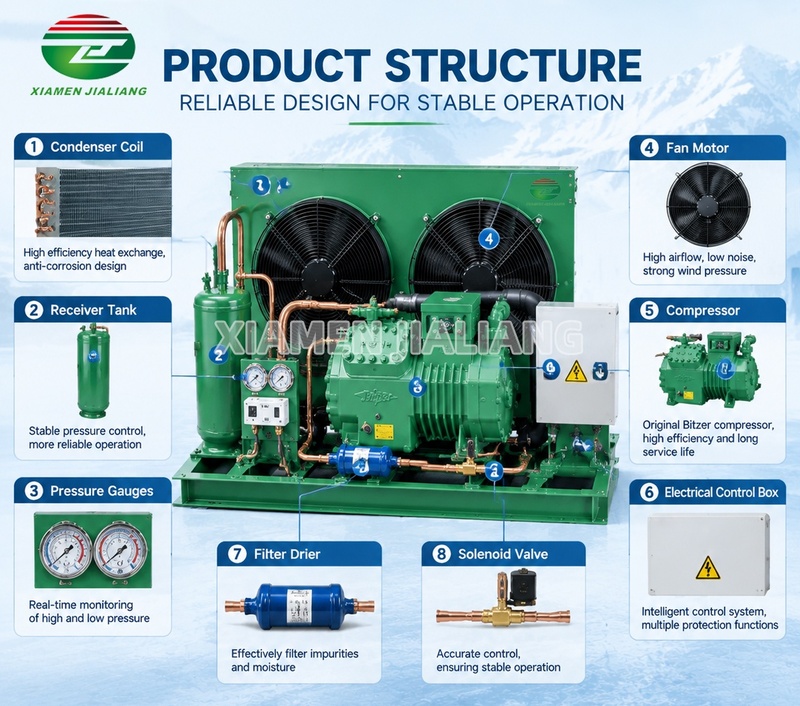

A complete condensing unit usually includes:Compressor,Condenser,Receiver,Control system,Fan system,Safety protection devices.
By working together, these components provide reliable cooling performance for cold rooms, freezer rooms, food storage facilities, and industrial refrigeration systems.

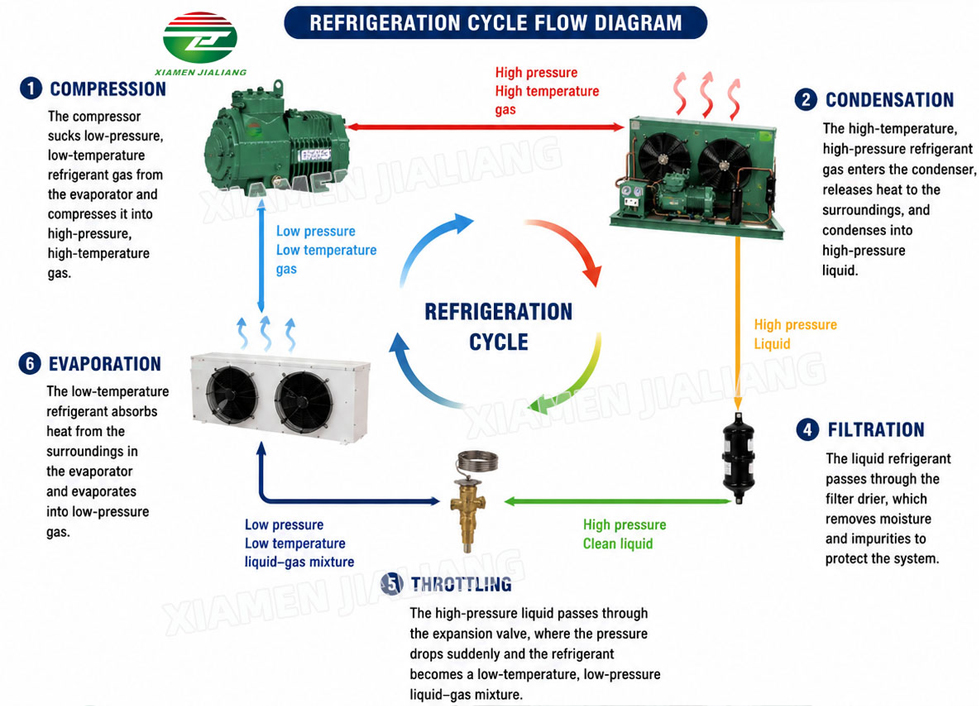

How Does a Condensing Unit Work?
The refrigeration process works through continuous circulation:
1.The compressor compresses low-pressure refrigerant gas into high-pressure gas.
2.The high-temperature refrigerant enters the condenser.
3.The condenser releases heat through air or water cooling.
4.The refrigerant becomes liquid and enters the evaporator.
5.The evaporator absorbs heat from the cold room.
6.The refrigerant returns to the compressor and repeats the cycle.
This continuous process maintains the required storage temperature.
| Model | Cooling Capacity(kW) | CompressorPower (HP) | Refrigerant | Condensing Type | Fan Quantity (pcs) | Power Supply | Dimensions(LxW xH, mm) |
| CU-2HP | 4.8 | 2 | R404A/R507 | Air Cooled | 1 | 220V/1Ph/50Hz | 800 x450 x650 |
| CU-3HP | 7.2 | 3 | R404A/R507 | Air Cooled | 1 | 220V/1Ph/50Hz | 850x500x680 |
| CU-5HP | 11.5 | 5 | R404A/R507 | Air Cooled | 2 | 380V/3Ph/50Hz | 1100x500x750 |
| CU-8HP | 18.0 | 8 | R404A/R507 | Air Cooled | 2 | 380V/3Ph/50Hz | 1300 x550x850 |
| CU-10HP | 22.5 | 10 | R404A/R507 | Air Cooled | 2 | 380V/3Ph/50Hz | 1300x550x850 |
| CU-15HP | 34.0 | 15 | R404A/R507 | Air Cooled | 3 | 380V/3Ph/50Hz | 1600 x650x950 |
| CU-20HP | 45.0 | 20 | R404A/R507 | Air Cooled | 3 | 380V/3Ph/50Hz | 1800x700 x1050 |
| CU-30HP | 68.0 | 30 | R404A/R507 | Air Cooled | 4 | 380V/3Ph/50Hz | 2200 x800 x1250 |
Q1: Can the condensing unit capacity be customized?
A1: Yes. Different HP ratings and configurations can be selected according to the required refrigeration capacity.
Q2: What applications are condensing units suitable for?

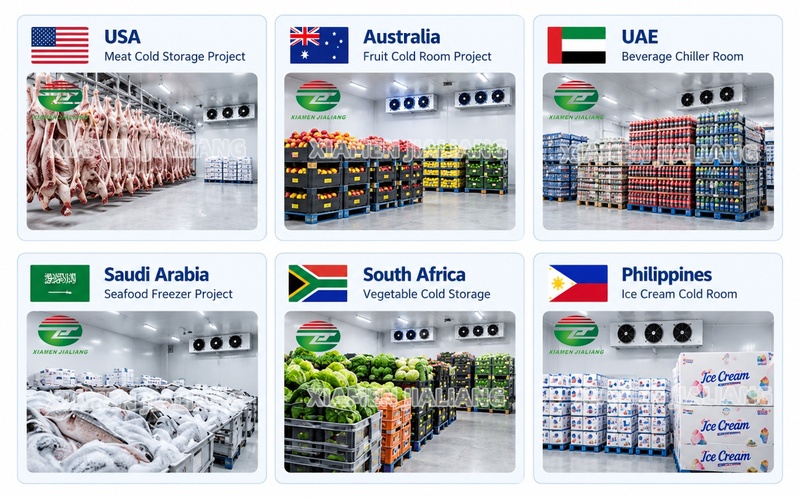

A2: They can be used for cold rooms, freezer rooms, chilled storage, food processing, and other commercial refrigeration applications.
Q3: Our local climate is very hot/cold, can the compressor unit achieve the cooling effect?
A3: We will appropriately increase the condenser to resist hot weather according to the customer's local temperature. Or optimize the electric control box to ensure that it can still work at low temperatures.
