- XMJL 1HP Wall Mounted Monoblock Condensing Unit
- Get A Quote

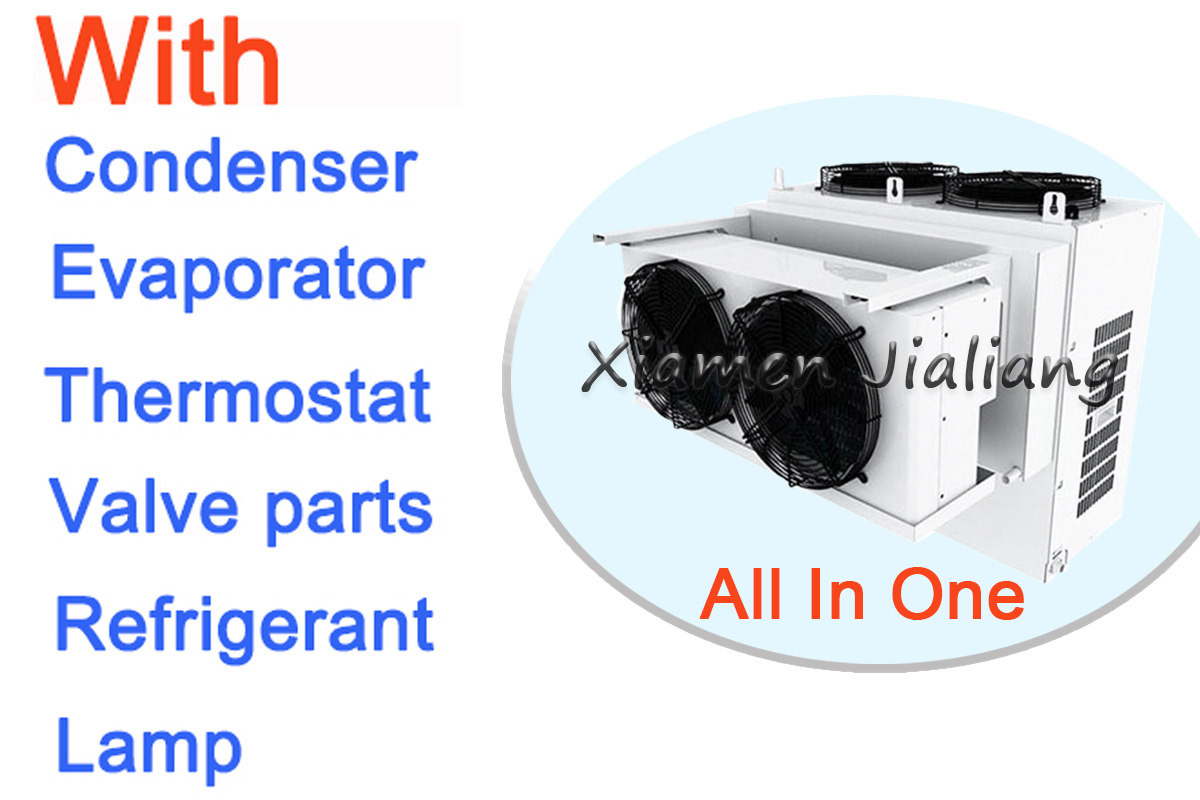

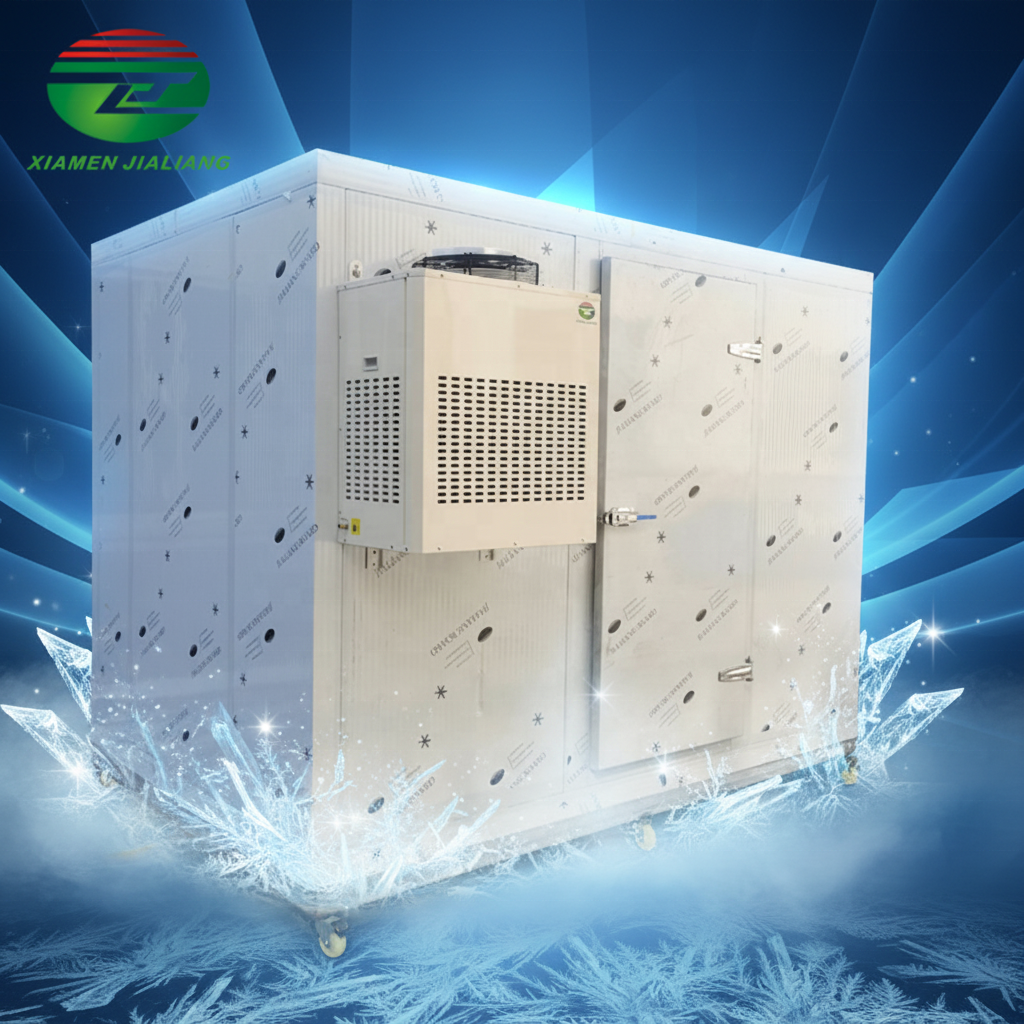

Monoblock condensing unit has a compact structure, and the evaporator, condenser, compressor, and electronic control are designed as a whole and compact structure
- Description
- Features
Product Description

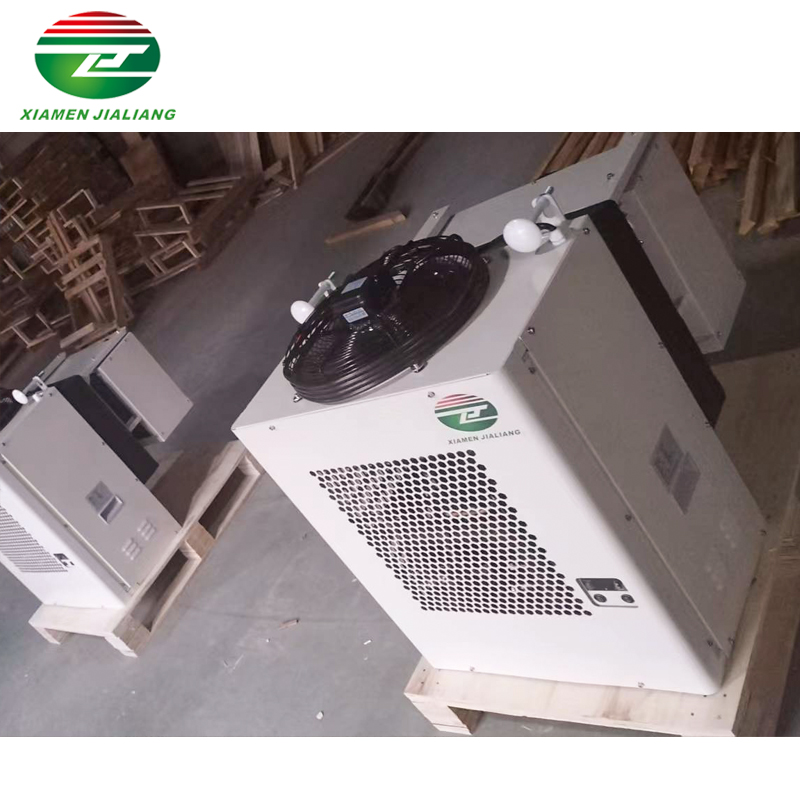

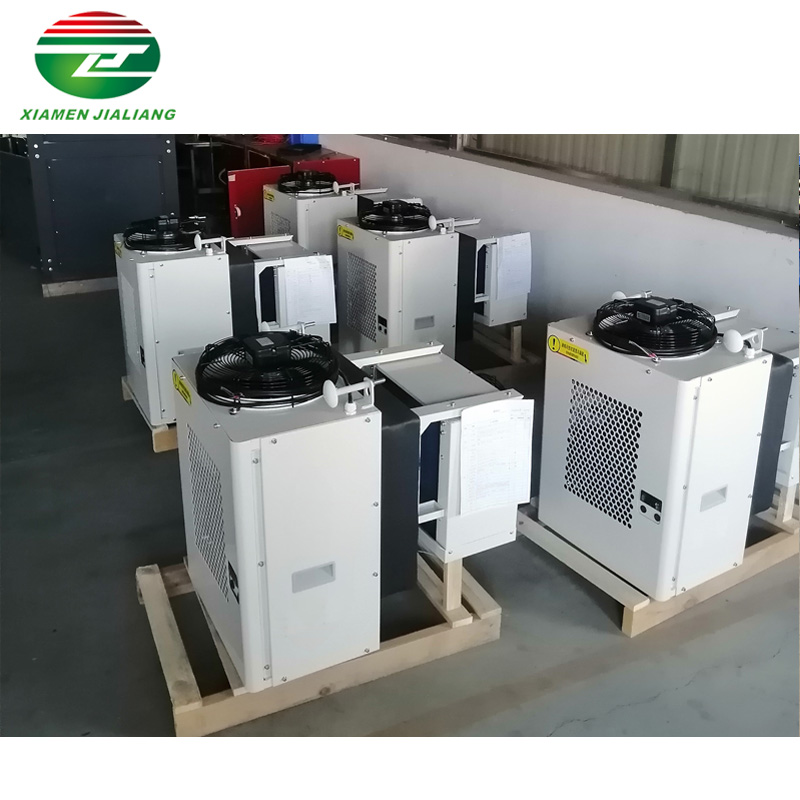

XMJL 1HP Wall Mounted Monoblock Condensing Unit
1. Compact structure, evaporator, condenser, compressor, electric control, etc. are designed into a compact overall structure, saving installation space;
2. High refrigeration efficiency, low noise, and high reliability;
3. Adopting high-efficiency copper tube aluminum plate heat exchanger, with high heat exchange efficiency; Adopting internationally renowned brand refrigeration accessories and fans, with high reliability and long service life;
4. Fully automatic intelligent control, with temperature setting, temperature control, Auto-defrost and other functions
| Side Embedded Fixed Frequency Monoblock Unit | ||||||
| Model | Voltage | Power | Packaging Size (mm) | Product Weight(kg) | Freezer Room Volume | Cold Room Volume |
| XMJL-YTCN10 | 220V | 220V/50Hz | 670*880*800 | 113 | ≤7m³ | ≤12m³ |
| 220V/60Hz | ||||||
| XMJL-YTCN20 | 220V | 220V/50Hz | 820*1000*1000 | 130 | ≤15m³ | ≤25m³ |
| 220V/60Hz | ||||||
| 380V | 380/50Hz | |||||
| XMJL-YTCN30 | 220V | 220V/50Hz | 1050*1000*1000 | 165 | ≤25m³ | ≤40m³ |
| 220V/60Hz | ||||||
| 380V | 380/50Hz | |||||
| XMJL-YTCN40 | 380V | 380/50Hz | 1120*1070*1060 | 190 | ≤35m³ | ≤55m³ |
| Side Embedded Frequency Conversion Monoblock Unit | |||||
| Model | Supply Voltage | Packaging Size (mm) | Product Weight(kg) | Freezer Room Volume | Cold Room Volume |
| XMJL-BYTCN10 | 220V/50HZ/60Hz | 670*880*800 | 113 | ≤7m³ | ≤12m³ |
| XMJL-BYTCN20 | 220V/50HZ/60Hz | 820*1000*1000 | 130 | ≤15m³ | ≤25m³ |
| XMJL-BYTCN30 | 220V/50HZ/60Hz | 1050*1000*1000 | 165 | ≤25m³ | ≤40m³ |
| XMJL-BYTCN40 | 220V/50HZ/60Hz | 1120*1070*1060 | 185 | ≤35m³ | ≤55m³ |
| Top Mounted Fixed Frequency Monoblock Unit | |||||
| Model | Supply Voltage | Packaging Size (mm) | Product Weight(kg) | Freezer Room Volume | Cold Room Volume |
| XMJL--YTDN10 | 220V/50Hz | 1000*570*810 | 95 | ≤7m³ | ≤12m³ |
| 220V/60Hz | |||||
| XMJL--YTDN20 | 220V/50Hz | 1240*635*810 | 125 | ≤15m³ | ≤25m³ |
| 220V/60Hz | |||||
| 380/50Hz | |||||
| XMJL--YTDN30 | 220V/50Hz | 1410*670*865 | 150 | ≤25m³ | ≤40m³ |
| 220V/60Hz | |||||
| 380V/50Hz | |||||
Customized Services
Note:
1. The top of the unit outside the storage O≥ 500mm from the top obstacle, in order to discharge hot air Inside the machine
2. The front the unit outside the storage L≥800mm from the obstacle, in order to facilitate cooling, and is convenient for the installation and operation of the unit
3. The rear of the unit inside the storage W≥ 500mm From the obstacle, behind the library unit distance from obstacles
W more than 500mm, In order to facilitate the full cycle of cooling machine
4. The bottom of the unit Inside the cold storage H≥500mm, In order Io facilitate the full cycle of cooling machine
FAQ
Q1: Does the XMJL monoblock condensing unit require additional building structure support? |
A1: Generally, the XMJL monoblock condensing unit does not require additional building support, as it can operate independently. |
Q2: Does the XMJL monoblock condensing unit require frequent refrigerant replenishment? |
A2: In general, the refrigerant in the XMJL monoblock condensing unit does not require frequent replenishment, but regular checks are necessary. |
Q3: Is the XMJL monoblock condensing unit compliant with environmental requirements? |
A3: Yes, modern XMJL monoblock condensing units generally use environmentally friendly refrigerants and energy-saving technologies, complying with environmental requirements. |
Q4: Does the XMJL monoblock condensing unit have an emergency shutdown function? |
A4: Yes, the XMJL monoblock condensing unit is typically equipped with an emergency shutdown function to deal with unforeseen situations. |
