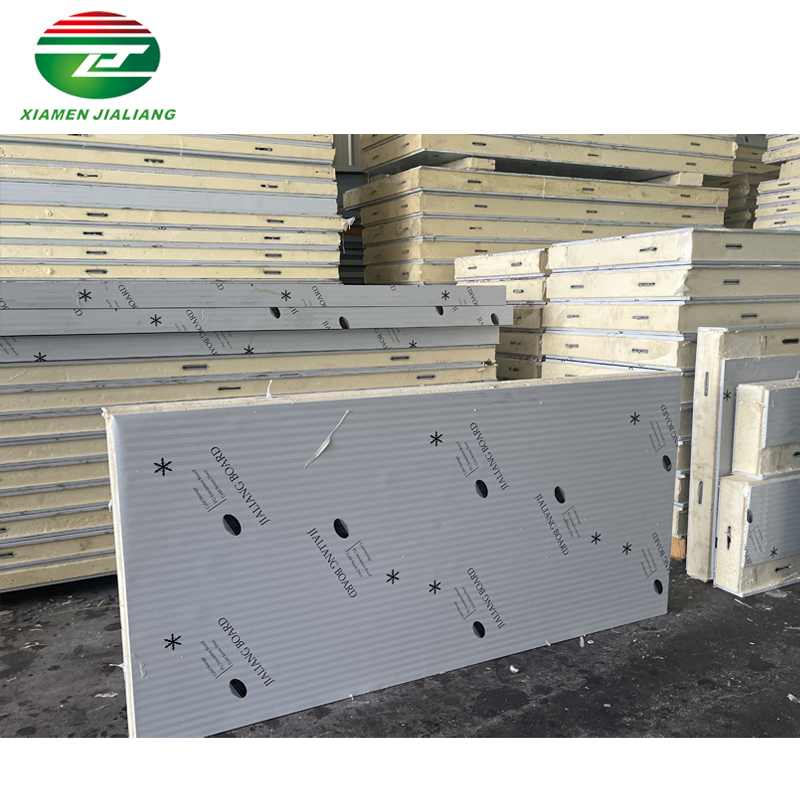

PU Sandwich Panel is a sandwich panel consisting of two layers of metal sheet and an insulation layer in between.
- Description
- Features
Product Description

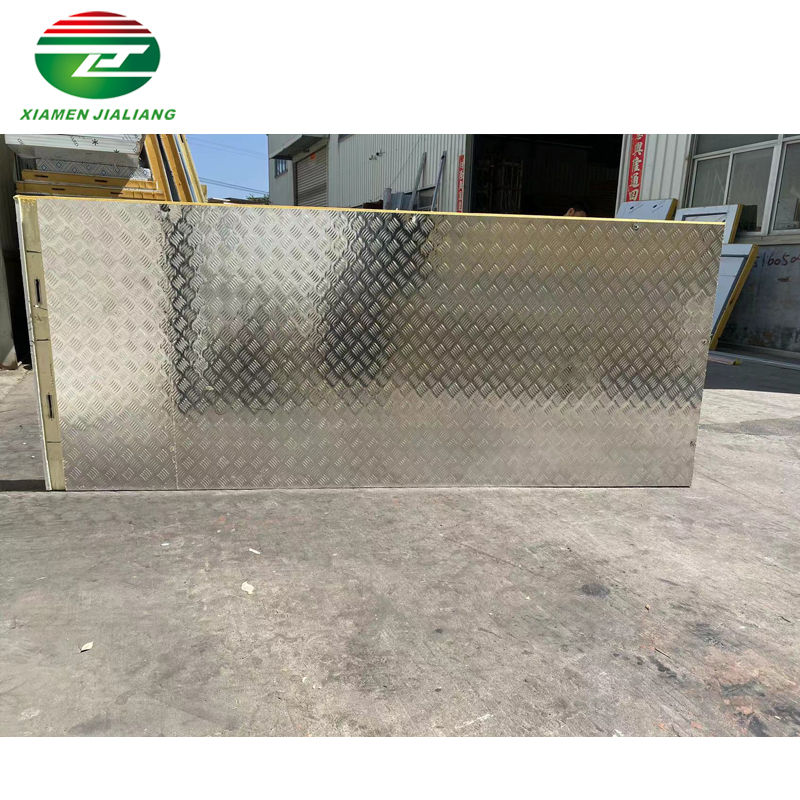

Waterproof Camlock Cold Room Panel
1. Our Pu Panel Standard width is 960mm , The length can be customized according to your requirements .
2. PU panel is B2 fire proof grade, keep best insulation effect and safety.

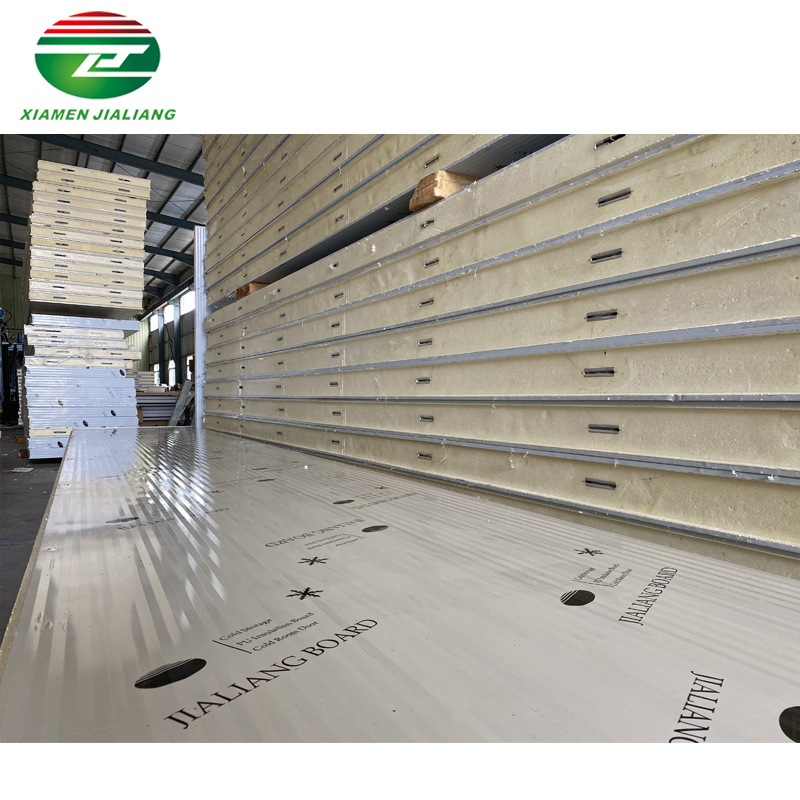

3. Durable zinc-coated cam lock, very easy to install, anti-corrosion effect is very good.
4. 38-45 kg/m3 density PU foam, the insulation effect is good .
After placing order ,our designer will design an exact drawing for your cold room , you can install it easily .
| Density (Kg/m3) | 38-45 |
| Bending Strength (Mpa) | >0.25 |
| Compressive Strength (Mpa) | >0.2 |
| Thermal Conductivity(W/n℃) | <0.022 |
| Water absorption (KG/m3) | <0.30 |
| Self-extinguish time (S) | <7S |
| Dimension | Length(m)*Width(m)*Height(m) |
| Color steel thickness | 0.326/0.376/0.426/0.476/0.5mm |

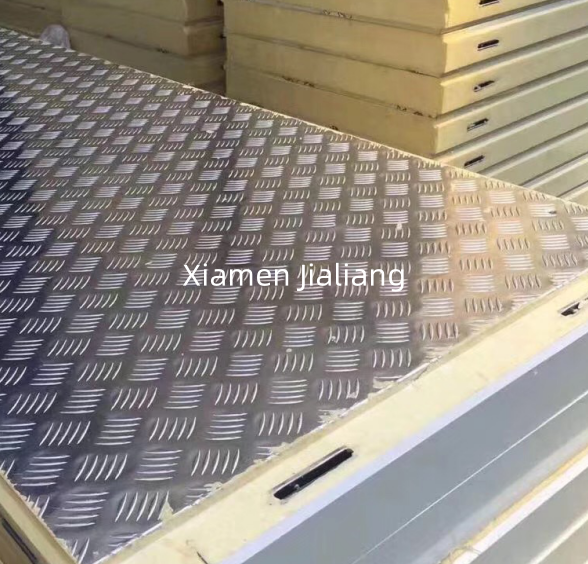

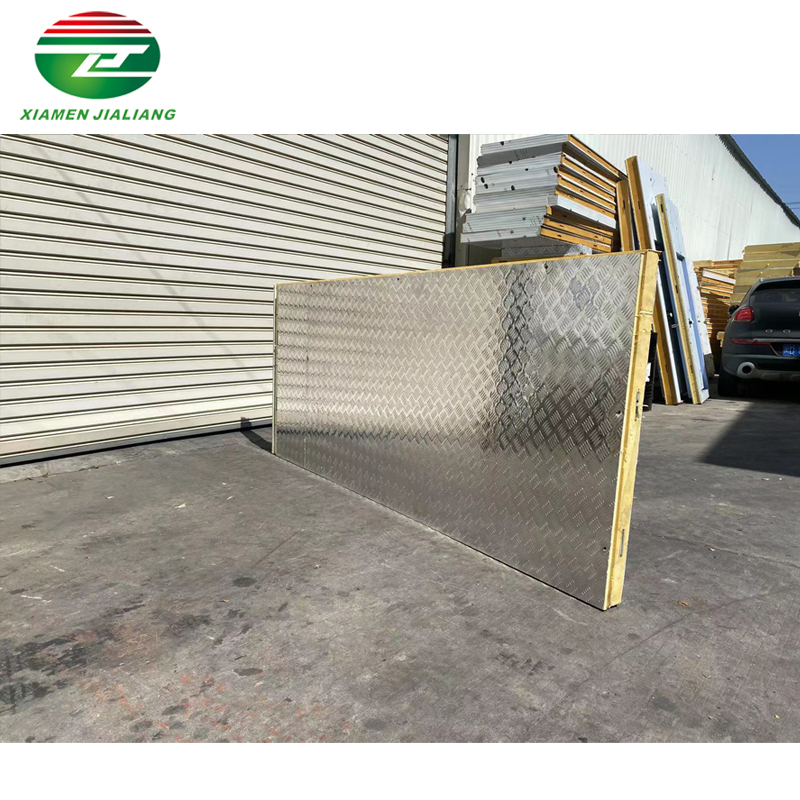

| Aluminum flower thickness | 1.5/2.0/3.0mm |
| Stainless steel thickness | 0.4/0.5mm |
| Panel | New material polyurethane insulation panel,40~45kg/m3 |
| Width of Panel | 960mm, ect. (customized) |
| Height of Panel | 1 to 12m |
| Panel thickness | 50mm,75mm,100mm, 120mm,150mm,200mm |
| Type of door | Sliding door,swing door,double door |
| Temp. of room | -60℃~+20℃ optional |
| Company Certifications | ISO 9001: 2000 SGS SASO CE |
| Business Type | Manufacturer |
| Panel thickness | Suitable temperature for cold room | Stroge Product |
| 50mm | 5℃~15℃ | Fruit,Vegetable,Flower |
| 100mm | -15℃~5℃ | Tea,Cheese,French fries |
| 120mm | -15℃~-20℃ | Meat,Seafood |
| 150mm | -20℃~-30℃ | Ice cream,Shrimp |
| 200mm | below -30℃ | Frozen food,Tuna |
Customized Services
FAQ
Q1: How to install the cold room panel? |
A1: Yes, panels need regular inspections and maintenance to ensure their insulation performance and integrity, preventing damage or leaks. |
Q2: Are cold room panels waterproof? |
A2:Cold room panels are often waterproof, but complete protection from water ingress requires proper installation and sealing. |
Q3: Are cold room panels fireproof? |
A3: Cold room panels usually have certain flame retardant properties, but additional fire protection treatment may be required under special requirements. |
Q4: Can the cold room panel be customized in size? |
A4: Yes, cold room panels can usually be customized in different sizes according to actual needs. |
