- Long Finned High Efficiency Cold Room Evaporator For Hospital
- Get A Quote

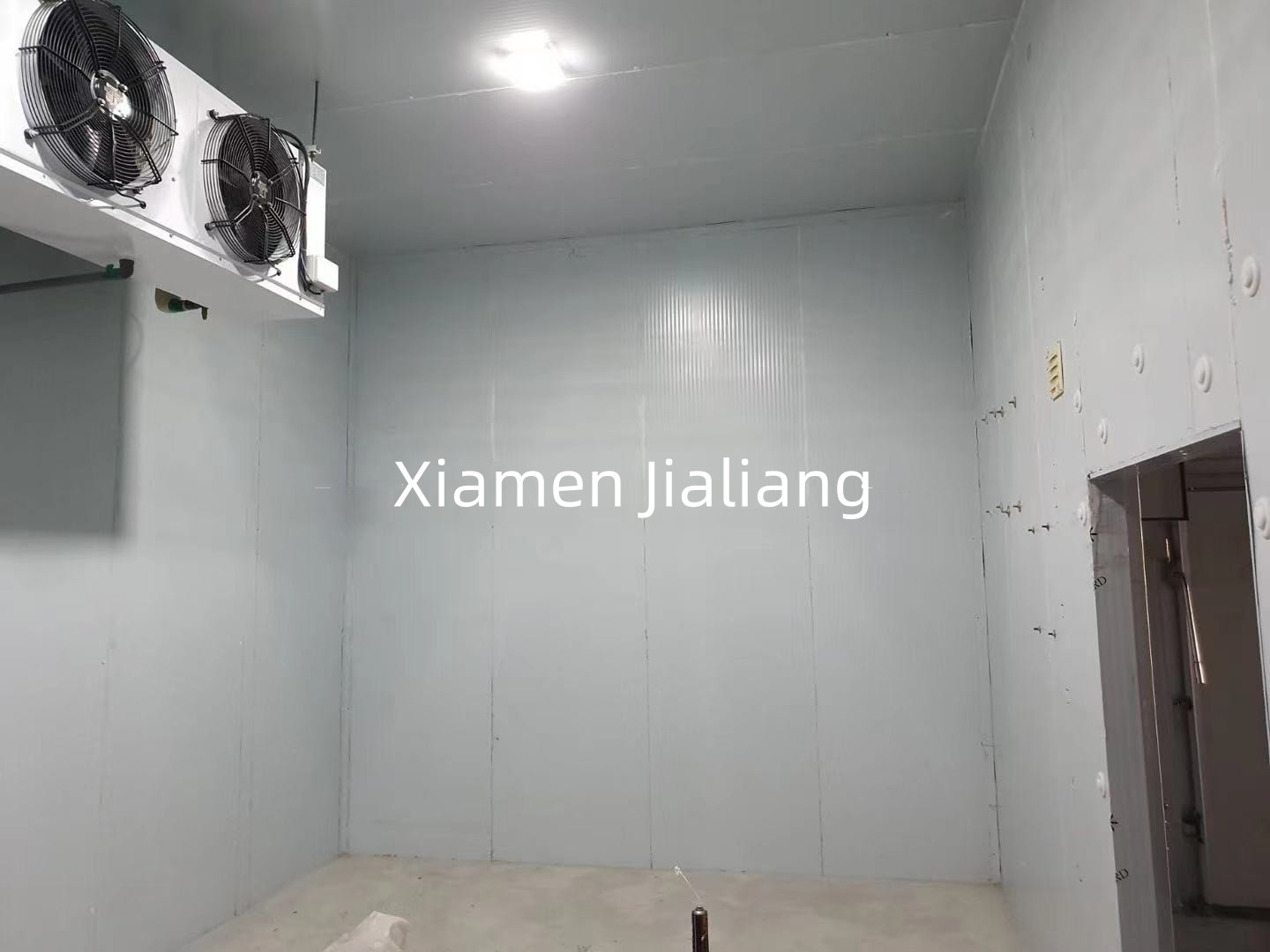

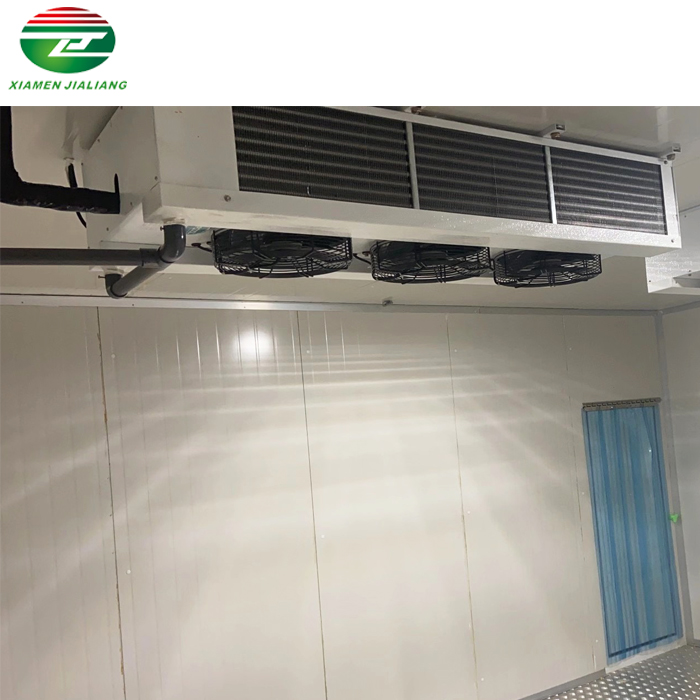

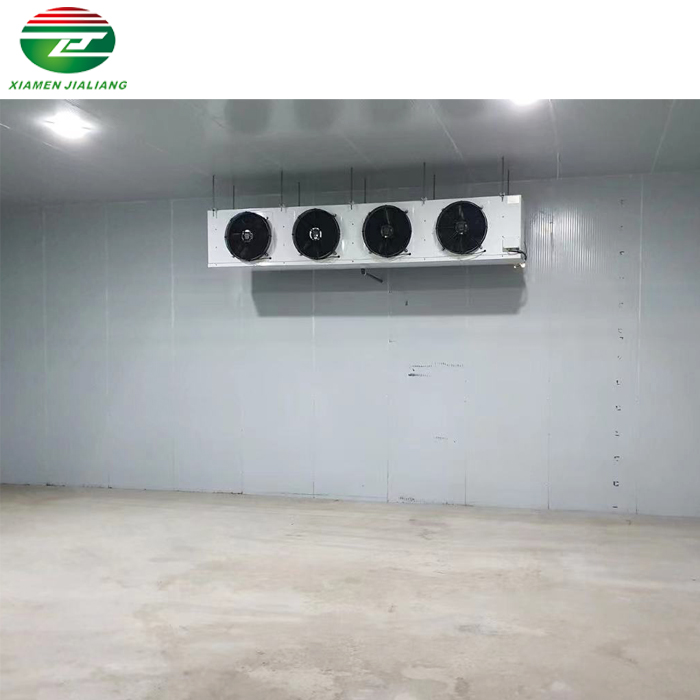

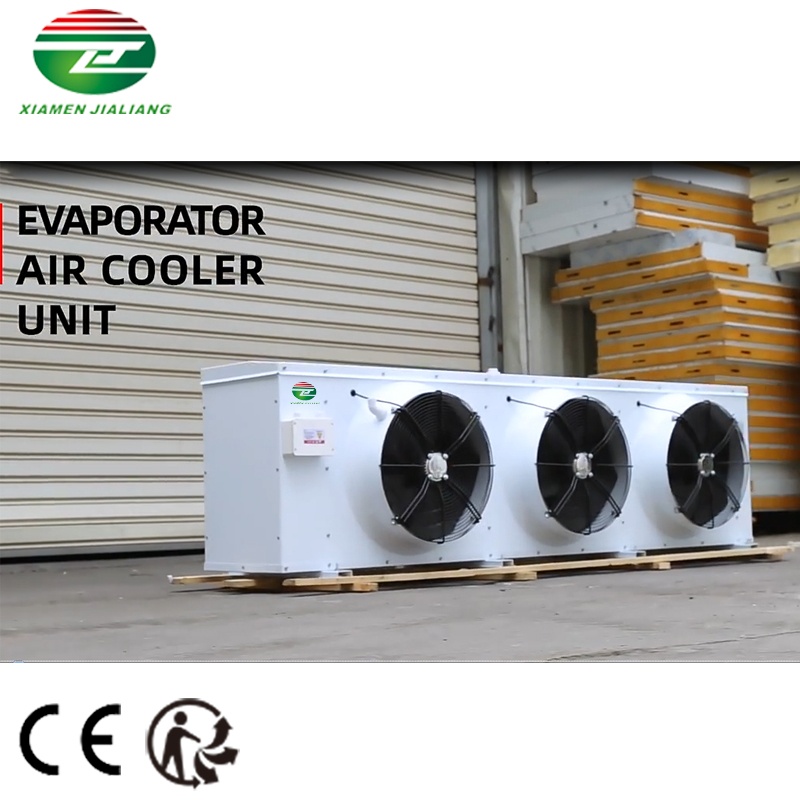

Air cooled cold room evaporator is a heat dissipation device for refrigeration equipment, and its cooling temperature is suitable for the cold storage room.
- Description
- Features
Product Description

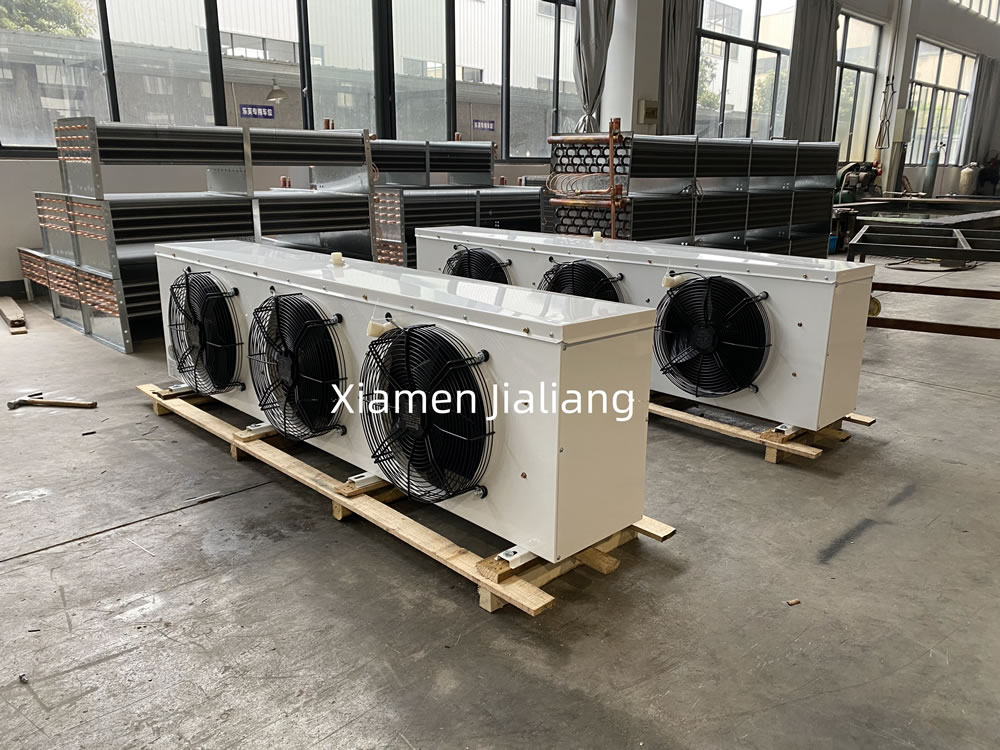

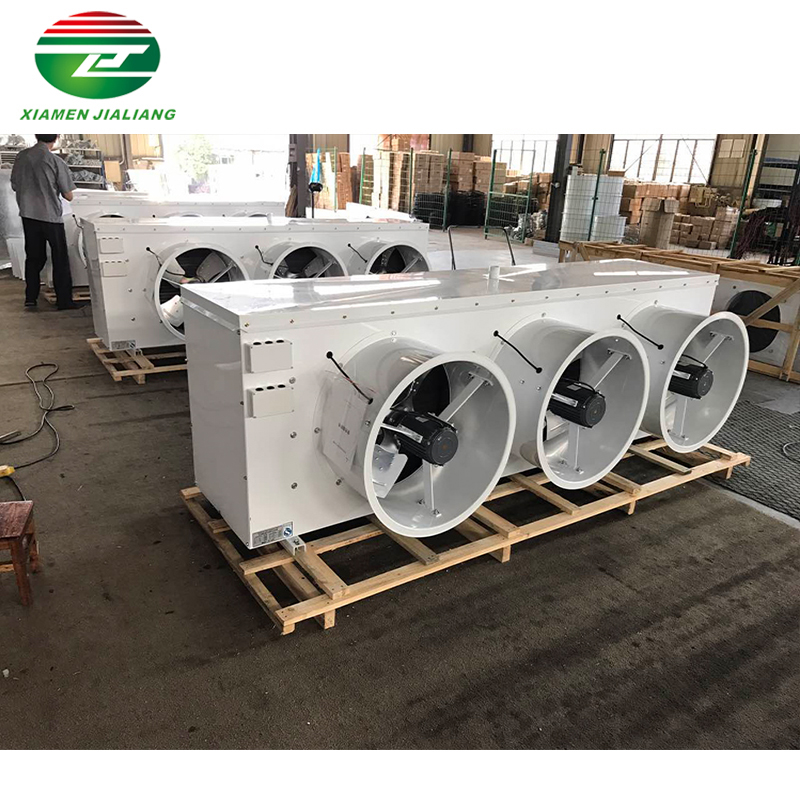

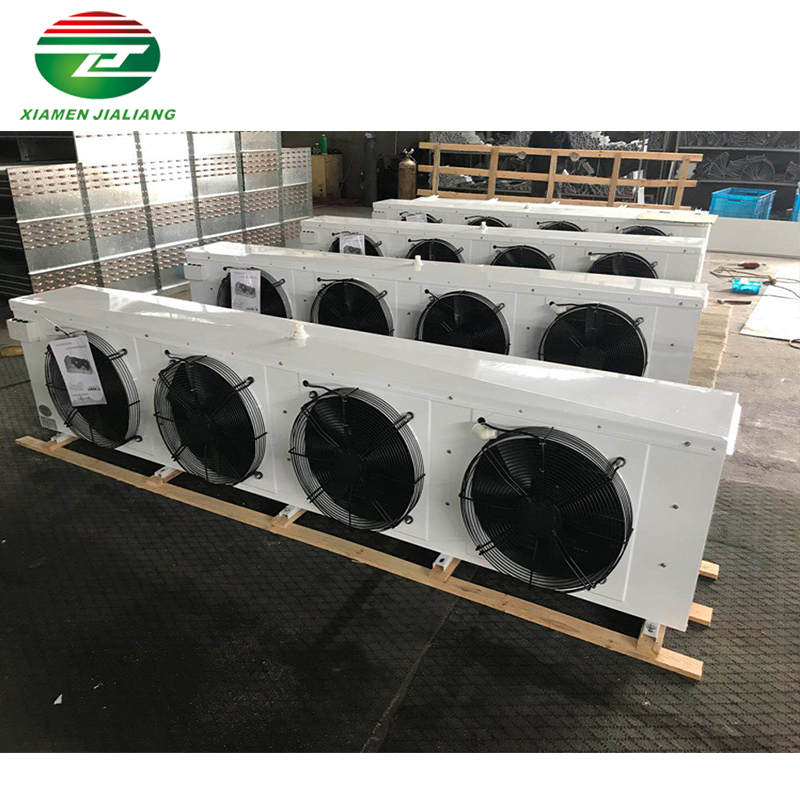

Long Finned High Efficiency Cold Room Evaporator For Hospital
| Model | DJ12 | DJ15 | DJ20 | DJ30 | DJ40 | DJ55 |
| Refrige-Rating Capacity | 1.9KW | 2.3KW | 3.1KW | 4.7KW | 6.2KW | 8.5KW |
| Cooling Area | 12㎡ | 15㎡ | 20㎡ | 30㎡ | 40㎡ | 5㎡ |
| Diameter of Feed Inlet | 12mm | 12mm | 16mm | 16mm | 19mm | 19mm |
| Diameter of Tail Pipe | 16mm | 16mm | 25mm | 25mm | 32mm | 32mm |
| Wind Rate | 2450*2m³/h | 2450*2m³/h | 3950*2m³/h | 3950*2m³/h | 5400*2m³/h | 5400*2m³/h |
| Quantity | 2N | 2N | 2N | 2N | 2N | 2N |
| Fan Blade | 350mm | 350mm | 400mm | 400mm | 450mm | 450mm |
| Voltage | 380v | 380v | 380v | 380v | 380v | 380v |
| Power | 2*150W | 2*150W | 2*180W | 2*180W | 2*280W | 2*280W |
| Air Throw | 8m | 8m | 10m | 10m | 15m | 15m |
| Coil Unit | 1.8KW | 2.4KW | 2.6KW | 3.0KW | 3.6KW | 6KW |
| Drain Pan | 0.9KW | 1.2KW | 1.3KW | 1.5KW | 1.2KW | 1.2KW |
| Model | DJ70 | DJ85 | DJ100 | DJ115 |
| Refrige-Rating Capacity | 10.9KW | 13.2KW | 15.5KW | 17.8KW |
| Cooling Area | 70㎡ | 85㎡ | 100㎡ | 115㎡ |
| Diameter of Feed Inlet | 19mm | 19mm | 25mm | 25mm |
| Diameter of Tail Pipe | 38mm | 38mm | 42mm | 42mm |
| Wind Rate | 5400*3m³/h | 5400*3m³/h | 5400*4m³/h | 5400*4m³/h |
| Quantity | 3N | 3N | 4N | 4N |
| Fan Blade | 450mm | 450mm | 450mm | 450mm |
| Voltage | 380v | 380v | 380v | 380v |
| Power | 3*280W | 3*280W | 4*280W | 4*280W |
| Air Throw | 15m | 15m | 15m | 15m |
| Coil Unit | 8.0KW | 8.5KW | 10.0KW | 11.0KW |
| Drain Pan | 1.6KW | 1.7KW | 2.0KW | 2.2KW |
| Model | DJ140 | DJ170 | DJ210 | DJ250 | DJ300 |
| Refrige-Rating Capacity | 21.7KW | 26.4KW | 32.6KW | 38.8KW | 46.5KW |
| Cooling Area | 140㎡ | 170㎡ | 210㎡ | 250㎡ | 300㎡ |
| Diameter of Feed Inlet | 25mm | 25mm | 25mm | 25mm | 28mm |
| Diameter of Tail Pipe | 50mm | 50mm | 50mm | 50mm | 50mm |
| Wind Rate | 12000*2m³/h | 12000*3m³/h | 12000*3m³/h | 12000*3m³/h | 12000*4m³/h |
| Quantity | 2N | 3N | 3N | 3N | 4N |
| Fan Blade | 600mm | 600mm | 600mm | 600mm | 600mm |
| Voltage | 380v | 380v | 380v | 380v | 380v |
| Power | 2*1500W | 3*1500W | 3*1500W | 3*1500W | 4*1500W |
| Air Throw | 20m | 20m | 20m | 20m | 20m |
| Coil Unit | 11.0KW | 17.6KW | 17.6KW | 20.0KW | 22.0KW |
| Drain Pan | 2.2KW | 2.2KW | 2.2KW | 2.0KW | 2.2KW |
Customized Services

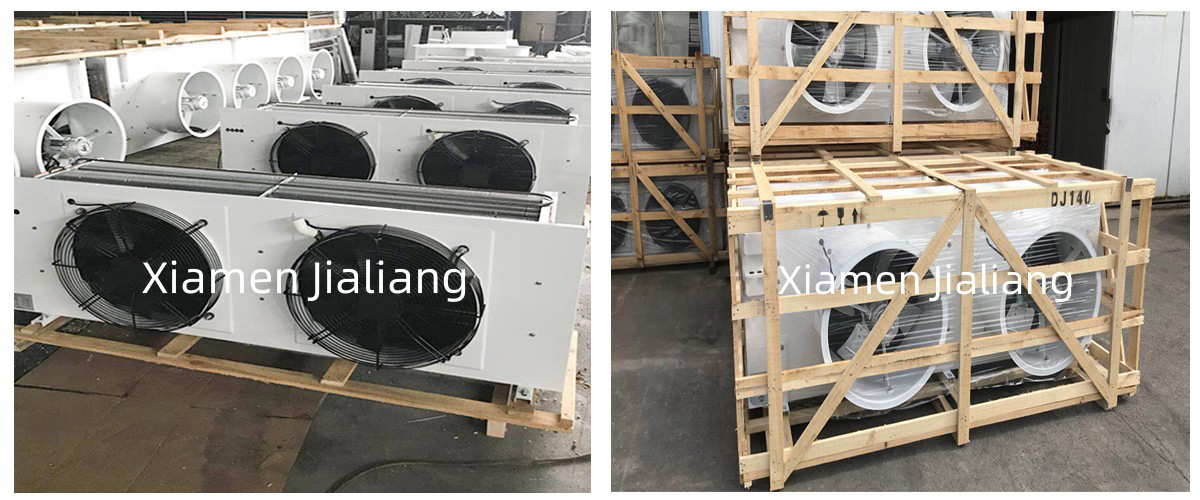

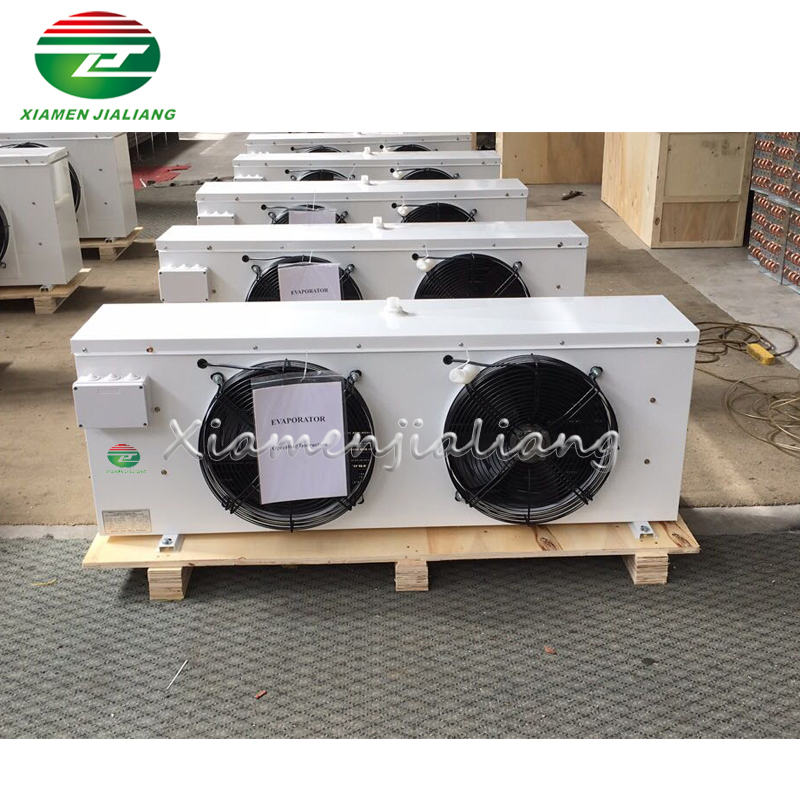

Our factory
We have over 24 years of work experience in the refrigeration field. We are young, energetic, innovative, and confident! Our products are now available in some countries in South America, Asia, the Middle East, Europe, Oceania, and Africa. Our stable quality, competitive prices, and instant service help us gain more and more customers.
In the future, we believe that you can enjoy more fresh life in our industry. We hope to work with you to realize this dream and help more and more people enjoy a high-quality life.
FAQ
Q1: Could you provide details about the warranty period and what it covers? |
A1: 1）Our products are covered by a one-year warranty, allowing for free exchange of damaged parts during the warranty period. 2）We are open to discussing any special requests you may have. 3）Our salesmen are available 24 hours a day for after-sales support; feel free to contact us with any queries. |
Q2: What sets your company apart from other suppliers and makes you a better choice? |
A2: Our products are of high quality and competitively priced. Additionally, we provide excellent pre-purchase service, and our after-sales support is responsive to any questions regarding our products. |
Q3: In order to assist with my planning, it would be extremely helpful to know the projected delivery timeframe for evaporators. |
A3: Recognizing that our products are customized to precise specifications, the usual lead time for manufacturing is around 30 working days. For precise scheduling, we carefully evaluate the particulars of each order based on the distinct requirements of the product. |
Q4: Is it permissible to incorporate our own logo or branding onto the products? |
A4: We enthusiastically embrace customization, including the incorporation of your own branding. |
