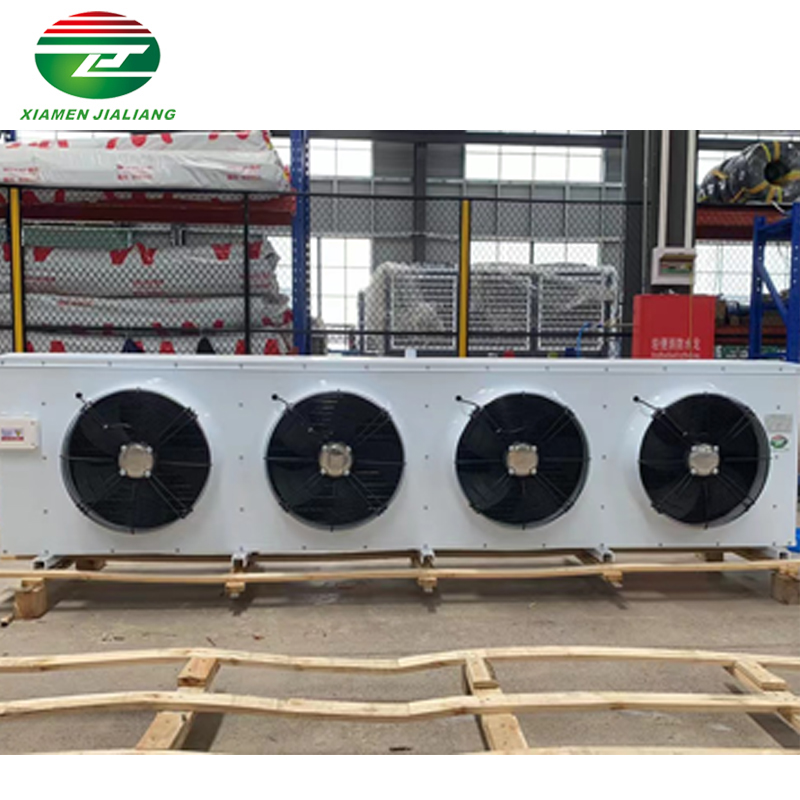

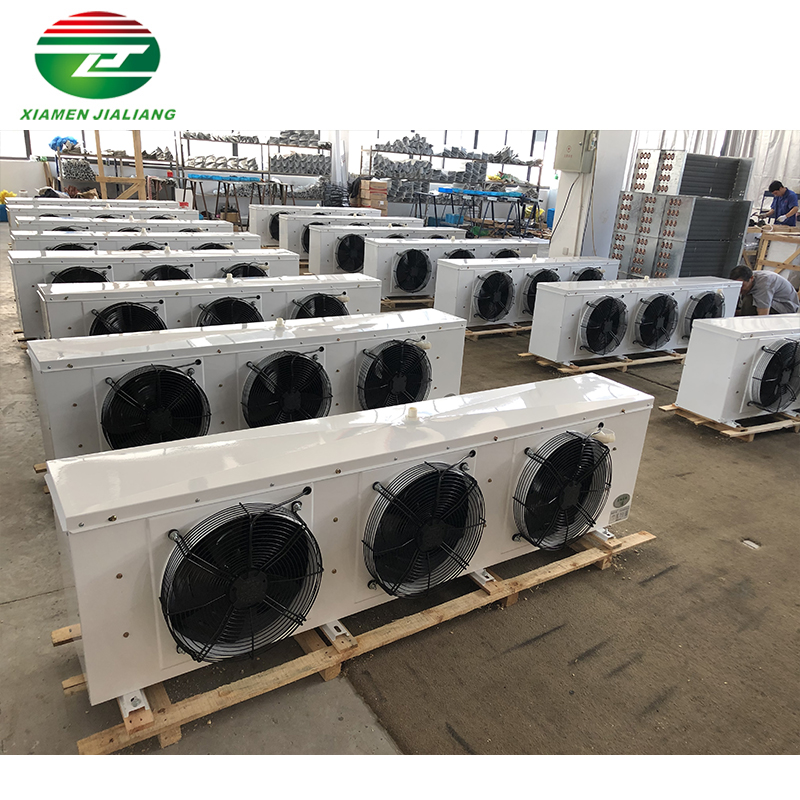

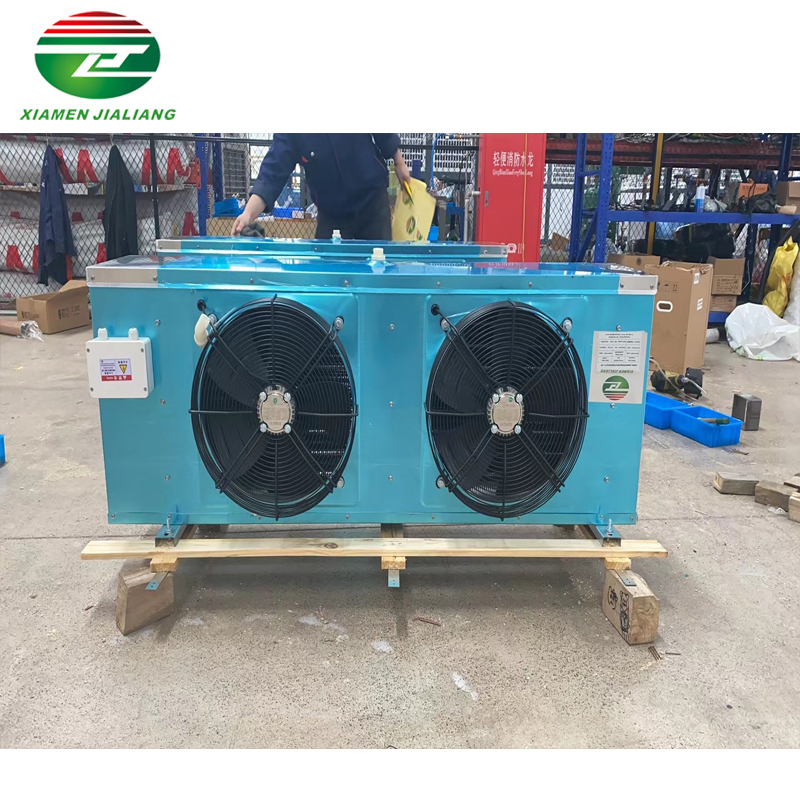

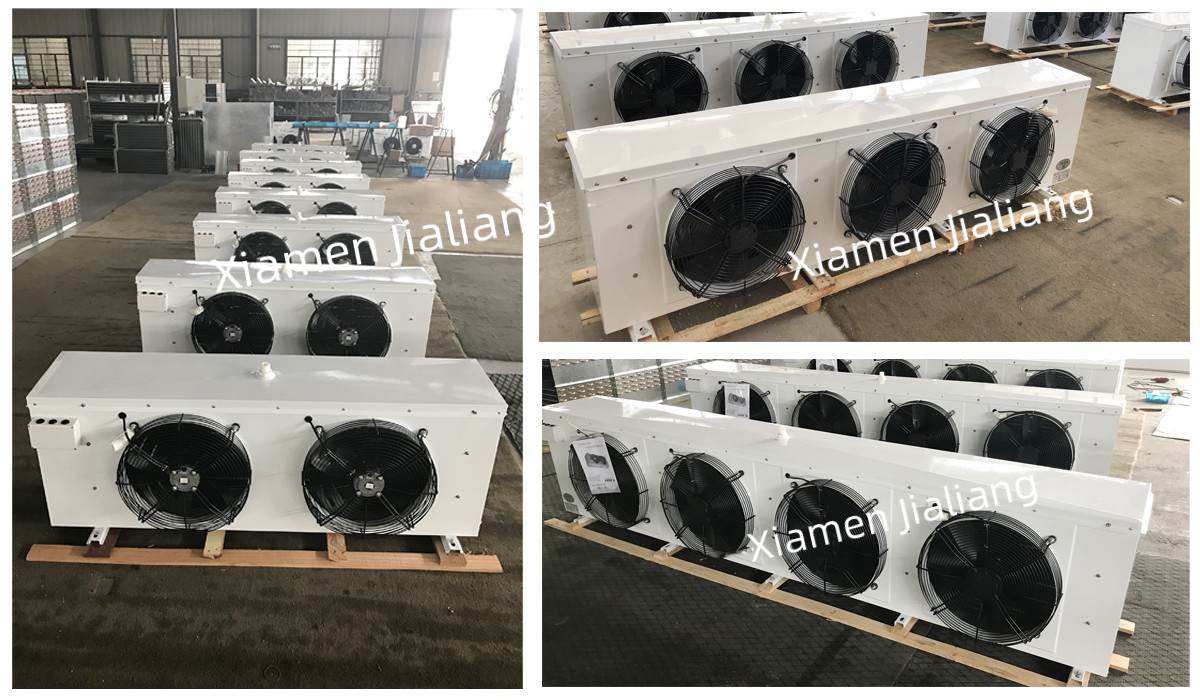

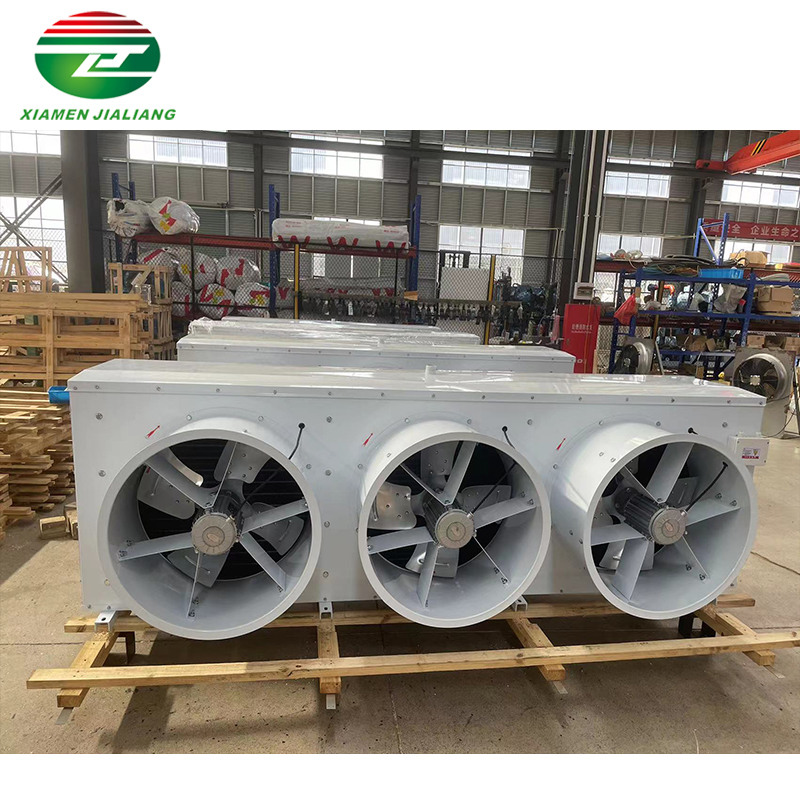

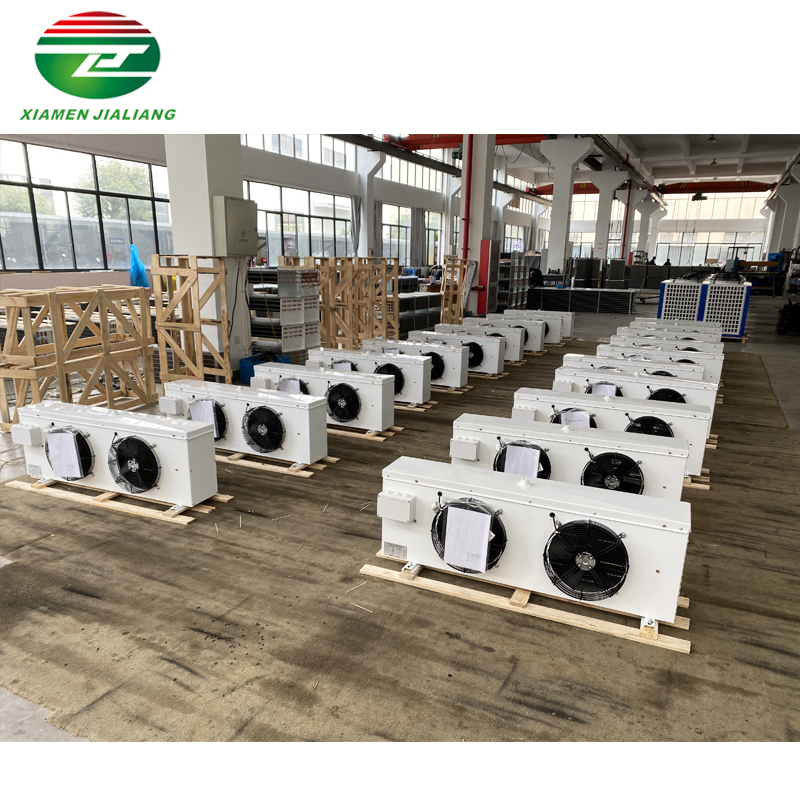

Factory Direct Supply Low Noise Cold Room Evaporator
  • Factory Direct Supply Low Noise Cold Room EvaporatorFactory Direct Supply Low Noise Cold Room EvaporatorFactory Direct Supply Low Noise Cold Room EvaporatorFactory Direct Supply Low Noise Cold Room EvaporatorFactory Direct Supply Low Noise Cold Room EvaporatorFactory Direct Supply Low Noise Cold Room Evaporator
    • Factory Direct Supply Low Noise Cold Room Evaporator
    • Get A Quote
    • Description
    • Features

    Factory Direct Supply Low Noise Cold Room Evaporator

    Product Parameters

    DD Series for Medium Temperature Standard Evaporator
    ModelCooling CapacityCooling AreaInlet PipeTail PipeWind RateQuantityFan BladeVoltagePower
    DD152.6KW15㎡12mm16mm2450*2m³/h2N350mm380V2*150W
    DD223.9KW22㎡12mm16mm2450*2m³/h2N350mm380V2*150W
    DD305.3KW30㎡16mm25mm3950*2m³/h2N400mm380V2*180W
    DD407.0KW40㎡16mm25mm3950*2m³/h2N400mm380V2*180W
    DD6010.5KW60㎡19mm32mm5400*2m³/h2N450mm380V2*280W
    DD8014.0KW80㎡19mm32mm5400*2m³/h2N450mm380V2*280W
    DD10017.5KW100㎡19mm38mm5400*2m³/h3N450mm380V3*280W
    DD12021KW120㎡19mm38mm5400*3m³/h3N450mm380V3*280W
    DD14024.5KW140㎡25mm42mm5400*4m³/h4N450mm380V4*280W
    DD16028.0KW160㎡25mm42mm5400*4m³/h4N450mm380V4*280W
    DD20035.0KW200㎡25mm50mm12000*2m³/h2N600mm380V2*1500W
    DD25043.8KW250㎡25mm50mm12000*3m³/h3N600mm380V3*1500W
    DD31054.3KW310㎡25mm50mm12000*3m³/h3N600mm380V3*1500W
    DD36063.0KW360㎡25mm50mm12000*3m³/h3N600mm380V3*1500W
    DD44077.0KW440㎡28mm50mm12000*4m³/h4N600mm380V4*1500W
    DL Series for High Temperature Standard Evaporator
    ModelCooling capacityCooling areaInlet pipeTail PipeWind RateQuantityFan BladeVoltagePower
    DL204.3KW22㎡12mm16mm2450*2m³/h2N350mm380V2*150W
    DL255.3KW25㎡12mm16mm2450*2m³/h2N350mm380V2*150W
    DL408.4KW40㎡16mm25mm3950*2m³/h2N400mm380V2*180W
    DL5511.6KW55㎡16mm25mm3950*2m³/h2N400mm380V2*180W
    DL8016.8KW80㎡19mm32mm5400*2m³/h2N450mm380V2*280W
    DL10523.2KW105㎡19mm32mm5400*2m³/h2N450mm380V2*280W
    DL12527.6KW125㎡19mm38mm5400*3m³/h2N450mm380V2*280W
    DL16034.6KW160㎡19mm38mm5400*3m³/h3N450mm380V3*280W
    DL18540.3KW185㎡25mm42mm5400*4m³/h4N450mm380V4*280W
    DL21046.1KW200㎡25mm42mm5400*4m³/h4N450mm380V4*280W
    DL26052.0KW260㎡25mm50mm12000*2m³/h2N600mm380V2*1500W
    DL33066.0KW330㎡25mm50mm12000*3m³/h3N600mm380V3*1500W
    DL41082.0KW410㎡25mm50mm12000*3m³/h3N600mm380V3*1500W
    DL47094.0KW470㎡25mm50mm12000*3m³/h3N600mm380V3*1500W
    DL580116.0KW580㎡28mm50mm12000*4m³/h4N600mm380V4*1500W


    DJ Series for Low Temperature Standard Evaporator
    ModelCooling CapacityCooling AreaInlet PipeTail PipeWind RateQuantityFan BladeVoltagePower
    DJ121.9KW12㎡12mm16mm2450*2m³/h2N350mm380V2*150W
    DJ152.3KW15㎡12mm16mm2450*2m³/h2N350mm380V2*150W
    DJ203.1KW20㎡16mm25mm3950*2m³/h2N400mm380V2*180W
    DJ304.7KW30㎡16mm25mm3950*2m³/h2N400mm380V2*180W
    DJ406.2KW40㎡19mm32mm5400*2m³/h2N450mm380V2*280W
    DJ558.5KW55㎡19mm32mm5400*2m³/h2N450mm380V2*280W
    DJ7027.6KW125㎡19mm38mm5400*3m³/h3N450mm380V3*280W
    DJ8534.6KW160㎡19mm38mm5400*3m³/h3N450mm380V3*280W
    DJ10040.3KW185㎡25mm42mm5400*4m³/h4N450mm380V4*280W
    DJ11546.1KW200㎡25mm42mm12000*2m³/h4N450mm380V4*280W
    DJ14021.7KW140㎡25mm50mm12000*2m³/h2N600mm380V3*1500W
    DJ17026.4KW170㎡25mm50mm12000*3m³/h3N600mm380V3*1500W
    DJ21032.6KW210㎡25mm50mm12000*3m³/h3N600mm380V

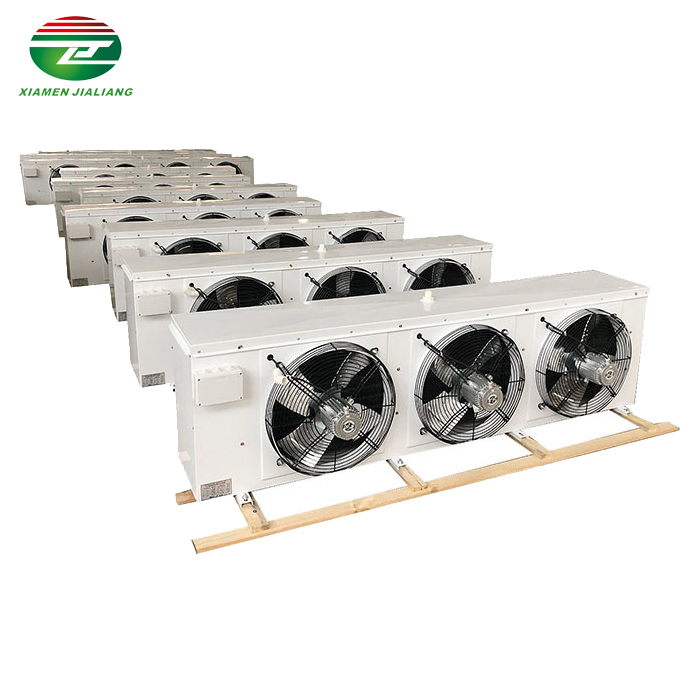

    Related Evaporator
