Jialiang 100mm Cold Room Pu Panel Polyurethane Wall Panels
  • Jialiang 100mm Cold Room Pu Panel Polyurethane Wall PanelsJialiang 100mm Cold Room Pu Panel Polyurethane Wall PanelsJialiang 100mm Cold Room Pu Panel Polyurethane Wall PanelsJialiang 100mm Cold Room Pu Panel Polyurethane Wall PanelsJialiang 100mm Cold Room Pu Panel Polyurethane Wall PanelsJialiang 100mm Cold Room Pu Panel Polyurethane Wall Panels
    • Jialiang 100mm Cold Room Pu Panel Polyurethane Wall Panels
    • Get A Quote
    • Description
    • Features

    Product Description

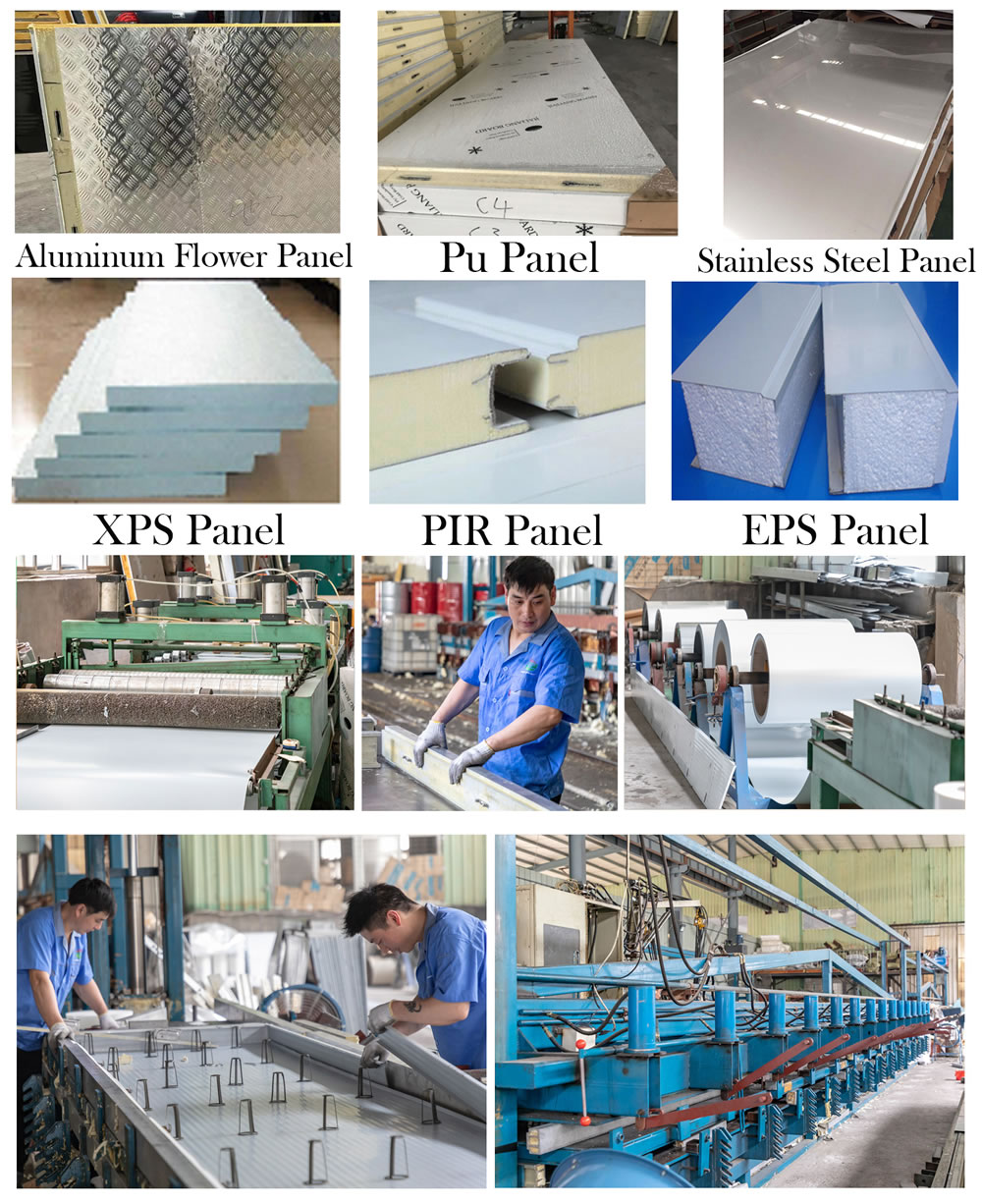

    Pu Panel Type

    Jialiang walk in cooler panels are designed for a fast and easy walk in cooler assembly. It comprises of two steel skins ( pre-painted galvanized steel or stainless steel ) that are bonded with high pressure injected polyurethane foam with tongue and groove joint system complete with cam-locking mechanism.

    1. Suitable for low and high temperature controlled applications.

    2. Offer high thermal performance, maintaining the temperature of the internal environment.

    3. Provide low air leakage performance.

    4. Significantly reduce energy usage and running costs.

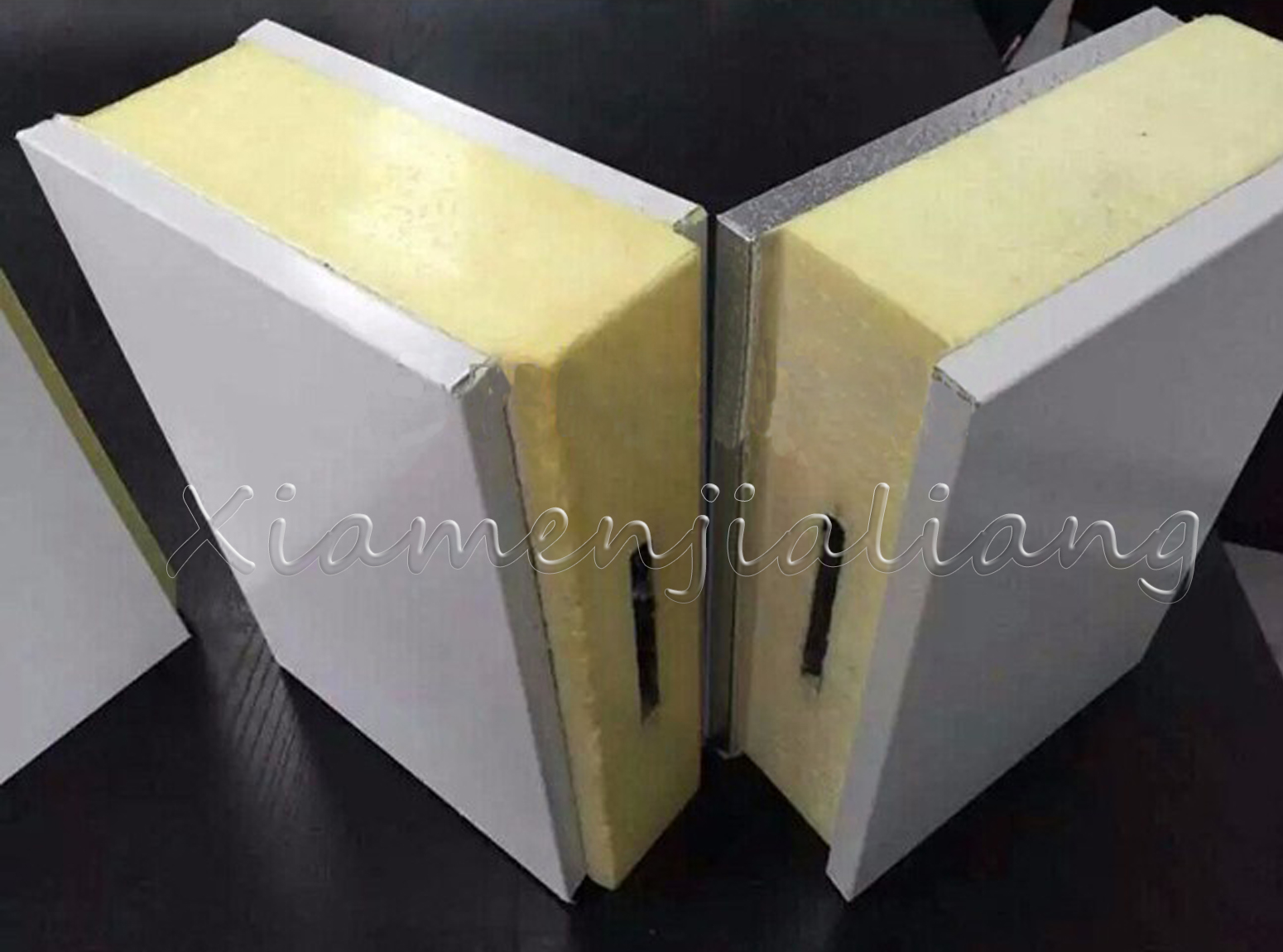

    Cold room panels with cam lock

    cold room panel with cam lock as core material, and zinc-plated color-coated steel sheets stainless steel sheet aluminum sheet as the upper and bottom sheets. The panels are formed by heating and pressing with high-intensity glue , we produce the panels one by one , it can make the panels much more strong and good quality. cold room panel with cam lock have been widely used in cold room of fruit, vegetables,seafoods etc.


    Material: PU Foam

    Surface: Color Steel/Stainless Steel/Aluminum Flower

    Metal thickness: 0.326mm, 0.376mm, 0.426mm,0.476mm

    Panel thickness: 50mm, 75mm, 100mm, 120mm, 150mm, 200mm

    MaterialPolyurethane/Color Steel/Stainless Steel/Aluminum Flower Plate
    Density (Kg/m3)38-43
    Height of Panel1 to 12m
    Width of Panel960mm, ect. (customized)
    AdvantageLightweight Easy to install
    ApplicationRoofing,Wall,Prefab House,Cold  Room,Warehouse,Workshop
    Fire gradeB2

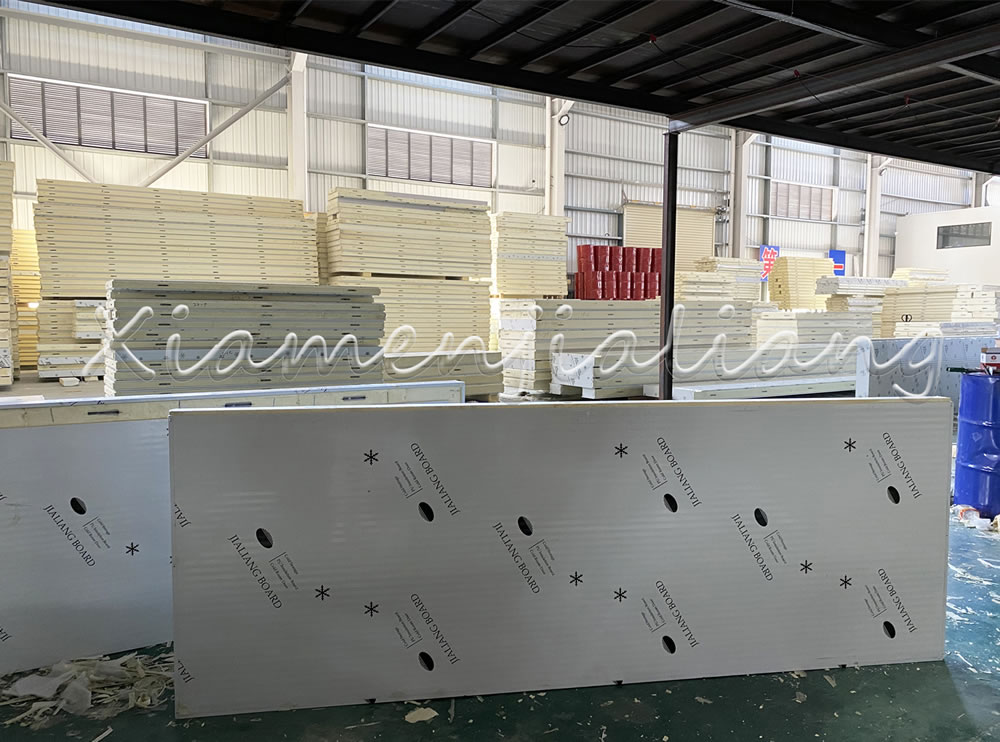

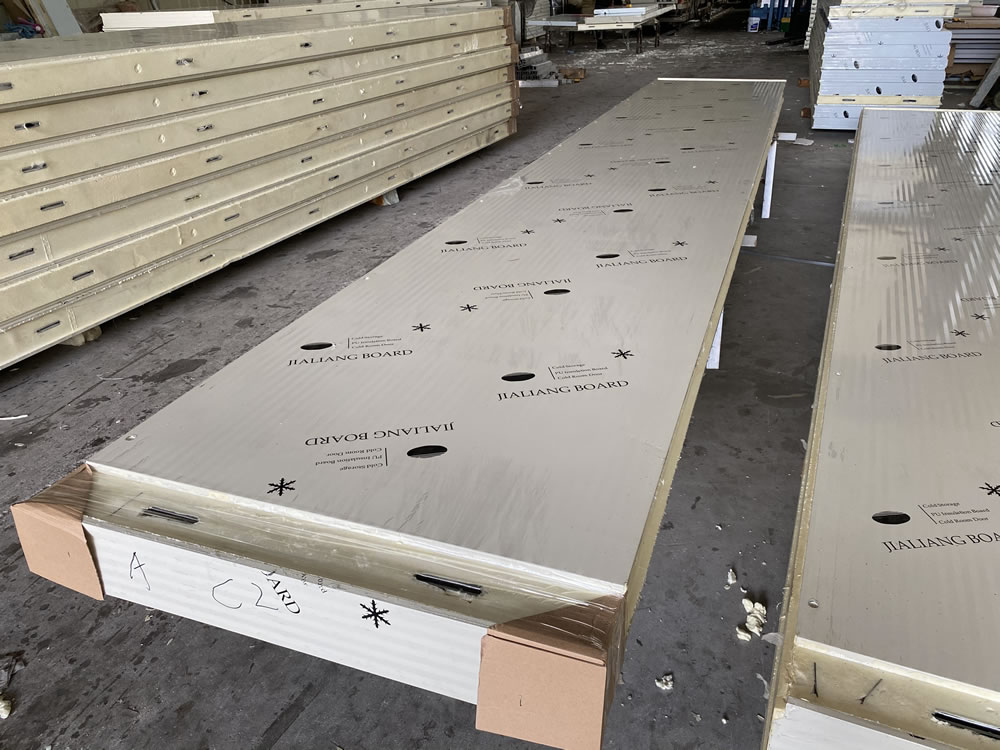

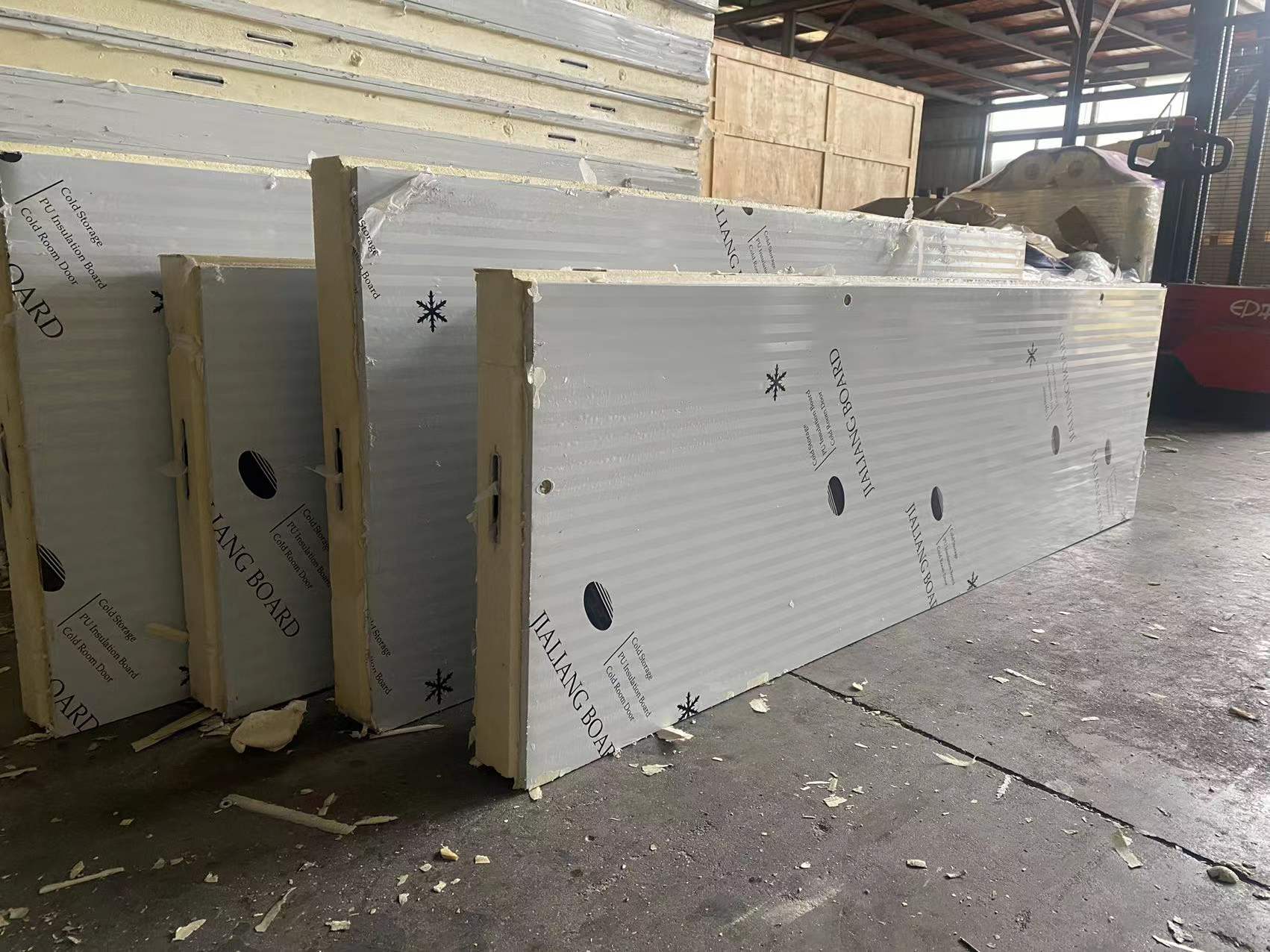

    Product Details


    Walk In Cooler Panels Details:

    1. Our Pu Panel Standard width is 960mm , The length can be customized according to your requirements .


    2. PU panel is B2 fire proof grade, keep best insulation effect and safety.


    3. Durable zinc-coated cam lock, very easy to install, anti-corrosion effect is very good.


    4. 40-42 kg/m3 density PU foam, the insulation effect is good . In other words , can save your electricity cost .

    Panel Thickness(mm)Storage TempStroge Product
    505℃~15℃Fruit,Vegetable,Flower
    100
    -15℃~5℃Tea,Cheese,French fries
    120-15℃~-20℃
    Meat,Seafood
    150-20℃~-30℃Ice cream,Shrimp
    200
    below -30℃Frozen food,Tuna

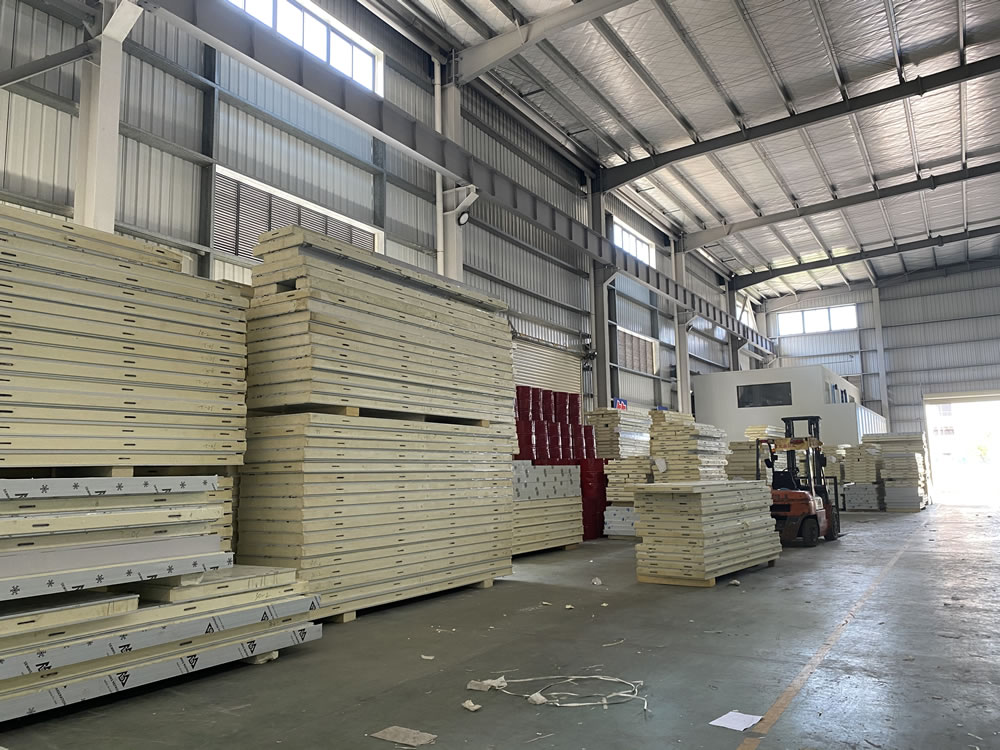

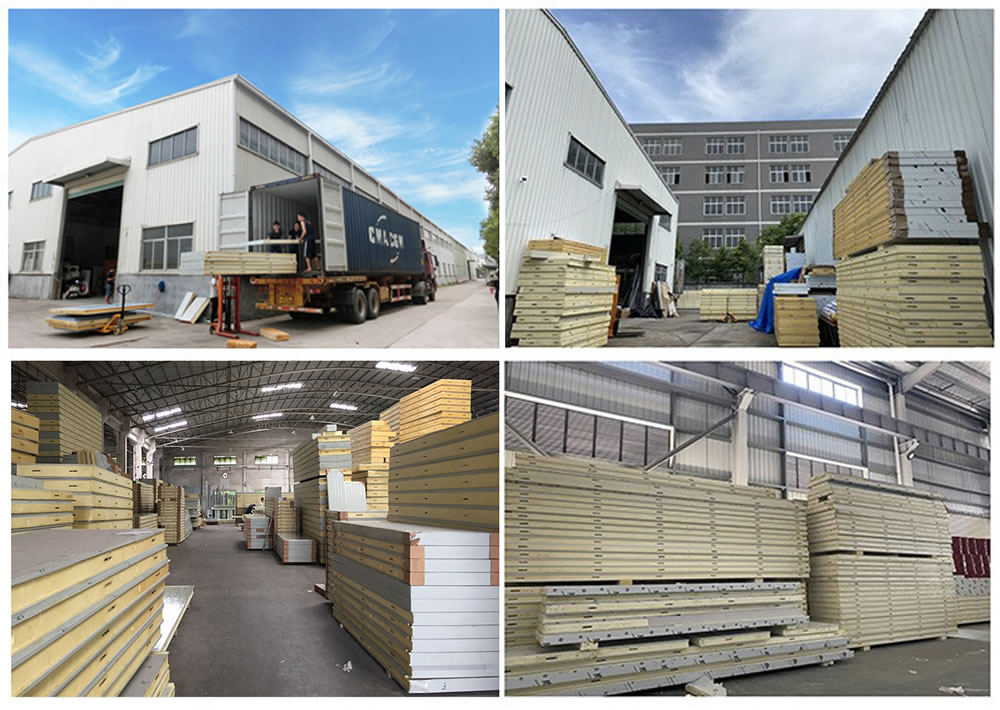

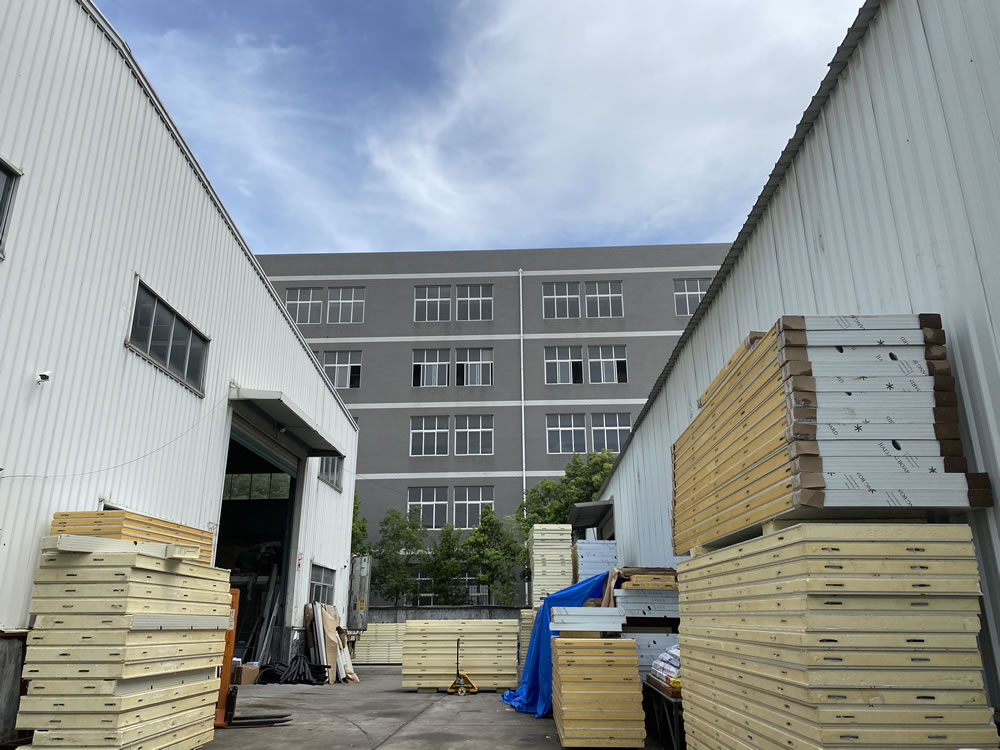

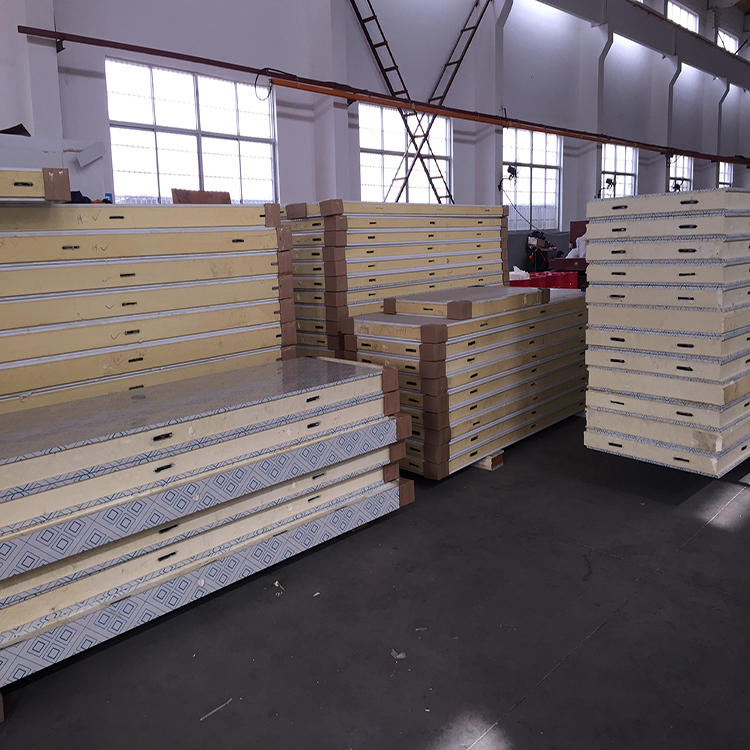

    Factory Tour

    Jialiang walk in cooler pu panel manufacturer is equipped with automatic production lines. We had 12 years of experiences of manufacturing PU Sandwich Panels with daily output up to 3,000 square meters. We have competitive advantages in supplying chain management, optimized manufacturing process and quality control which power us to keep high product quality, shorter delivery time and competitive cost to meet the demands of our Worldwide customers. Most products had been kept up with the international forefront counterparts. Some of them have enjoyed leading position. Jialiang walk in cooler panels panels have been exported in more than 50 countries around the World.

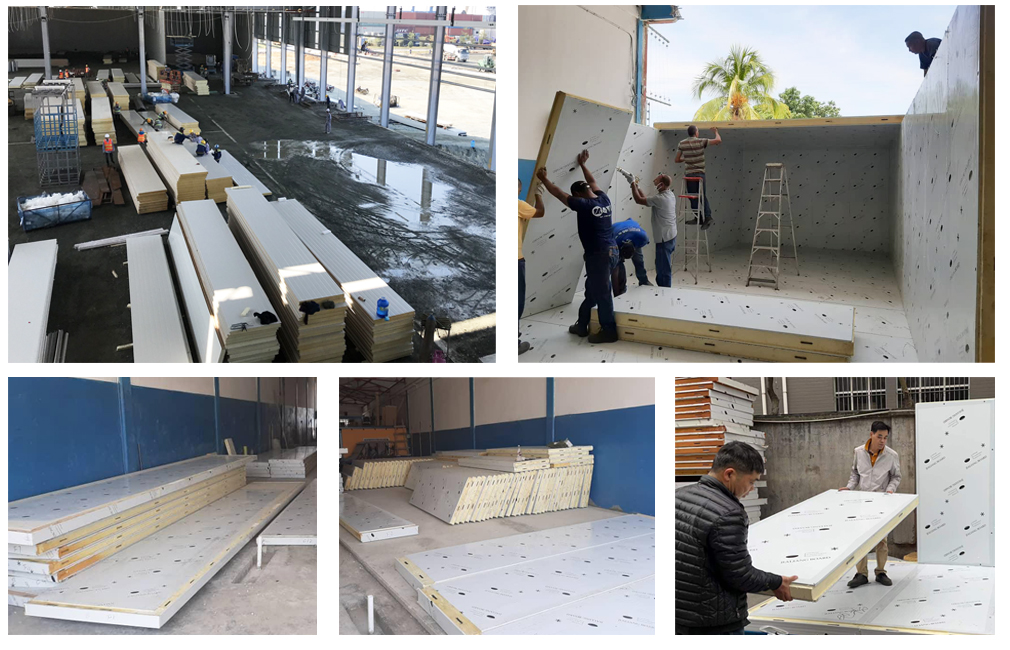

    Cold Room Panel Installation

    Professional production workers. We have professional mangers in every production step such as raw materials preparation, quality control and after-production quality test, we guarantee PU sandwich panels be high quality, flat and elegant appearance.


    We also pay more attention to the panel appearance be good-looking,we have special workers to clean the panels and make all panels neat.


    Every step of the production process is controlled strictly. We never forget our mission which is to delivery high quality panels for customers.

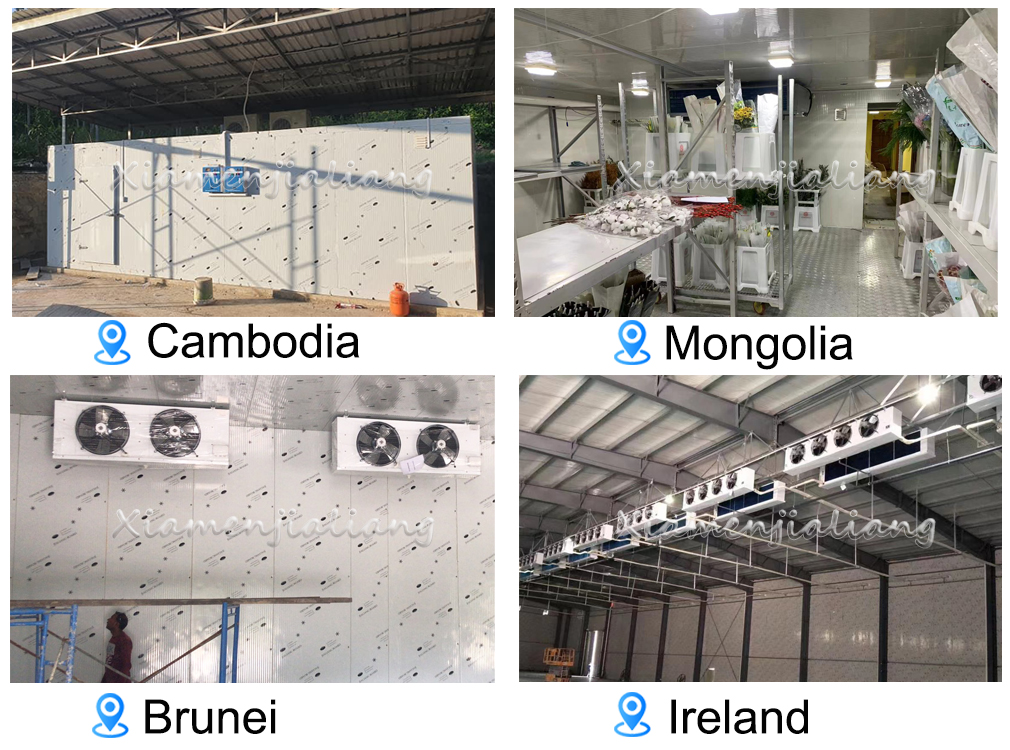

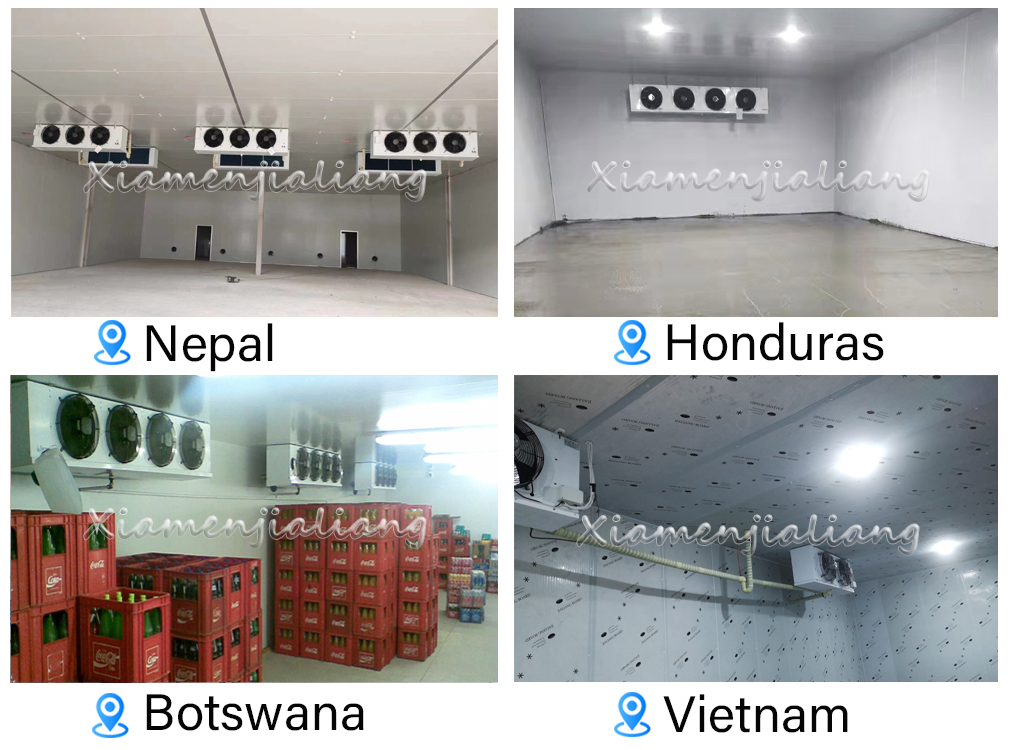

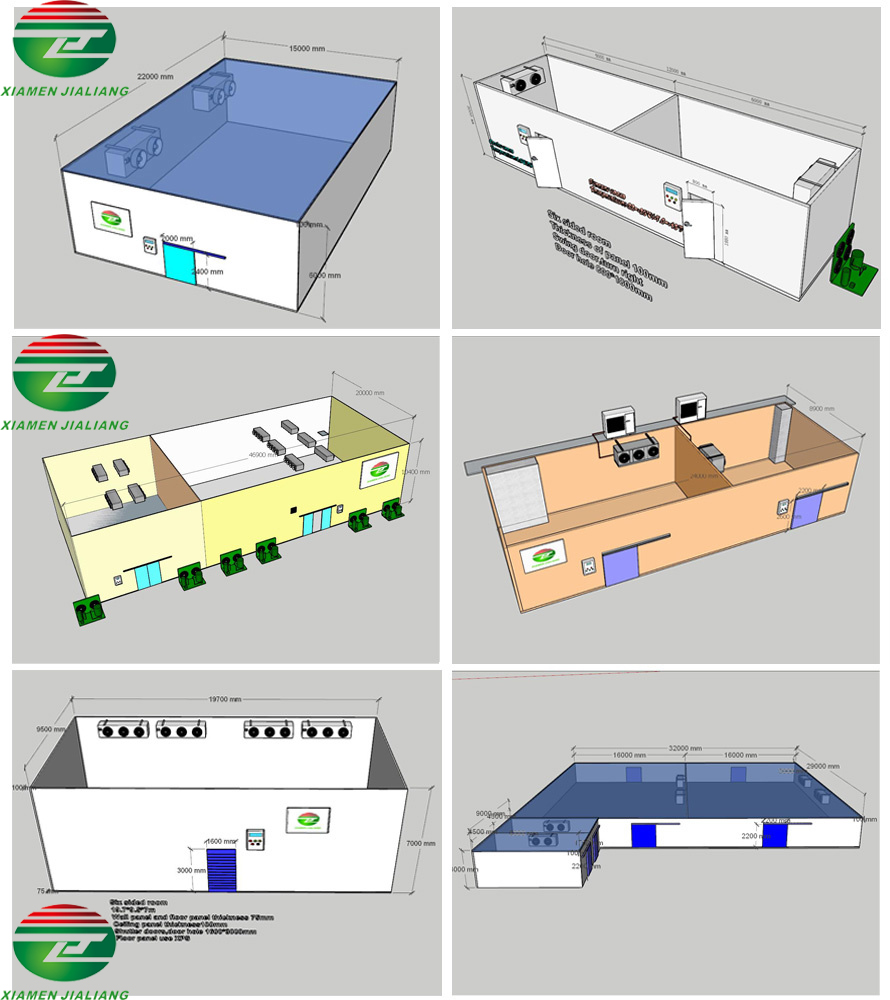

    Success Case


    Contact Us

    Company Name: Xiamen Jialiang Refrigeration Equipment Co., Ltd.

    Operational Address: 501-6, No. 8, Huli Avenue, Xiamen, Fujian, China

    E-mail: jialiang@coldroomchina.com

    WhatsApp/ Wechat:  +86-159-5926-9660

    Tel: +86-592-5107173  Fax: +86-592-5332513
