- CSH8593-180Y 180HP High Quality Chiller Unit Condensing Unit
- Get A Quote
Chiller unit is a type of water cooling equipment that can provide constant temperature, constant flow, and constant pressure cooling water.
- Description
- Features
Product Description

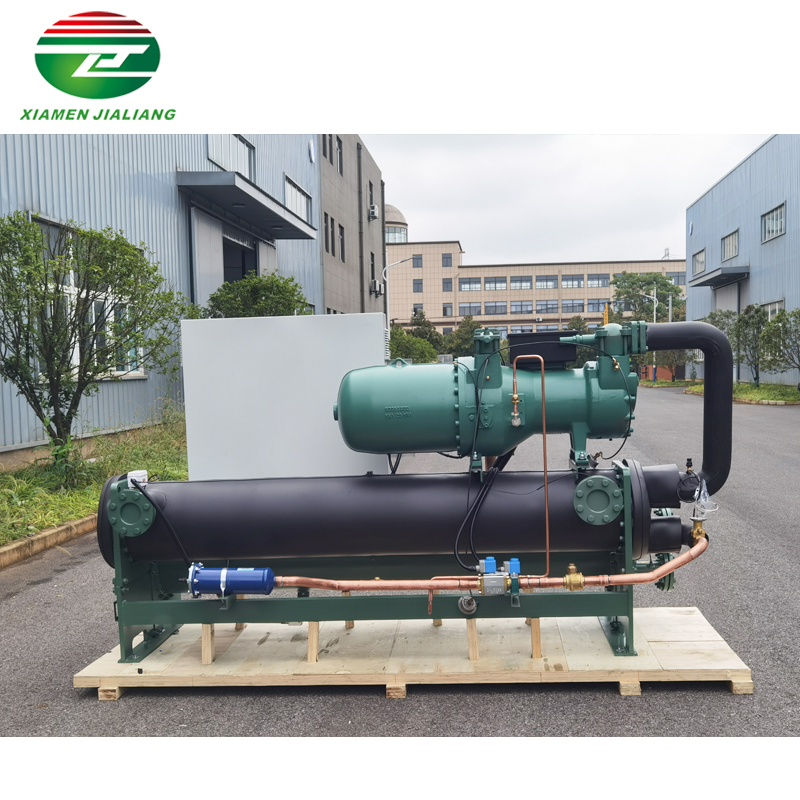

CSH8593-180Y 180HP High Quality Chiller Unit Condensing Unit
Product Description
Product name: Chiller
Compressor : hanbell/bitzer (optional)
Product Category :
1.Double Stage series
Inlet water temperature : -50°C~-35°C; outlet water temperature: -55°C~-40°C
2.Low temperature series
Water inlet temperature : -35°C~-10°C; outlet water temperature: -40°C~-15°C
3.High temperature series
Inlet water temperature : -15℃~12℃; outlet water temperature: -20℃~7℃
Model | CSH8593-180Y | |||
Horse Power | 180HP | |||
Power(kW) | 440V/3P/60Hz | |||
Refrigerant | R134a | |||
Cooling Method | Water-Cooling | |||
Outlet/Return Water Temperature | 7/12℃ | |||
Evaporating Temperature | 2℃ | |||
Condensing Temperature | 40℃ | |||
Refrigeration Capacity | 369kW | |||
317.3(103kcal/hr) | ||||
Overall Size | 3400*1300*1740mm | |||
Noise Value | 73dB(A) | |||
Overall Weight | 2920kg | |||
Operating Weight | 3270kg | |||
| Compressor | ||||
Input Power | 87.7kW | |||
Operating Current | 142.9A | |||
Capacity Control | 25%-50%-75%-100% | |||
| Condenser | ||||
Water Pipe Connection | DN125mm | |||
Water Flow | 78m³/h | |||
Water Pressure Drop | 44kPa | |||
| Evaporator | ||||
Water Pipe Connection | DN125mm | |||
Water Flow | 63m³/h | |||
Water Pressure Drop | 39kPa | |||

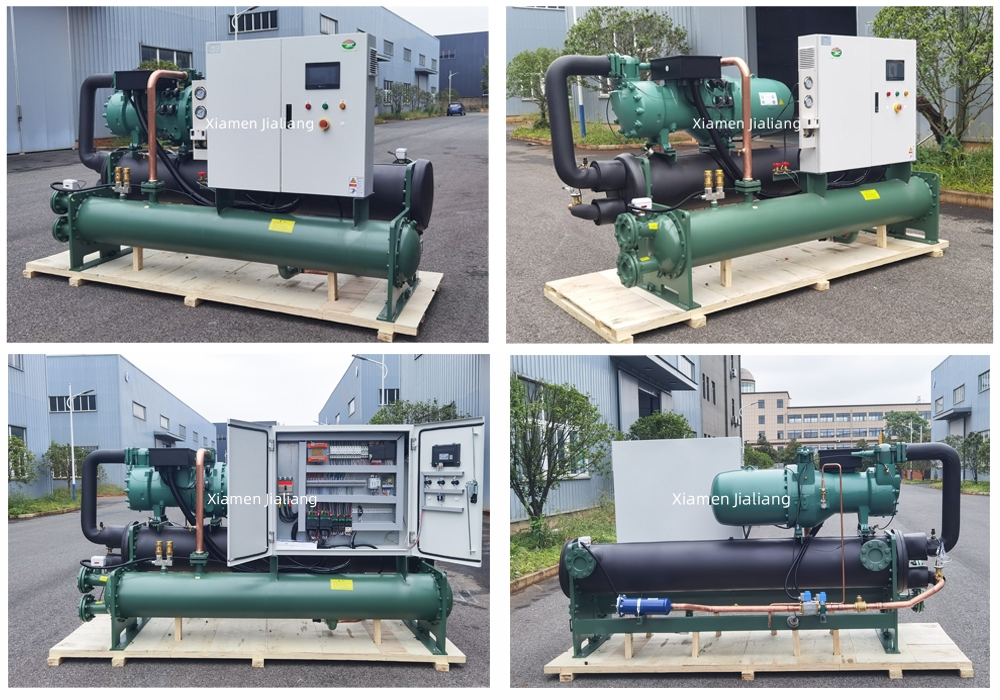

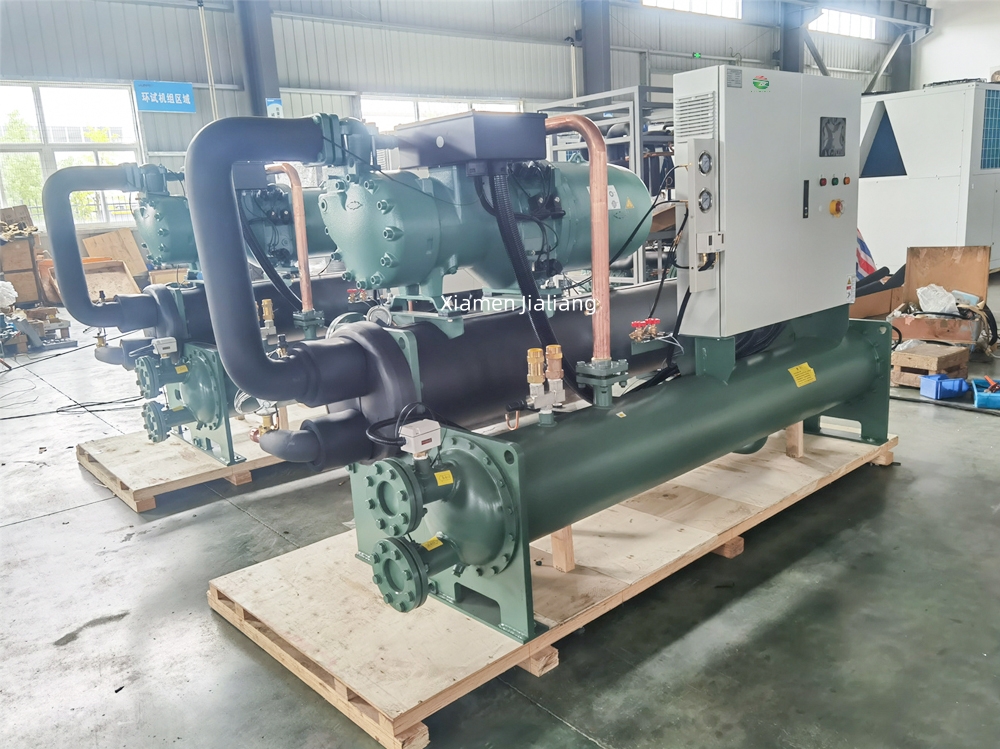

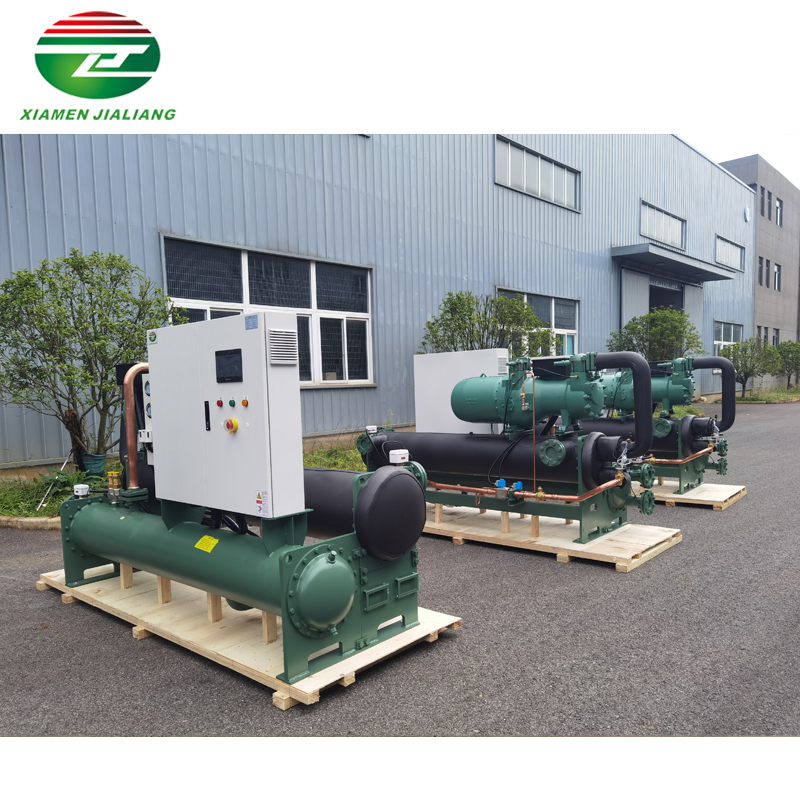

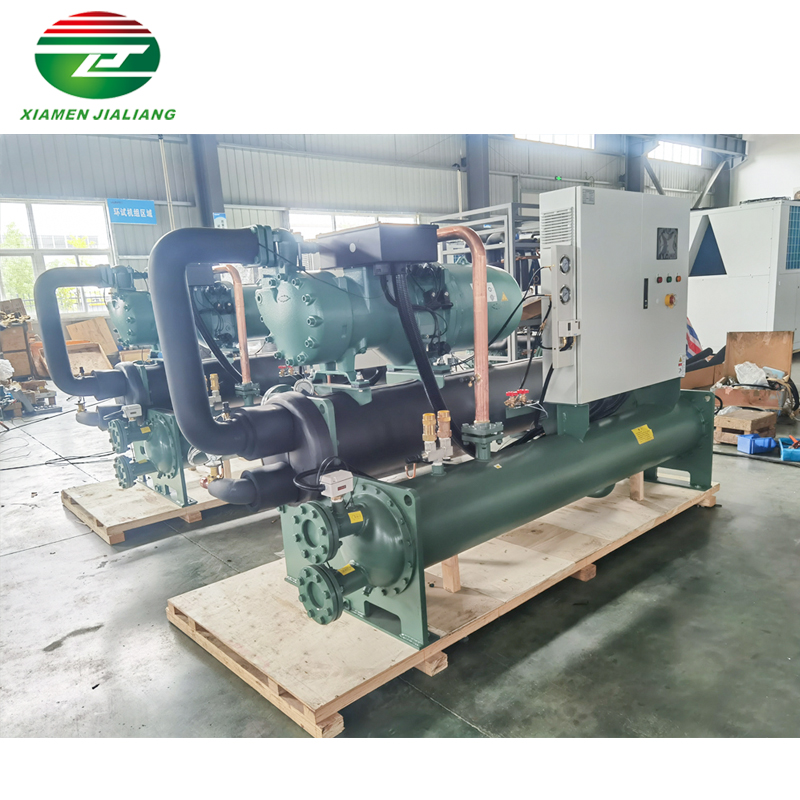

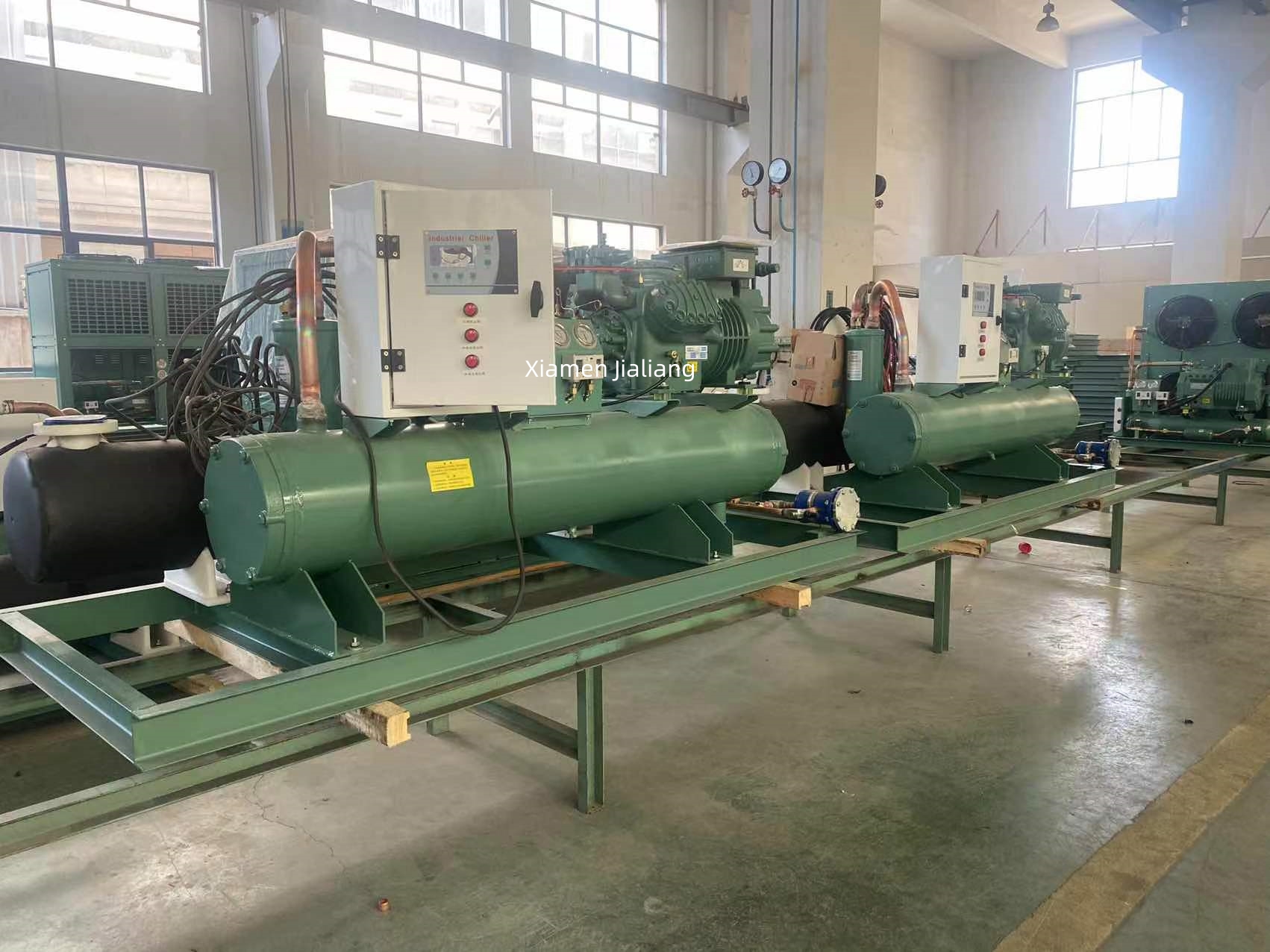

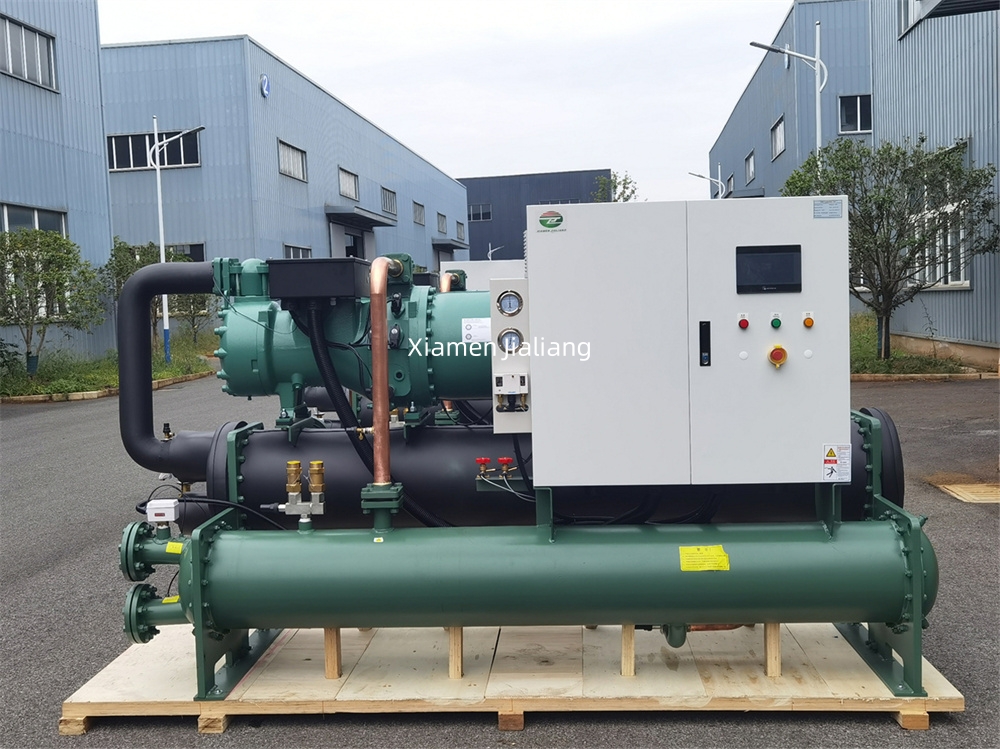

Product Display

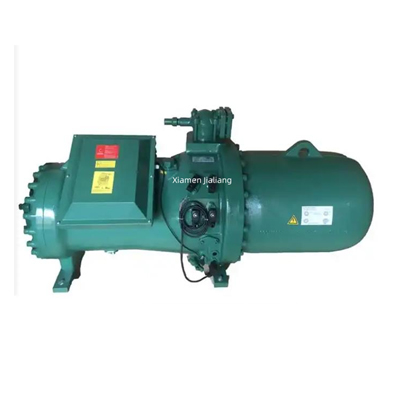

Semi-hermetic Compressors
Adopted world famous branded semi-hermetic compressors for long term reliable and efficient running; Compressor runs with no stage limits to realize stageless continuous adjustment of cooling capacity in between 25%-100% power loaded and maintaining stable outputs

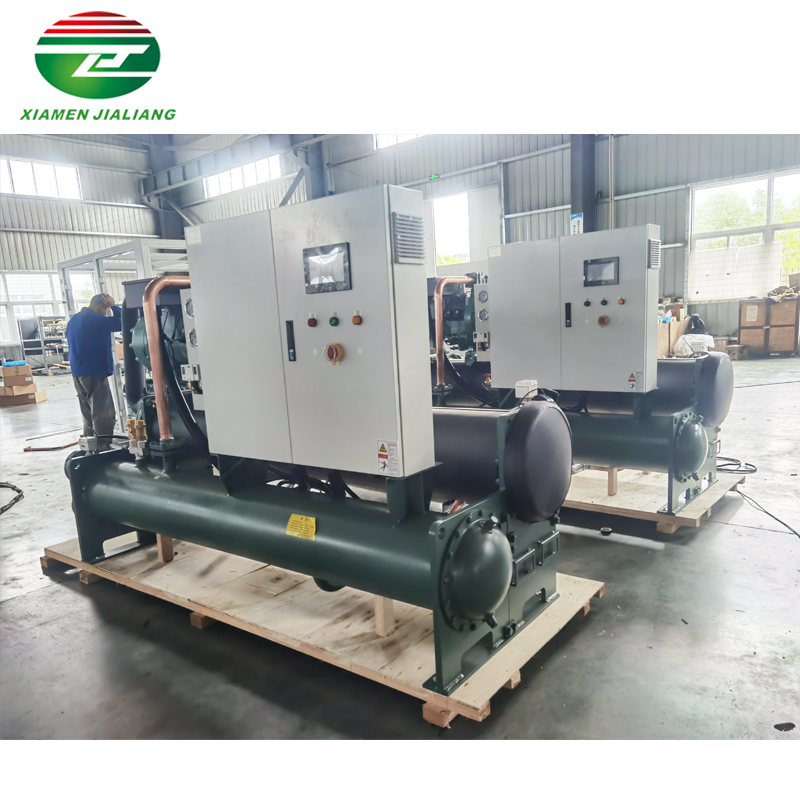

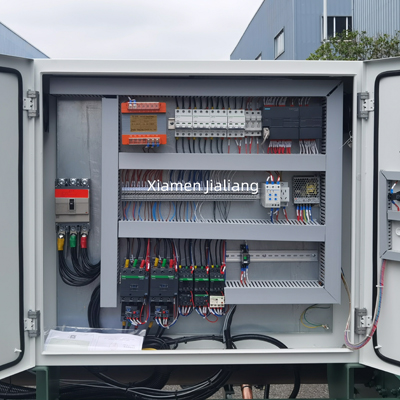

Automation Control System
The automation control adopts the HMI+PLC+molded case circuit breaker+AC contactor method, which can be carried out according to the needs of users.

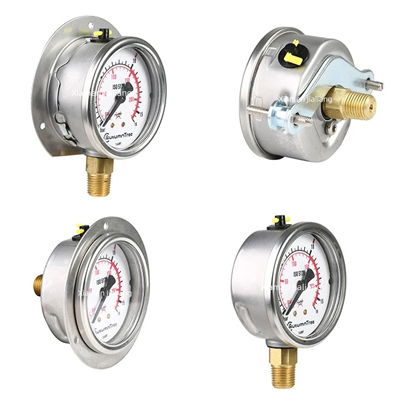

Pressure Gage
The pressure gauge uses the elastic deformation of sensitive components (Bourdon tube, bellows, bellows) inside the gauge, and then the pressure deformation is transmitted to the pointer by the conversion mechanism of the movement inside the gauge, causing the pointer to rotate to display pressure.
Our Factory
Whether it is in the chemical, food, metallurgical, or ice rink cold sources, medium and low temperature chillers are required. Shenzhou can provide you with the most ideal industrial medium and low temperature cold water solutions. We try to meeting your needs for energy efficiency and reliability.
