720 Square Meters Frozen Beef Cold Room in Mongolia
  • 720 Square Meters Frozen Beef Cold Room in Mongolia720 Square Meters Frozen Beef Cold Room in Mongolia720 Square Meters Frozen Beef Cold Room in Mongolia720 Square Meters Frozen Beef Cold Room in Mongolia720 Square Meters Frozen Beef Cold Room in Mongolia720 Square Meters Frozen Beef Cold Room in Mongolia
    • 720 Square Meters Frozen Beef Cold Room in Mongolia

      • The large-scale frozen beef and mutton cold storage project in Mongolia has three types of rooms: 15X8.0X4.0 Meter, and 6.0X4.0X4.0 Meter

    • Get A Quote
    • Description
    • Features

    Product Description

    720 Square Meters Frozen Beef Cold Room in Mongolia

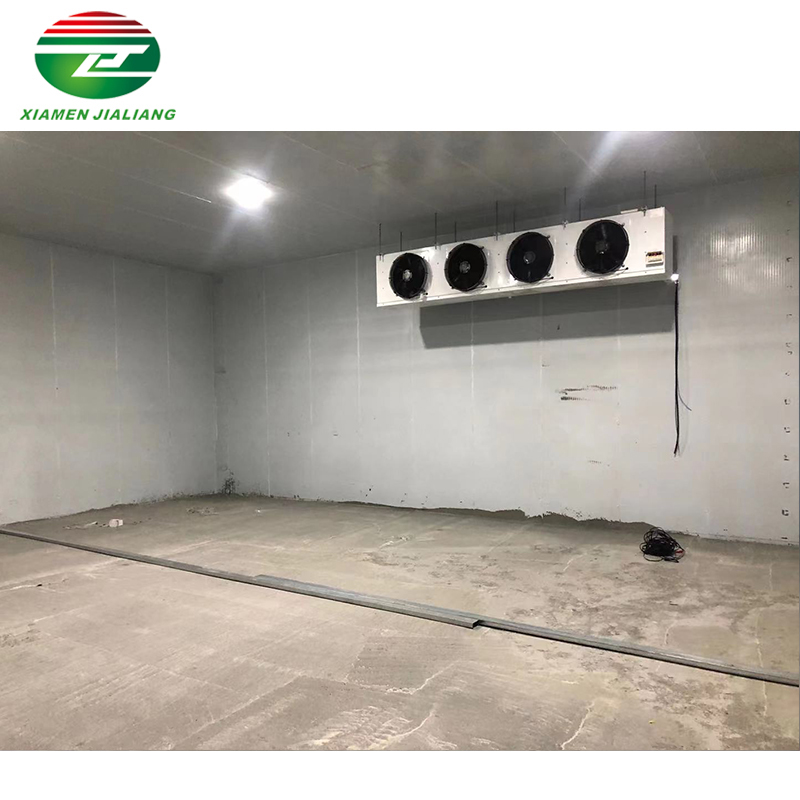

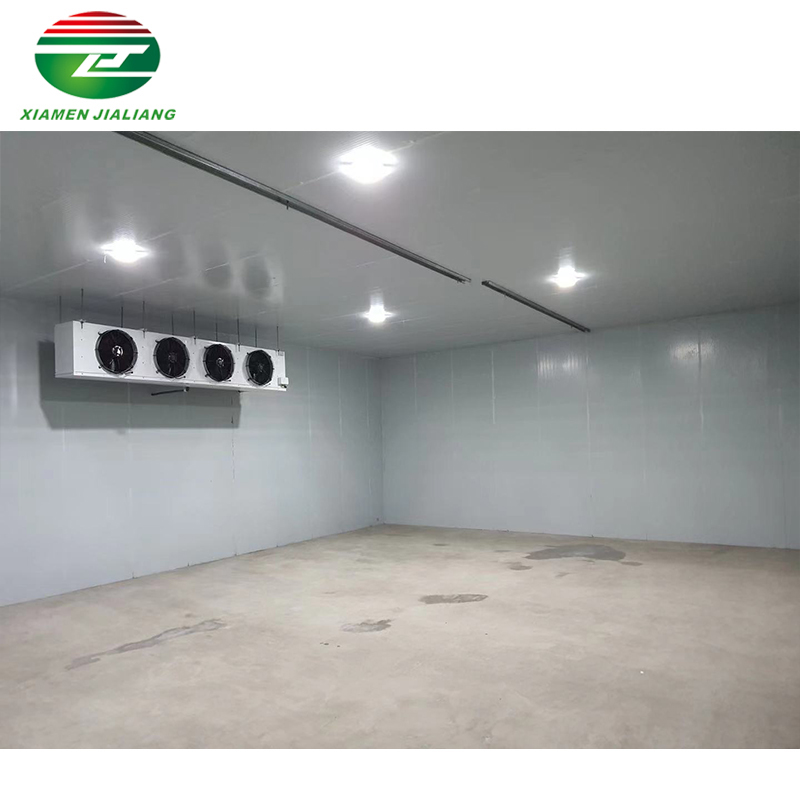

    This cold storage facility is used by the customer for storing beef and mutton. The large rooms can store up to 124 tons, medium-sized rooms can store 108 tons, and small rooms can accommodate 24 tons.



    Project CountryMongolia Cold Room
    External Size15X8X4 Meter  6.0X4.0X4.0 Meter 12X9.0X4.0 Meter Cold Room
    Temperature-25°C  -18°C
    PU Panel Thickness100mm
    XPS Panel Thickness100mm
    Door TypeSliding Door 1200mmx2000mm
    UseBeef and Mutton

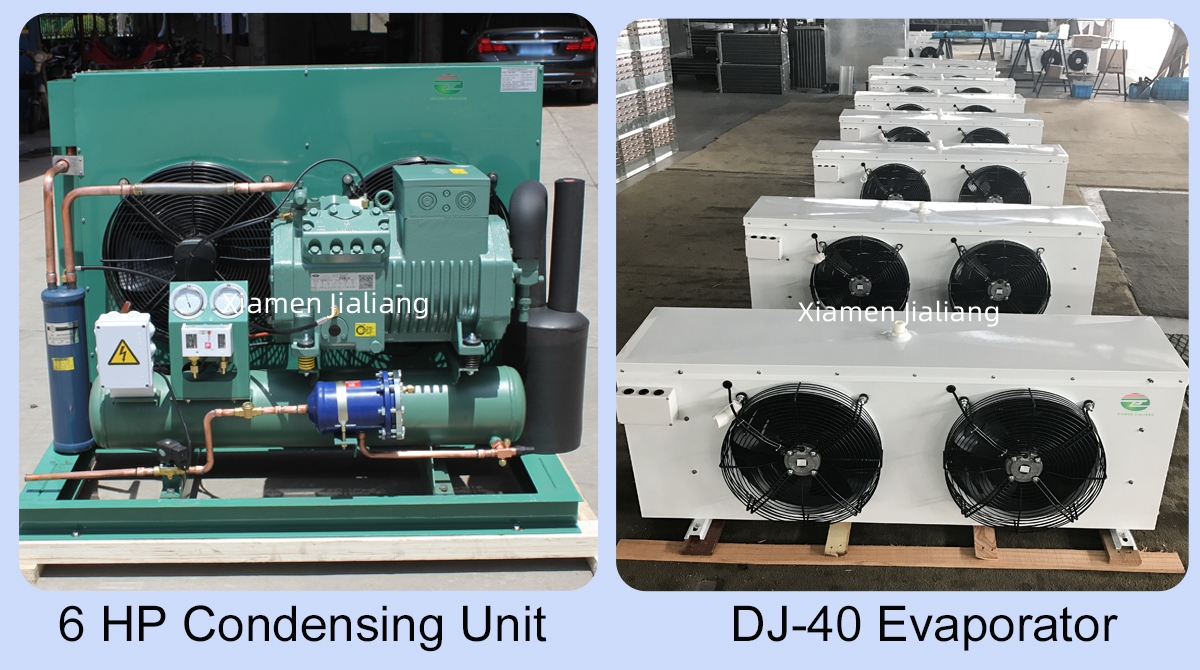

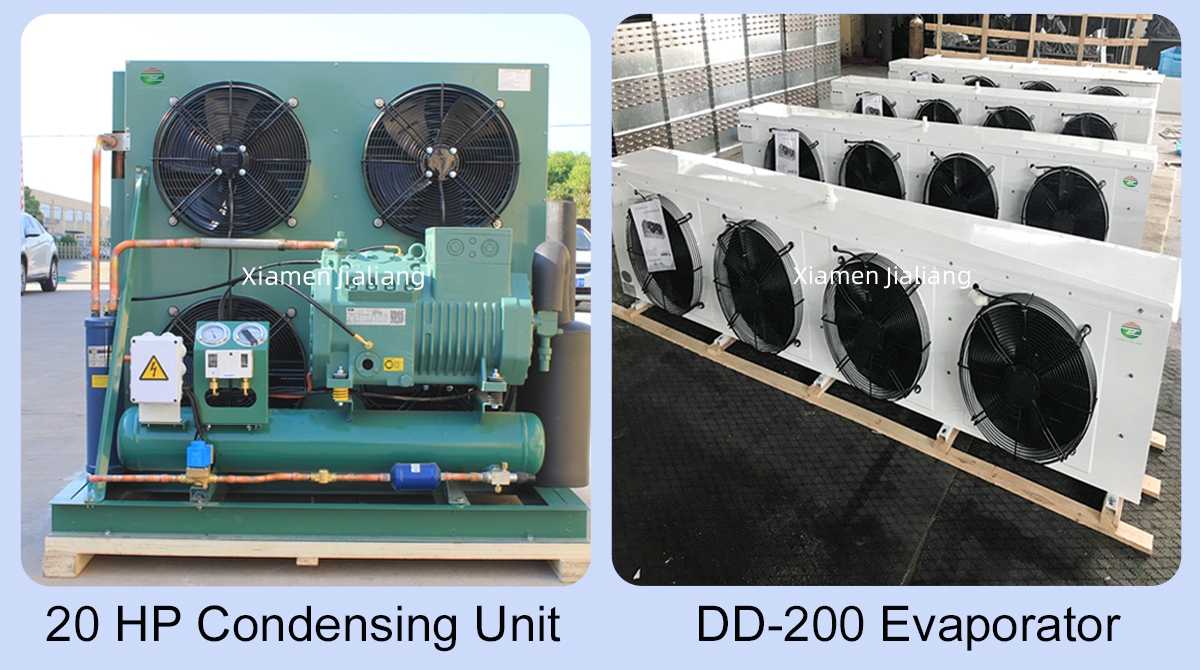

    Horse Power20HP 4HP Condensing Unit
    CompressorBitzer Condensing Unit
    EvaporatorDD-200  DJ-40
    Voltage380v/50hz/3ph
    RefrigerantR404a




    Customized Services

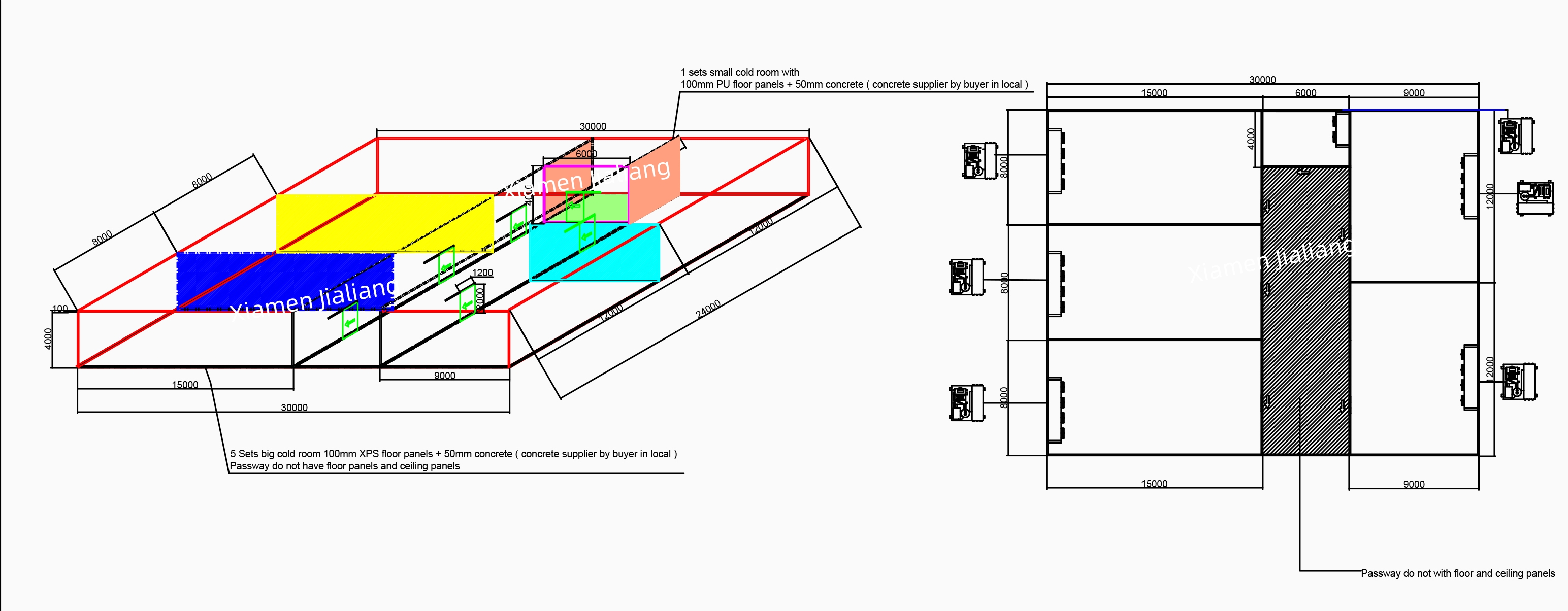

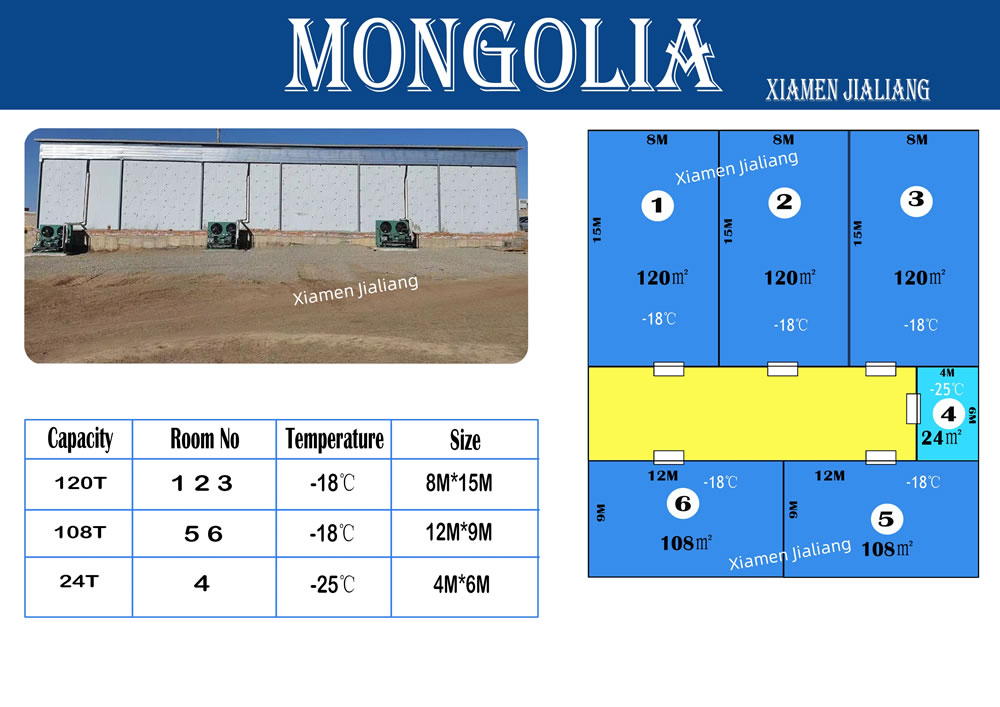

    The total area is 720m2, divided into 7 rooms of varying sizes, as shown in the diagram below:

    Room types: There are three types of rooms: 15X8.0X4.0 Meter and 6.0X4.0X4.0 Meter. The smallest room has a temperature of -25°C, while the others maintain -18°C.

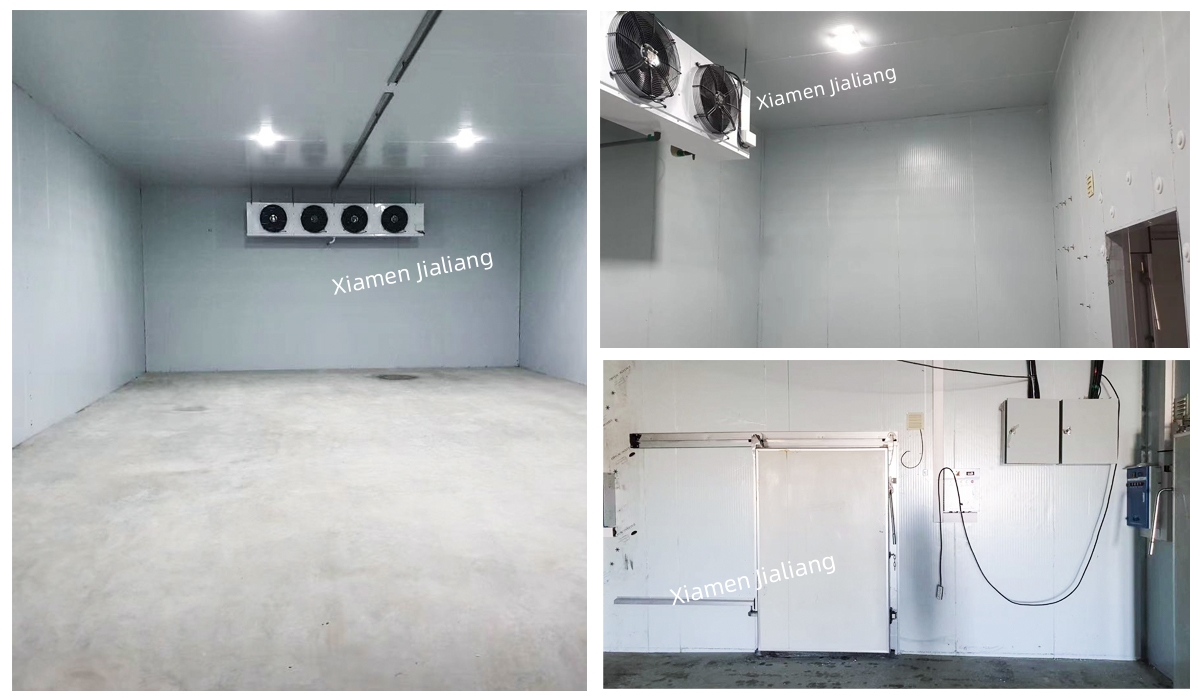

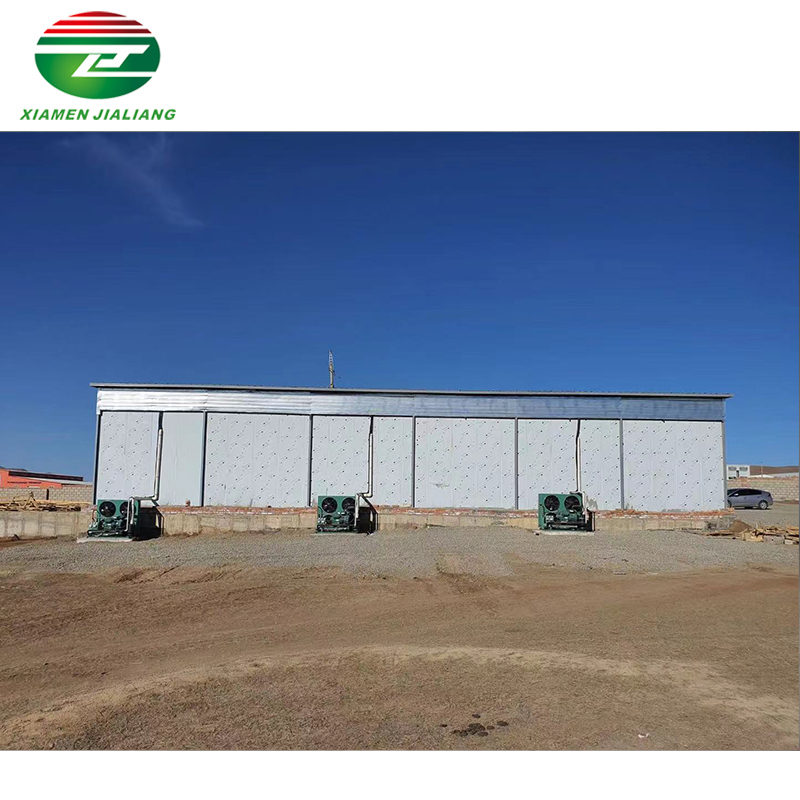

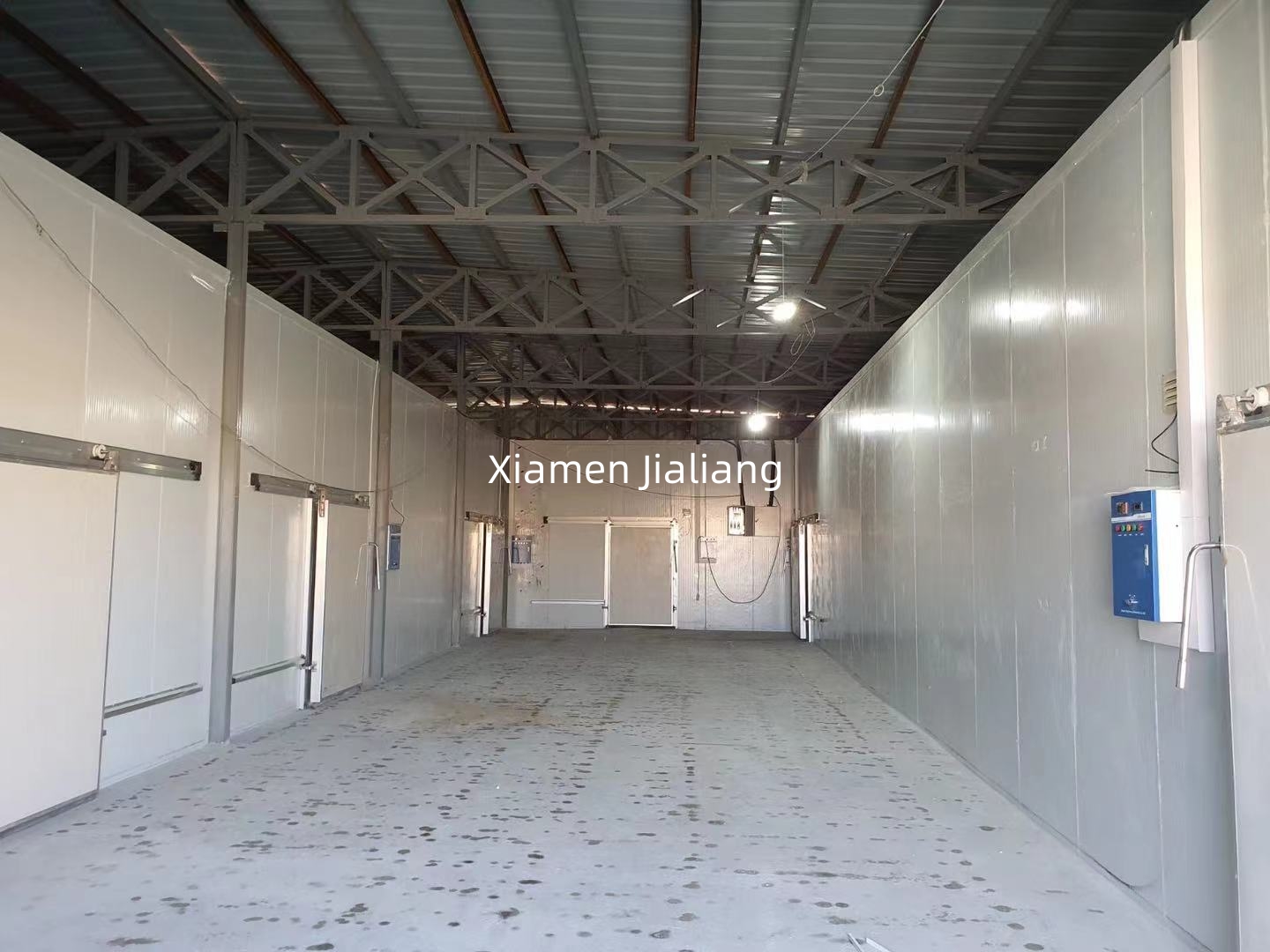

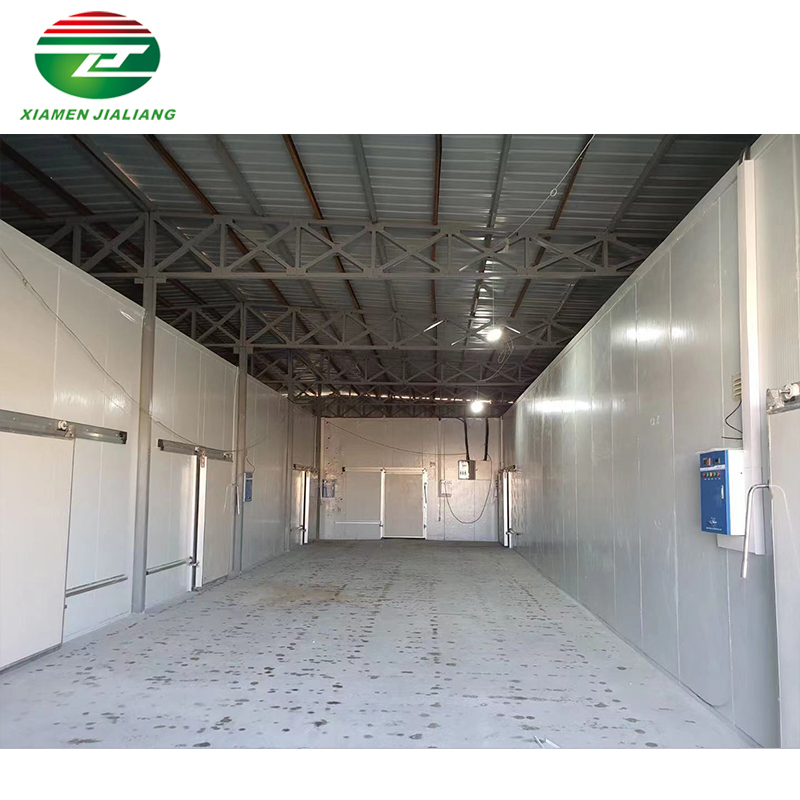

    The yellow area in the middle represents the entrance aisle of the cold storage. Each room is equipped with sliding doors, and the refrigeration units are placed outside the rooms.
