4NES-20Y 20HP Air Cooled Condensing Unit
  • 4NES-20Y 20HP Air Cooled Condensing Unit4NES-20Y 20HP Air Cooled Condensing Unit4NES-20Y 20HP Air Cooled Condensing Unit4NES-20Y 20HP Air Cooled Condensing Unit4NES-20Y 20HP Air Cooled Condensing Unit4NES-20Y 20HP Air Cooled Condensing Unit
    • 4NES-20Y 20HP Air Cooled Condensing Unit

      • 4NES-20Y 20HP Condensing Unit use original Bitzer Semi-hermetic compressor, designed for cold storage

    • Get A Quote
    • Description
    • Features

    Product Description

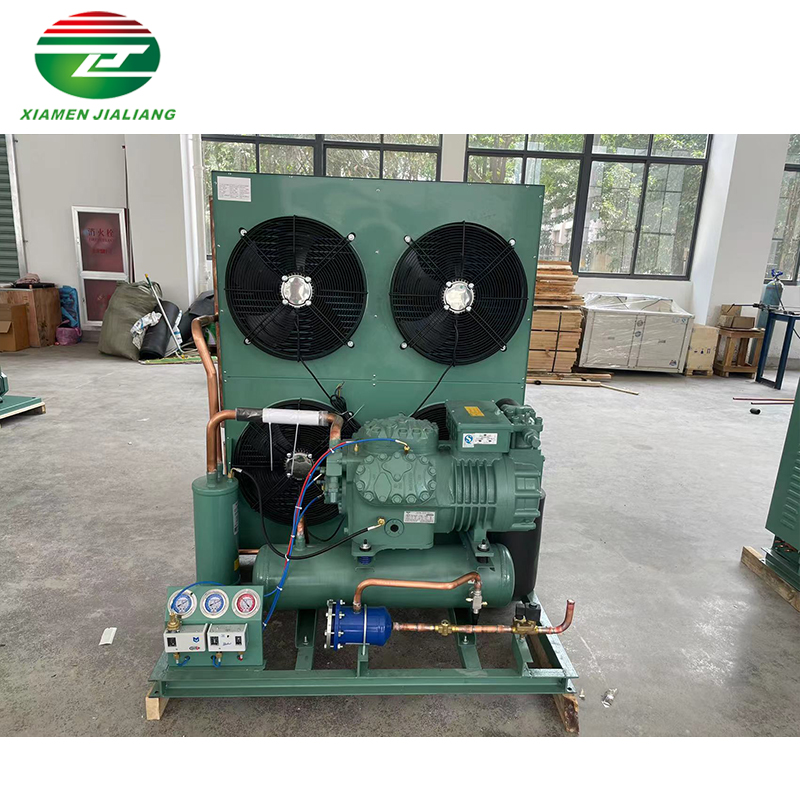

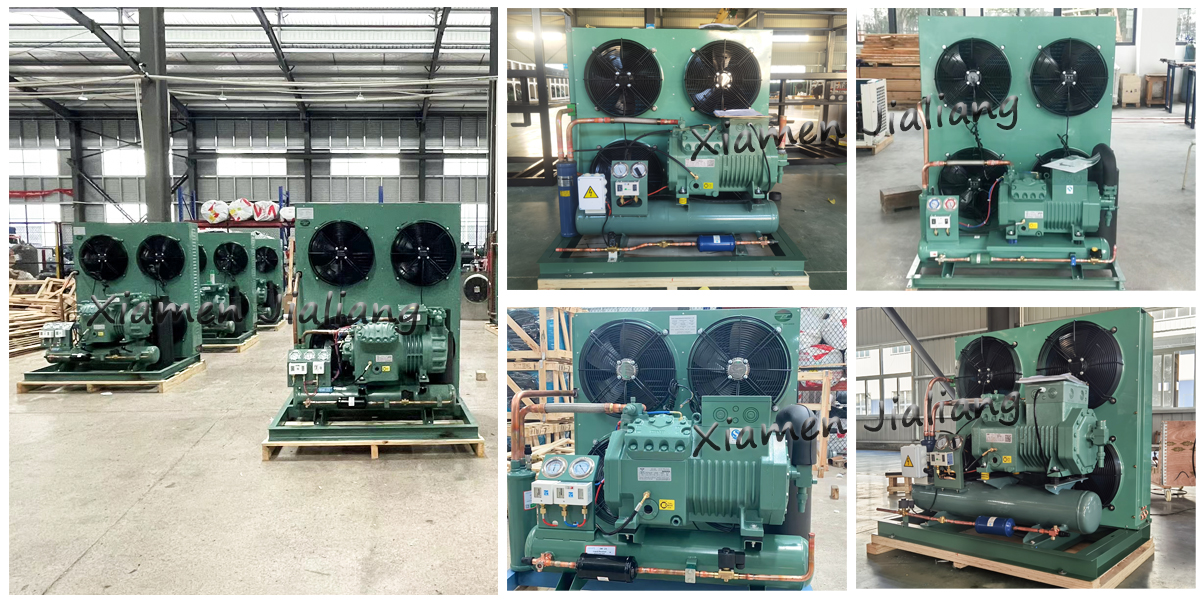

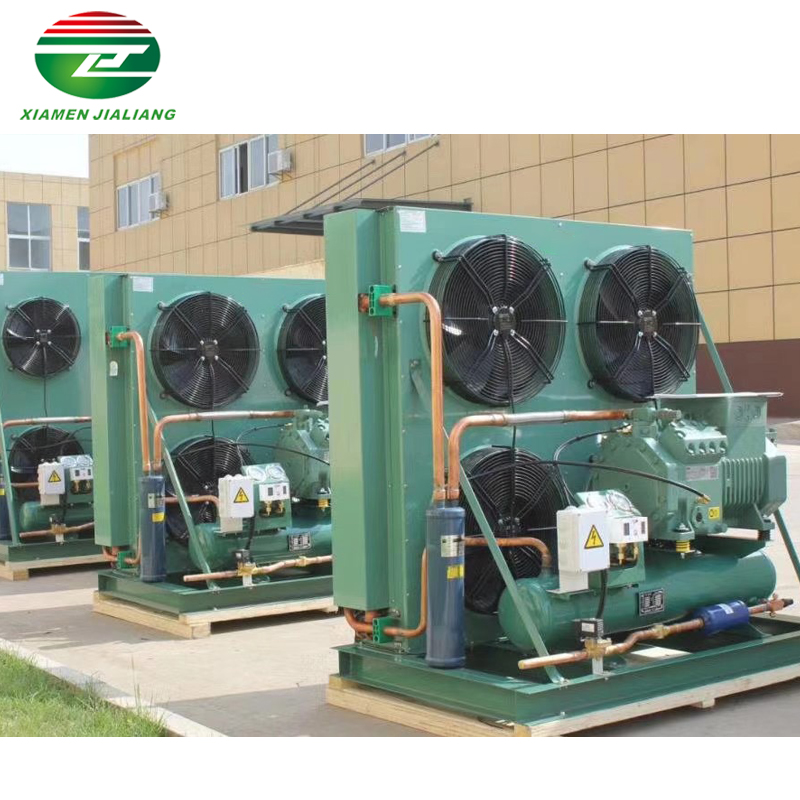

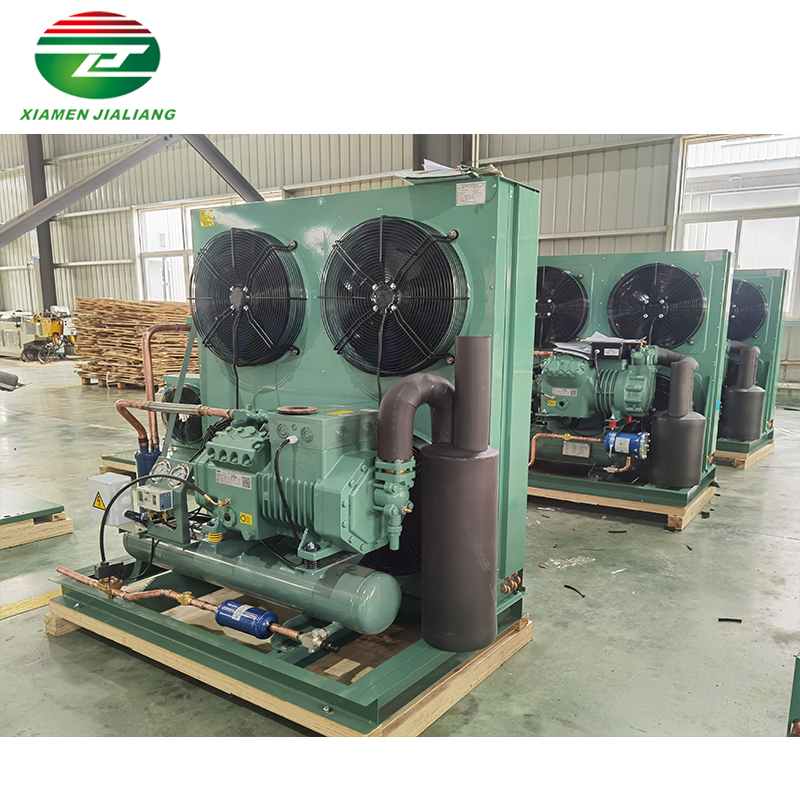

    4NES-20Y 20HP Air Cooled Condensing Unit

    Xiamen Jialiang has produced semi-hermetic condensing unit , in order to meet different demands ranging from

    - 10 °C ~ 15 °C. Adopt high efficiency shell and tube condenser, boast high efficiency of  heat exchange and long service life.The operation of this compressor has low noise and high efficiency.



    Brand NameXiamen Jialiang
    Compressor4NES-20Y
    Compressor BrandBitzer
    Capacity Steps100%
    Warranty1 Year
    Temperature Range- 10 °C ~ 15 °C
    Refrigeration Unit BrandXiamen Jialiang
    Cooling Capacity（The temperature is 0℃）32.5 KW
    Evaporator Capacity（The temperature is 0℃）32.5 KW
    Power Input（The temperature is 0℃）12.89 KW
    Current (400V)22.5 A
    Horse Power20 HP
    Voltage Range380-420V

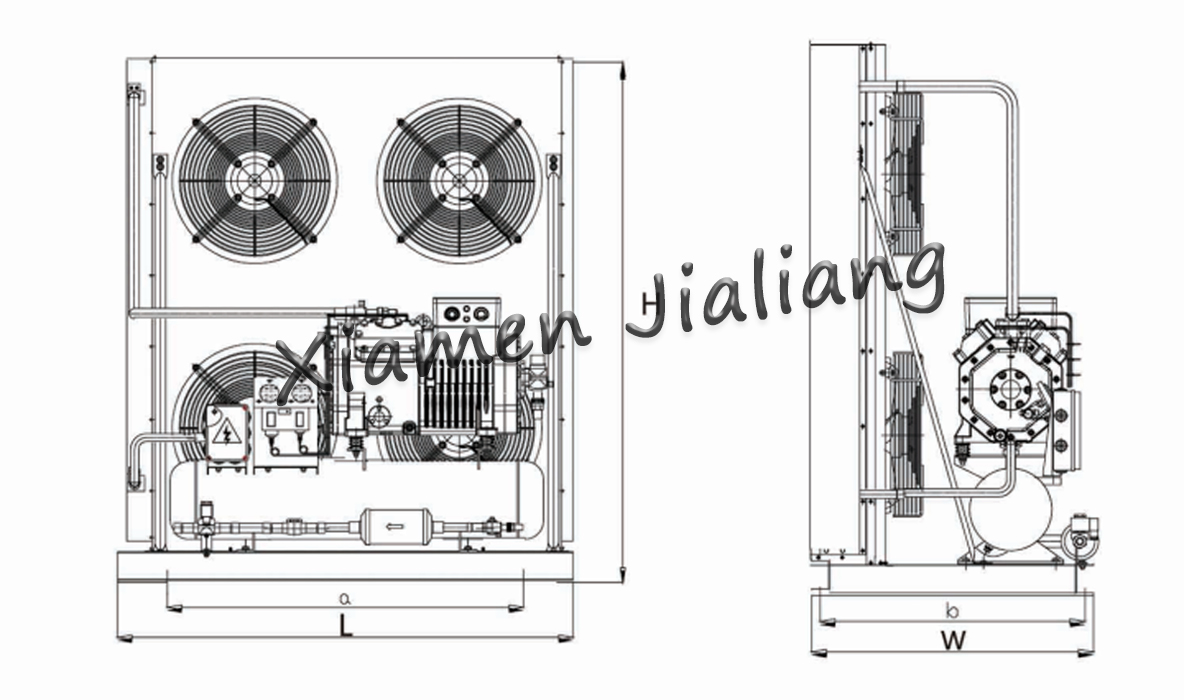

    SizeCustomzised
    Compressor TypeSemi-hermitic Reciprocating Compressors
    RefrigerantR22/R404a/R447a/R448a/R449a/R507a
    Refrigeration TypeAir Cooled/Water Cooled/Evaporation Cooled




    Customized Services

    1. Widely apply in kinds of cold room and refrigeration industry, can be used for fresh keeping, cold room, ice making and cold water etc.

    2. Cooling capacity: 20HP.

    3. With Bitzer series semi-hermetic compressor, high quality and reliable operation.

    4. Branded parts: Danfoss filter, Danfoss high&low pressure switch, Emerson solenoid valve etc.

    5. Air cooled condenser or high efficient shell tube water cooled condenser are optional.

    6. Low noise and high efficient outer rotor fan motor.

    7. Water-proof cable connection box for easy connection.



    FAQ


    Q1: What is the total leaf count for the 4NES-20Y 20HP Air Cooled Condensing Unit?

    A1:  The 4NES-20Y 20HP Air Cooled Condensing Unit is composed of six blades

    Q2: Could you please provide information regarding the warranty duration for the 4NES-20Y 20HP Air Cooled Condensing Unit ?

    A2: 1 year warranty. During the warranty period, due to quality reasons

    Q3: Could you please provide information regarding the warranty duration for the4NES-20Y 20HP Air Cooled Condensing Unit?

    A3:  Our company has been producing cold storage since 1999, and the market is all over the world. The company is located in Xiamen, Fujian

    Q4: How about the MOQ about 4NES-20Y 20HP Air Cooled Condensing Unit

    A4: For customized products, we accept a set of cold storage
    Q5: How can you guarantee the quality of 4NES-20Y 20HP Air Cooled Condensing Unit?
    A5:The shelf life of our products is one year (in the case of not being considered damaged)
