4PES-15Y 15HP R404a High Quality Condensing Unit
  • 4PES-15Y 15HP R404a High Quality Condensing Unit4PES-15Y 15HP R404a High Quality Condensing Unit4PES-15Y 15HP R404a High Quality Condensing Unit4PES-15Y 15HP R404a High Quality Condensing Unit4PES-15Y 15HP R404a High Quality Condensing Unit4PES-15Y 15HP R404a High Quality Condensing Unit
    • 4PES-15Y 15HP R404a High Quality Condensing Unit

      • 4PES-15Y 15HP condensing unit has a cooling capacity of 27.0 KW and a voltage range of 380-420V at a temperature of 0 ℃

    • Get A Quote
    • Description
    • Features

    Product Description

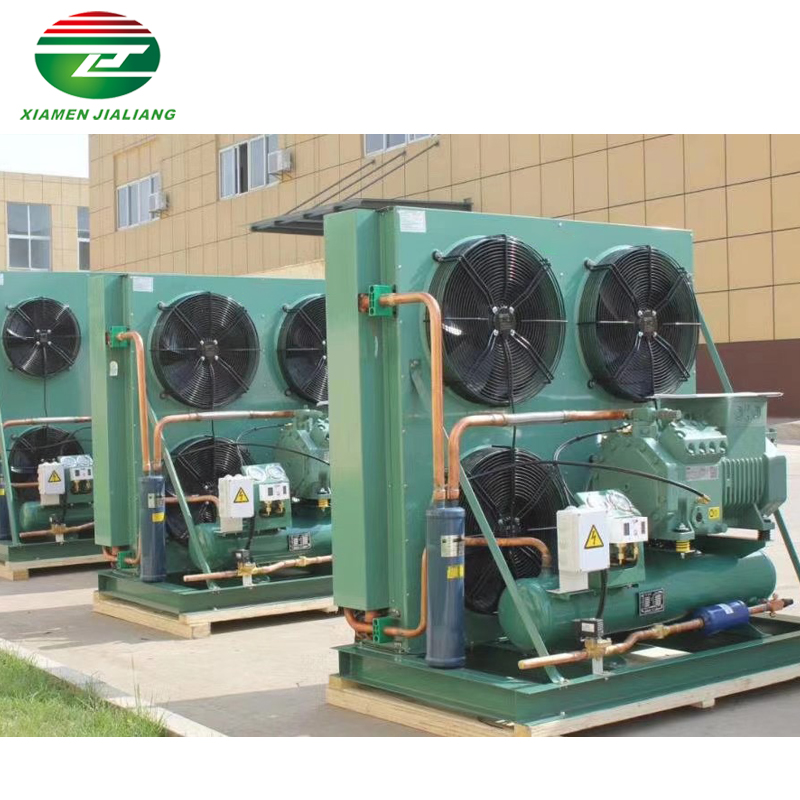

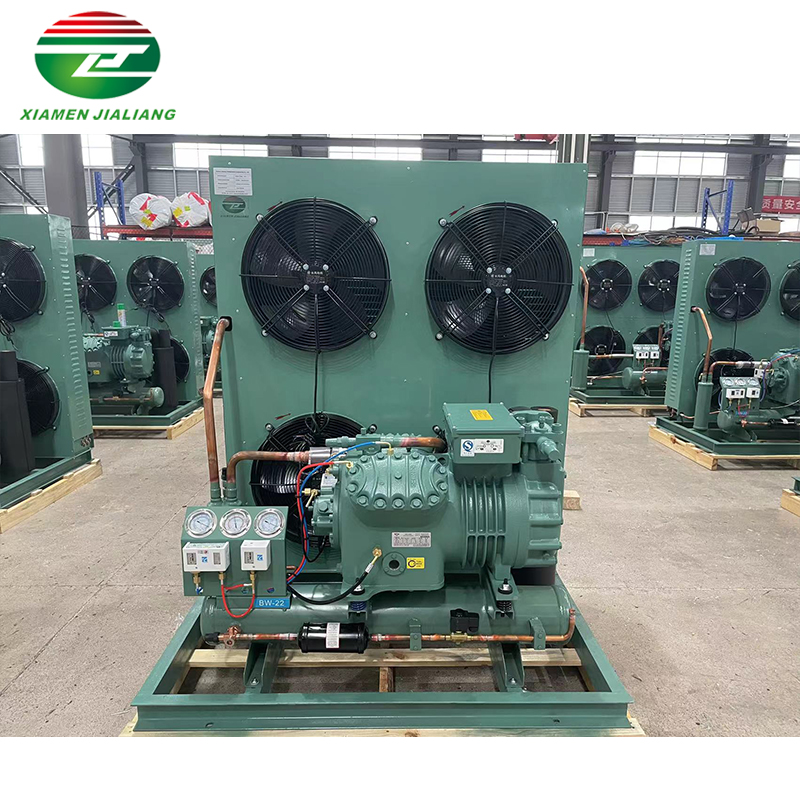

    4PES-15Y 15HP R404a High Quality Condensing Unit

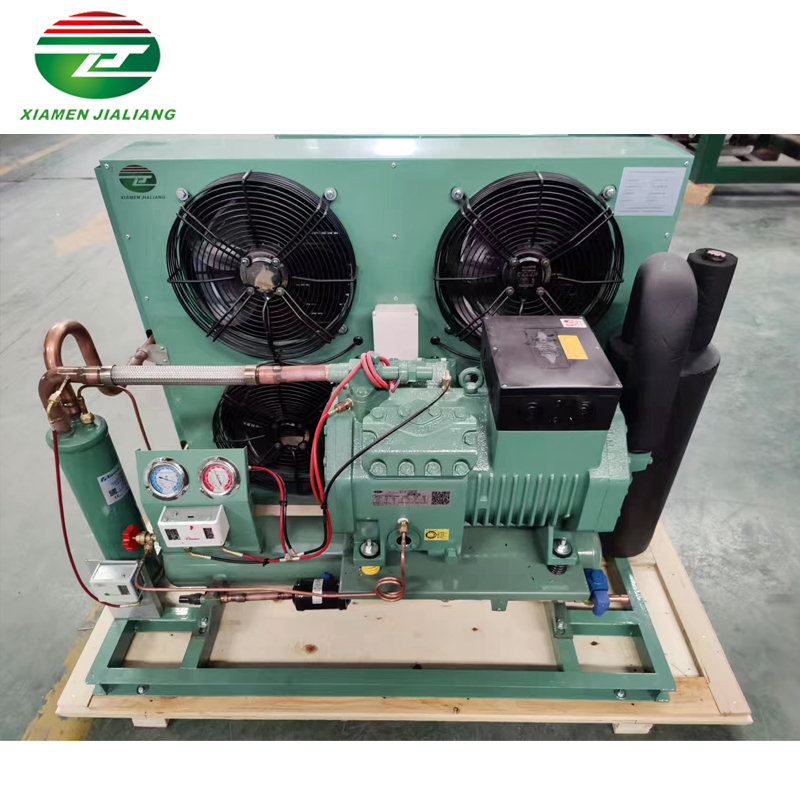

    1. Main components are Bitzer compressor, condenser, drier filter, solenoid valve, pressure controller, high and low pressure gauge.

    2. Open-type condending unit is easy to moving, installation and maintenance.

    3. Pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.

    4.Refrigerant: R22, R404a

    5.Power supply:380V/50Hz/3phase,220V/60Hz/3phase,440V/60Hz/3 phase and other special voltage can be customzied.




    Brand NameXiamen Jialiang
    Compressor4PES-15Y
    Compressor BrandBitzer
    Capacity Steps100%
    Warranty1 Year
    Temperature Range- 10 °C ~ 15 °C
    Refrigeration Unit BrandXiamen Jialiang
    Cooling Capacity（The temperature is 0℃）27.0 KW
    Evaporator Capacity（The temperature is 0℃）27.0 KW
    Power Input（The temperature is 0℃）10.78 KW
    Current (400V)19.41 A
    Horse Power15 HP
    Voltage Range380-420V
    SizeCustomzised
    Compressor TypeSemi-hermitic Reciprocating Compressors
    RefrigerantR22/R404a/R447a/R448a/R449a/R507a
    Refrigeration TypeAir Cooled/Water Cooled/Evaporation Cooled




    Customized Services

    All of our products can be customized, and our products undergo strict quality checks during the processing process and before delivery. If necessary, we can send every step we take during the process to the customer.



    FAQ


    Q1: How many leaves does the 4PES-15Y condensing unit have?

    A1:  The 4PES-15Y condensing unit is composed of six blades

    Q2: How long is the warranty period for the 4PES-15Y condensing unit product?

    A2: 1 year warranty. During the warranty period, due to quality reasons

    Q3: How long have you been producing 4PES-15Y condensing units? What is the address of your company?

    A3:  Our company has been producing cold storage since 1999, and the market is all over the world. The company is located in Xiamen, Fujian
    Q4:Why same HP 4PES-15Y condensing units compressors have big price difference?
    A4: Because the temperature requirements are different,  the price is also different for low temperature and high temperature machine in the same hp.The voltage is different, the special voltage 60hz is more expensive than the regular voltage 50hz, because it needs to be customized.
    Q5: How many kinds of 4PES-15Y condensing units compressors?
    A5:1. Split type:  Bitzer(Germany),   Copeland(USA),  Danfoss(France) 2. All in one type : Monoblock unit
