- 30hp 40hp 50hp Low Temp Condensing Unit
Air Cooled Semi Hermetic Compressor Bitzer
- Get A Quote
- Description
- Features
30hp 40hp 50hp Low Temp Condensing Unit
Product Introduction
Condensing Unit .Condenser:Air Cooled/Water Cooled/Evaporation Cooled
.Frame:Steel shell with spray painting open type on steel frame
.Refrigerant:R22 R404a R447a R448a R449a R507a Refrigerant
.Can be cutsomized based on actual situation

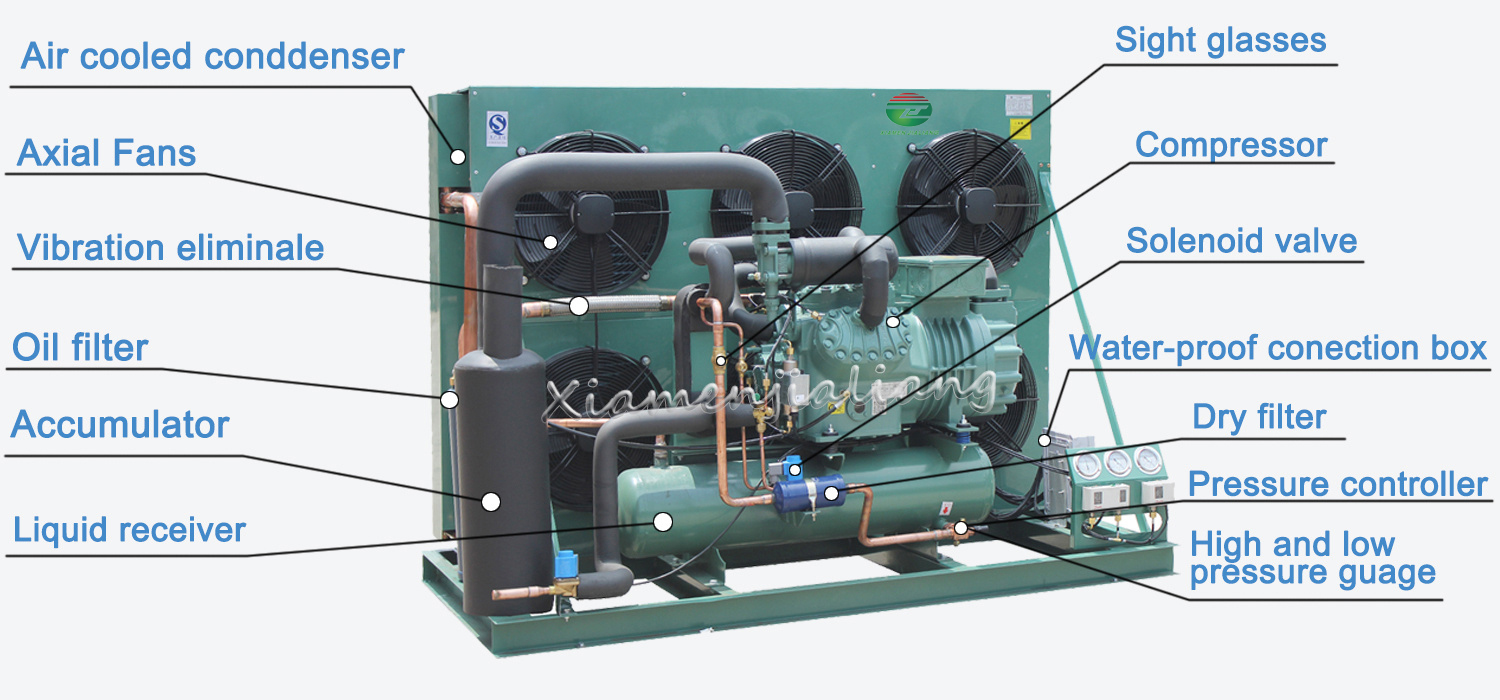

.Standard Equipment Include: Compressor, vibration eliminate, oil filter, condenser, liquid receiver, dry filter, sight glasses,
solenoid valve, accumulator (low temperature), pressure controller, high and low pressure guage, water-proof connection box.
| Name | Condensing Unit |
| Horse power | ≥30HP |
| Dimension | Length(m)*Width(m)*Height(m) |
| Fittings | All necessary fittings are included,optional |
| Functions | Fruit,vegetable,flower,fish,meat,chicken,chemical,etc. |
| Voltage | 220~240V,50HZ,60HZ,SINGLE OR TRIPLE PHASE 380~420V,TRIPLE PHASE 440~460V,TRIPLE PHASE |
Condensing unit is mainly used forrefrigerating flowers, vegetables, fruits, meat, eggs and milk and seafood products.
Slaughterhouses, cold stores, food and beverage factories, farms, food stores.
Refrigeration equipment consistsof compressor, condenser,liquidreceiver,dry filter, pressure
control, etc.
We use the famous brand spareparts, so to make sure the wholesystem is in excellent
About Us
1,For small and medium cold room, we usually choose semi-closed piston condensing unit.
2,For large cold room, we usually choose parallel compressor unit.
3,For blast freezer, we usually choose screw type compressor or double stage compressor. For the cooling capacity, we will design it to meet our clients’ requirement.
4,For some countries, in Winter the temperature is lower than minus 0°C or in Summer the temperature is more than 45°C. We will consider the climatic environment of the location, and chose suitable condenser model for customers.
FAQ
| Q1: What is the minimum order quantity? |
| A1: We have no set minimum order. |
| Q2: Why same HP compressors have big price difference? |
| A2: Because the temperature requirements are different, the price is also different for low temperature and high temperature machine in the same hp. The voltage is different, the special voltage sixty hertz is more expensive than the regular voltage fifty hertz, because it needs to be customized. |
