Offers flexible designs for various industry applications

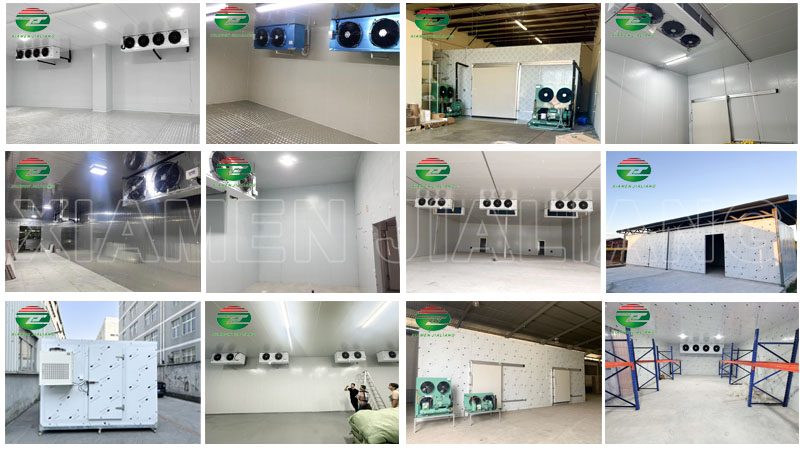

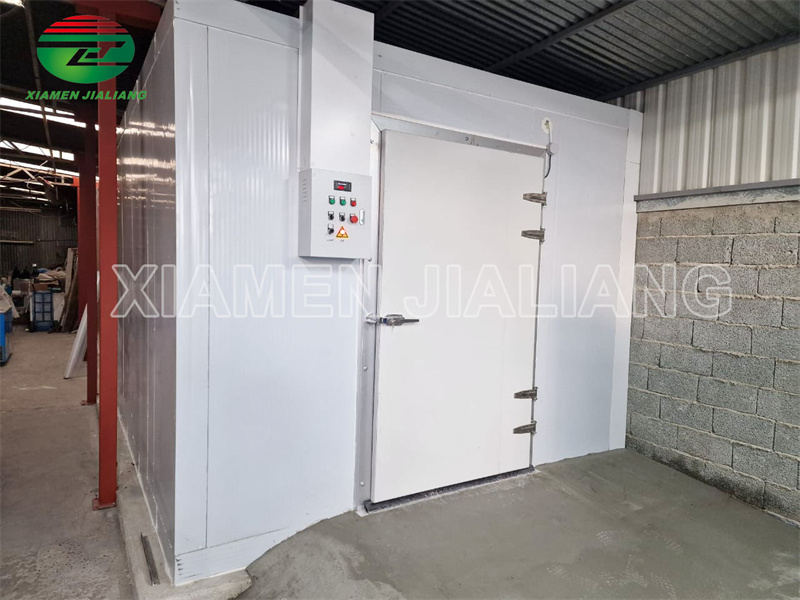

Walk-in High Quality Cold Room

Cold storage usually refers to facilities that use artificial refrigeration methods to maintain a stable temperature within a low temperature range in the space. It is mainly used for the preservation or quality of items that require low-temperature storage, such as food, medicine, chemical raw materials, etc.

From the perspective of function and usage, there are significant differences in the characteristics of different types of cold storage. High temperature cold storage generally maintains a temperature between 0 ℃ and 10 ℃, and is mostly used to store fruits, vegetables, dairy products, etc., which can slow down the metabolism rate of ingredients and extend the freshness period; Medium temperature cold storage is mostly used to store commonly used frozen foods such as meat and frozen products, with temperatures ranging from -18 ℃ to 0 ℃; Low temperature cold storage can reach temperatures of -25 ℃ or even lower, suitable for seafood, frozen foods, and special biological materials that require deep freezing preservation; There are also some ultra-low temperature cold storage facilities that can reach temperatures below -60 ℃, mainly used for storing special medical reagents, deep-sea biological samples, and other items that require extremely high storage temperatures.

From the perspective of structural design, cold storage generally has good thermal insulation performance. The outer side of the main structure will be covered with high-performance insulation and moisture-proof materials to reduce the transfer of external heat to the internal cold space and lower the energy consumption of the refrigeration system; At the same time, the sealing requirements of the cold storage enclosure structure are much higher than those of ordinary buildings, to avoid the leakage of cooling capacity and the invasion of external humid air, and to prevent condensation and freezing inside the enclosure structure, which can damage the building structure.

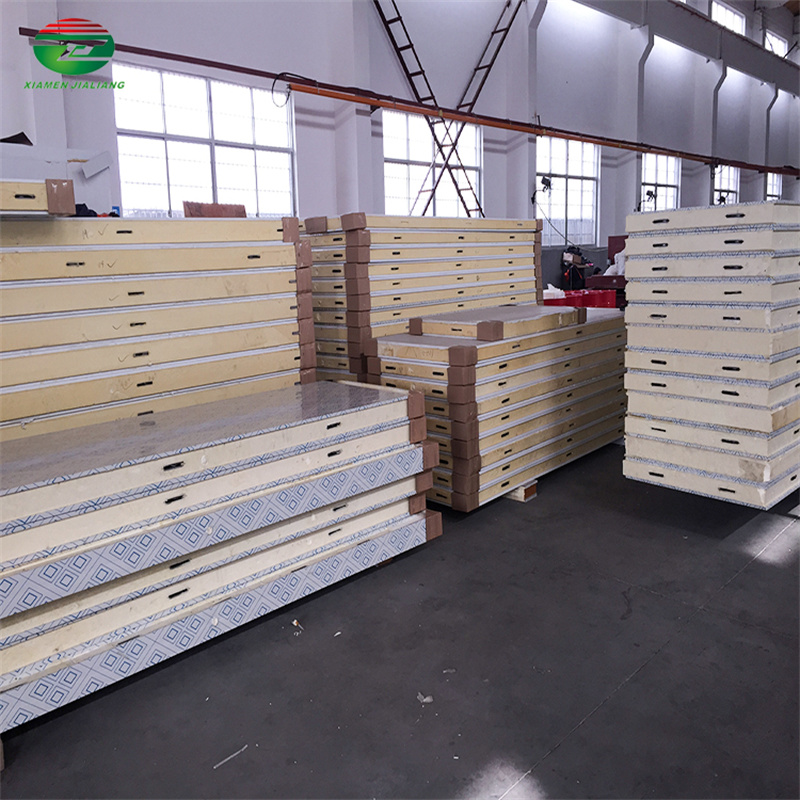

Thickness of panels: 75mm 5℃ to 15℃; 100mm -15℃ to 5℃; 120mm -20℃ to -15℃; 150mm -30℃ to -20℃; 200mm lower than -30℃

Panel Length: Customized longest: 11.8m (according to container dimension)

Panel Width: 960mm standard

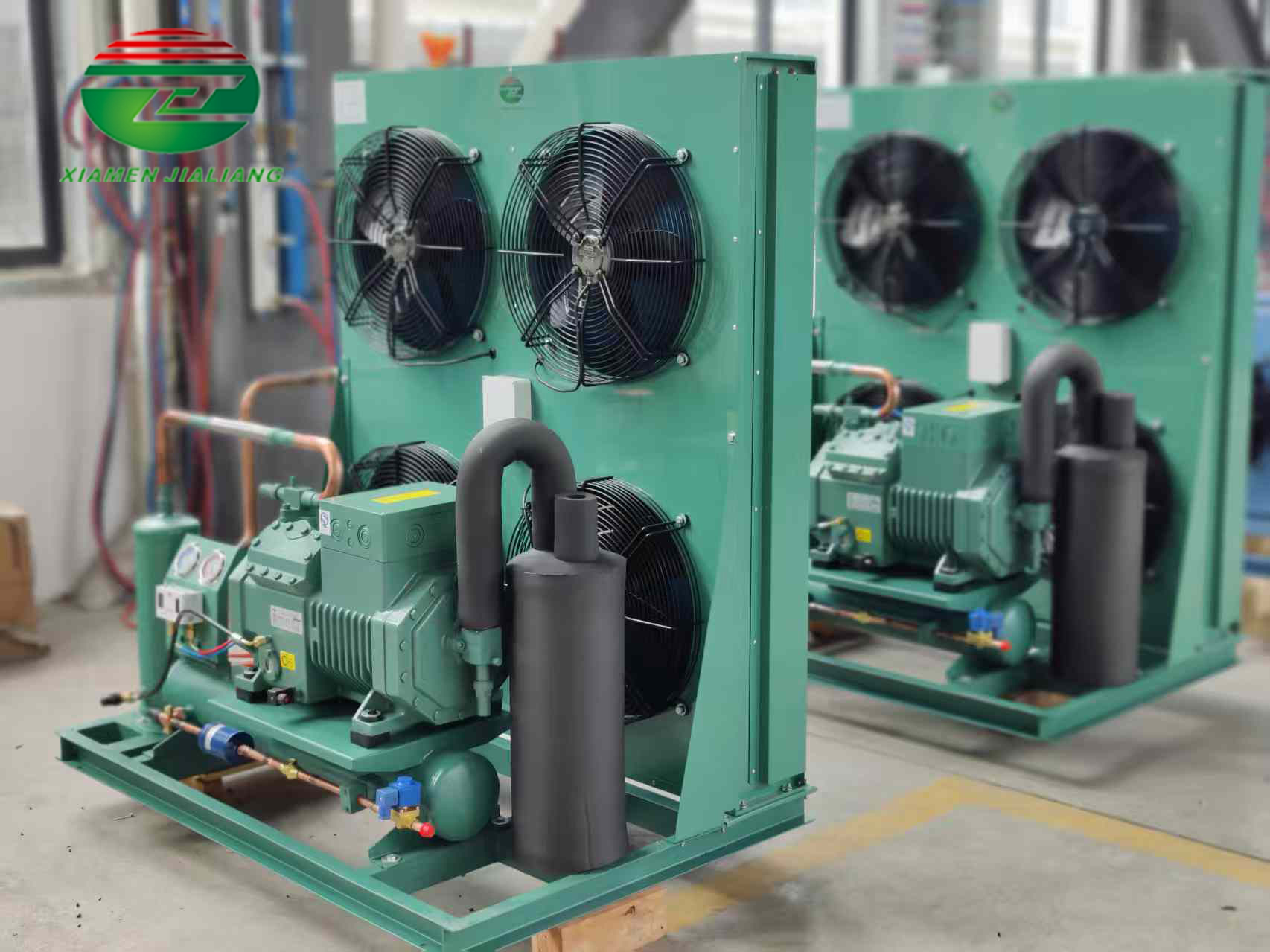

Compressor Optional: Original Bitzer Brand

Voltage: 220V/1PH/50HZ or 60HZ 380V/3Ph/50HZ or 60HZ 220V/3PH/60HZ

Refrigerant: R22/R404a/R448a/R507a

Capacity: Singe compressor 2HP-50HP

Shell: Steel with spraying,Aluminum,SS304

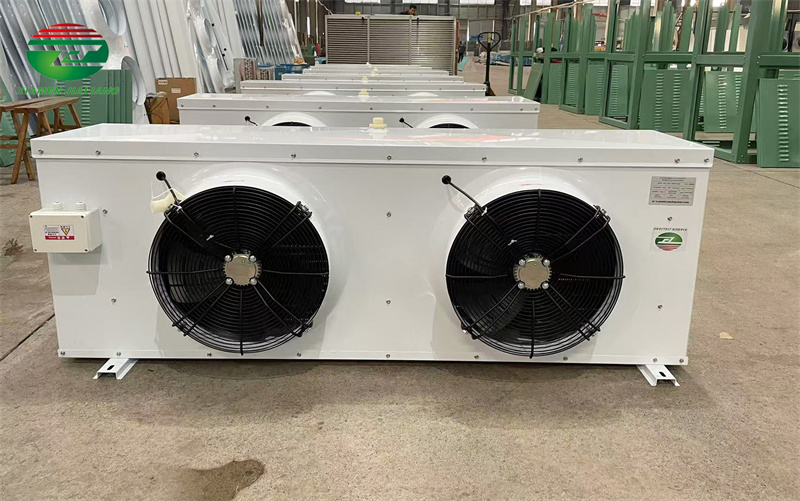

Temperature: DL -5~5C(fin space 4.5mm); DD -15~-20C(fin space 6.0mm); DJ -25C(fin space 9.0mm)

Defrosting: Hot Gas,Electric Heater

Capacity: DL 2.2-122KW; DD1.4-88KW; DJ:1.7-58KW
