Low temperature freezing inverter condensing unit
Product Description

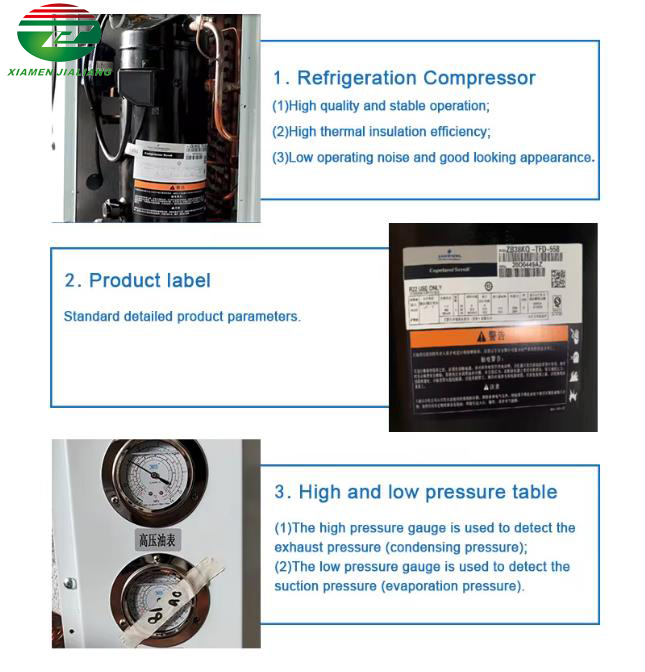

1. The accessories of the inverter condensing unit include liquid receiver, pressure gauge, pressure controller, observation mirror, filter joint box, etc 2. The copper tube has passed the 2.6Mpa pressure test and can work normally requirement. 3. The anti-corrosion effect of various parts of the inverter condensing unit is good. 4. The structure of the inverter condensing unit is reasonable, and the operating system is accurate and reliable. 5. Adopting high-efficiency and large air volume axial flow fans, low noise, and energy-saving.
| Inverter Condensing Unit | |||
| Models | XMJL-1 | XMJL-2 | XMJL-3 |
| Compressor | Inverter Scroll Compressor | ||
| HP | 2HP | 3HP | 4HP |
| Temperature Range | 40℃ | 40℃ | 40℃ |
| Refrigeration Capacity (-5℃) | 4.45KW | 5.50KW | 7.7KW |
| Power(-5℃) | 1.55KW | 1.86KW | 2.6KW |
| Voltage | 380V/420V | 380V/420V | 380V/420V |
| Applicable Temperature | -10 ℃~5 ℃ (can reach -18 ℃) | -10 ℃~5 ℃ (can reach -18 ℃) | -10 ℃~5 ℃ (can reach -18 ℃) |

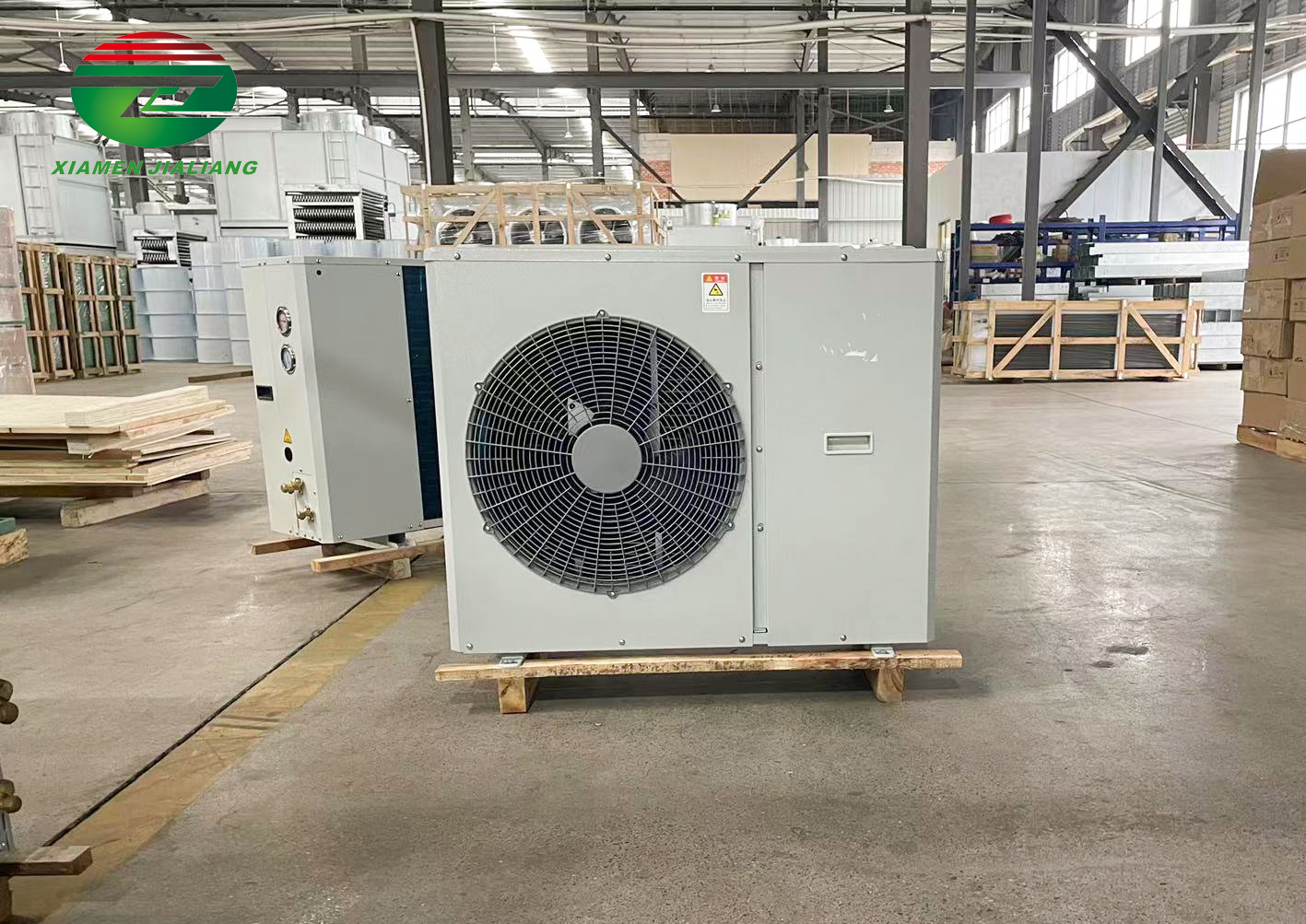

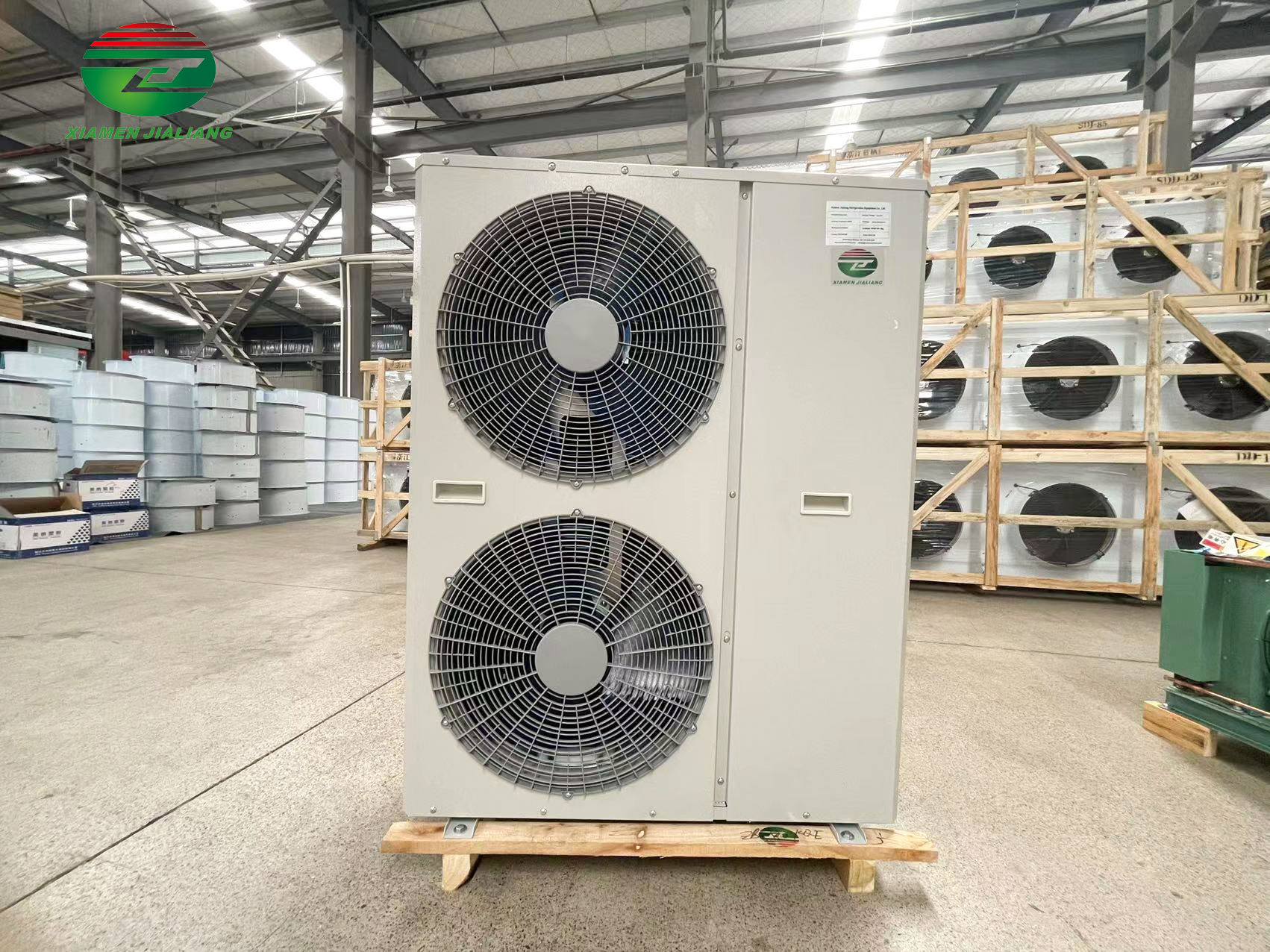

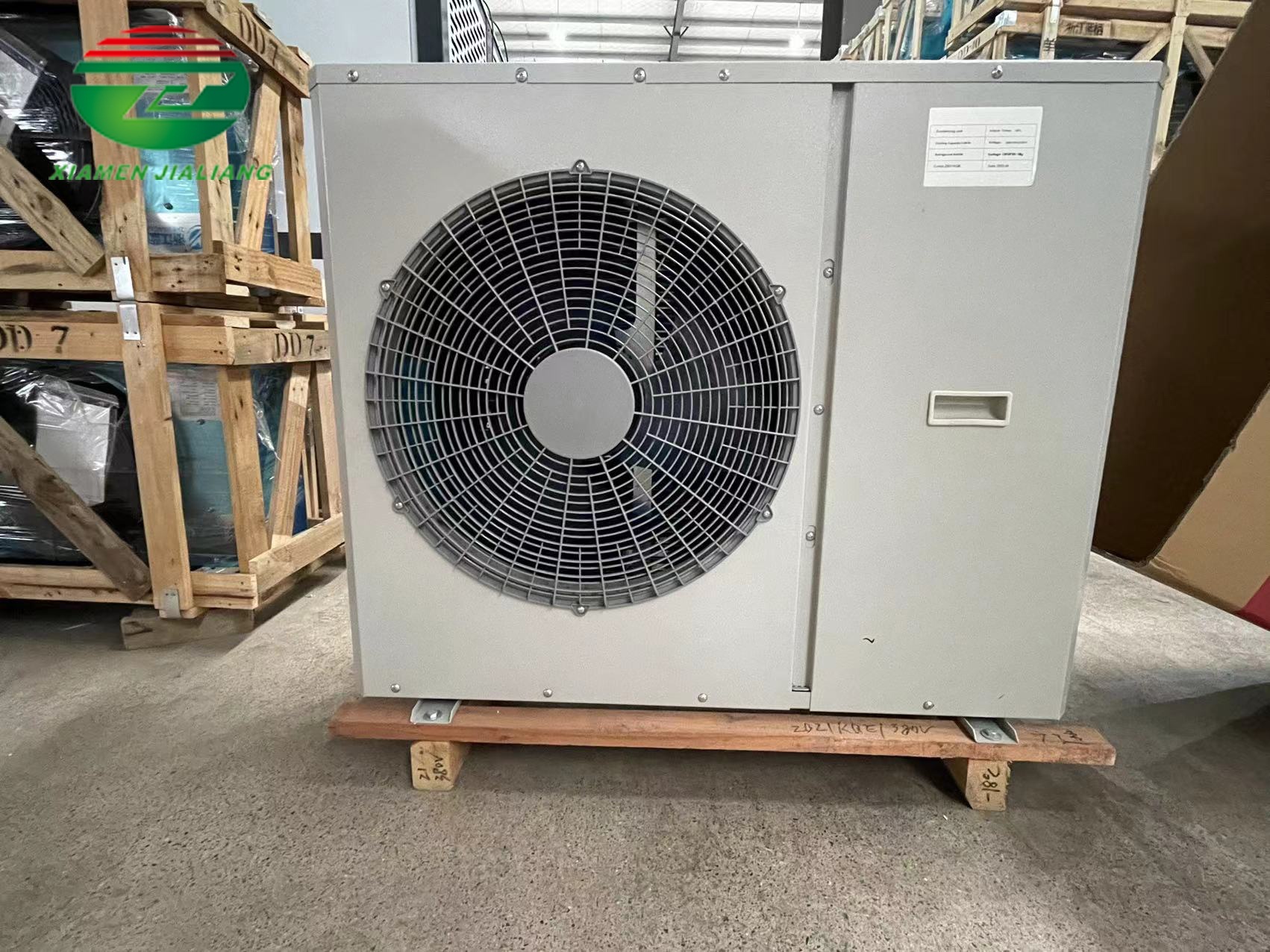

Product Display

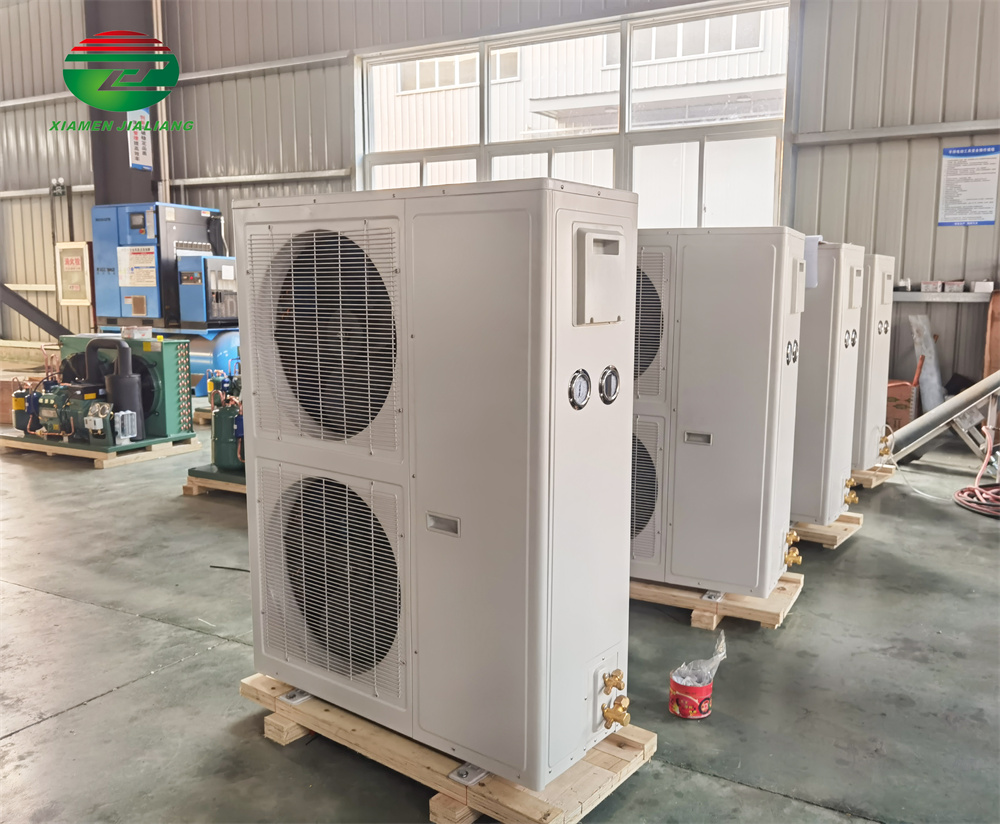

Factory Workshop
FAQ
| Q1: Is your inverter condensing unit a complete system? |
| A1: Yes, our inverter condensing unit includes complete accessories, including high and low pressure gauges, oil and gas separators. |
| Q2: Can the inverter condensing unit be installed on the ceiling? |
| A2: Yes, it can be installed at any location, and we will also configure enough copper pipes accordingly |
