Large Capacity Positive and Negative Cold Room

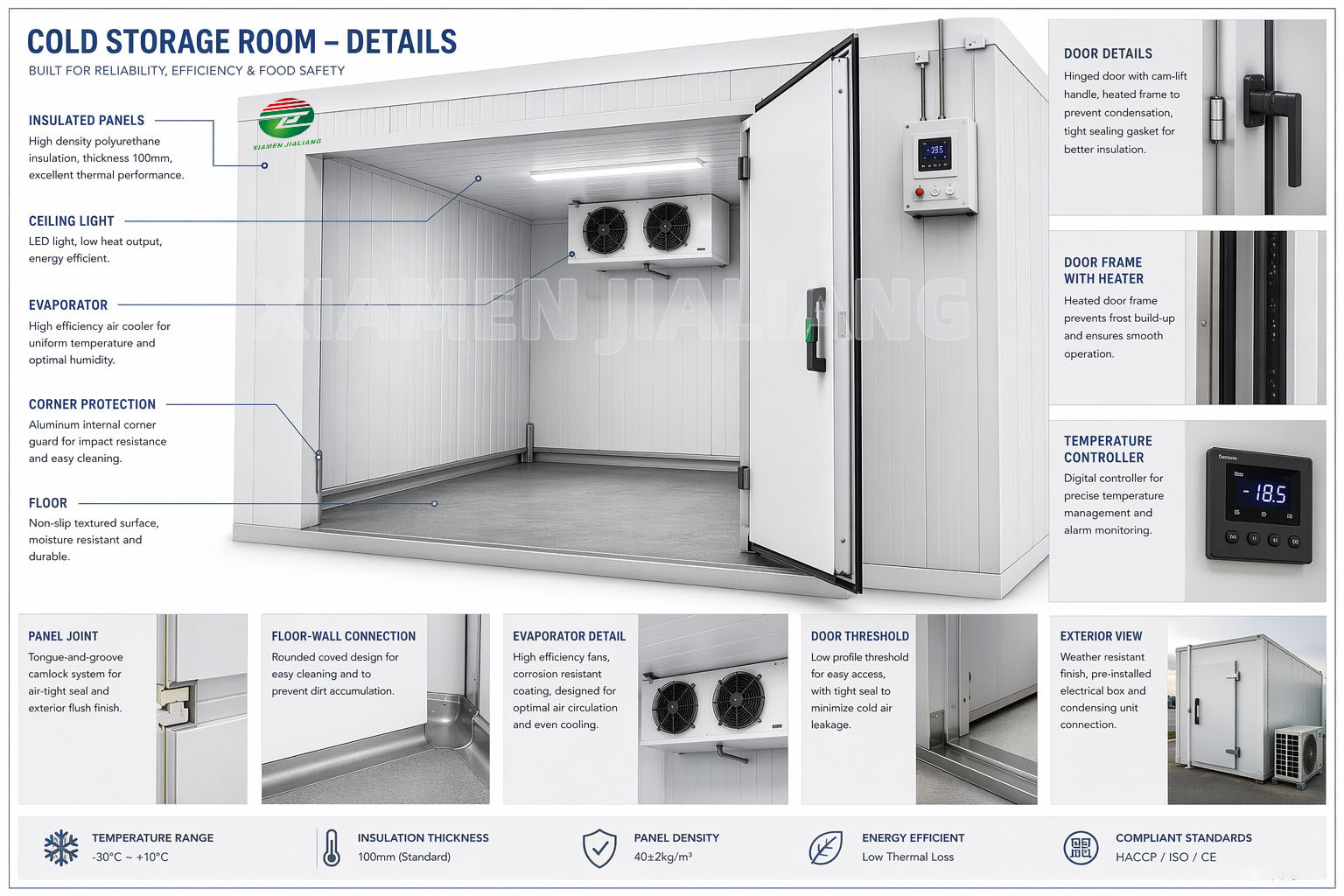

Introduction of cold storage
Cold storage is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good air tightness and heat insulation effect. According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and the thickness of the material according to the requirements of panel products.
Cold storage features
1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
2.Size: Customization.
3. Function: preservation, freezing, quick freezing.
4. Good performance, low noise and high reliability.

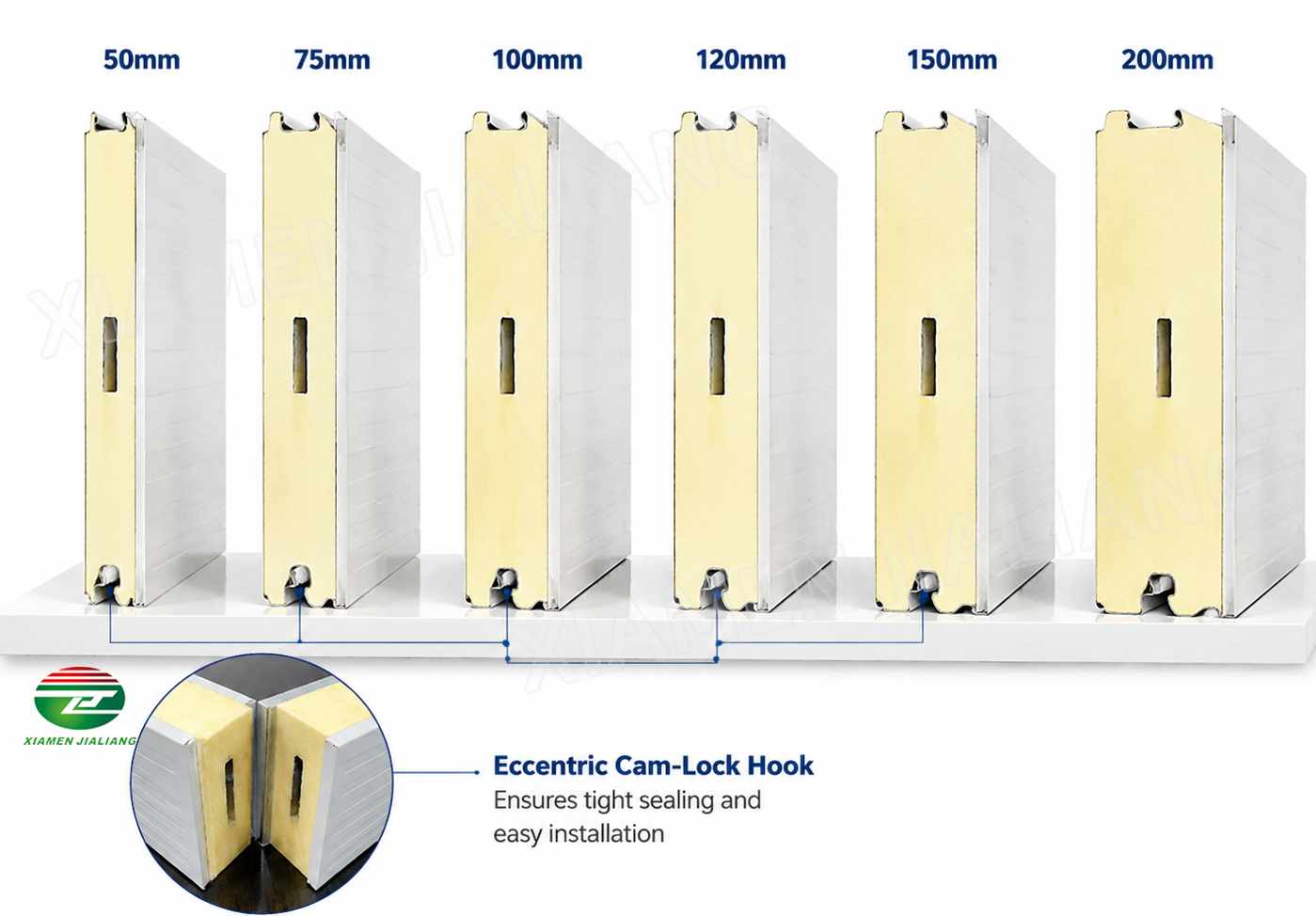

| Panel Thickness | Recommended Temperature Range | Typical Use |
| 50mm | 0°Cto+10°C | Chilled room |
| 75mm | -5°Cto0°C | Fresh food storage |
| 100mm | -15°Cto-5°C | Medium cold storage |
| 120mm | -20°Cto-15°C | Freezer room |
| 150mm | -25°Cto-20°C | Deep freezer |
| 200mm | -35°Cto-25°C | Ultra-low temperature storage |

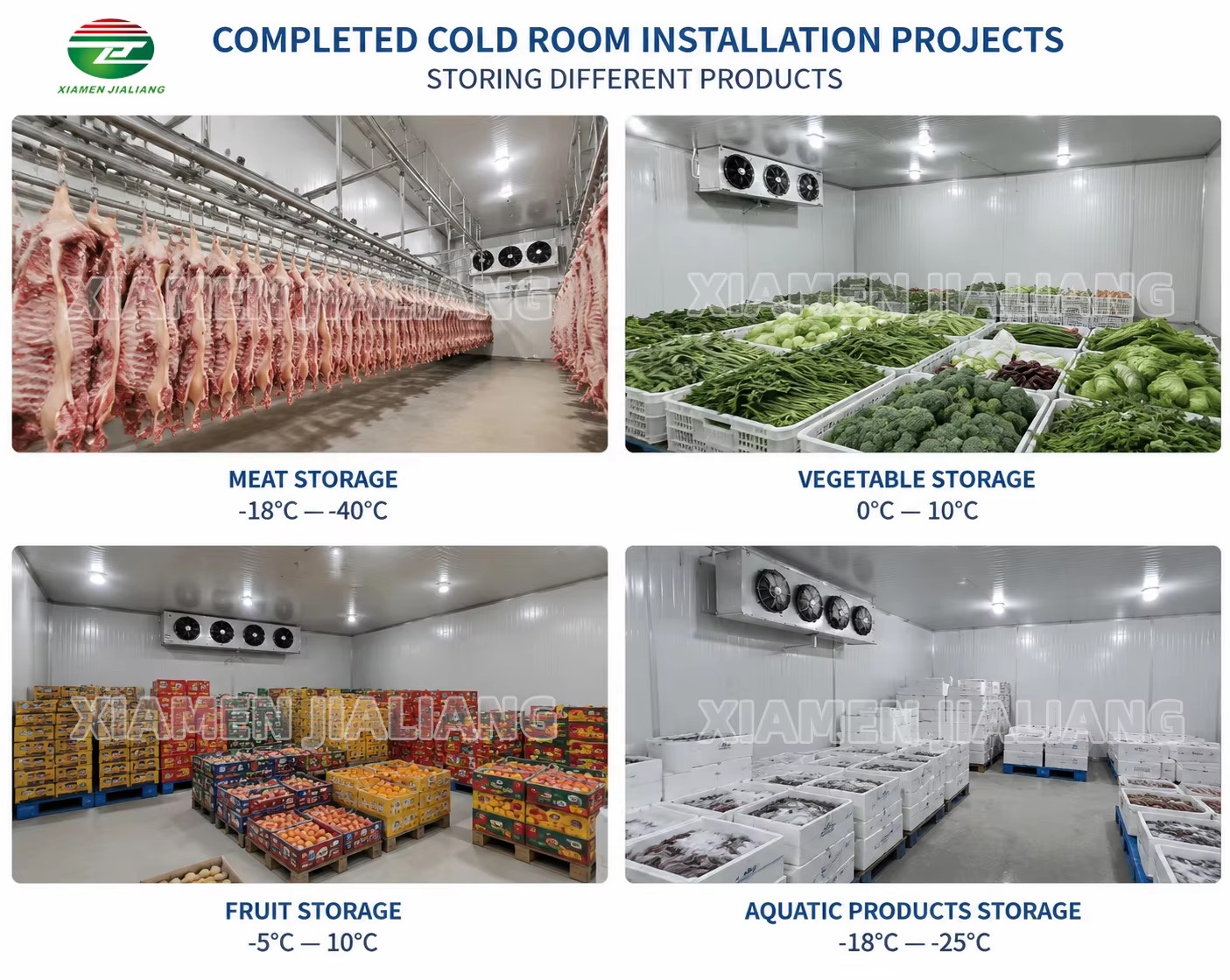

| STORED PRODUCT | STORAGE TEMPERATURE | RECOMMENDED HUMIDITY | APPLICATION | STORAGE TYPE |
| FRUITS & VEGETABLES | 0~+10°C(32~50°F) | 85~95%RH | Maintains freshness andprolongs shelf life. | CHILLED ROOM |
| MEAT & POULTRY | -18~0°C(0~32°F) | 80 ~ 90% RH | Keeps meat fresh,prevents spoilage. | CHILLED/FREEZER ROOM |
| SEAFOOD | -25~-18°C(-13~0°F) | 80 ~ 90% RH | Deep freezing forlong-term storage. | FREEZER ROOM |
| DAIRY PRODUCTS | 0~+4°C(32 ~ 39°F) | 85 ~ 95% RH | Keeps dairy productsfresh and safe | CHILLED ROOM |
| FROZEN FOODS | -25~-18°C(-13~0°F) | 80 ~ 90% RH | ldeal for frozen foodlong-term storage. | FREEZER ROOM |
| ICE STORAGE | -10~-5°C(14 ~ 23°F) | 85 ~ 95% RH | Specialized forice and ice blocks. | ICE ROOM |
| FLOWERS & PLANTS | +2~+8°C(36~46°F) | 85 ~ 95% RH | Maintains freshnessand appearance. | CHILLED ROOM |
| Q1: Can you customize cold room size? |
| A1: Sure, our products are all customized and can be designed according to your needs |
| Q2: How much electricity does a cold storage consume per day? |
| A2: Depending on the size of the room and the corresponding machines, the typical power consumption is the number of machines per hour. |
