Customizable Cold Room Design 15M
Design JiaLiang Cold Store has different capacity, it can be customized design according to your requirements.
Temperature
The temperature can be customized from -60℃ ~ +20℃.
Capacity
JiaLiang Cold Store is from 5 CBM to 10,000CBM, the dimension can be customized according to your requirements. It applies to
different products from 1 Tons to 2,500 Tons or more.
Application
Cold Room can store food, fruit, vegetable, fish, meat, ice, flower, milk, drinks, etc.

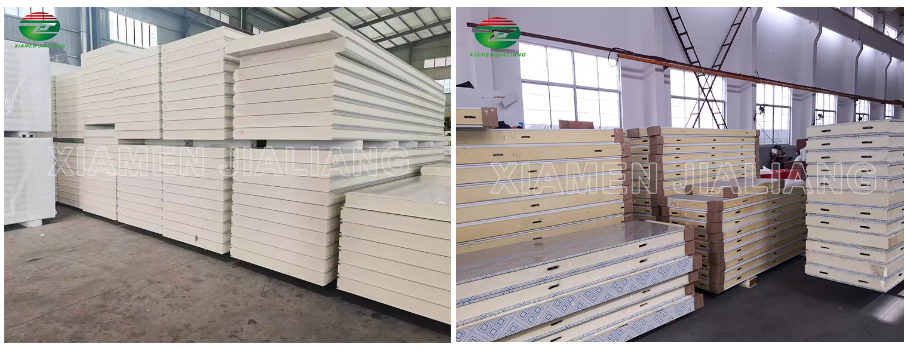

| Thickness of panels | 75mm 5℃ to 15℃ 100mm -15℃ to 5℃ 120mm -20℃ to -15℃ 150mm -30℃ to -20℃ 200mm lower than -30℃ |
| Panel Length | Customized longest: 11.8m (according to container dimension) |
| Panel Width | 960mm standard Customization Available |

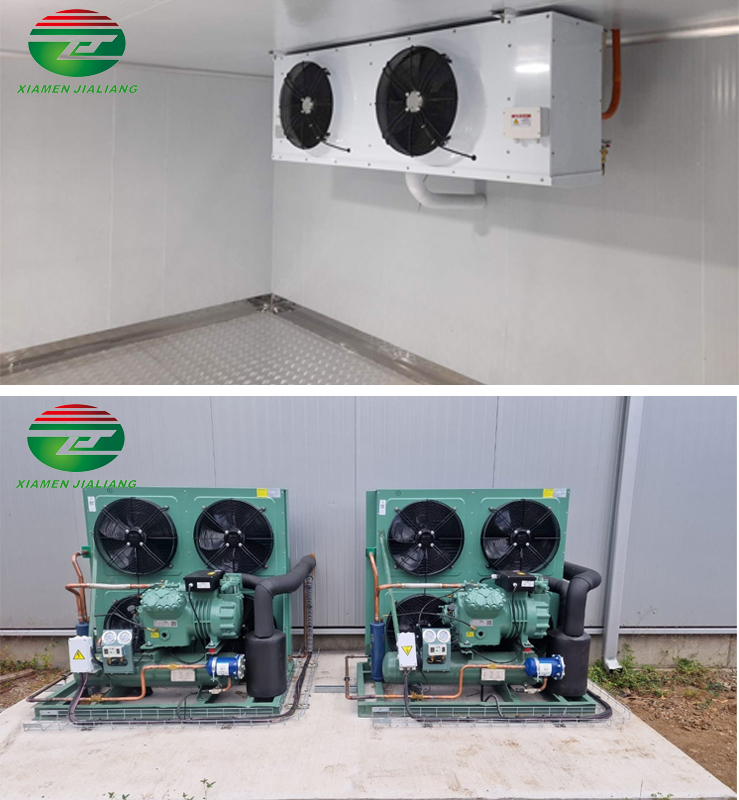

Condensing Unit
• Compressor Optional:Original Bitzer Brand
• Condenser:Air cooled or Water cooled(for higher ambient temperature)
• Frame:can be stell shell with spray painting or open type on stell frame
• Voltage:220V/1PH/50HZ or 60HZ 380V/3Ph/50HZ or 60HZ 220V/3PH/60HZ
• Refrigerant:R22/R404a/R410a • Capacity:Singe compressor 2HP-50HP

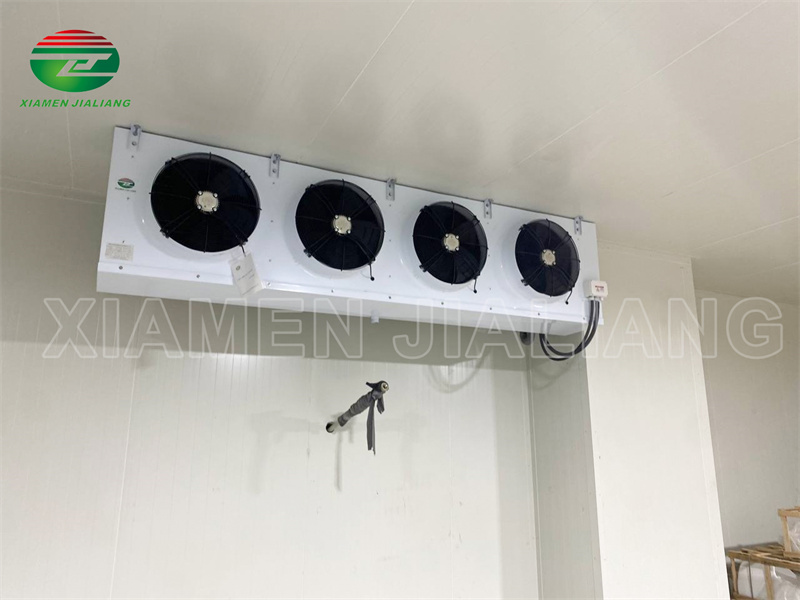

Evaporator
• Shell: Steel with spraying,Aluminum,SS304
•Temperature:
DL -5~5C(fin space 4.5mm)
DD -15~-20C(fin space 6.0mm)
DJ -25C(fin space 9.0mm)
•Defrosting:Hot Gas,Electric Heater
• Capacity: DL 2.2-122KW DD1.4-88KW
DJ:1.7-58KW
• Fins:Blue fins,better heat exchane effects
As a refrigeration company, we are committed toprovidingindustry-leading refrigeration equipmentsolutions, Wth more than 26 vears ofexpenencein the refrigeration industry,we focus on productdesign,production,sales and after-sales semiceto meet thespecific needs of individualindustriesand customers.

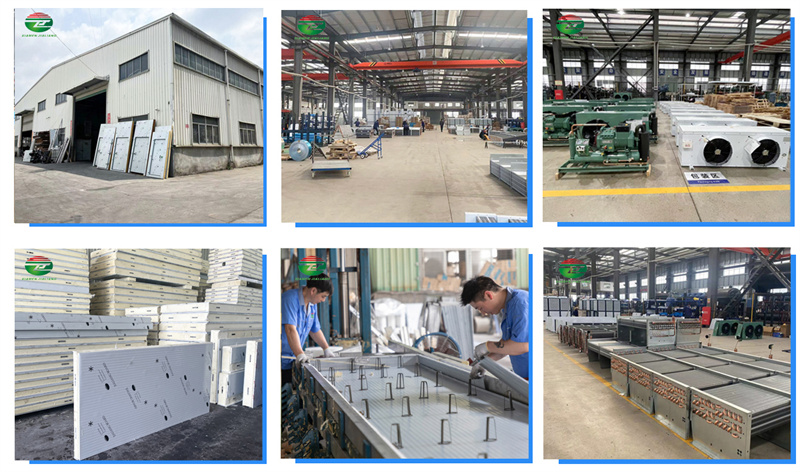

R&D,PRODUCTION AND SALES AS ONEOF THE COMPANY
PROVIDING INDUSTRYL EAD INGCOLDROOM SOLUIONS
