Automatic Restaurant Cold Room Hotel Cold Room

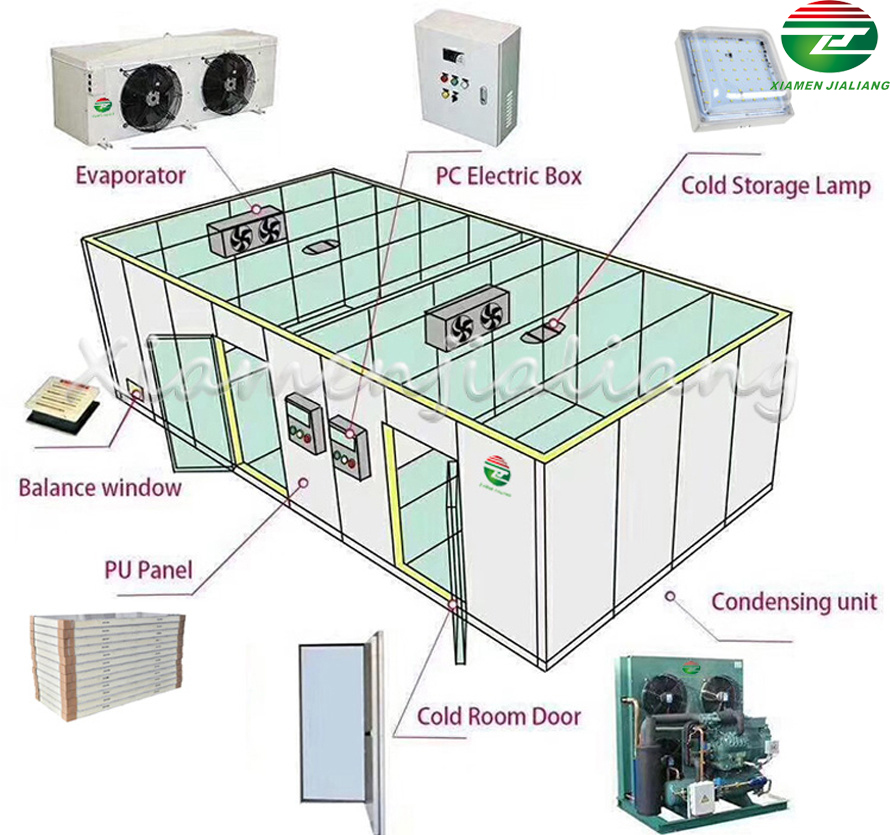

Introduction of cold store:

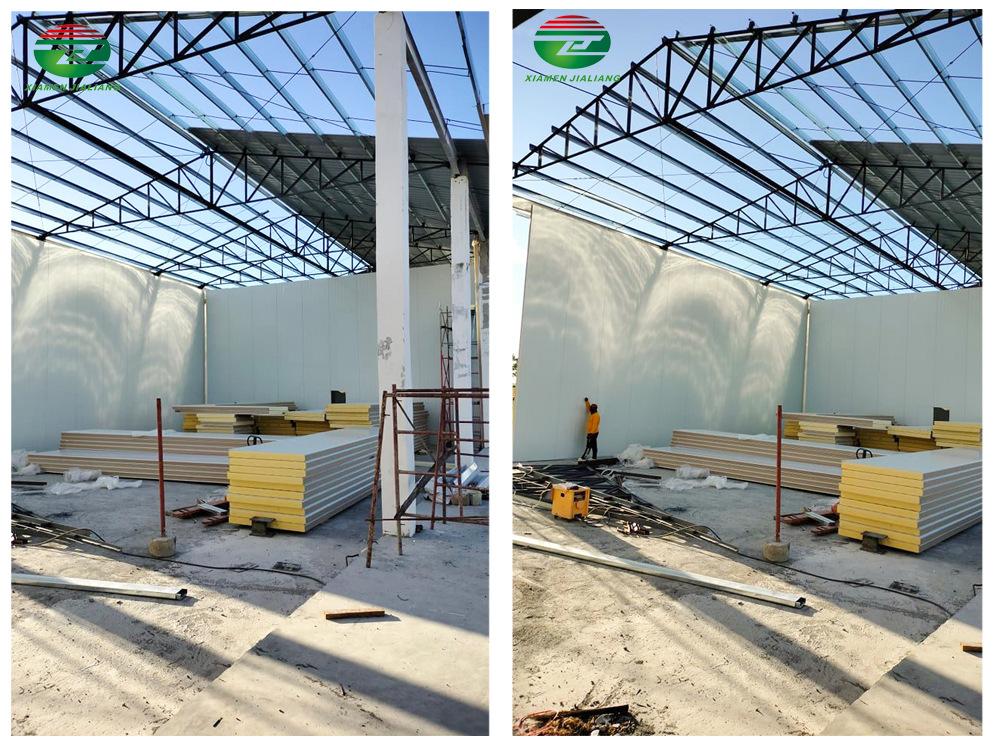

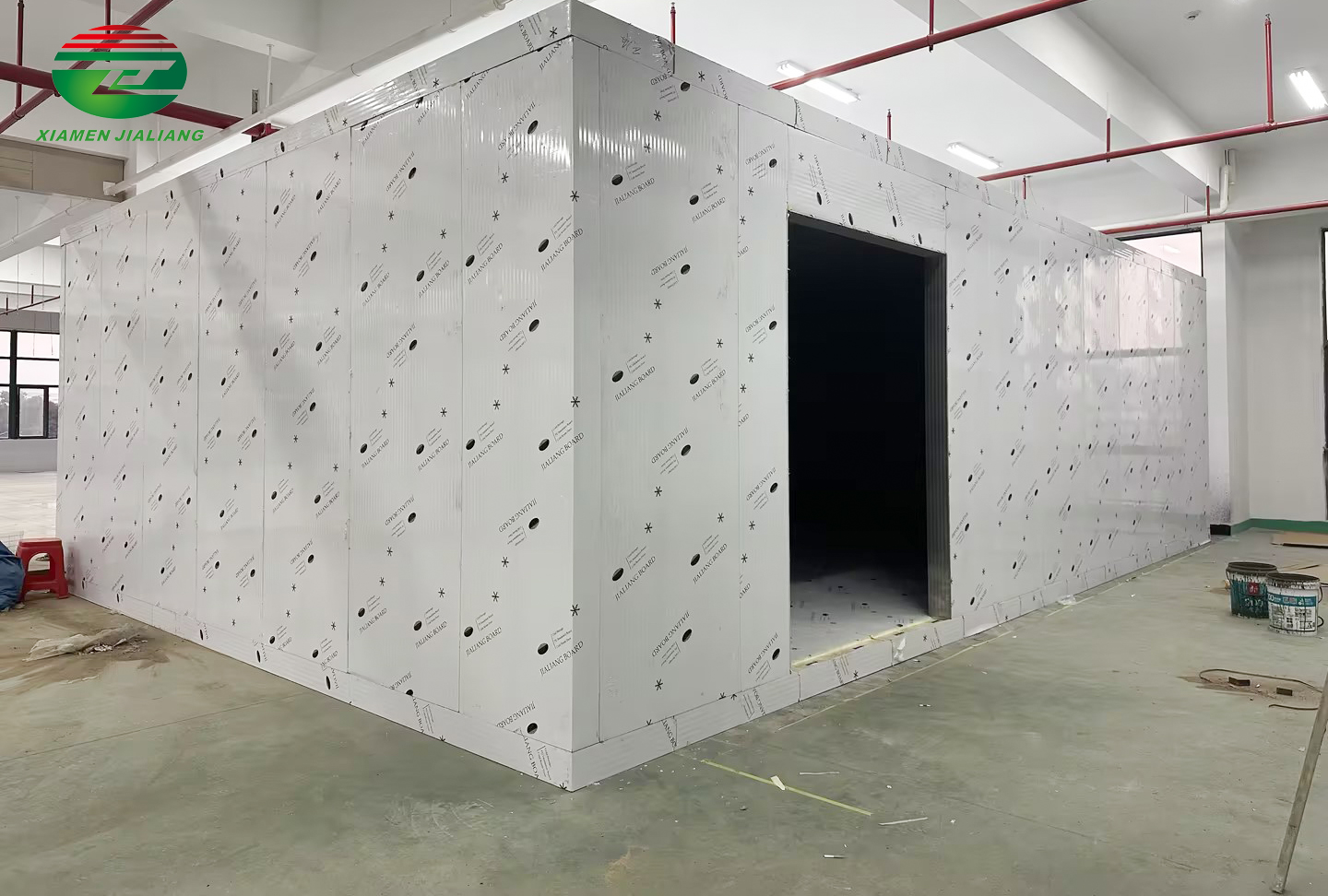

Cold room is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good
air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and
the thickness of the material according to the requirements of panel products.
Cold store features:
1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
2.Size: Customization.
3. Function: preservation, freezing, quick freezing.
4. Good performance, low noise and high reliability.

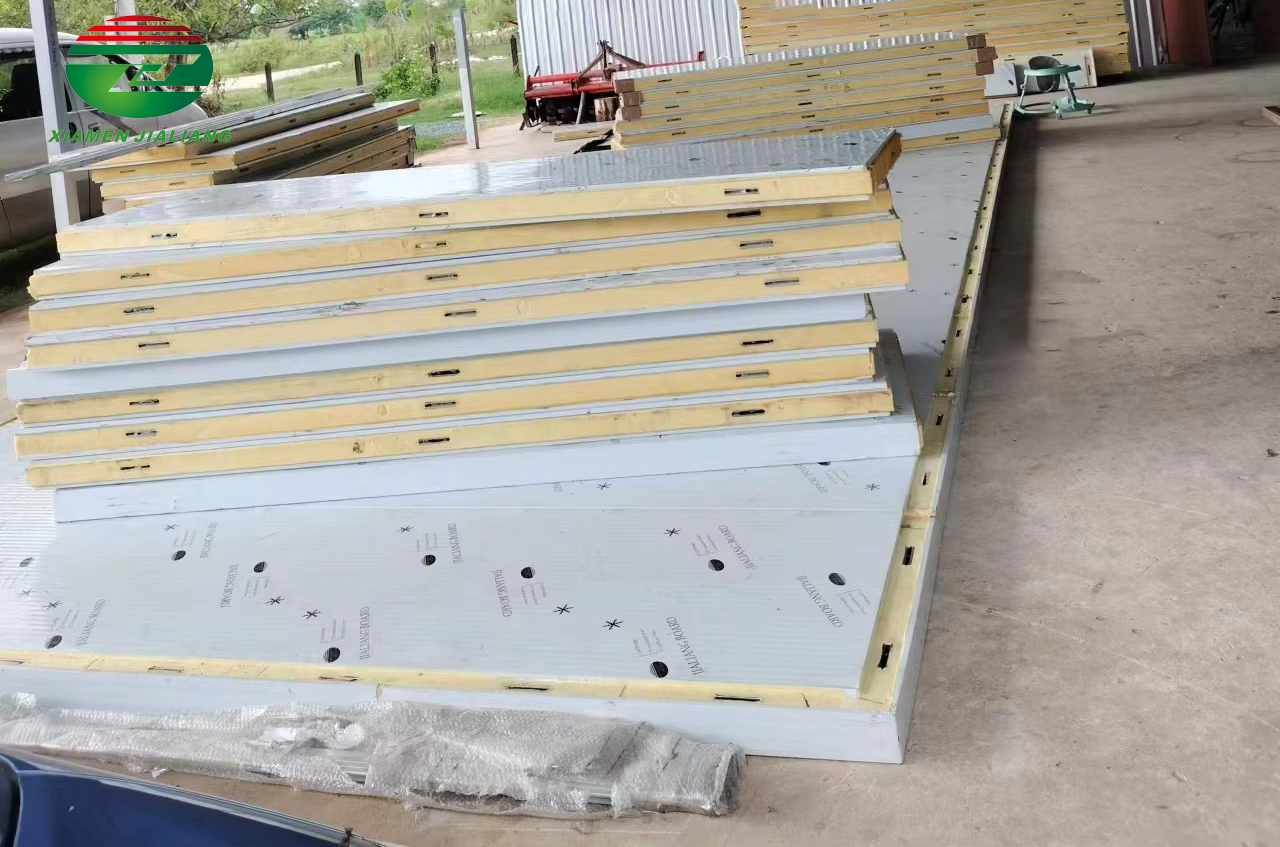

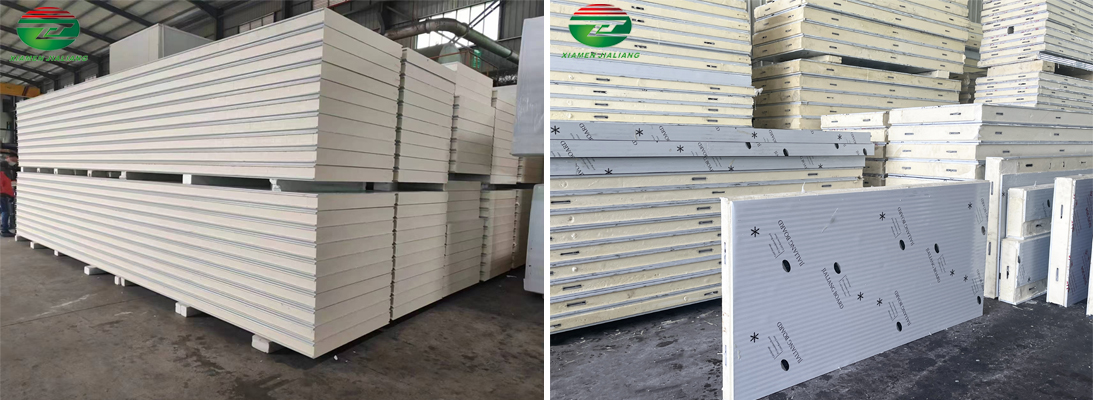

PU/PIR Panel
| Thickness of panels | 75mm 5℃ to 15℃ 100mm -15℃ to 5℃ 120mm -20℃ to -15℃ 150mm -30℃ to -20℃ 200mm lower than -30℃ |
| Panel Length | Customized longest: 11.8m (according to container dimension) |
| Panel Width | 960mm standard Customization Available |
| Density | ≥ 42kg/m³ |

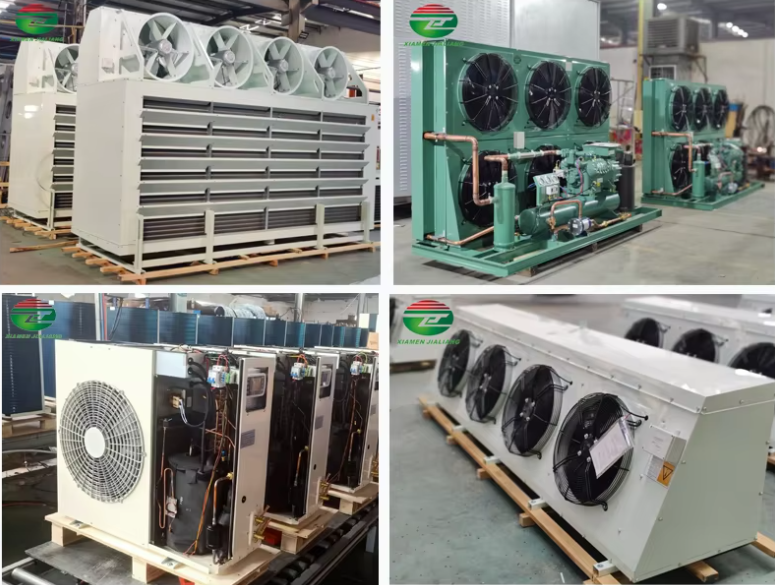

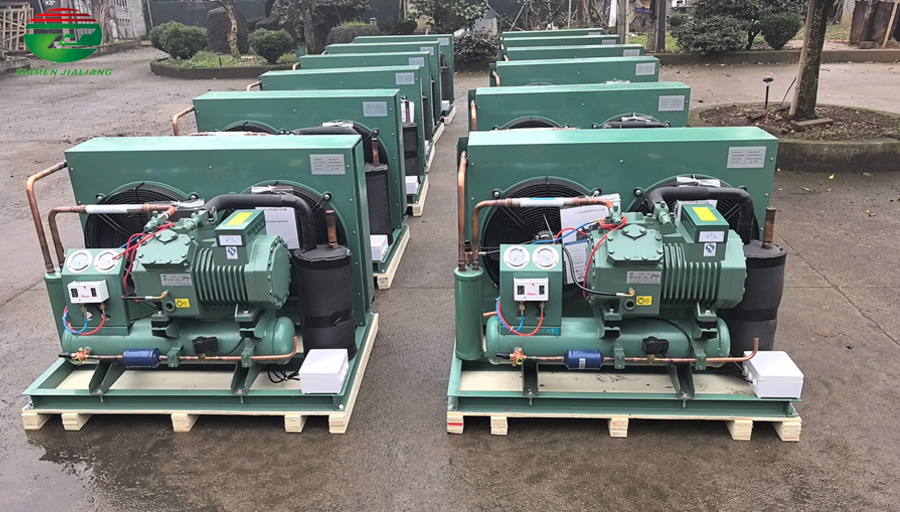

Semi-hermetic Condensing Unit
•Compressor Optional:
Semi-hermetic
•Condenser:Air cooled or Water
cooled(for higher ambient temperature)
•Frame:can be stell shell with spray painting or open type on stell frame
•Refrigerant:R22/R404a/R410a
•Capacity:Singe compressor 2HP-50HP
ZB Condensing Unit
Mid- temperature scroll packaged refrigeration unit is equipped with ZB scroll compressor
It is suitable for the cold- storage temperature from +10 to -30℃

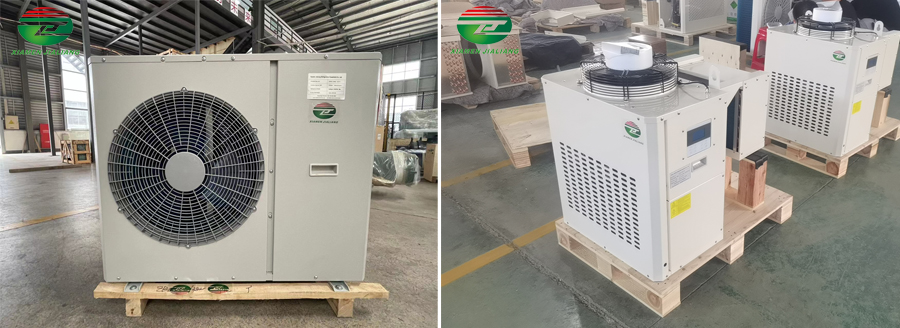

Monoblock Unit
Small, convenient to install, just cut a hole on cold room and install it.
| Model | Temperature | Application |
| DL | -5~+15°C | Fruit,vegetable,flower |
| DD | -18~-10°C | Frozen meat, fish, seafood. |
| DJ | -25~-20°C | Ice cream |
The machine is packaged in export wooden boxes, the cold room panel is wrapped with wrapping film, and the accessories are packaged in cardboard boxes
Xiamen Jialiang is the leading cold room and refrigeration unit designer, manufacturer and exporter, which dedicated in supplying finest quality Cold Room, Epaporator, Condensing Unit, Door and PU Panel, etc. Product innovation and customer satisfaction are our long term commitment to all our partners.
| Q1: Can you customize our size? |
| A1: Sure, our products are all customized and can be designed according to your needs |
| Q2: Is it possible to achieve both refrigeration and freezing effects? |
| A2: Yes, the temperature can be adjusted. However, there is a large gap between the two temperatures, so they cannot be stored at the same time and can only be stored in batches. |
