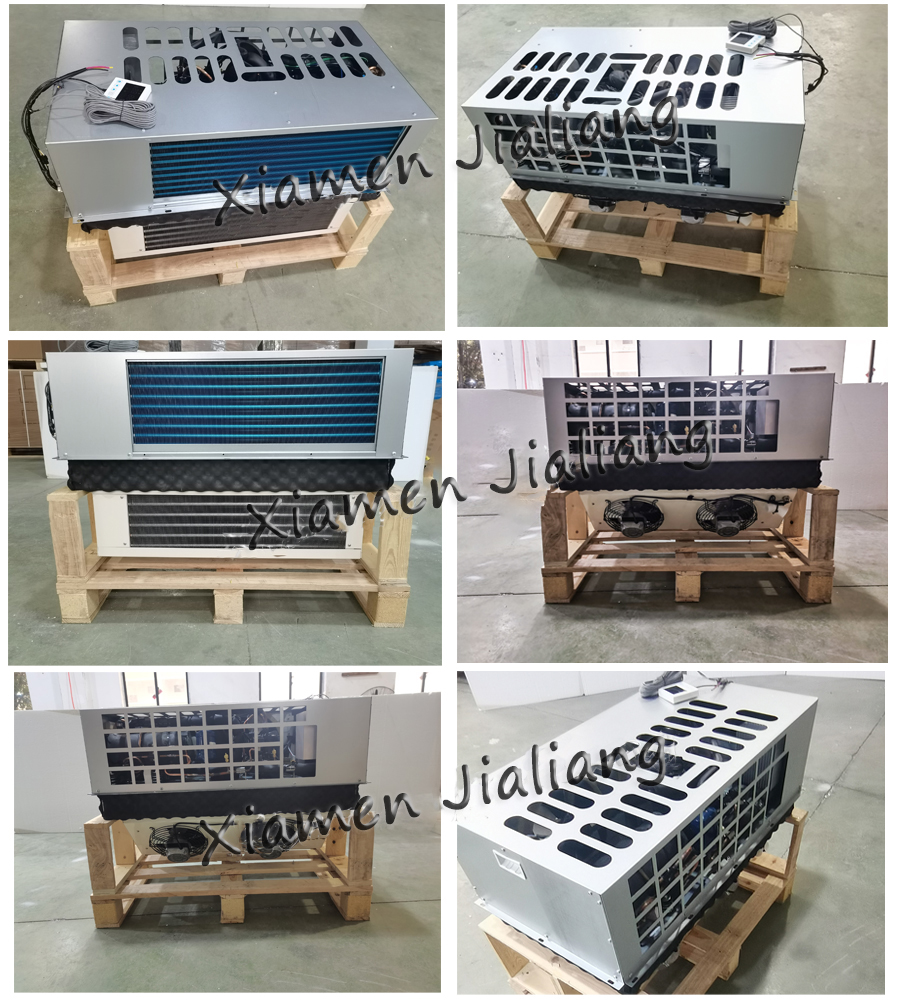

XMJL 3HP Air Cooled Wall Mounted Monoblock Condensing Unit
  • XMJL 3HP Air Cooled Wall Mounted Monoblock Condensing UnitXMJL 3HP Air Cooled Wall Mounted Monoblock Condensing UnitXMJL 3HP Air Cooled Wall Mounted Monoblock Condensing UnitXMJL 3HP Air Cooled Wall Mounted Monoblock Condensing UnitXMJL 3HP Air Cooled Wall Mounted Monoblock Condensing UnitXMJL 3HP Air Cooled Wall Mounted Monoblock Condensing Unit
    • XMJL 3HP Air Cooled Wall Mounted Monoblock Condensing Unit

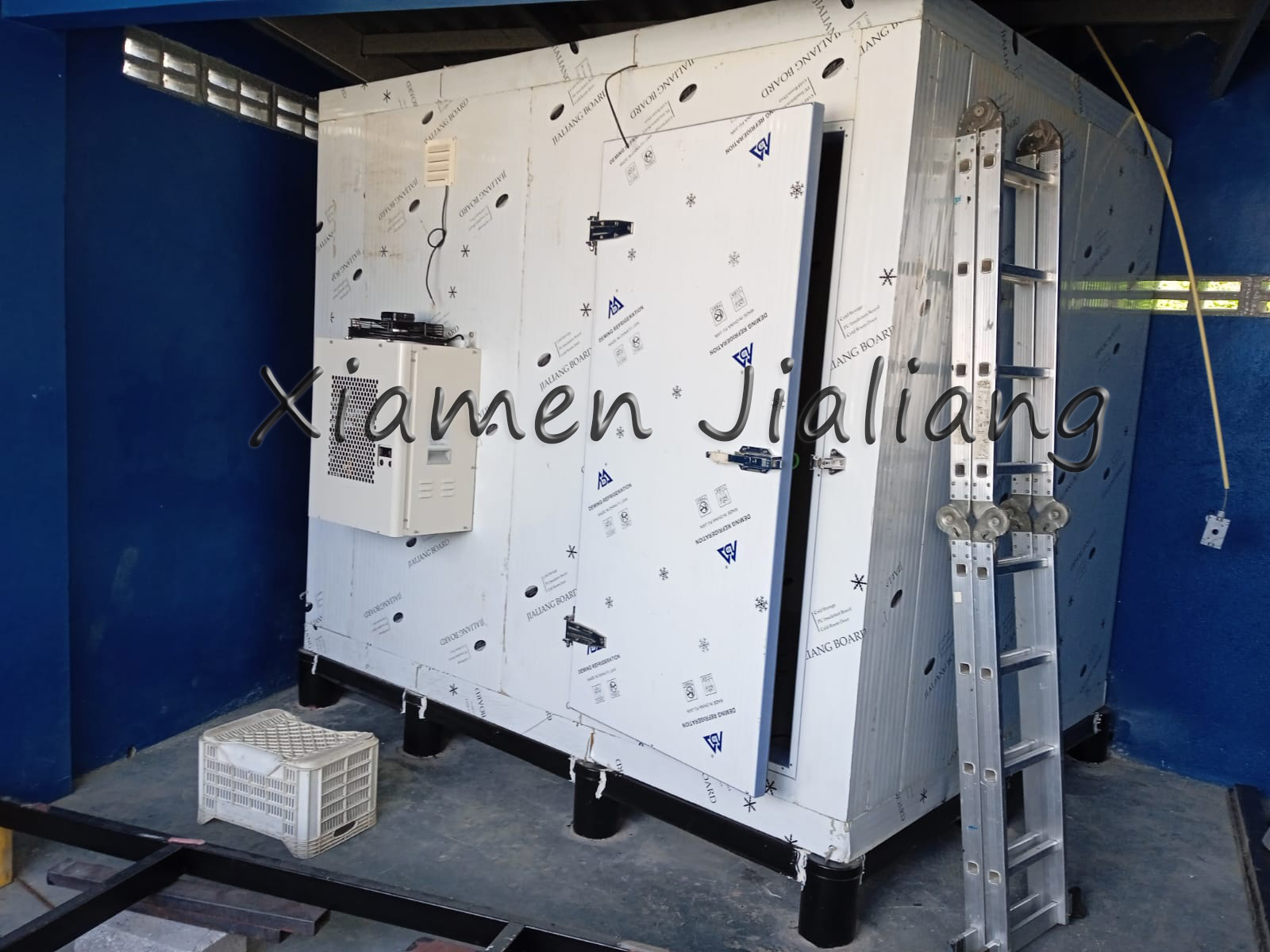

      • Integrated embedded installation, can run immediately upon power connection

    • Get A Quote
    • Description
    • Features

    Product Description

    XMJL 3HP Air Cooled Wall Mounted Monoblock Condensing Unit

    Side Embedded Fixed Frequency Monoblock Unit
    ModelVoltagePowerPackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-YTCN10220V220V/50Hz670*880*800113≤7m³≤12m³
    220V/60Hz
    XMJL-YTCN20220V220V/50Hz820*1000*1000130≤15m³≤25m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN30220V220V/50Hz1050*1000*1000165≤25m³≤40m³
    220V/60Hz
    380V380/50Hz
    XMJL-YTCN40380V380/50Hz1120*1070*1060190≤35m³≤55m³

    Side Embedded Frequency Conversion Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL-BYTCN10220V/50HZ/60Hz670*880*800113≤7m³≤12m³
    XMJL-BYTCN20220V/50HZ/60Hz820*1000*1000130≤15m³≤25m³
    XMJL-BYTCN30220V/50HZ/60Hz1050*1000*1000165≤25m³≤40m³
    XMJL-BYTCN40220V/50HZ/60Hz1120*1070*1060185≤35m³≤55m³

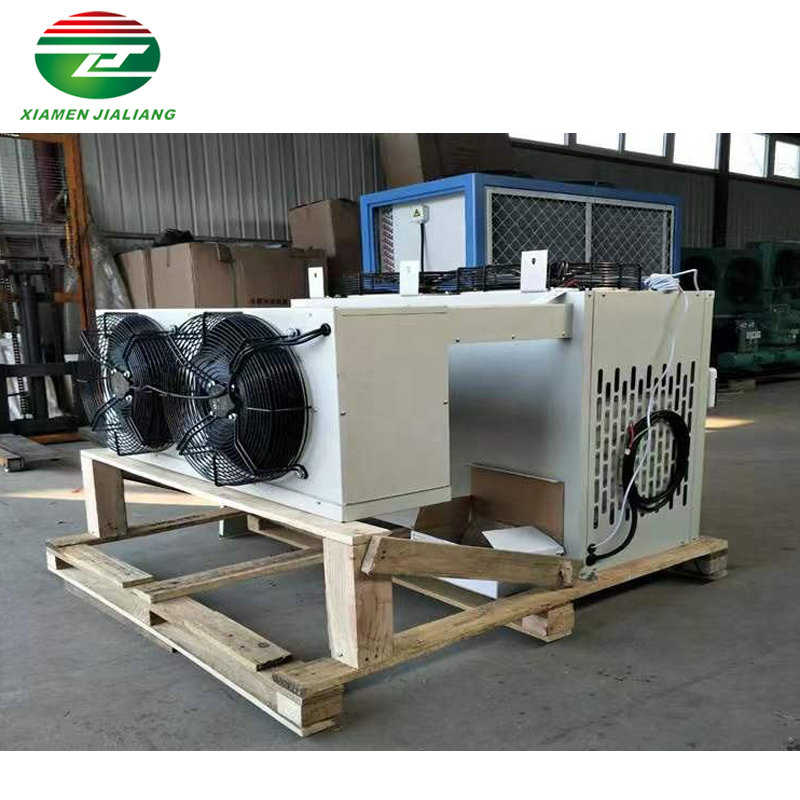

    Top Mounted Fixed Frequency Monoblock Unit
    ModelSupply VoltagePackaging Size (mm)Product Weight(kg)Freezer Room VolumeCold Room Volume
    XMJL--YTDN10220V/50Hz1000*570*81095≤7m³≤12m³
    220V/60Hz
    XMJL--YTDN20220V/50Hz1240*635*810125≤15m³≤25m³
    220V/60Hz
    380/50Hz
    XMJL--YTDN30220V/50Hz1410*670*865150≤25m³≤40m³
    220V/60Hz
    380V/50Hz

    Horse Power3HP
    Refrigeration Capacity5843 W
    Storage Capacity (0 ℃)50m³
    Power2.4 KW
    Voltage220/380 V
    External Size (L*W*H(mm))888*920*855
    Hole Size (L*W*H(mm))890*490

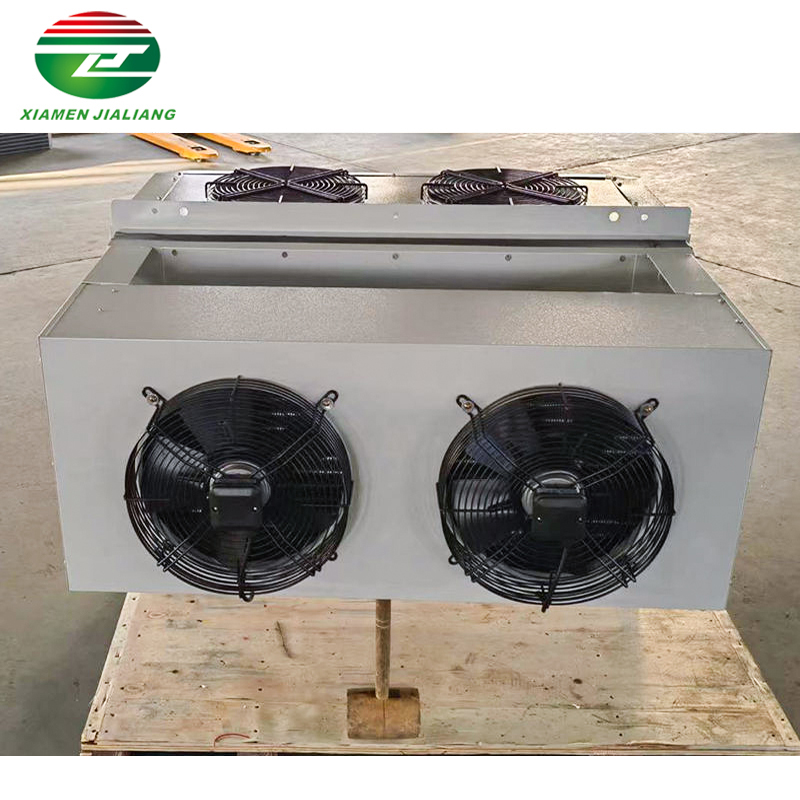

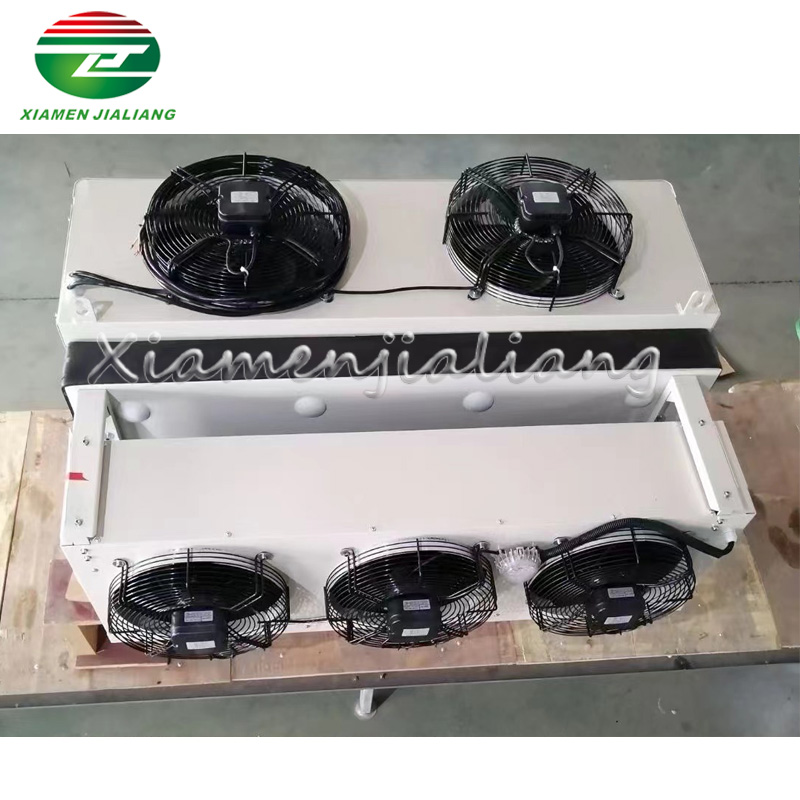

    Evaporation Fan Parameters
    Motor Power85 W
    Blade Diameter300 mm
    Number of Fans2
    Air Volume3200 CMH

    Condensing Fan Parameters
    Motor Power85 W
    Blade Diameter300 mm
    Number of Fans1
    Air Volume3600 CMH




    Customized Services

    ● One-piece design, embedded installation.

    ● Compact structure, easy to install, only need to be embedded in the corresponding size window reserved on the side plate of the cold storage, and the installation can be completed within 20 minutes.

    ● Fully intelligent control system, power-on self-checking and debugging, no debugging, no need for professional senior installation technicians.

    ● Provide maintenance suggestions and fault diagnosis independently, and the operation can be single, saving labor and time.

    ● Outdoor waterproof design.


    FAQ

    Q1: What is XMJL monoblock condensing unit (one-piece unit)?

    A1: "XMJL monoblock condensing unit(one-piece unit) is a comprehensive refrigeration equipment that combines the cold storage and refrigeration system into a single unit."

    Q2: What are the advantages of XMJL monoblock condensing unit?

    A2: The advantages of XMJL monoblock condensing unit include easy installation, small footprint, and stable operation.

    Q3: Where is the XMJL monoblock condensing unit suitable for use?

    A3: The XMJL monoblock condensing unit is suitable for various applications, such as food processing, supermarkets, pharmaceuticals, and more.

    Q4: What is the temperature range of the XMJL monoblock condensing unit?

    A4: The temperature range of the XMJL monoblock condensing unit can typically be adjusted between -18 degrees Celsius to 10 degrees Celsius.
