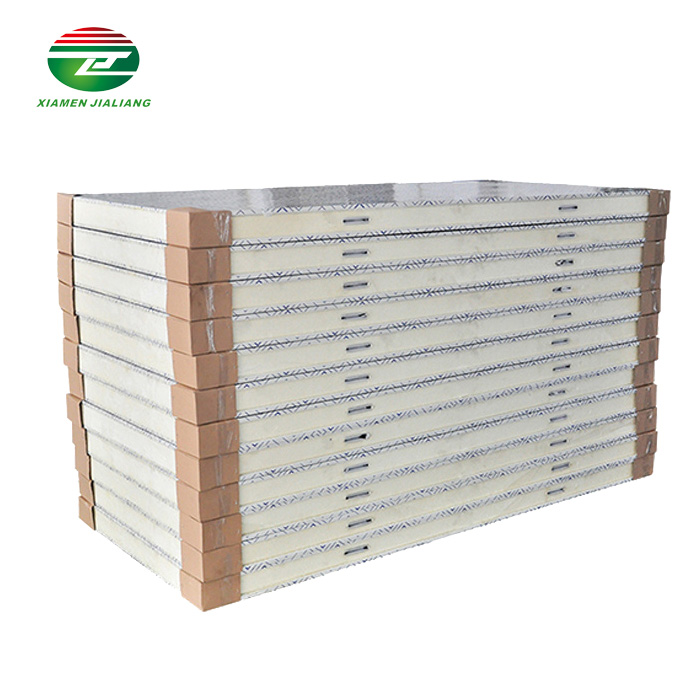

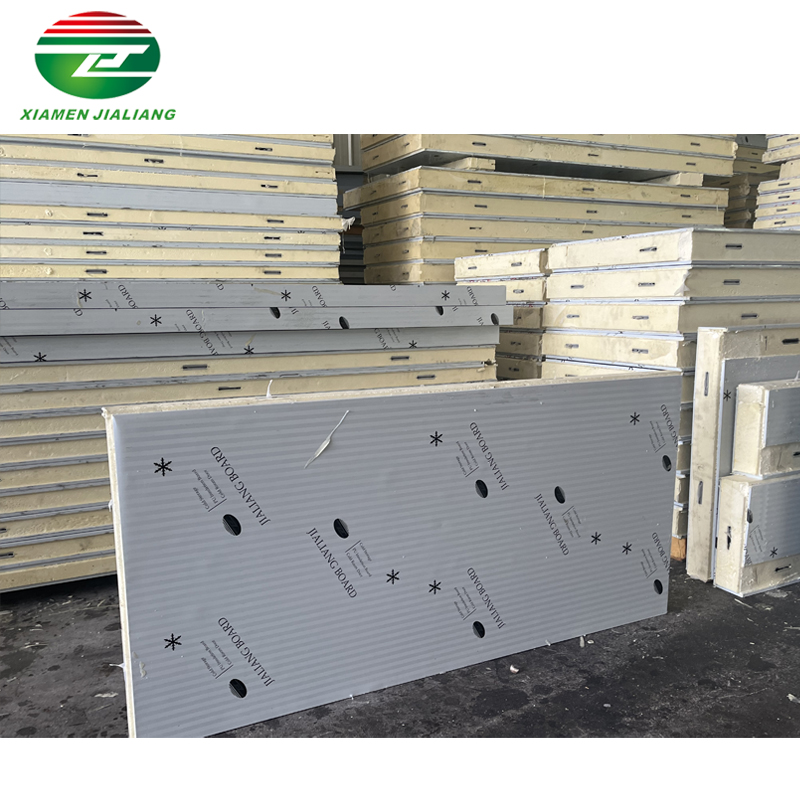

PU Sandwich Panel is a sandwich panel consisting of two layers of metal sheet and an insulation layer in between.
- Description
- Features
Product Description

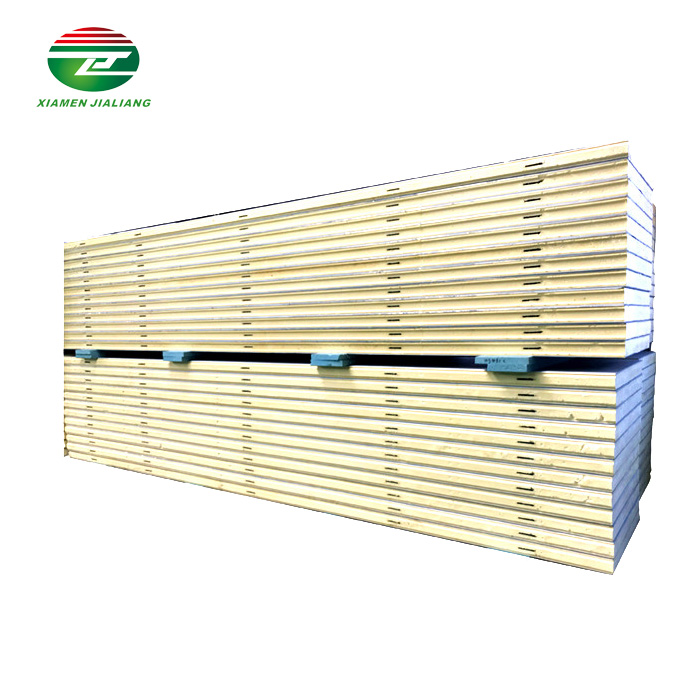

High Quality Cam Lock Pu Sandwich Panel
| Density (Kg/m3) | 38-45 |
| Bending Strength (Mpa) | >0.25 |
| Compressive Strength (Mpa) | >0.2 |
| Thermal Conductivity(W/n℃) | <0.022 |
| Water absorption (KG/m3) | <0.30 |
| Self-extinguish time (S) | <7S |
| Dimension | Length(m)*Width(m)*Height(m) |
| Panel | New material polyurethane insulation panel,40~45kg/m3 |
| Width of Panel | 960mm, ect. (customized) |
| Height of Panel | 1 to 12m |
| Panel thickness | 50mm,75mm,100mm, 120mm,150mm,200mm |
| Type of door | Sliding door,swing door,double door |
| Temp. of room | -60℃~+20℃ optional |
| Company Certifications | ISO 9001: 2000 SGS SASO CE |
| Business Type | Manufacturer |
| Panel Thickness | Suitable Temperature for Cold Room | Stroge Product |
| 50mm | 5℃~15℃ | Fruit,Vegetable,Flower |
| 100mm | -15℃~5℃ | Tea,Cheese,French fries |
| 120mm | -15℃~-20℃ | Meat,Seafood |
| 150mm | -20℃~-30℃ | Ice cream,Shrimp |
| 200mm | below -30℃ | Frozen food,Tuna |
Customized Services
FAQ
Q1: Do panels require regular maintenance? |
A1: Yes, panels need regular inspections and maintenance to ensure their insulation performance and integrity, preventing damage or leaks. |
Q2: What should I do if panels are damaged? |
A2: If panels are damaged, you should immediately contact a professional repair team to fix them, ensuring the normal operation of the cold storage. |
Q3: Will panel repairs affect the normal operation of the cold storage? |
A3: During panel repairs, there might be a need to temporarily halt the use of the cold storage to ensure the safety and effectiveness of the repair work. |
Q4: What is the lifespan of panels? |
A4: The lifespan of panels depends on their materials, usage environment, and maintenance. Generally, proper maintenance can extend the lifespan of the panels. |
