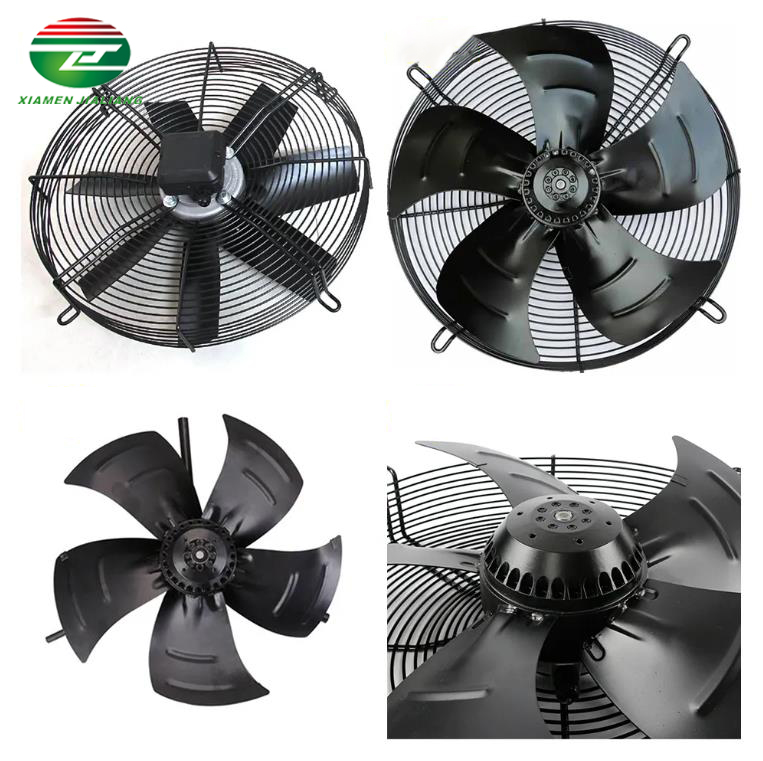

380v Industrial Axial Flow Fan For Evaporator Condenser Design
Product Introduction
1）The fan rotor is directly welded by rotor and blade, it adopts double-sided dynamic balance.
2）The fan blade, rotor and grid are all powder sprayed, the surface is smooth, bright and corrosion-resistant.
3）The motor cover is also special handled, which helps the cover free from oxidized.Fan normal ambient temperature:-25°C~+60°C.
| Axial Fan Parameter | |||||
| Model | Diameter(mm) | Voltage（Ｖ） | InputPow（W） | Air Volume Max(m³/h) | Speed(RPM) |
| YWF4E-200-E5Z | 200mm | 380V | 35W | 385 | 1465 |
| YWF4D-200-E5Z | 200mm | 220V | 22W | 385 | 1400 |
| YWF4E-250 -E5L | 250mm | 380V | 50W | 915 | 1450 |
| YWF4D-250 -E5L | 250mm | 220V | 50W | 900 | 1430 |
| YWF4E-300-E5L | 300mm | 380V | 100W | 1920 | 1325 |
| YWF4D-300-E5L | 300mm | 220V | 100W | 1950 | 1360 |
| YWF4E-350 -E5L | 350mm | 380V | 150W | 2350 | 1380 |
| YWF4D-350 -E5L | 350mm | 220V | 150W | 2470 | 1380 |

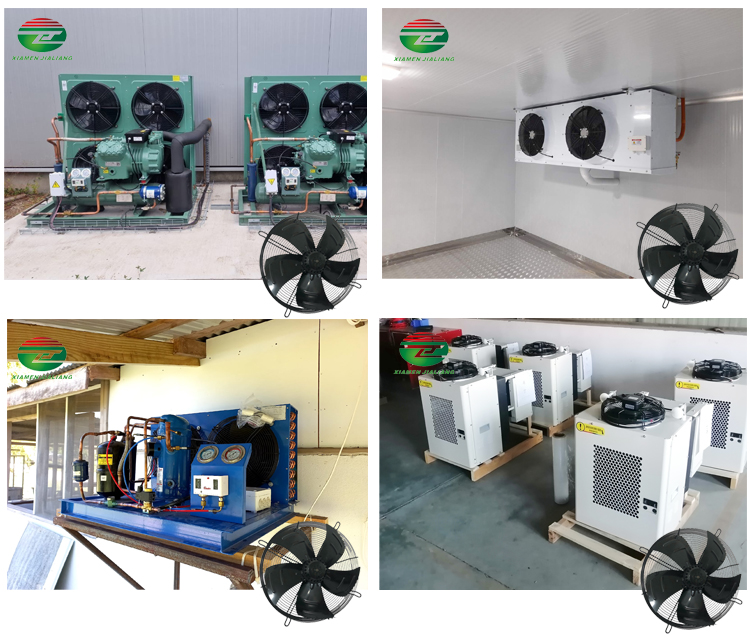

Project Show

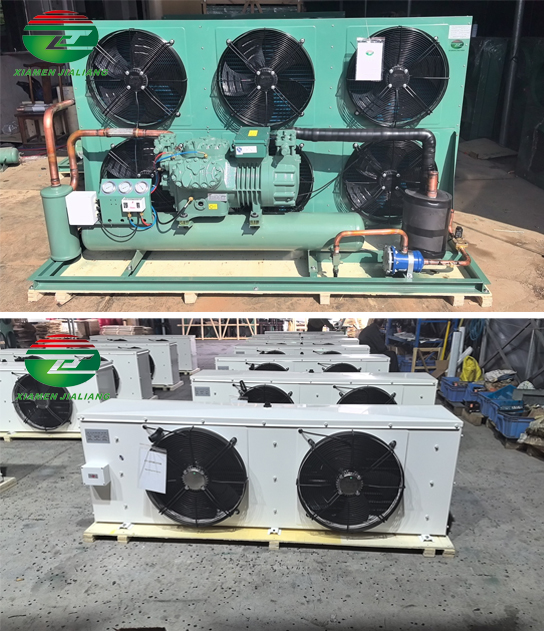

Application Scenarios

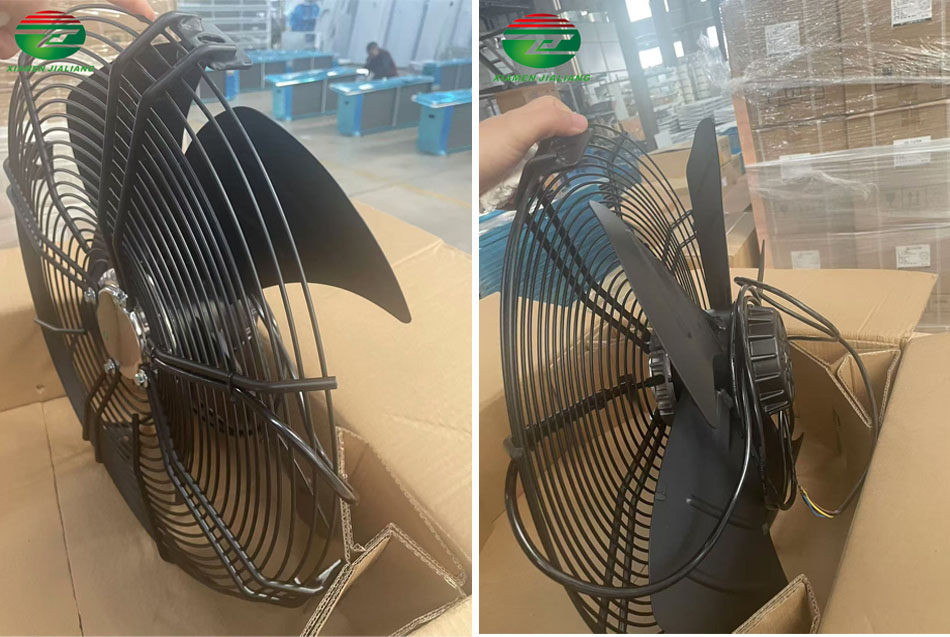

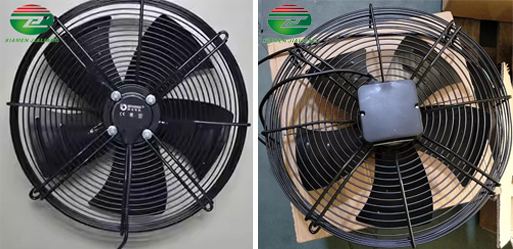

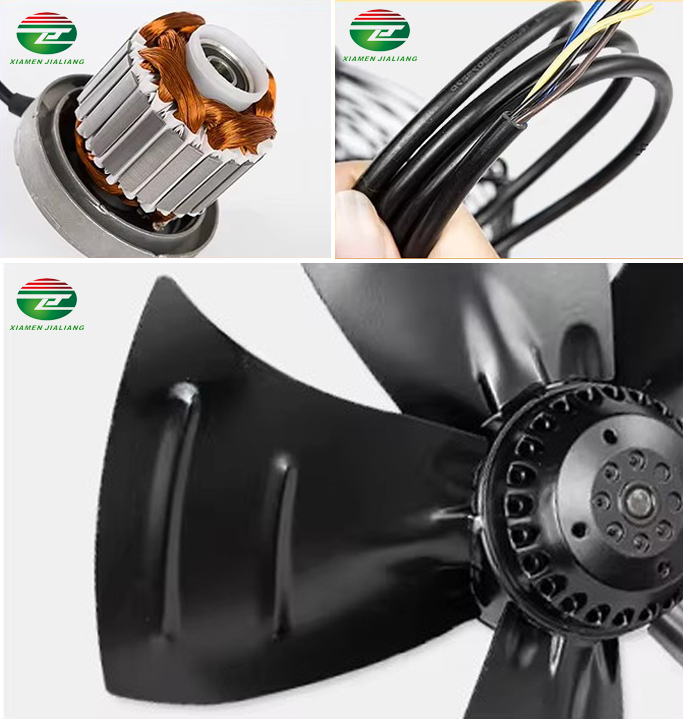

Quality Details

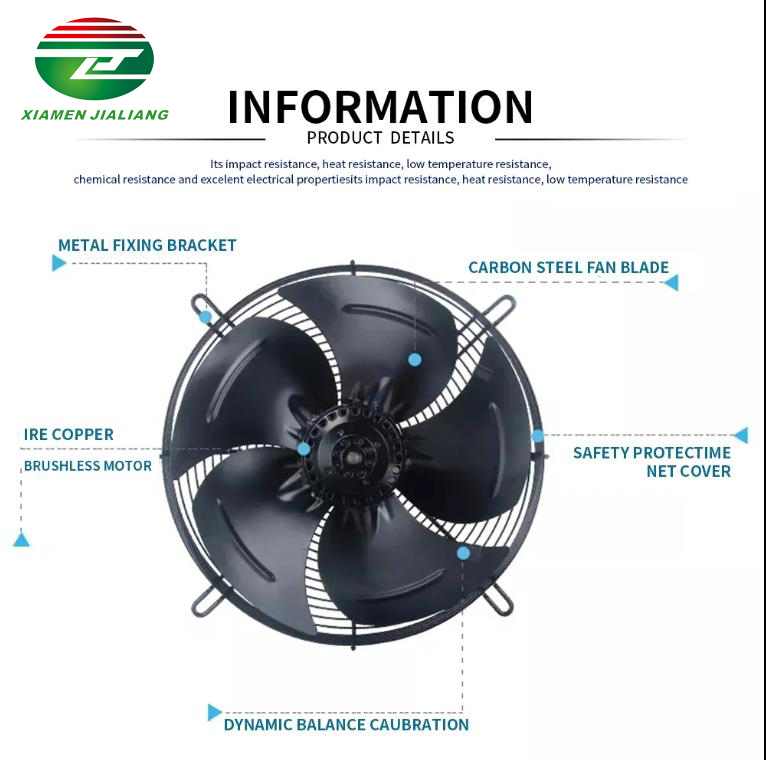

1.PURE COPPER WIREOUTER ROTOR MOTOR
100% pure copper wire.Low energy consumptionand durable Strong security
and stability.
2.MOISTURE-PROOFAND WATERPROOF
machine runs stablyin harsh and humidenvironment.
3.METAL FAN BLADE
Streamlined wind design,small booster, anti-rustSpray corrosion resistantand easy to clean.

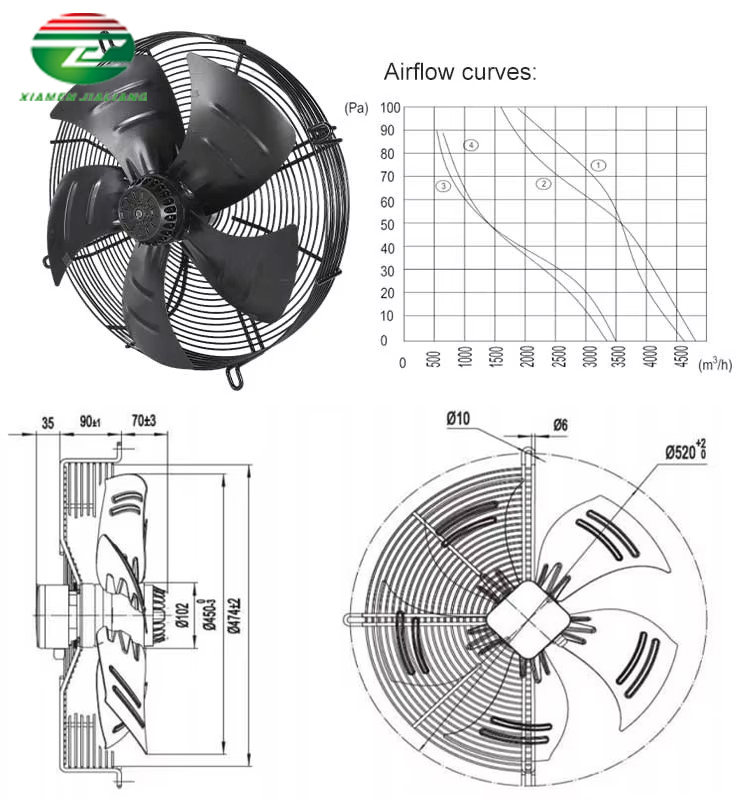

| Model | Voltage(v) | Frequency(HZ) | Curent(A) | Input power(w) | Speed(R/MIN) | Capacitor(UF) | N.W,(KG) | Noise(dBA) | Max Airflow(m/h) |
| YWF-4E450 | 220 | 50 | 1.15 | 255 | 1350 | 8 | 8.0 | 67 | 5350 |
| YWF-4D450 | 380 | 50 | 0.60 | 255 | 1360 | 8 | 8.0 | 68 | 5390 |

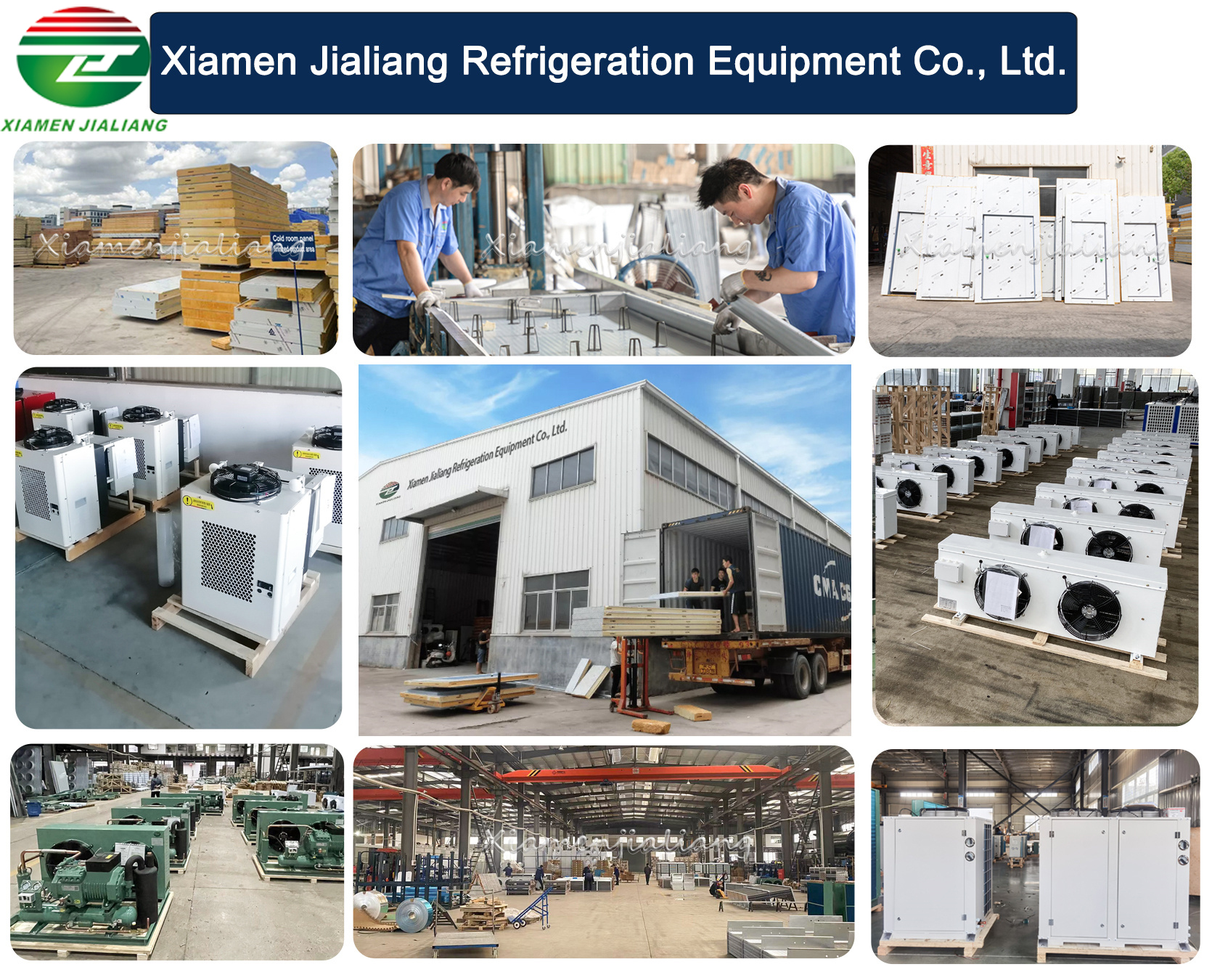

Factory Workshop
Jialiang is a Xiamen, China headquartered high growth cold chain company that designs, installs, and commissions refrigeration solutions for industrial and commercial clients. Jialiang has 25 years experience in the cold room market. With an end-to-end, turnkey solution, customers can easily implement refrigeration and cold room solutions into their business processes. Whether you are looking for cold room, refrigeration condensing units, PU panels, evaporator.
Jialiang is the go-to professional manufacturer. True to our brand promise, at "Jialiang- we make sure you are cool". Jialiang prides itself on having excellent technical professionals. This includes licensed architects, highly trained factory staff, research and development experts, and technical sales and support teams. We serve both local and global customers from the US, Canada, South Asia among other regions. You are welcome to have a chat with our technical sales team if you want to make any inquiries or purchases.
Q1: What's your products MOQ? |
A1: We provide you small MOQ for each item, it depends your specific order |
Q2: What are kinds of information provided by the customer before inquiry? |
A2: Please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow. |
