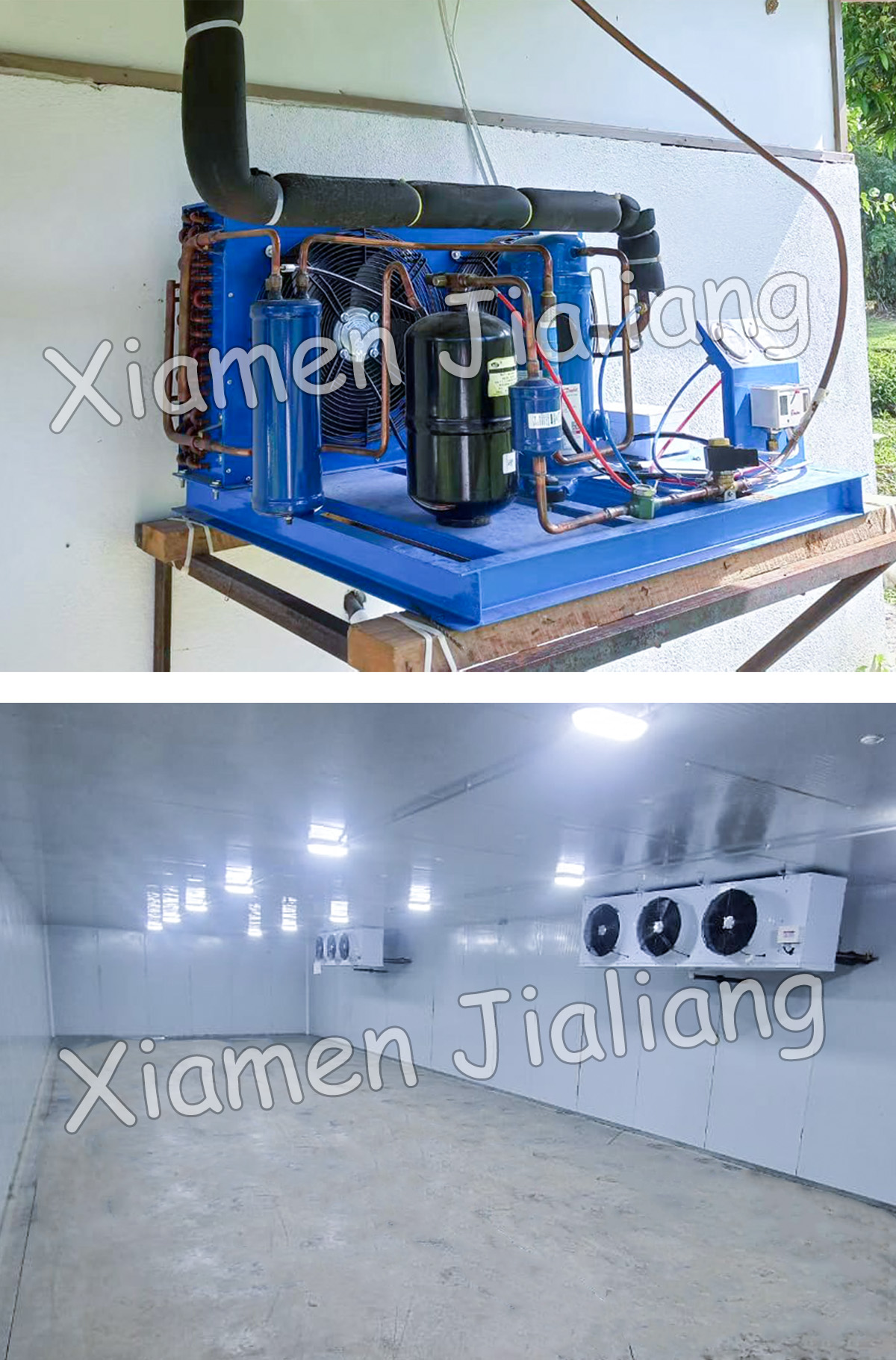

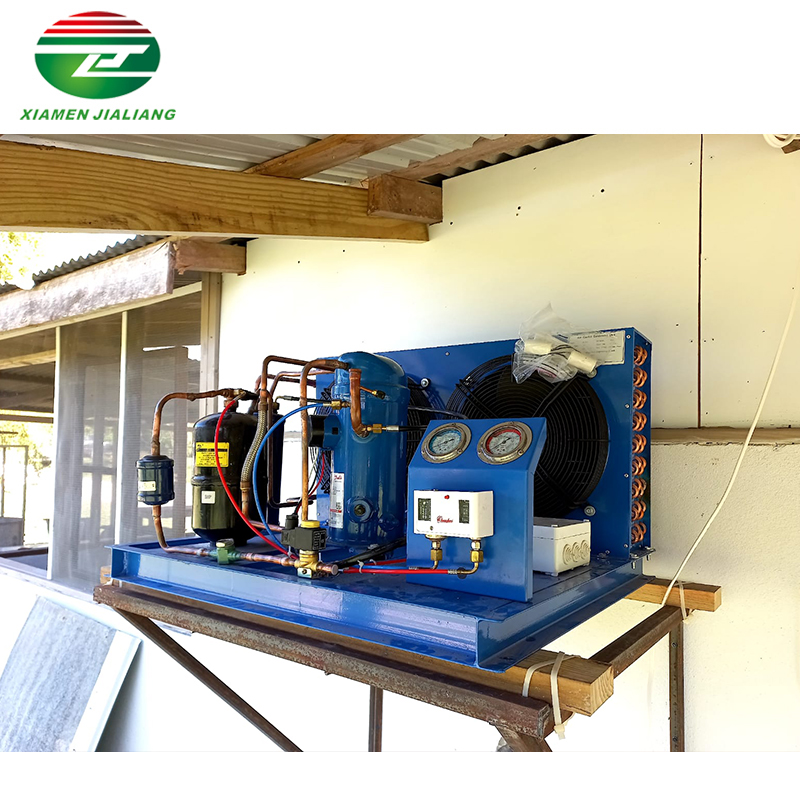

The condensing unit with Danfoss compressor is installed without site restrictions, with a small footprint, compact structure, and convenient packaging and transportation
- Description
- Features
Product Description
Factory Outlet Single Phase Or Three Phase Condensing Unit

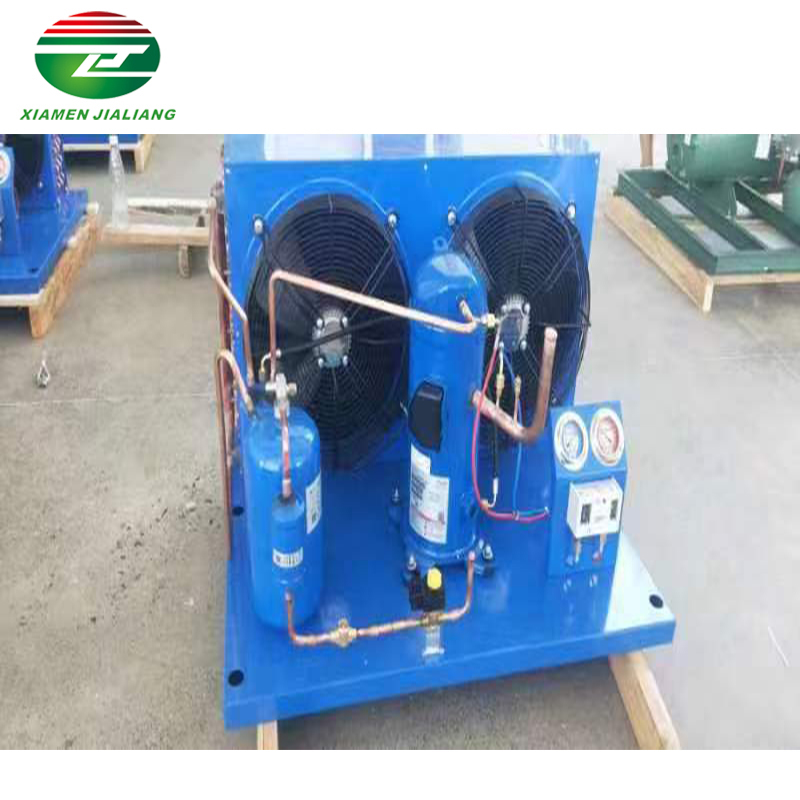

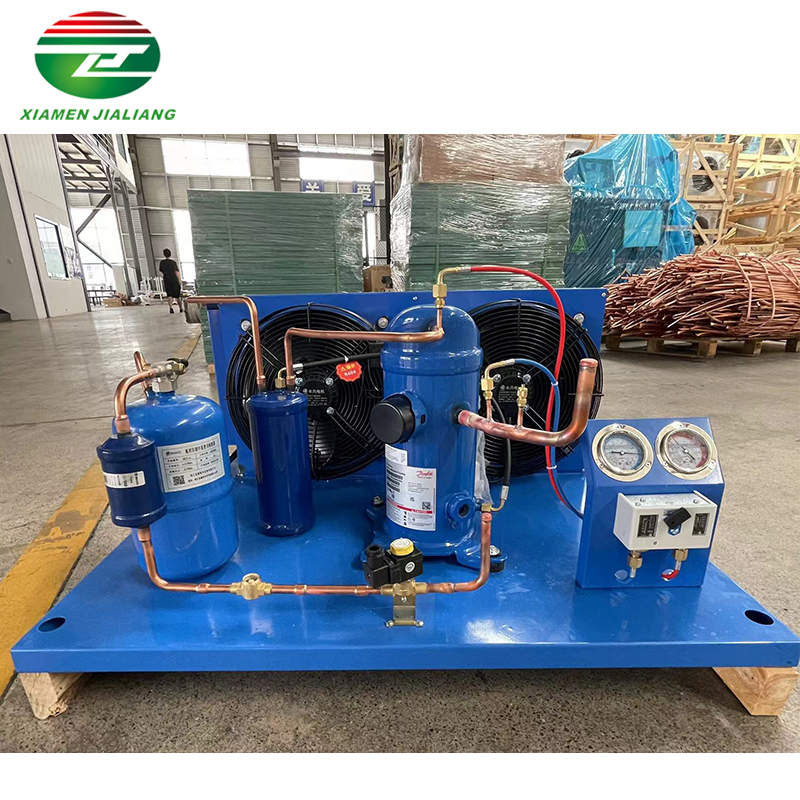

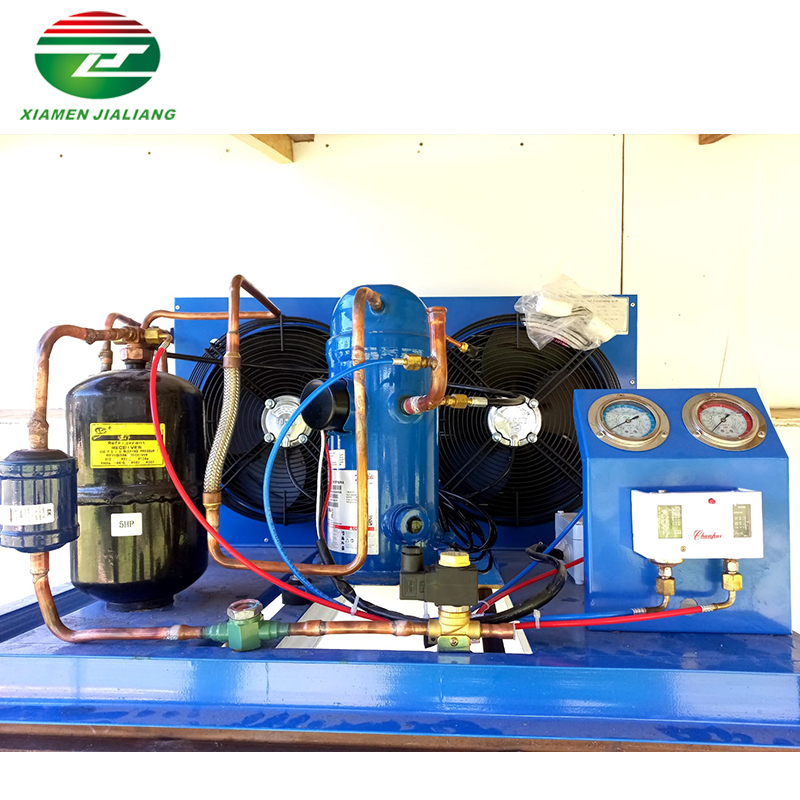

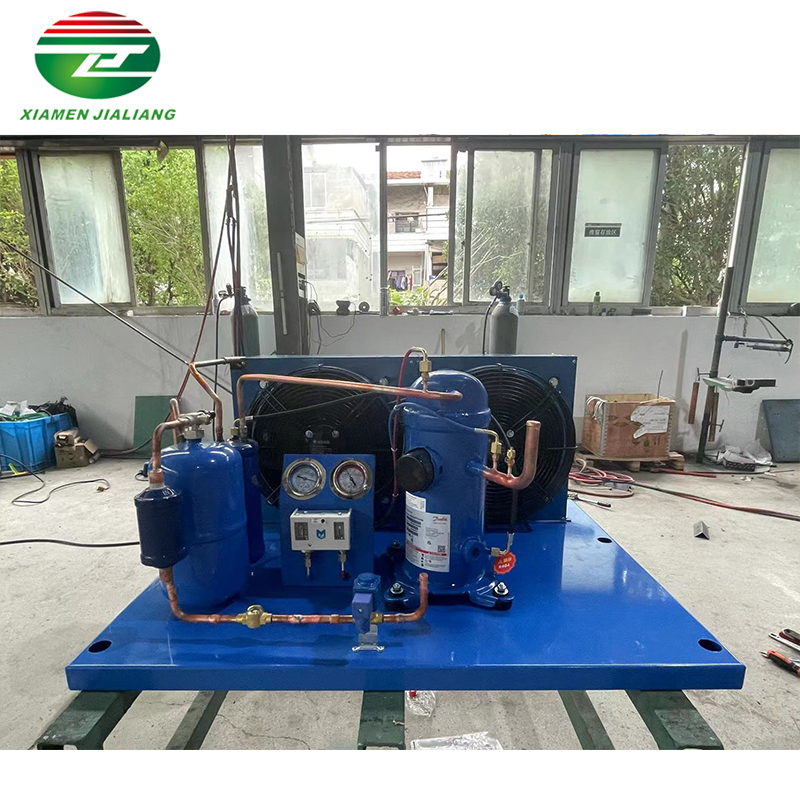

Condensing Unit With Danfoss compressor.
1. Refrigerant: R404a.
2. Temperature Range: -18°C.
3. Original and handsome shape,light and reasonable structure,convenient installation.
4. Use efficient, low power, low noise and strong-wind axial fan motor.
| Single Phase Condensing Unit Special Voltage (60Hz) | ||||||
| Model | MLZ015 | MLZ019 | MLZ021 | MLZ026 | MLZ030 | MLZ038 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP | 5HP |
| Compressor | Danfoss | |||||
| Refrigeration Capacity | 4100W | 5500W | 5800W | 7200W | 8500W | 10200W |
| Btu/h | 14000 | 18800 | 19800 | 24600 | 29000 | 34800 |
| Input Power | 2.1W | 2.58W | 2.74W | 3.44W | 3.9W | 4.7W |
| COP（W/W） | 1.94 | 2.11 | 2.13 | 2.1 | 2.18 | 2.18 |
| EER（Btu/h/W） | 6.62 | 7.2 | 7.27 | 7.17 | 7.44 | 7.44 |
| cm3/rev | 33.8 | 43.5 | 46.2 | 57.1 | 68.8 | 81 |
| m3/h | 7.1 | 9.1 | 9.7 | 12 | 14.4 | 17 |
| Oil Injection Volume | 1.1L | 1.1L | 1.1L | 1.1L | 1.6L | 1.6L |
| Net Weight (With Oil) | 31kg | 31kg | 31kg | 31kg | 37kg | 37kg |
| Condensing Temperature | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ |
| Voltage Range | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） |
| Three Phase Condensing Unit Special Voltage (60Hz) | ||||||
| Model | MLZ015 | MLZ019 | MLZ021 | MLZ026 | MLZ030 | MLZ038 |
| Horse Power | 2HP | 2.5HP | 3HP | 3.5HP | 4HP | 5HP |
| Compressor | Danfoss | |||||
| Refrigeration Capacity | 4100W | 5500W | 5800W | 7200W | 8500W | 10200W |
| Btu/h | 14000 | 18800 | 19800 | 24600 | 29000 | 34800 |
| Input Power | 2.1W | 2.58W | 2.74W | 3.44W | 3.9W | 4.7W |
| COP（W/W） | 1.94 | 2.11 | 2.13 | 2.1 | 2.18 | 2.18 |
| EER（Btu/h/W） | 6.62 | 7.2 | 7.27 | 7.17 | 7.44 | 7.44 |
| cm3/rev | 33.8 | 43.5 | 46.2 | 57.1 | 68.8 | 81 |
| m3/h | 7.1 | 9.1 | 9.7 | 12 | 14.4 | 17 |
| Oil Injection Volume | 1.1L | 1.1L | 1.1L | 1.1L | 1.6L | 1.6L |
| Net Weight (With Oil) | 31kg | 31kg | 31kg | 31kg | 37kg | 37kg |
| Condensing Temperature | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ | 40℃ |
| Voltage Range | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） | 220V（60Hz） |
Customized Services
Our Danfoss condensing unit product advantages
1. High volumetric efficiency: The pressure difference between adjacent spaces of the scroll compressor is small, the leakage is small, there are no suction and discharge valves, the resistance is small, and the volume of the free space does not expand again.
2.The Danfoss compressor adopts a solid cast iron body, providing a large heat dissipation area to improve the cooling effect of the compressor
FAQ
Q1: Does a danfoss condensing unit support automation control? |
A1: Yes, modern danfoss condensing units usually support automation control, allowing automatic adjustment of parameters such as temperature and humidity through intelligent systems, thereby enhancing operational efficiency and stability. |
Q2: What is the noise level of a danfoss condensing unit? |
A2: The noise level of a danfoss condensing unit is typically low, but the specific level depends on the unit's model and design. High-quality units are often equipped with noise reduction technology to minimize noise. |
Q3: How long does it take for a danfoss condensing unit to start? |
A3: The start-up time of a danfoss condensing unit depends on its model and specifications. In general, it takes several minutes to several hours to reach a stable operating state after start-up. |
Q4: What is the temperature control accuracy of a danfoss condensing unit? |
A4: The temperature control accuracy of a danfoss condensing unit is usually high, enabling precise temperature control to ensure that stored goods remain within the desired temperature range. |
