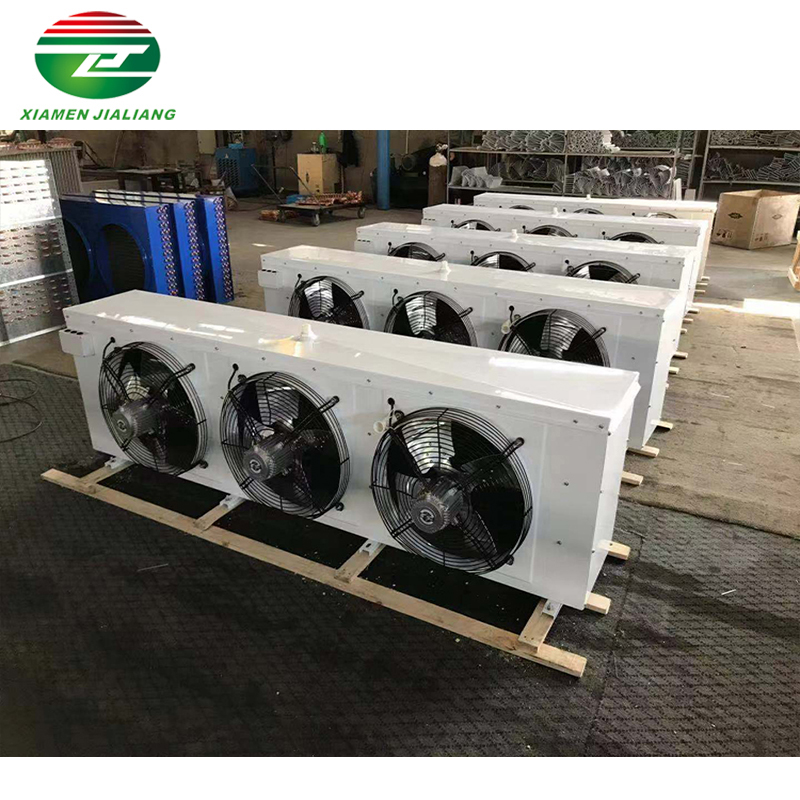

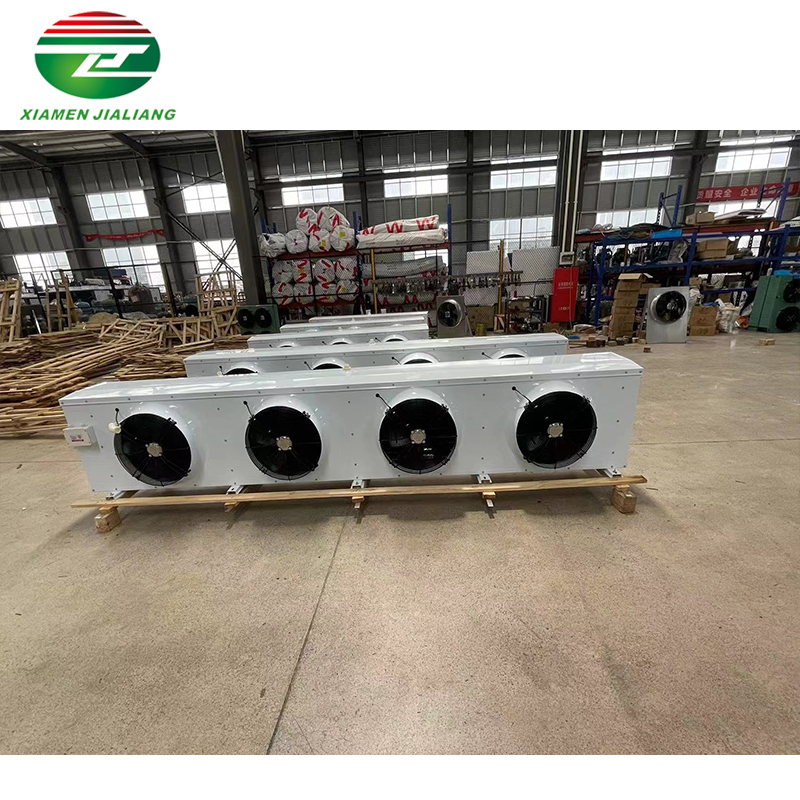

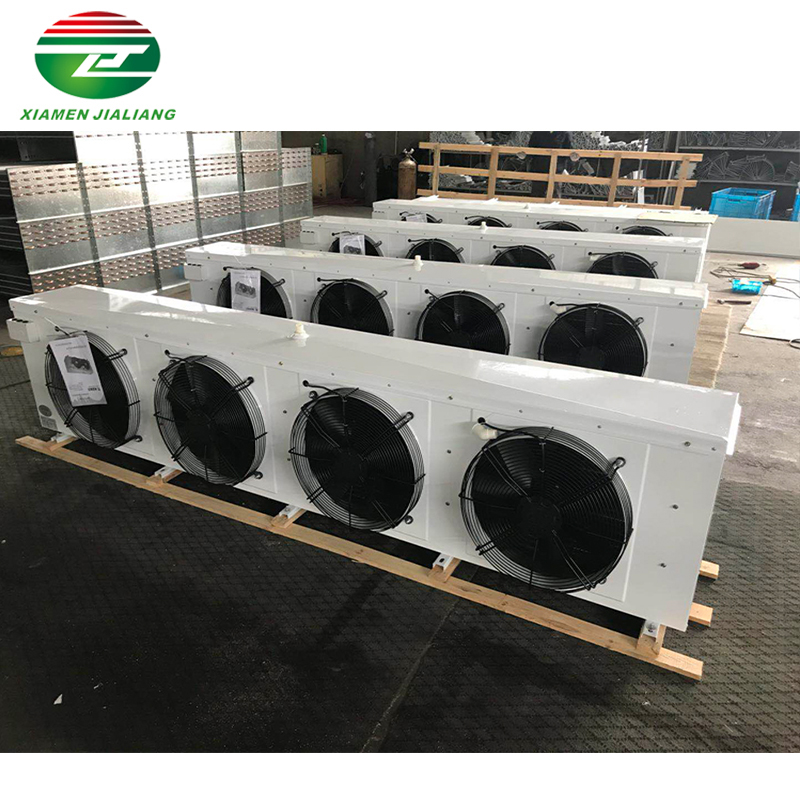

Factory Outlet Easy To Assemble Cold Room Evaporator
  • Factory Outlet Easy To Assemble Cold Room EvaporatorFactory Outlet Easy To Assemble Cold Room EvaporatorFactory Outlet Easy To Assemble Cold Room EvaporatorFactory Outlet Easy To Assemble Cold Room EvaporatorFactory Outlet Easy To Assemble Cold Room EvaporatorFactory Outlet Easy To Assemble Cold Room Evaporator
    • Factory Outlet Easy To Assemble Cold Room Evaporator

      • DJ series low temperature type cold room evaporator, suitable for cold rooms between -23 ℃

    • Get A Quote
    • Description
    • Features

    Product Description

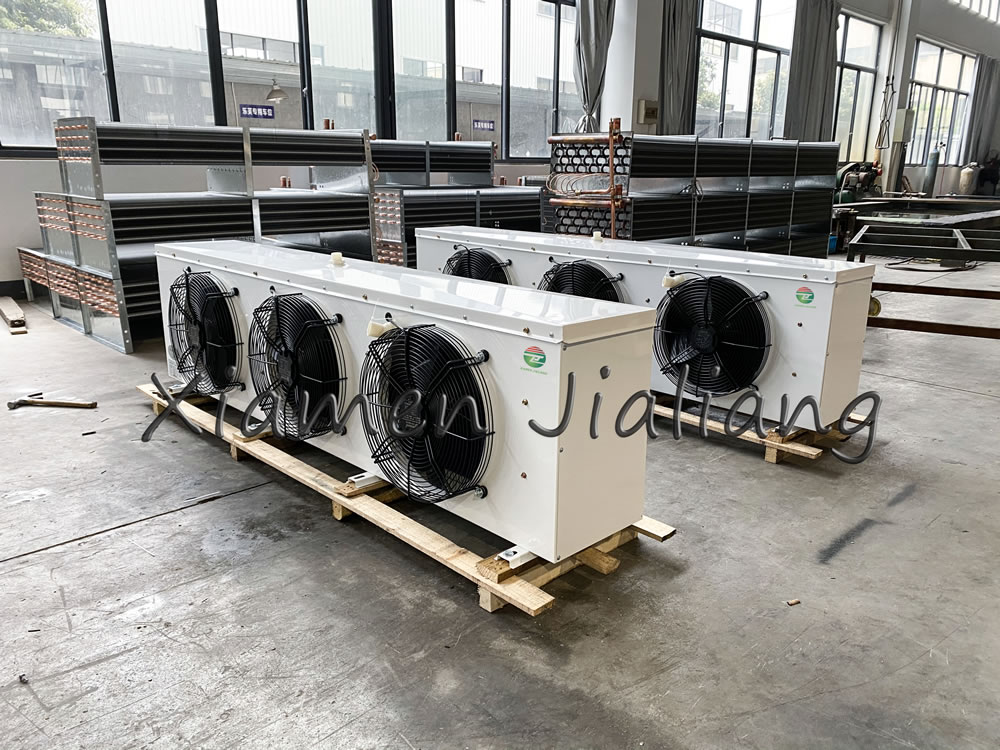

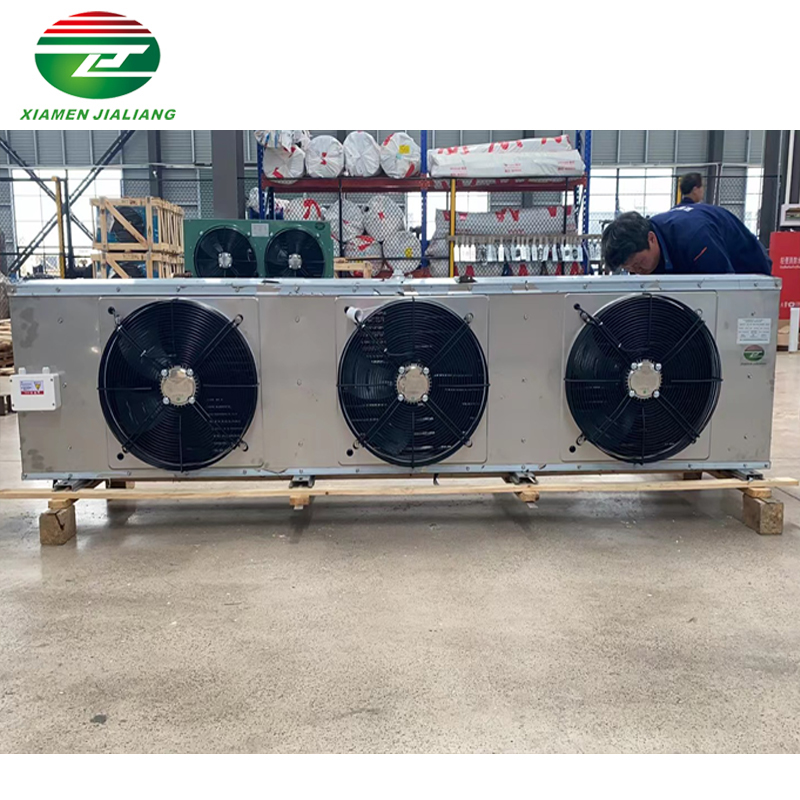

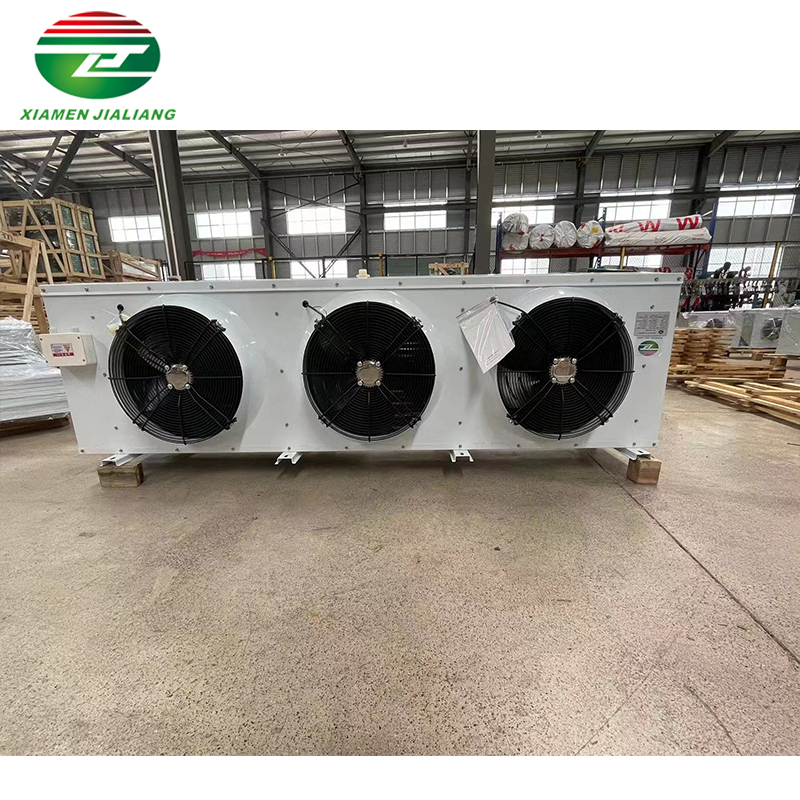

    Factory Outlet Easy To Assemble Cold Room Evaporator

    Cold room evaporator is widely applied to food processing, oil and energy industry, logistics & warehousing. It can be installed in cold room, warehouse, supermarket, workshop, airport , machine room etc.

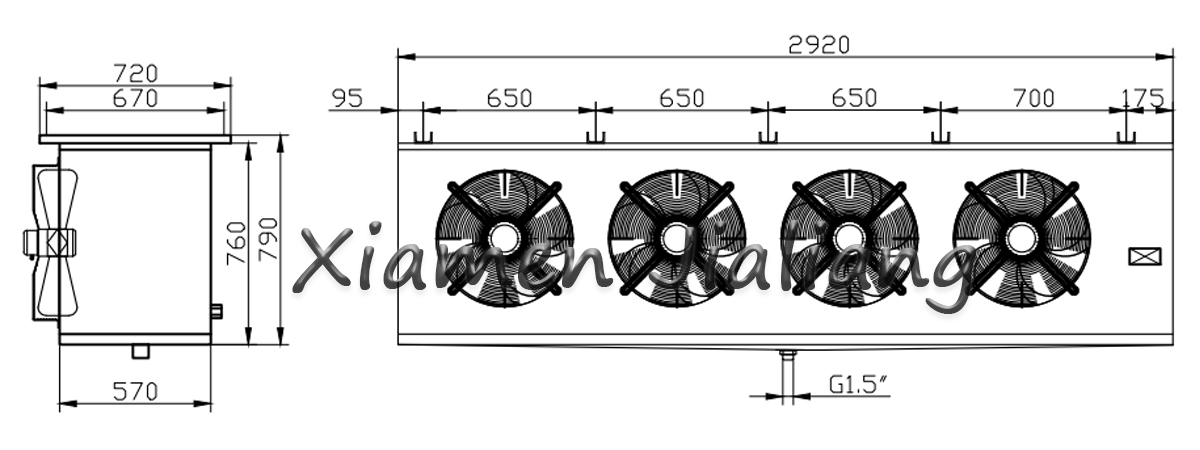

    ModelDJ70DJ85DJ100DJ115
    Refrige-Rating Capacity10.9KW13.2KW15.5KW17.8KW
    Cooling Area70㎡85㎡100㎡115㎡
    Diameter of Feed Inlet19mm19mm25mm25mm
    Diameter of Tail Pipe38mm38mm42mm42mm
    Wind Rate5400*3m³/h5400*3m³/h5400*4m³/h5400*4m³/h
    Quantity3N3N4N4N
    Fan Blade450mm450mm450mm450mm
    Voltage380v380v380v380v
    Power3*280W3*280W4*280W4*280W
    Air Throw15m15m15m15m
    Coil Unit8.0KW8.5KW10.0KW11.0KW
    Drain Pan1.6KW1.7KW2.0KW2.2KW




    Fin pitch: 9.0mm

    Fan equipped with external rotor: 4X4D500

    Air volume: 4X6700 cubic meters/hour

    Electric heating tube power: 8X2.6KW

    Inlet pipe: Φ 25

    Return steam pipe: Φ 50

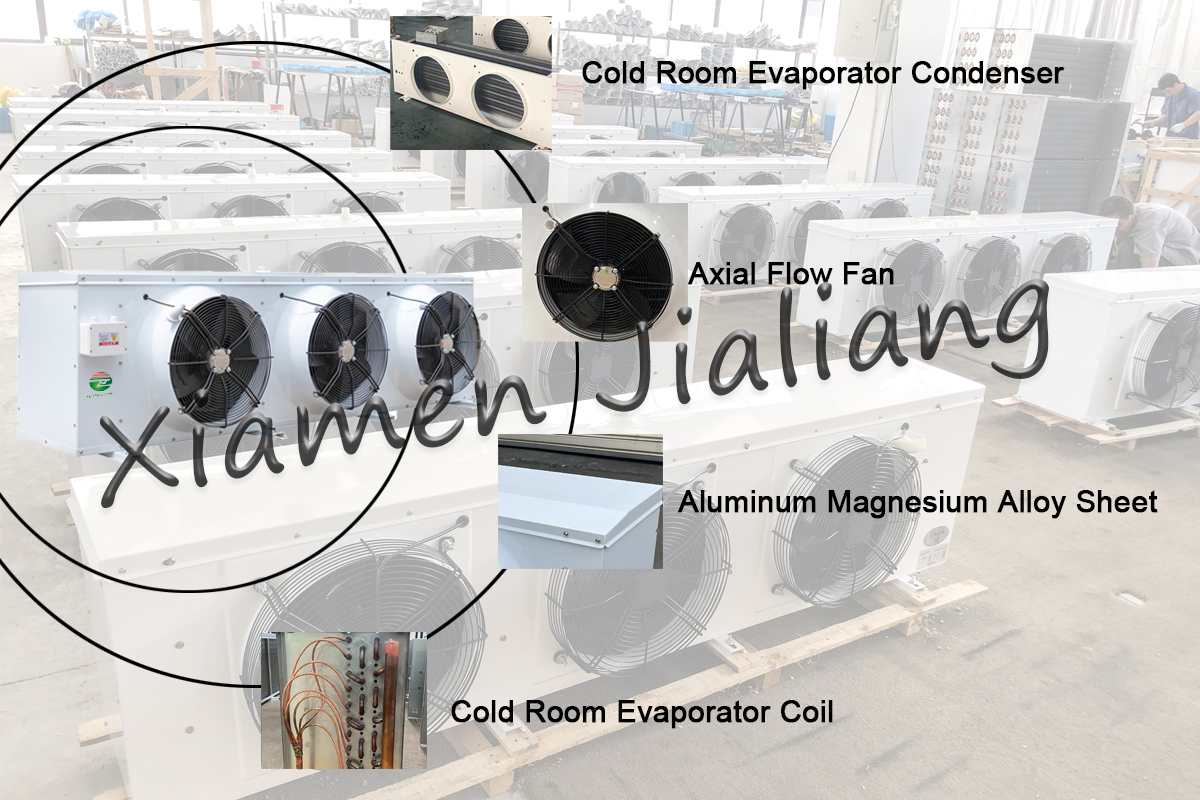

    The outer frame is made of galvanized sheet and sprayed with plastic; liquid inlet on the right side.

    Customized Services

    On site factory

    A. Individuation & Customization

    Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.


    B. Excellent warranty

    XiamenJialiang provides up to one year warranty period. If there is any product quality problems, we provide excellent service to solve your worries.




    FAQ

    Q1: I was wondering how can I get a DJ evaporator that I want?
    A1: Because the express cost varies greatly, send us an inquiry and we will check the shipping cost and stock

    Immediately so that you can get the product quickly.

    Q2: I want to know what is the warranty period of the cold storage DJ evaporator you want to buy?
    A2: One year warranty: non-artificial damage we give warranty
    Q3: I want to know how the vaporizer DJ vaporizer is packaged.
    A3: Plywood boxes.
    Q4: I'm curious how you ensure the quality of DJ evaporators?
    A4: We always do pre-production samples before mass production and final inspection before shipment; to ensure the quality of the product
    Q5: How can I get a DJ evaporator OEM order?
    A5: Usually by sea, if you only need samples, if you want to ship by air or by express, the cost incurred should be borne by the customer.
