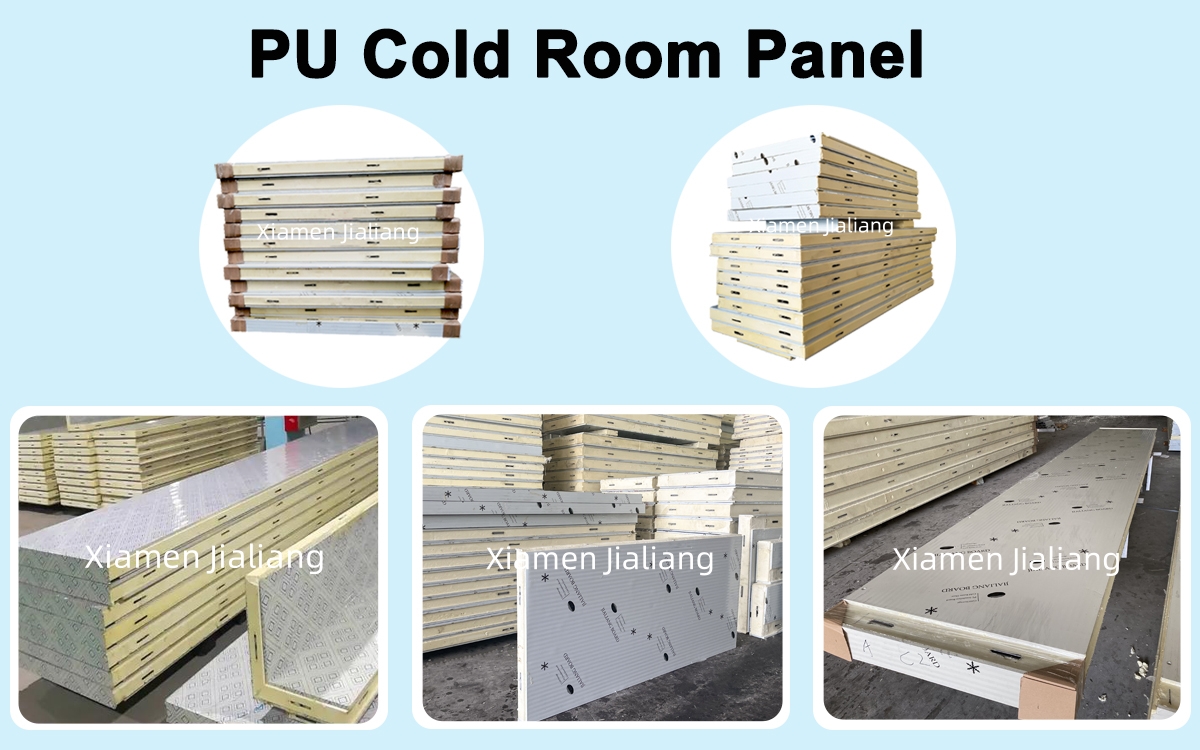

Easy To Install Customized Pu Sandwich Panels for Cold Room
Feature:
The polyurethane cold room panel uses lightweight polyurethane as the inner material of the cold room panel. The advantage of polyurethane is that its insulation performance is very good. The outer part of the polyurethane cold room panel is made of colored steel plates and stainless steel plate components. The advantage of this is to prevent the cold room panel from spreading temperature due to the large temperature difference between inside and outside, thereby making the cold room more energy-efficient and improving the work efficiency of the cold room. The cold room panel has the characteristics of corrosion resistance, aging resistance, flame retardancy, strong pressure resistance, beautiful appearance, convenient operation, long service life, sanitation, etc
| Density (Kg/m3) | 38-45 |
| Bending Strength (Mpa) | >0.25 |
| Compressive Strength (Mpa) | >0.2 |
| Thermal Conductivity(W/n℃) | <0.022 |
| Water absorption (KG/m3) | <0.30 |
| Self-extinguish time (S) | <7S |
| Dimension | Length(m)*Width(m)*Height(m) |
| Panel | New material polyurethane insulation panel,40~45kg/m3 |
| Width of Panel | 960mm, ect. (customized) |
| Height of Panel | 1 to 12m |
| Panel thickness | 50mm,75mm,100mm, 120mm,150mm,200mm |
| Color steel thickness | 0.326/0.376/0.426/0.476/0.5mm |
| Type of door | Sliding door,swing door,double door |
| Temp. of room | -60℃~+20℃ optional |
| Company Certifications | ISO 9001: 2000 SGS SASO CE |
| Business Type | Manufacturer |

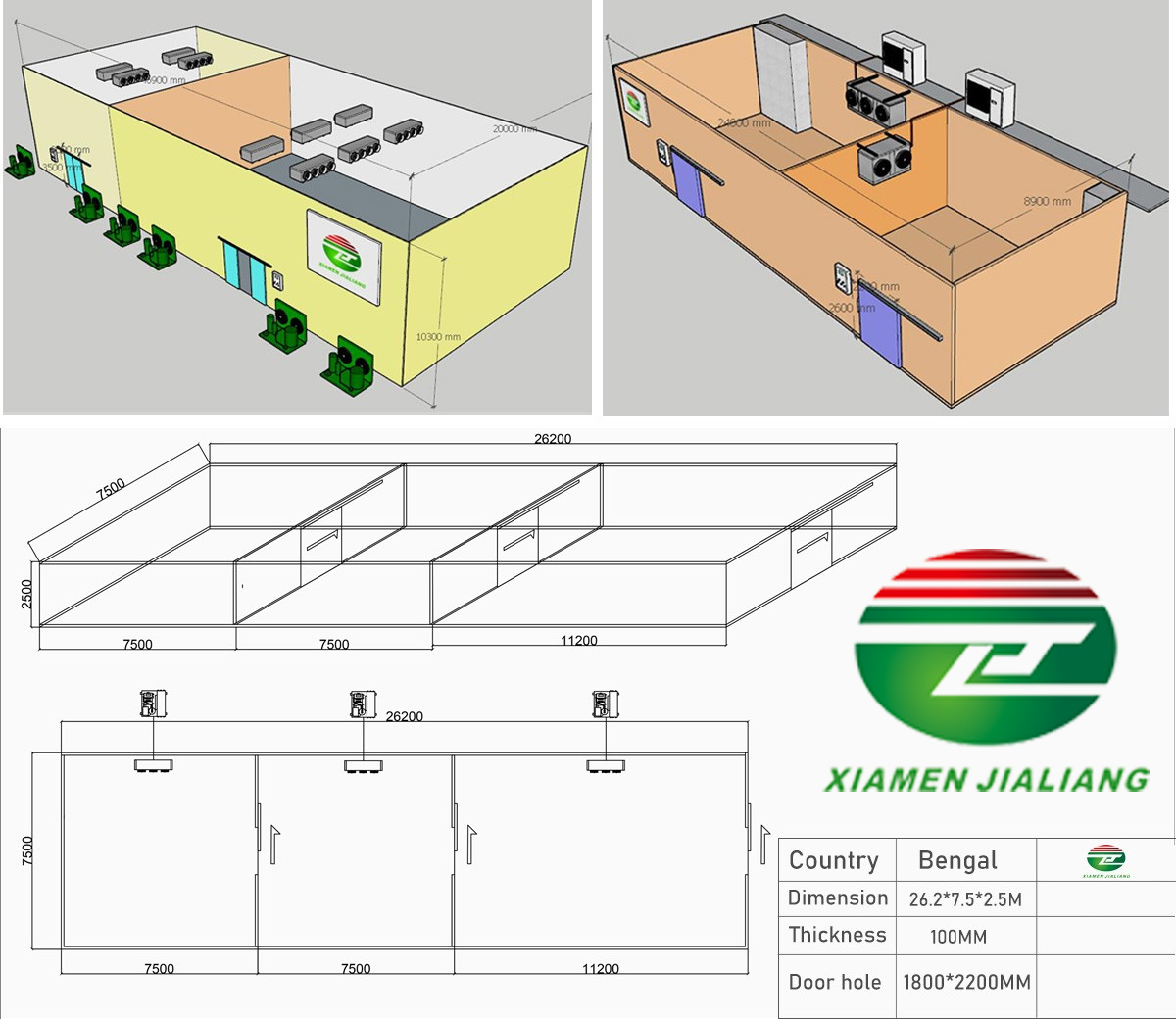

Customized Services
| Panel thickness | Suitable temperature for cold room | Stroge Product |
| 50mm | 5℃~15℃ | Fruit,Vegetable,Flower |
| 100mm | -15℃~5℃ | Tea,Cheese,French fries |
| 120mm | -15℃~-20℃ | Meat,Seafood |
| 150mm | -20℃~-30℃ | Ice cream,Shrimp |
| 200mm | below -30℃ | Frozen food,Tuna |
FAQ
Q1: What is a cold room panel? |
A1: Cold room panel is a kind of insulation material used to construct cold storage and freezing environment, and it is often used in the construction of cold storage, cold room and freezer. |
Q2: What are the main materials of cold room panels? |
A2: Cold room panels mainly use materials such as polyurethane and polystyrene (EPS), which have good thermal insulation properties. |
Q3: How well do cold room panels insulate? |
A3: The cold room panels have high thermal insulation performance, which can effectively isolate indoor and outdoor temperatures and reduce energy consumption. |
Q4: What scenarios are cold room panels suitable for? |
A4: Cold room panels are suitable for food storage, medical storage, cold chain logistics and other scenarios that require strict temperature control. |
